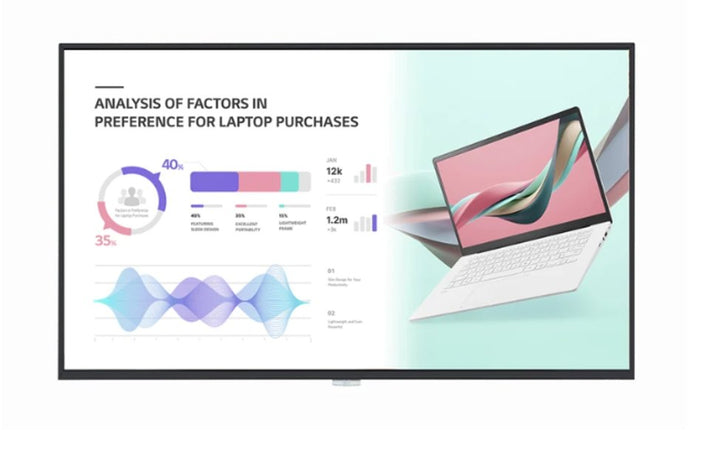

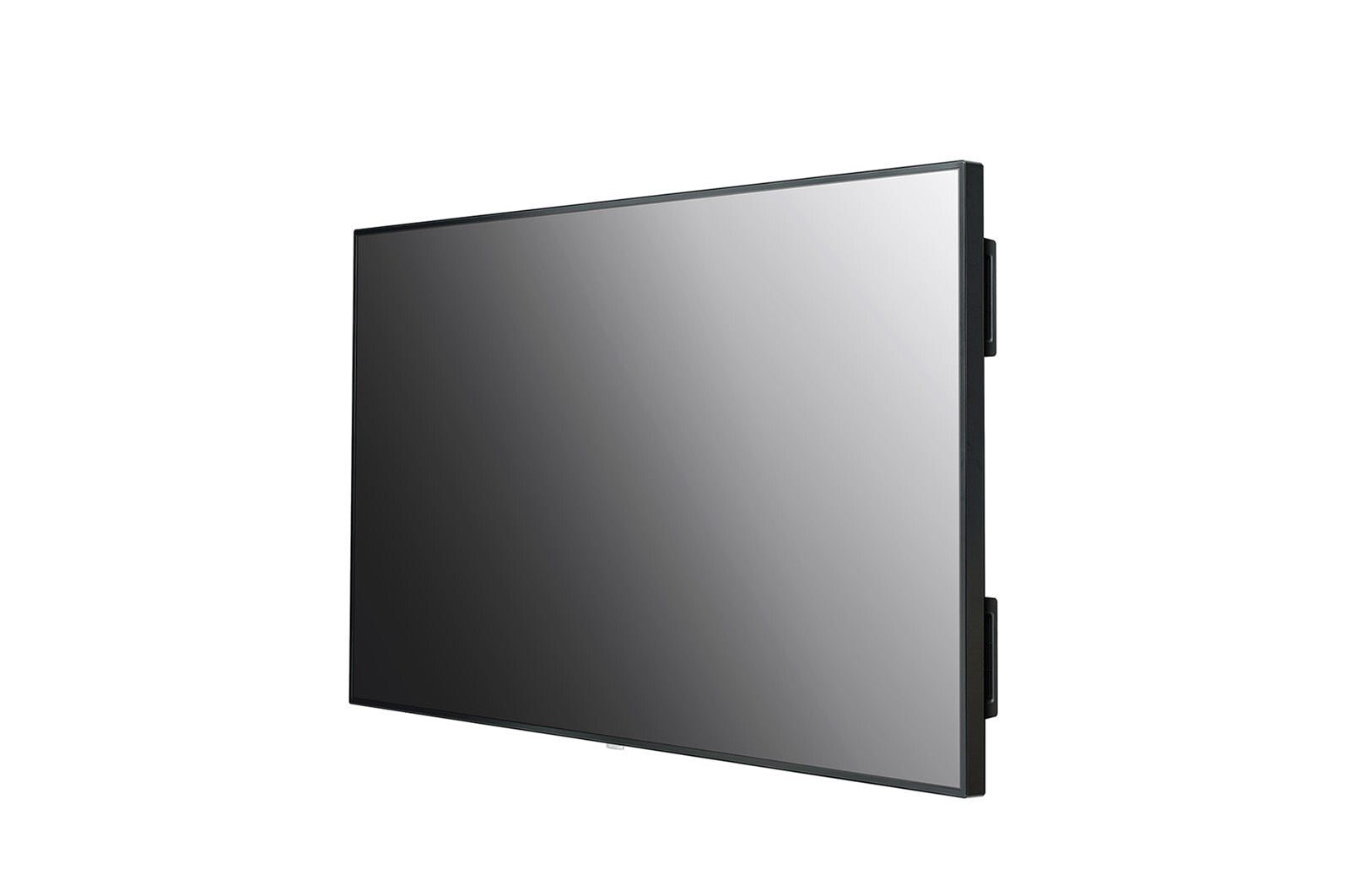

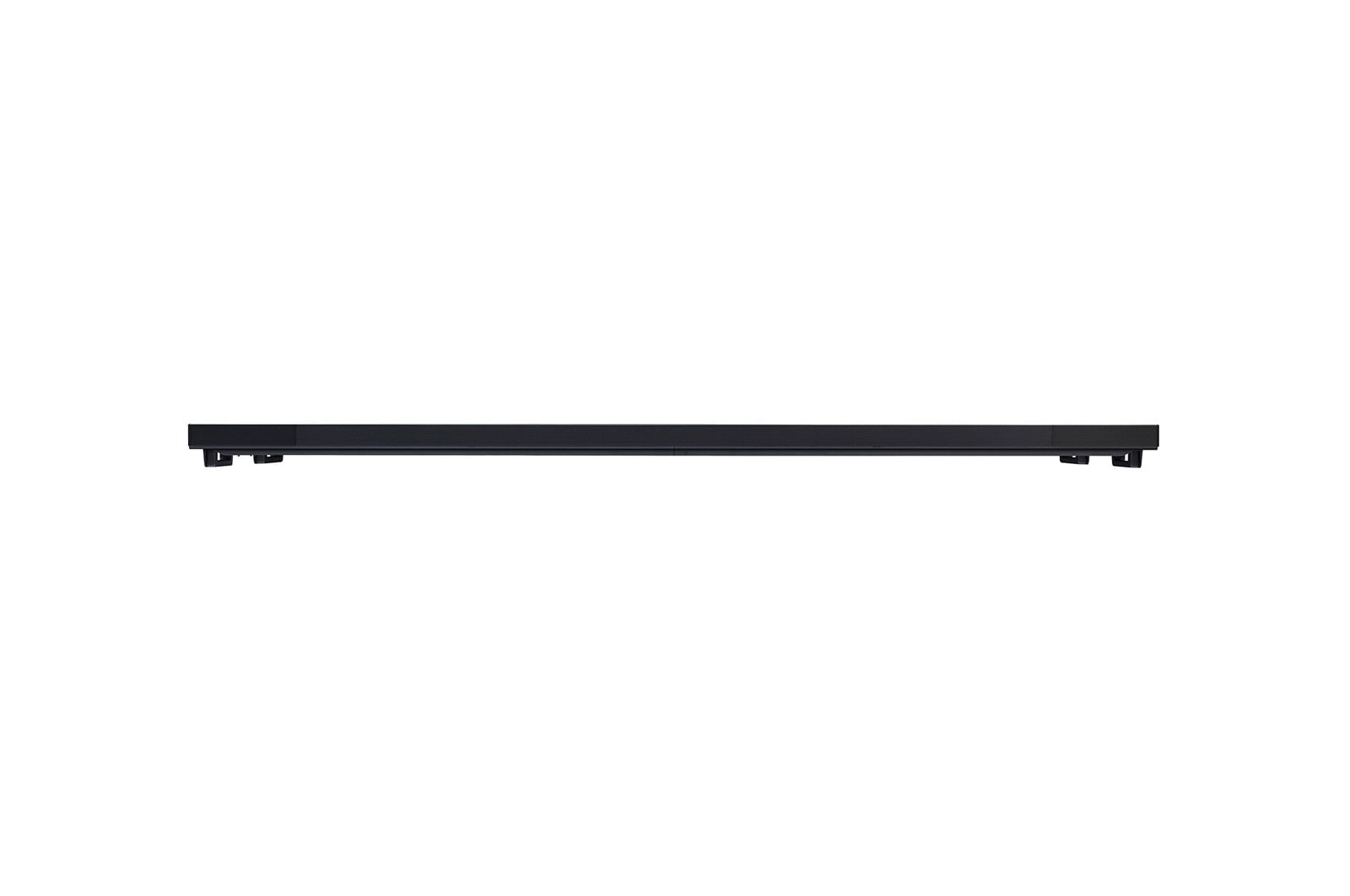

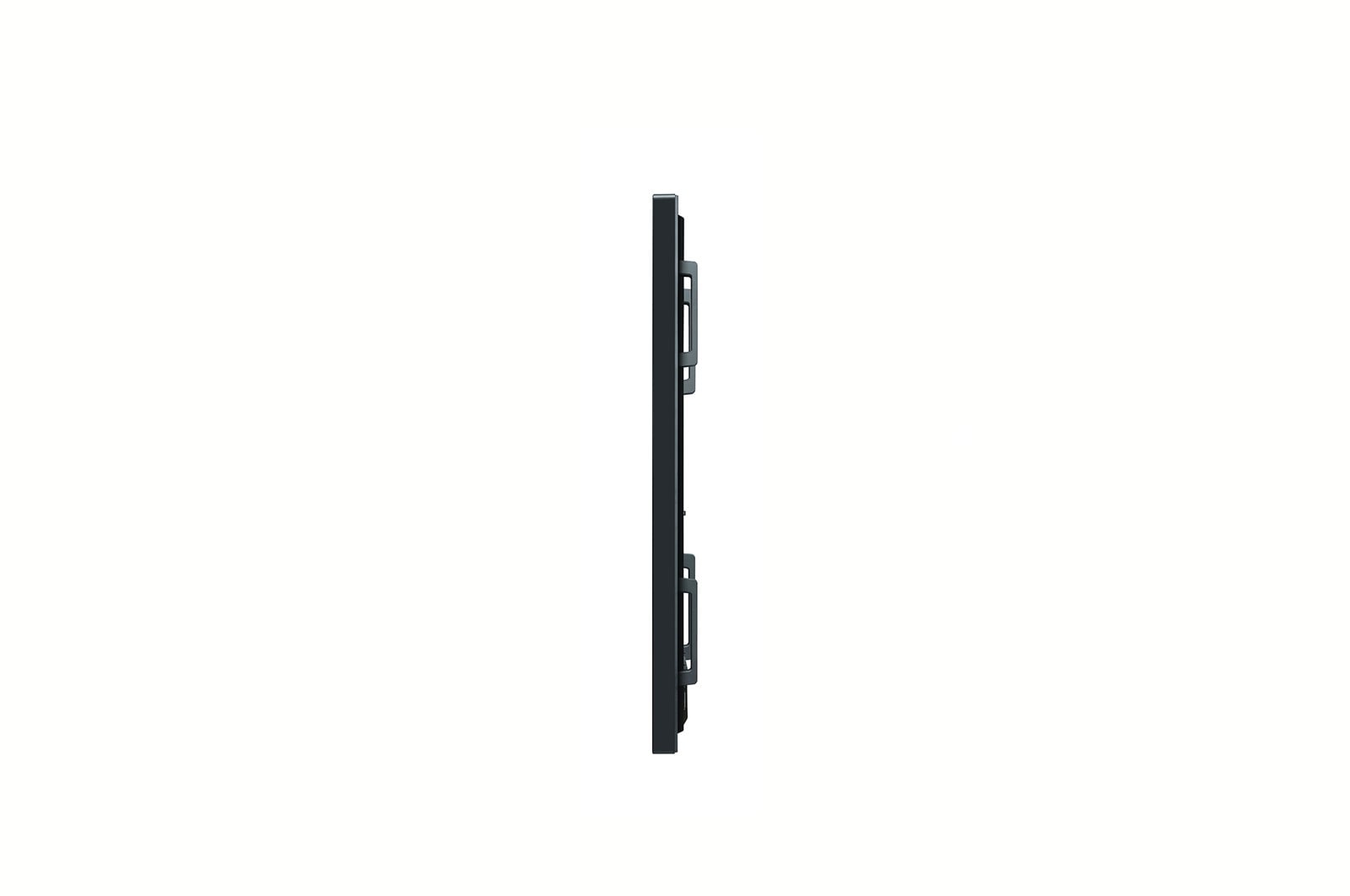

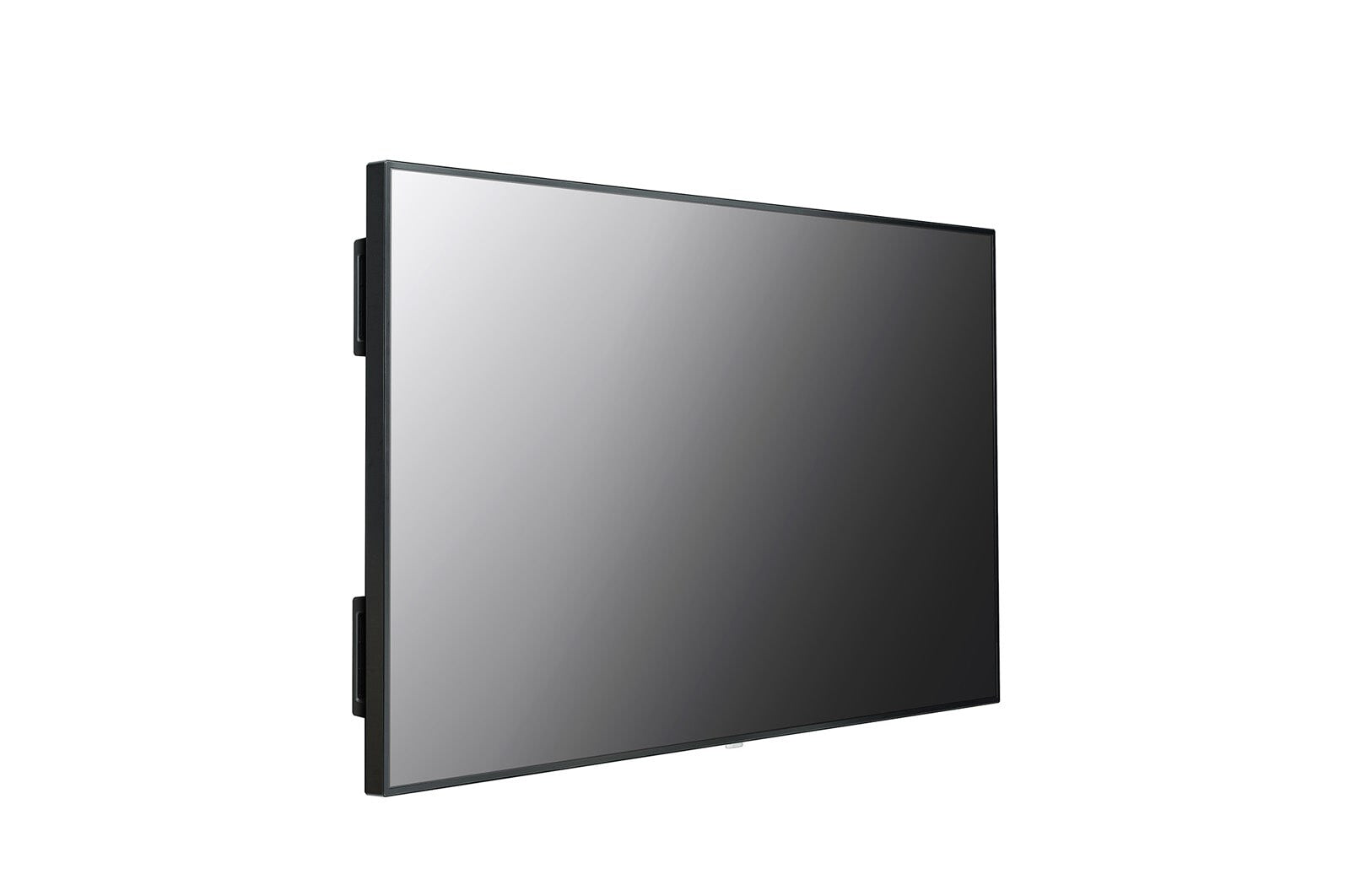

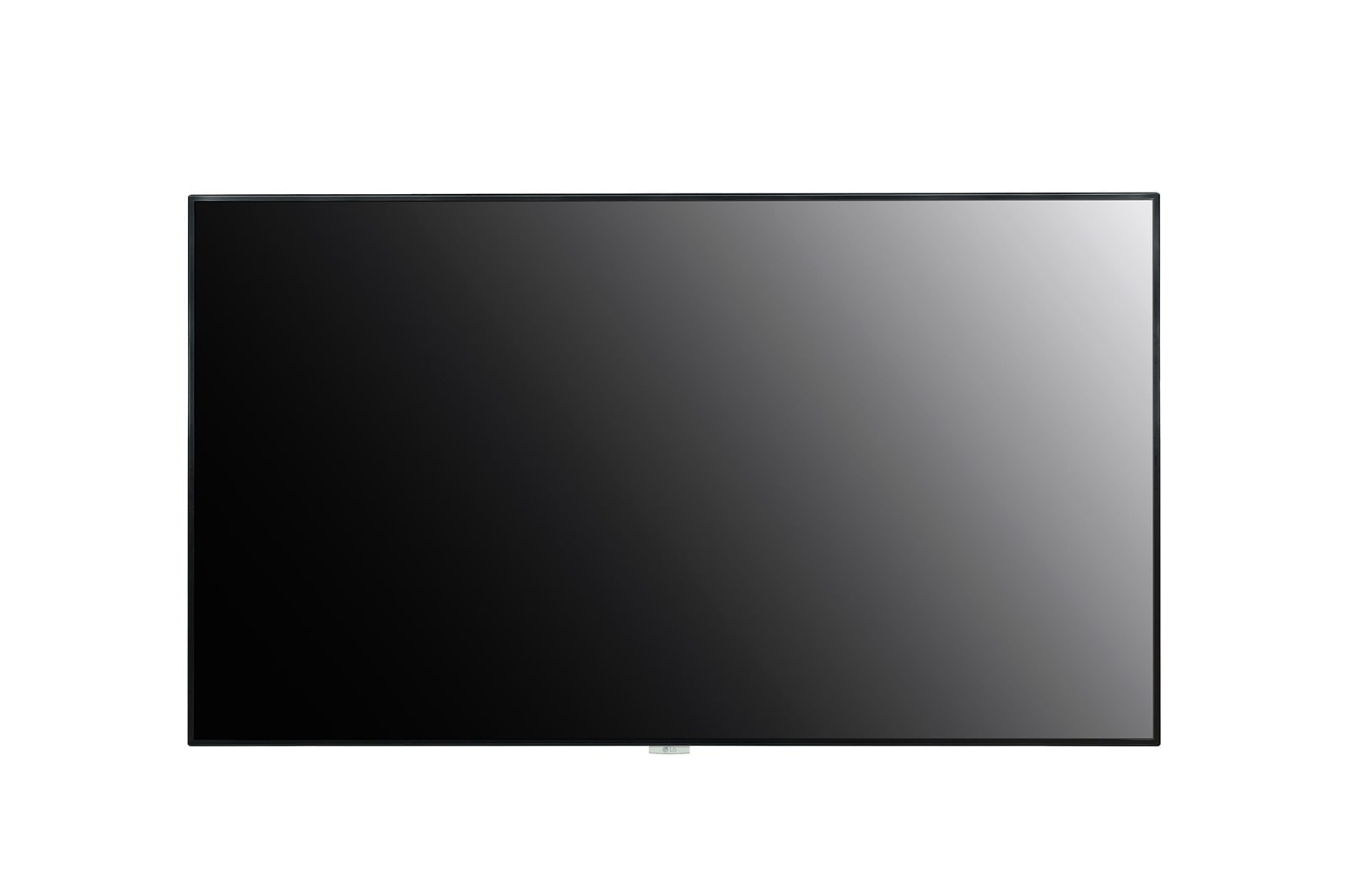

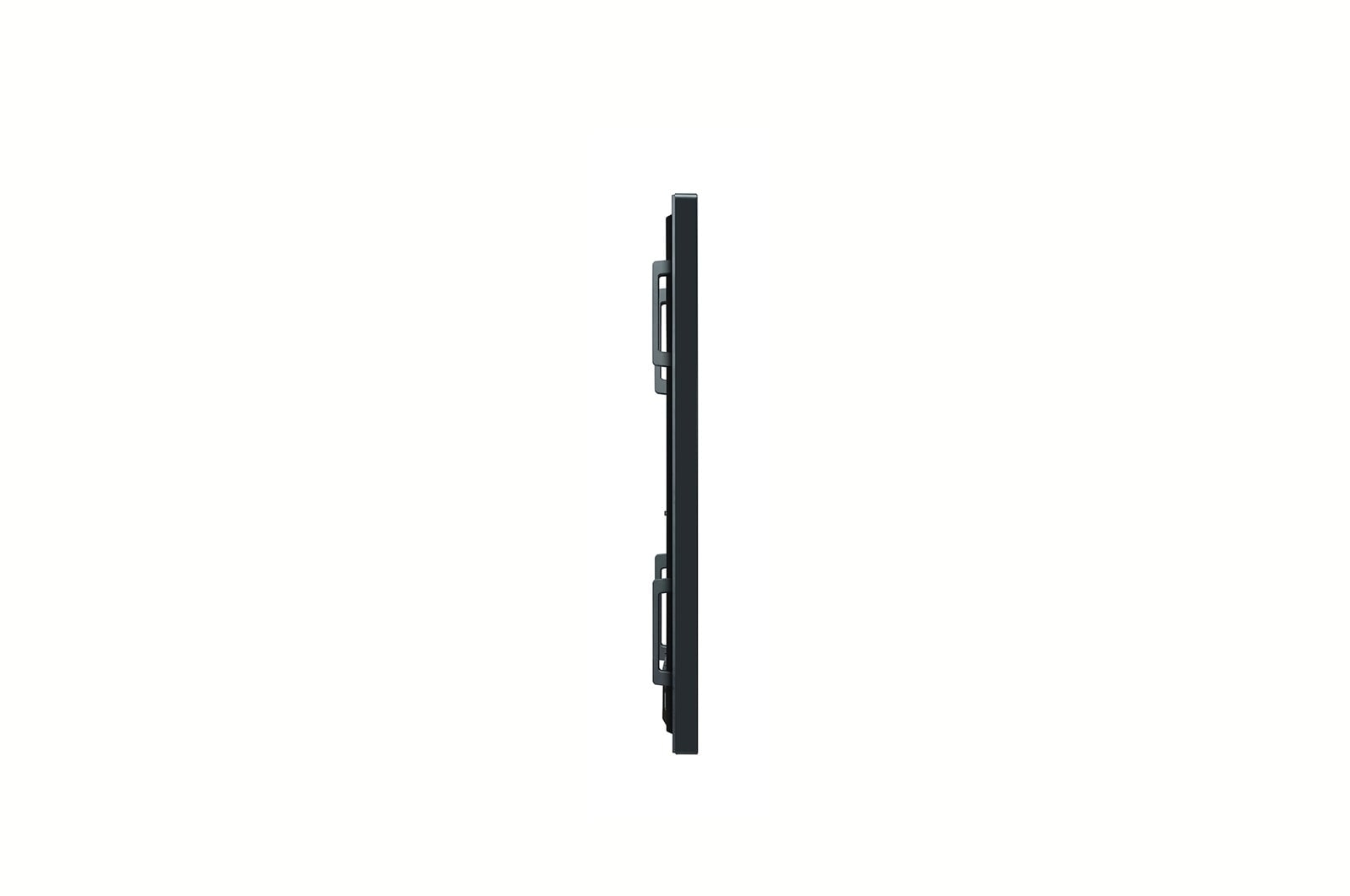

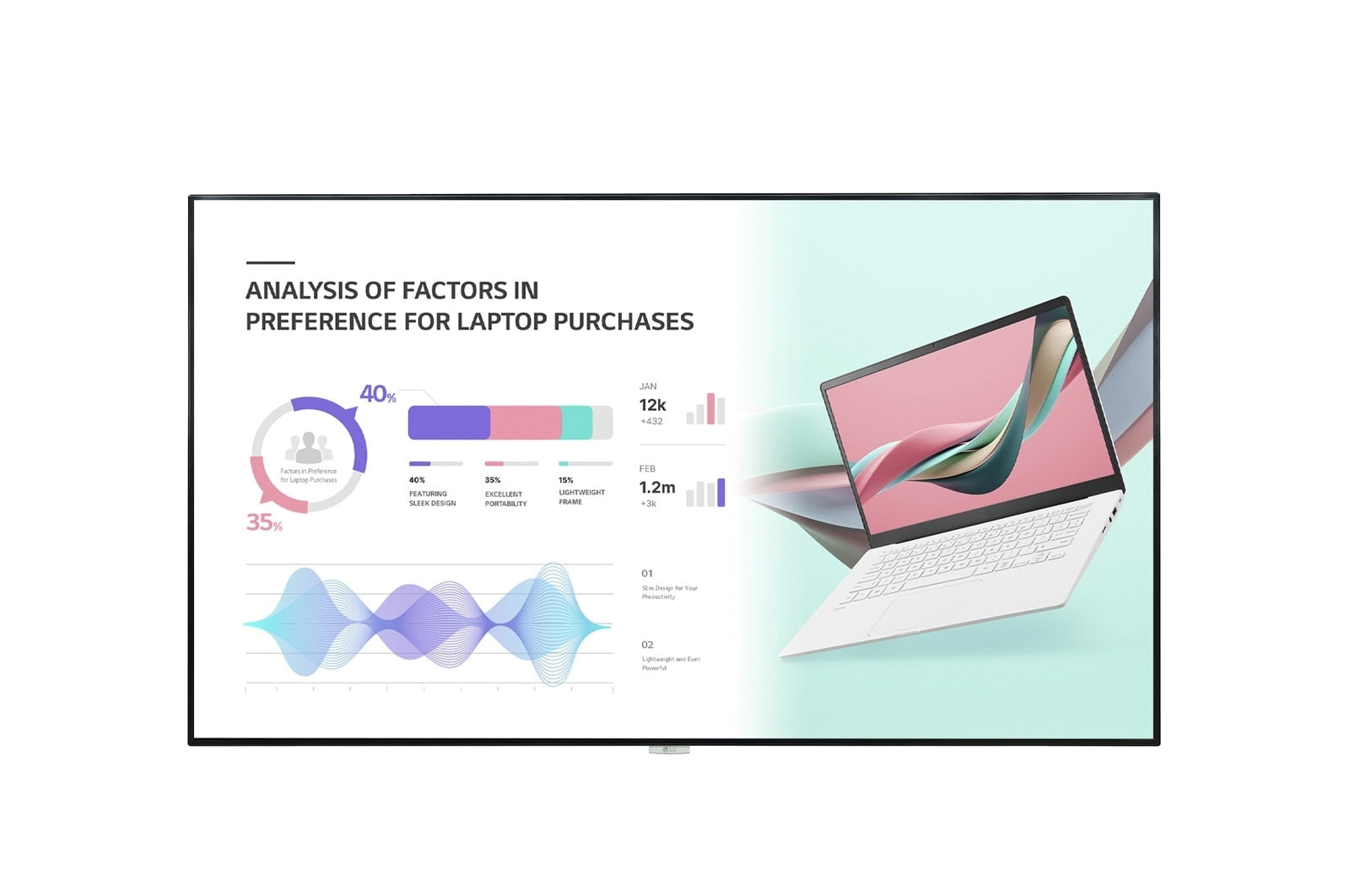

LG 98UH5J-H 98" 4K UHD High Haze Signage Display, 500 nit, 24/7, webOS 6.0
PRODUCT DESCRIPTION
LG 98UH5J-H 98" UHD High Haze Standard Signage with webOS (98UH5J-H) - 3 Years Local Warranty
98" 4K UHD for Large Spaces
The LG 98UH5J-H is a 98-inch UHD standard signage display from LG's UH5J-H series. Its 3,840 x 2,160 IPS panel with direct backlight delivers 500 nit (typ.) brightness, 10-bit colour and 178 x 178 viewing angles, and LG rates it for 24/7 operation.
High Haze Anti-Glare Surface
A 28% haze surface treatment reduces reflections in brightly lit lobbies, showrooms and meeting spaces, keeping content legible at wide angles.
webOS 6.0 with Embedded CMS
LG webOS 6.0 and 16 GB internal memory run content without an external player, with local contents scheduling, Group Manager, USB Plug & Play, Play via URL, gapless playback, Screen Share and Video Tag (4). Wi-Fi is built in.
Flexible Connectivity and Daisy Chain
Three HDMI inputs, DisplayPort and DVI-D are joined by HDMI output for daisy chaining. The display works with LG SuperSign CMS, SuperSign Control+ and LG ConnectedCare, and supports Crestron Connected, SNMP and Wake on LAN.
Need help sizing a signage project? Email sales@sourceit.com.sg with your screen size, viewing distance and content source, and we will recommend the right model.
LG 98UH5J-H Datasheet — Technical Specifications
General
| Product Name | LG 98UH5J-H 98" UHD Standard Signage (High Haze) |
| Part Number | 98UH5J-H |
| Series | UH5J-H UHD Signage |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 98" |
| Panel Technology | IPS |
| Backlight | Direct |
| Native Resolution | 3,840 x 2,160 (UHD), 16:9, 60 Hz |
| Brightness | 500 nit (typ.) |
| Contrast Ratio | 1,200:1; dynamic 1,000,000:1 |
| Colour Gamut | NTSC 72% |
| Colour Depth | 10 bit, 1.07 billion colours |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 28% |
| Panel Life | 50,000 hours (typ.) |
| Operation Hours | 24/7 |
| Portrait / Landscape | Yes / Yes |
Connectivity
| Inputs | HDMI x 3 (HDMI1/HDMI2: HDCP 2.2/1.4, HDMI3: HDCP 1.4), DisplayPort x 1 (HDCP 2.2/1.3), DVI-D (HDCP 1.4), audio in, RS-232C in (4-pin phone jack), RJ45 (LAN), IR in, USB 2.0 Type-A x 1 |
| Outputs | HDMI out, audio out, RS-232C out (4-pin phone jack) |
| Daisy Chain | Input: HDMI, DP / output: HDMI |
| Wireless | Wi-Fi (built-in) |
| Speakers | 10 W x 2 (built-in) |
Mechanical
| Bezel | Black, 14.9 mm (even) |
| Dimensions (W x H x D) | 2,191.8 x 1,246.8 x 86.1 mm (without handles and LG logo) |
| Weight (Head) | 66 kg |
| Carton Dimensions (W x H x D) | 2,342 x 1,386 x 420 mm |
| Packed Weight | 99 kg |
| Handle | Yes |
| VESA Mount | 800 x 400 mm |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 420 W typ. / 570 W max.; Smart Energy Saving (~70%) 294 W; DPM 0.5 W; power off 0.5 W (typ./max./SES figures marked TBD by LG) |
| Heat Dissipation | 1,433 BTU/hr (typ.), 1,945 BTU/hr (max.) (LG: TBD) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80% |
| Conformal Coating (Power Board) | Yes |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class A / CE / KC |
| ErP / Energy Star | Yes (New ErP) / No (TBD) |
Compatibility & Software Support
Platform
LG webOS 6.0 with 16 GB internal memory (eMMC). Features listed by LG include embedded CMS (local contents scheduling, Group Manager), USB Plug & Play, Fail Over, booting logo and no-signal image, RS-232C and local network sync, PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, screen and external-input rotation, gapless playback, Tile Mode (max. 15 x 15), setting data cloning, ISM method, Auto Set ID, status mailing, Beacon, HDMI-CEC, webRTC and Pro:Idiom. Sensors listed by LG: temperature, auto brightness and acceleration (gyro). LG states security update support for 5 years from product launch.
LG Software
| SuperSign CMS | Yes |
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| SuperSign Media Editor | Yes |
| SuperSign Cloud | No |
| LG ConnectedCare | Yes |
| Mobile CMS | Yes |
Control & Integration
Crestron Connected, SNMP, Control Manager, Wake on LAN, PM Mode and Smart Energy Saving. OPS slot: not supported.
Package Contents & UH5J-H Series Ordering Information
In the Box
Remote controller (with 2 batteries), power cord, quick setup guide, regulation book, phone-to-RS232C gender.
Optional Accessories (LG)
LG does not list optional accessories for this model. Wall brackets and installation are not included in the price.
Related Large-Format LG UHD Signage on SourceIT
| Size | Part No. |
| 86" | 86UH5Q-E |
| 86" | 86UH5N-M |
| 98" (this listing) | 98UH5J-H |
| 110" | 110UH5Q-H |
Datasheet & Downloads
| LG product page (Singapore) | 98UH5J-H on lg.com/sg |
| LG spec sheet and datasheet (PDF) | 98UH5J-H on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 98UH5J-H.
Frequently Asked Questions — LG 98UH5J-H
Can it run content without a media player?
Yes. webOS 6.0 with 16 GB internal memory and an embedded CMS plays scheduled content from internal memory, USB or a URL, and works with LG SuperSign CMS.
Can it be mounted in portrait?
Yes. LG lists both portrait and landscape orientation for the 98UH5J-H.
Is it suitable for 24/7 use?
Yes. LG rates it for 24/7 operation with a panel life of 50,000 hours (typ.).
Is a wall bracket included?
No. Wall mounting brackets and installation are quoted separately. The VESA pattern is 800 x 400 mm and the head weighs 66 kg, so a heavy-duty mount and professional installation are required.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
