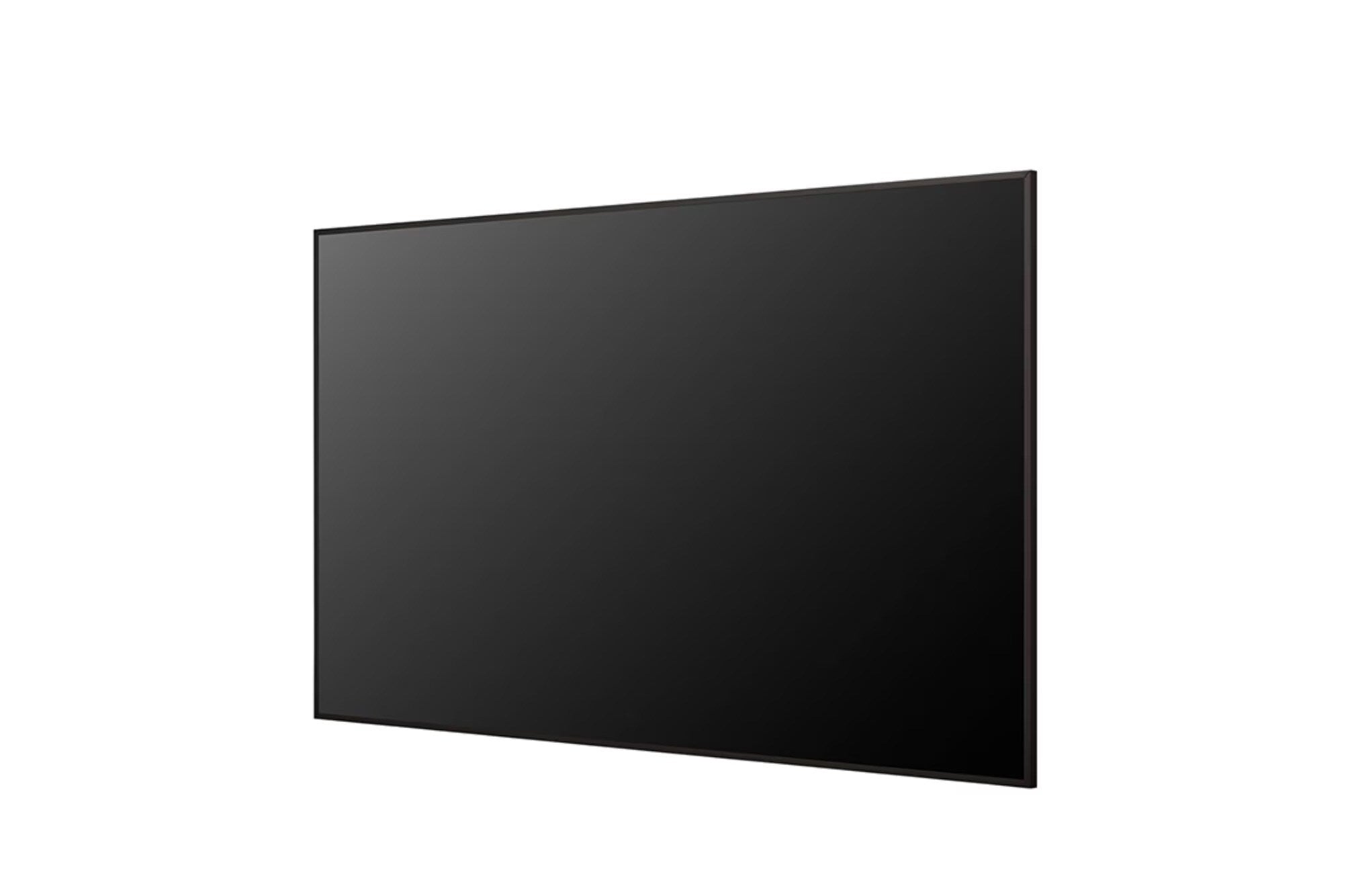

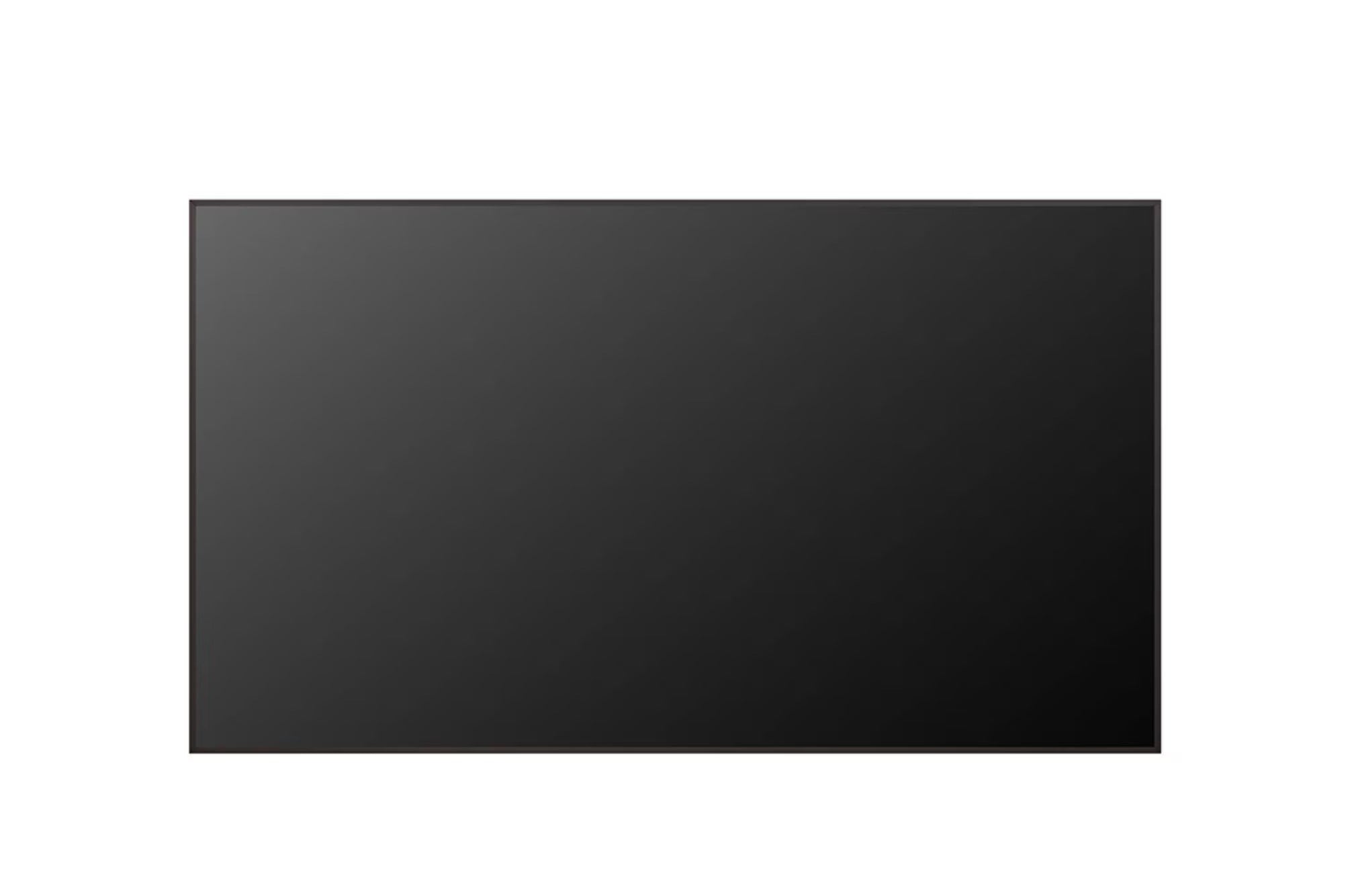

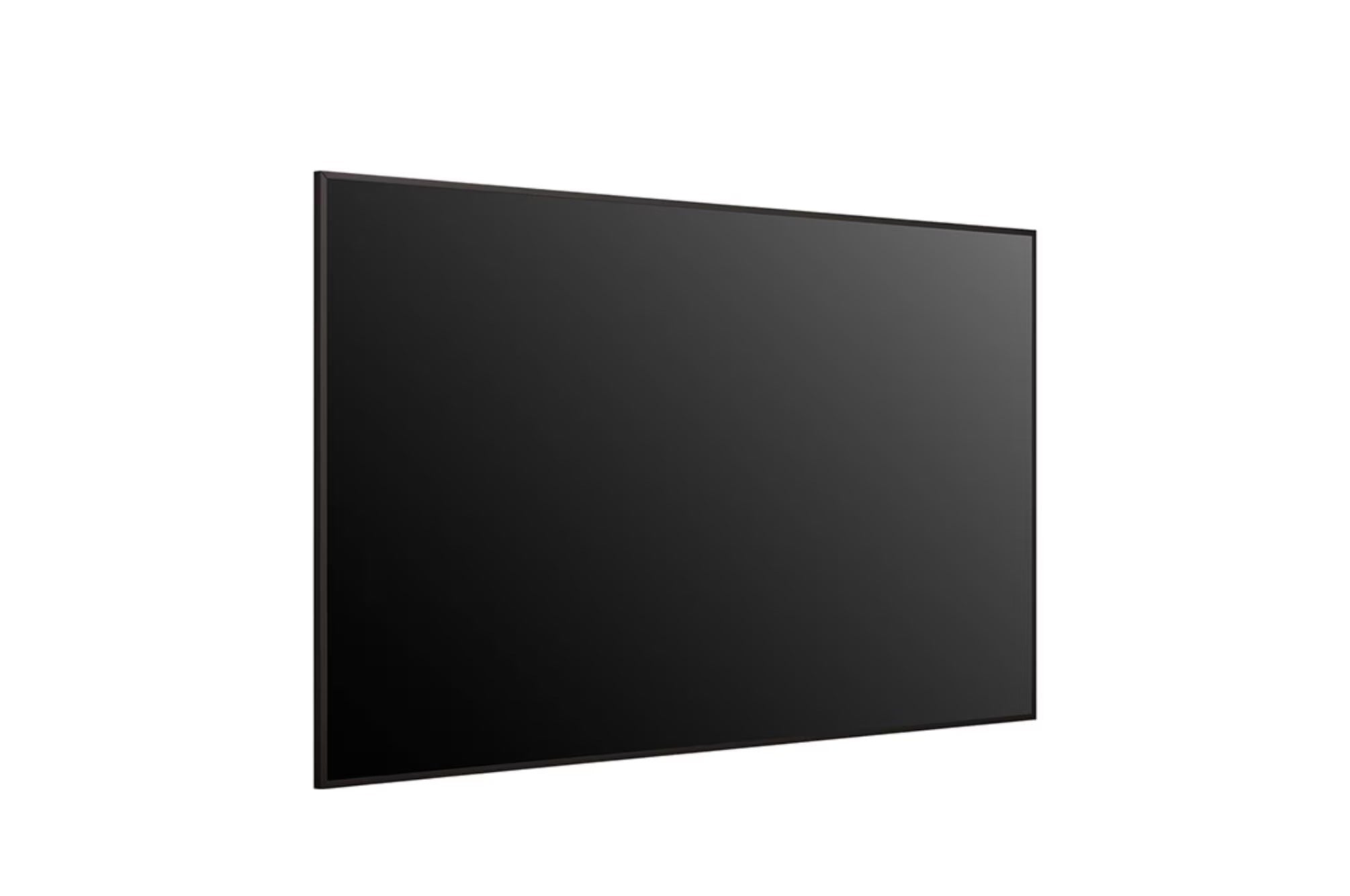

LG 86UH5Q-E 86" 4K UHD Signage Display, 500 nit, 24/7, webOS 8.0
PRODUCT DESCRIPTION
LG 86UH5Q-E 86" 4K UHD Standard Signage with webOS (86UH5Q-E) - 3 Years Local Warranty
Bright 4K UHD Signage for 24/7 Commercial Use

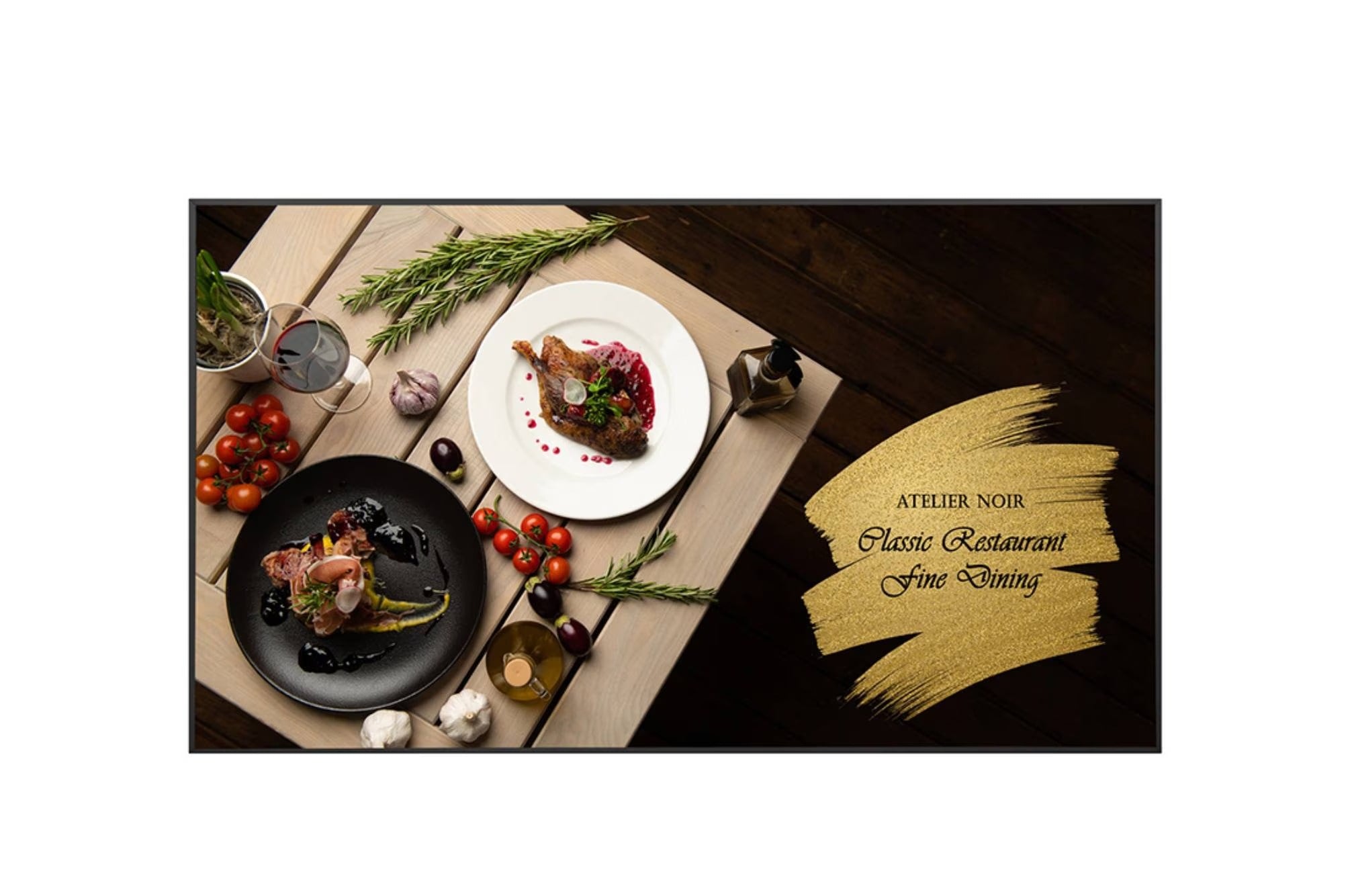

The LG 86UH5Q-E is the 86-inch member of LG's UH5Q-E UHD standard signage series. It pairs a 3,840 x 2,160 ADS panel with 500 nit (typ.) brightness and a 25% haze anti-glare surface, and LG rates it for 24/7 operation with a minimum panel life of 50,000 hours — suited to retail windows, menu boards, lobbies and corporate communications.
Slim, Even Bezel for Clean Installations

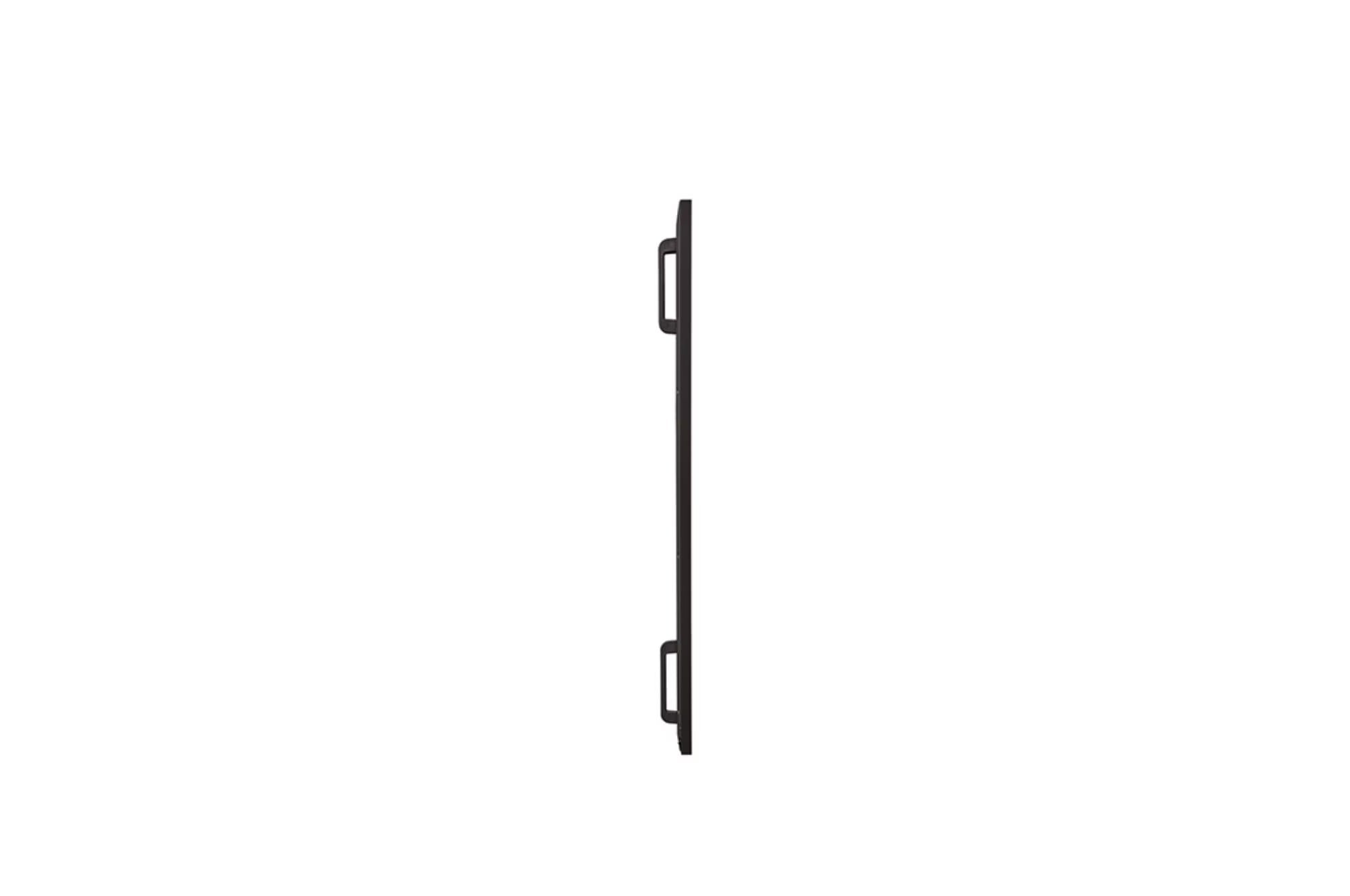

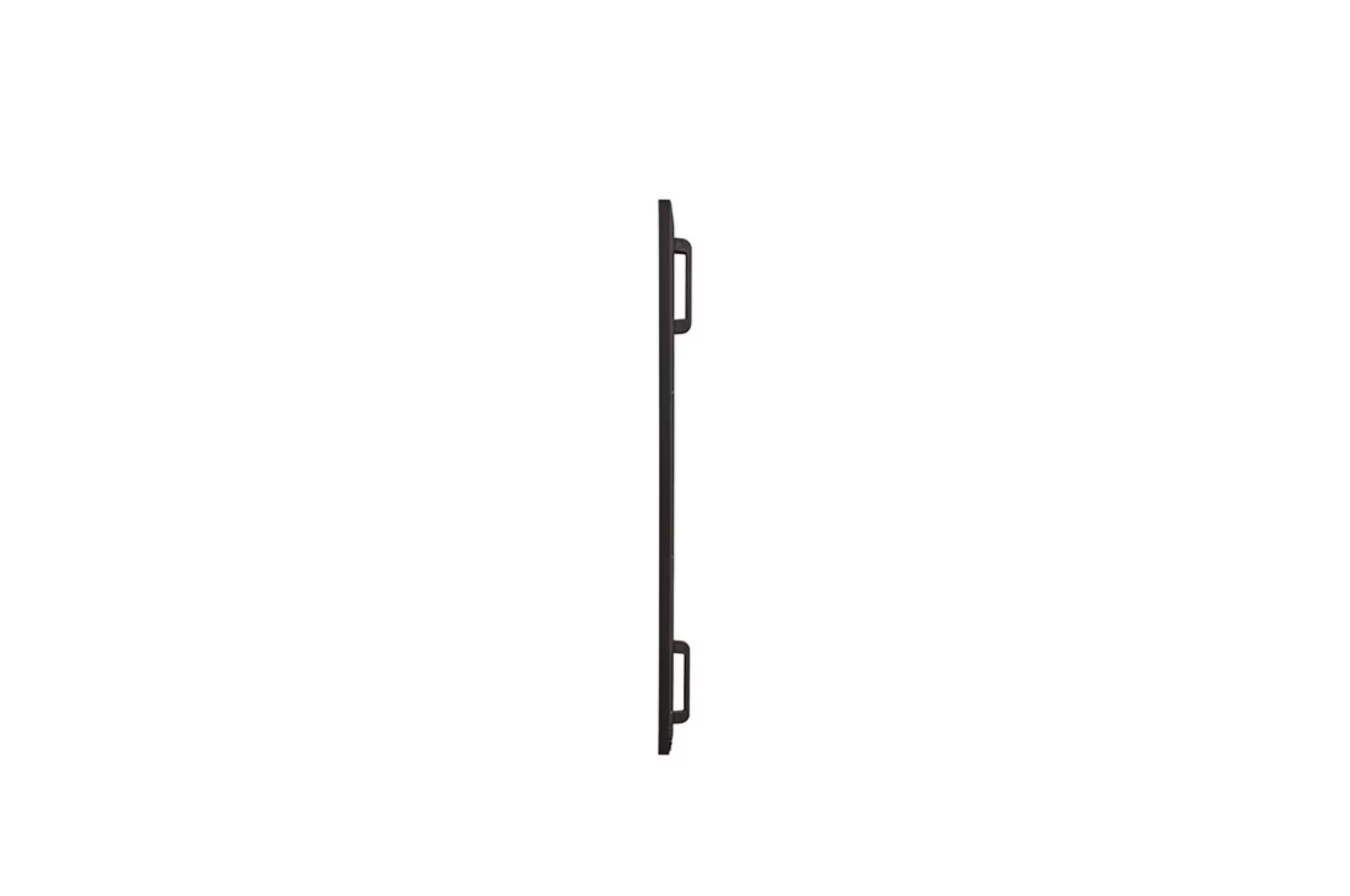

A 13.4 mm even bezel and a 29.7 mm depth keep the display tidy on the wall, and LG supports both landscape and portrait mounting — carry handles are built in for this larger size. Tile Mode supports multi-screen layouts of up to 15 x 15 displays.
webOS 8.0 Built In — No External Player Needed
LG webOS 8.0 runs content directly from 16 GB internal memory or USB Plug & Play, with local scheduling, Play via URL, gapless playback, Screen Share and Video Tag. Built-in Wi-Fi and Bluetooth, plus temperature and gyro sensors, are included.
Durable and Remotely Managed
LG lists IP5X dust protection and partial conformal coating on the power board. The display is compatible with LG SuperSign CMS, SuperSign Cloud, SuperSign Control+ and LG ConnectedCare for fleet monitoring, and supports Crestron Connected, SNMP and Wake on LAN.
Need help sizing a signage project? Email sales@sourceit.com.sg with your screen size, viewing distance and content source, and we will recommend the right model.
LG 86UH5Q-E Datasheet — Technical Specifications
General
| Product Name | LG 86UH5Q-E 86" UHD Standard Signage |
| Part Number | 86UH5Q-E |
| Series | UH5Q-E UHD Signage |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 86" |
| Panel Technology | ADS |
| Backlight | Edge |
| Native Resolution | 3,840 x 2,160 (4K UHD), 16:9, 60 Hz |
| Brightness | 500 nit (typ.) |
| Contrast Ratio | 1,200:1 (typ.); dynamic 1,000,000:1 |
| Colour Gamut | BT709 95% |
| Colour Depth | 1.07G (8 bits + FRC) |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 25% (typ.) |
| Panel Life (Min.) | 50,000 hours |
| Operation Hours | 24/7 |
| Portrait / Landscape | Yes / Yes |
Connectivity
| Inputs | HDMI x 3 (3840 x 2160 @ 60 Hz, HDCP 2.2/1.4), DisplayPort (3840 x 2160 @ 60 Hz, HDCP 2.2/1.4), RS-232C (4-pin phone jack), RJ45 (LAN), IR, USB 2.0 Type-A x 2 |
| Outputs | Audio, RS-232C (4-pin phone jack); IR out: no (IR daisy chain supported via RS-232C in/out) |
| Wireless | Wi-Fi and Bluetooth (built-in) |
| Speakers | 10 W x 2 |
Mechanical
| Bezel | Black, 13.4 mm (even) |
| Dimensions (W x H x D) | 1,928.8 x 1,099.8 x 29.7 mm (without IR receiver and handles) |
| Weight (Head) | 53.0 kg |
| Carton Dimensions (W x H x D) | 2,100 x 1,250 x 253 mm |
| Packed Weight | 66.7 kg |
| Handle | Yes |
| VESA Mount | 600 x 400 mm |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 170 W typ. / 280 W max.; Smart Energy Saving (70%) 120 W; DPM 0.5 W; power off 0.5 W |
| Heat Dissipation | 581 BTU/hr (typ.), 957 BTU/hr (max.) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80% |
| IP Rating | IP5X |
| Conformal Coating (Power Board) | Yes (partial space coating) |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class B / CE / KC |
| ErP / Energy Star | No / Yes |
Compatibility & Software Support
Platform
LG webOS 8.0 with 16 GB internal memory. Features listed by LG include local contents scheduling, Group Manager, USB Plug & Play, Fail Over, booting logo and no-signal image, RS-232C and local network sync, PIP, PBP (4, one external input only), Screen Share, Video Tag (4, one external input only), Play via URL, screen and external-input rotation, gapless playback, Tile Mode (max. 15 x 15), setting data cloning, ISM method, Auto Set ID, status mailing, Beacon, HDMI-CEC, webRTC and Pro:Idiom. Sensors listed by LG: temperature sensor, acceleration (gyro) sensor and auto brightness sensor (via IR/light sensor receiver).
LG Software
| SuperSign CMS | Yes |
| SuperSign Cloud | Yes |
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| LG ConnectedCare | Yes |
| Mobile CMS | Yes |
Control & Integration
Crestron Connected, SNMP, Control Manager, Wake on LAN, PM Mode and Smart Energy Saving. OPS slot: not supported.
Package Contents & UH5Q-E Series Ordering Information
In the Box
Remote controller (with 2 batteries), power cord, quick setup guide, regulation book, phone-to-RS232C gender, cable holders (6), 7-pin cable holder.
Optional Accessories (LG)
Normal wall mount LSW640A/B. Wall brackets and installation are not included in the price.
UH5Q-E Series Models
| Size | Part No. |
| 43" | 43UH5Q-E |
| 49" | 49UH5Q-E |
| 55" | 55UH5Q-E |
| 65" | 65UH5Q-E |
| 75" | 75UH5Q-E |
| 86" (this listing) | 86UH5Q-E |
Datasheet & Downloads
| LG product page (Singapore) | 86UH5Q-E on lg.com/sg |
| LG spec sheet and datasheet (PDF) | 86UH5Q-E on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 86UH5Q-E.
Frequently Asked Questions — LG 86UH5Q-E
Can it run content without a media player?
Yes. webOS 8.0 plays content from its 16 GB internal memory, USB Plug & Play or a URL, and works with LG SuperSign CMS and SuperSign Cloud for scheduling.
Can it be mounted in portrait?
Yes. LG lists both portrait and landscape orientation for the 86UH5Q-E.
Is it suitable for 24/7 use?
Yes. LG rates it for 24/7 operation with a minimum panel life of 50,000 hours.
Is a wall bracket included?
No. Wall mounting brackets and installation are quoted separately; LG's optional mount is LSW640A/B, and the VESA pattern is 600 x 400 mm.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
