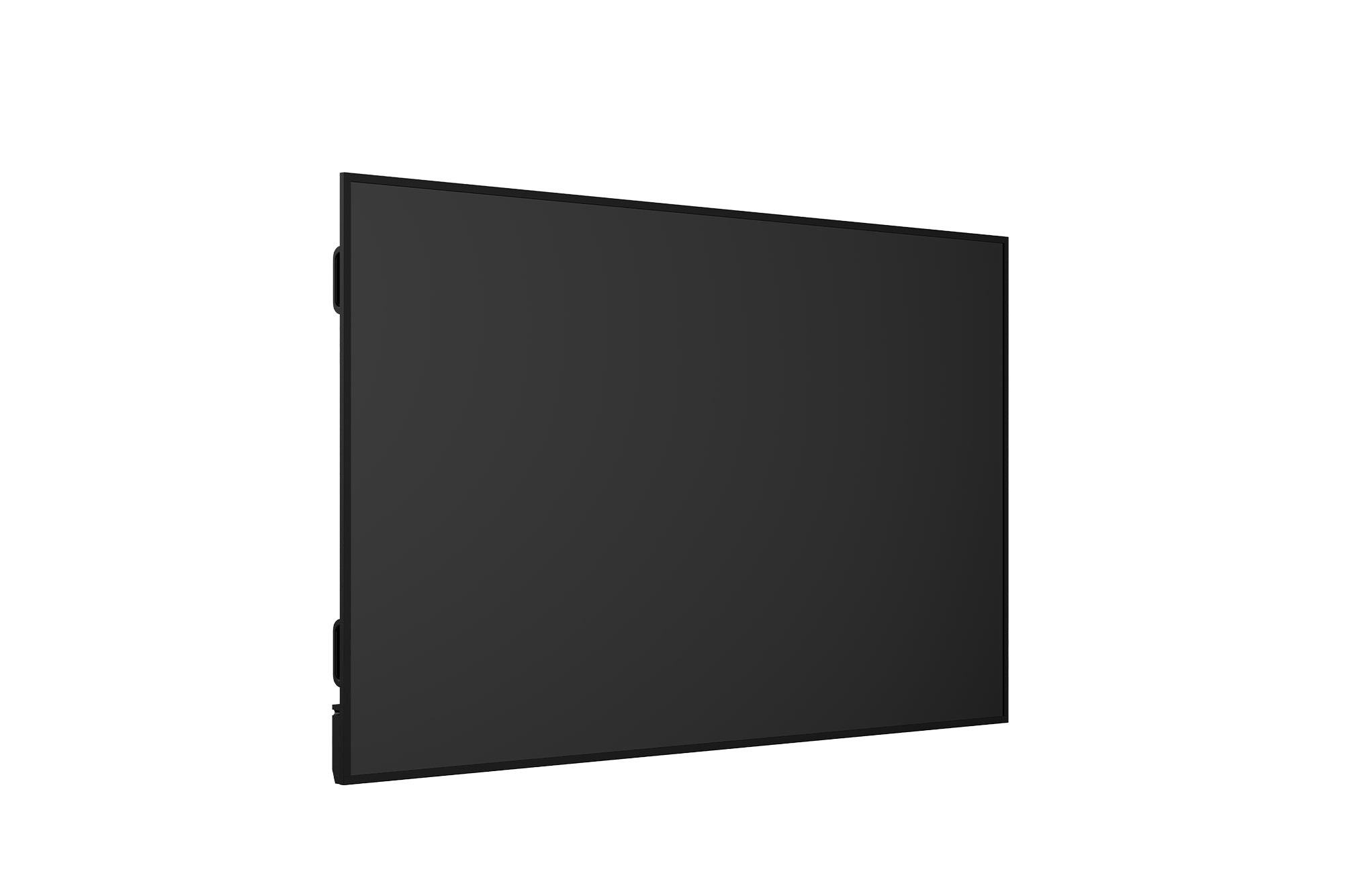

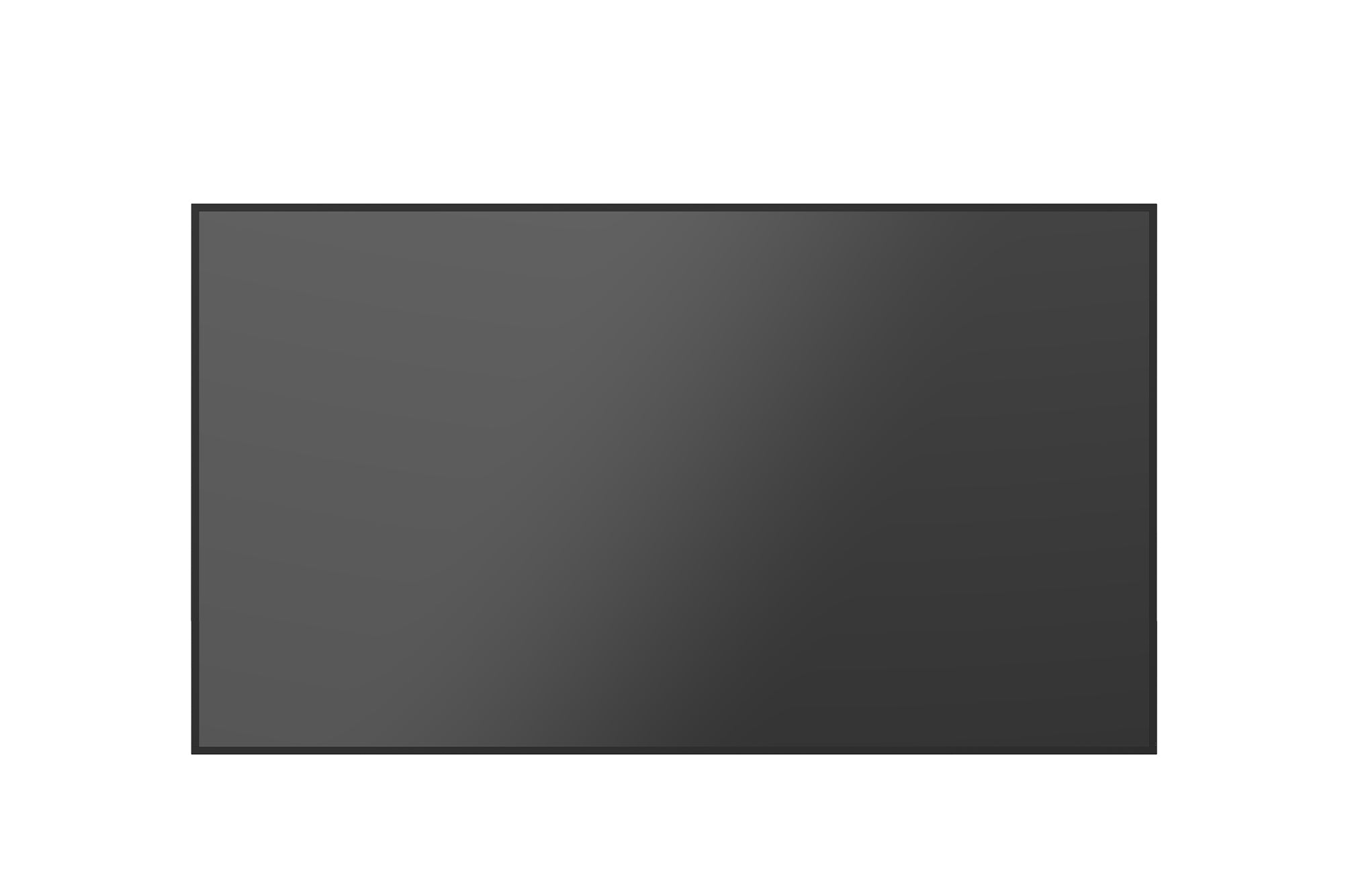

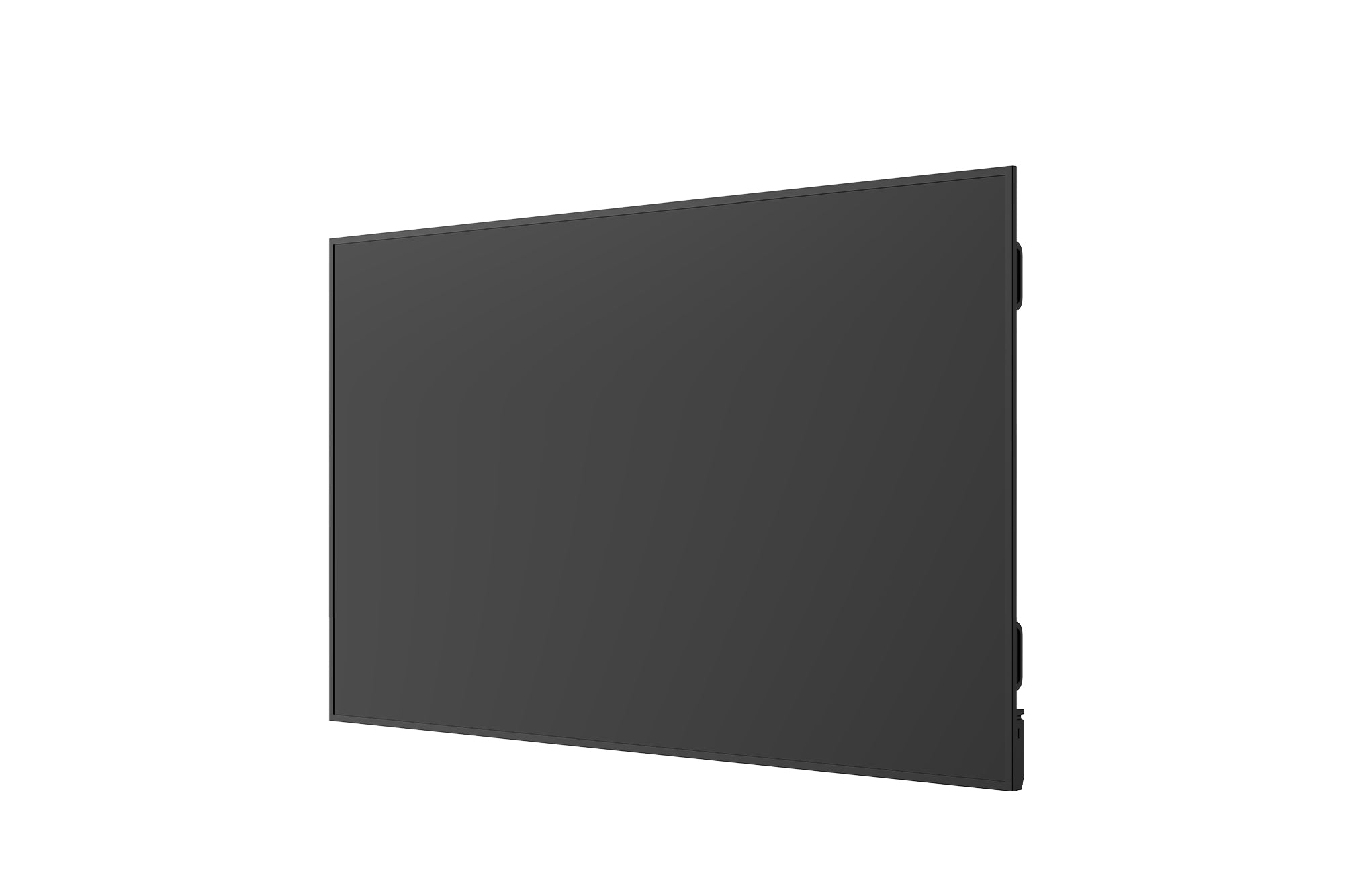

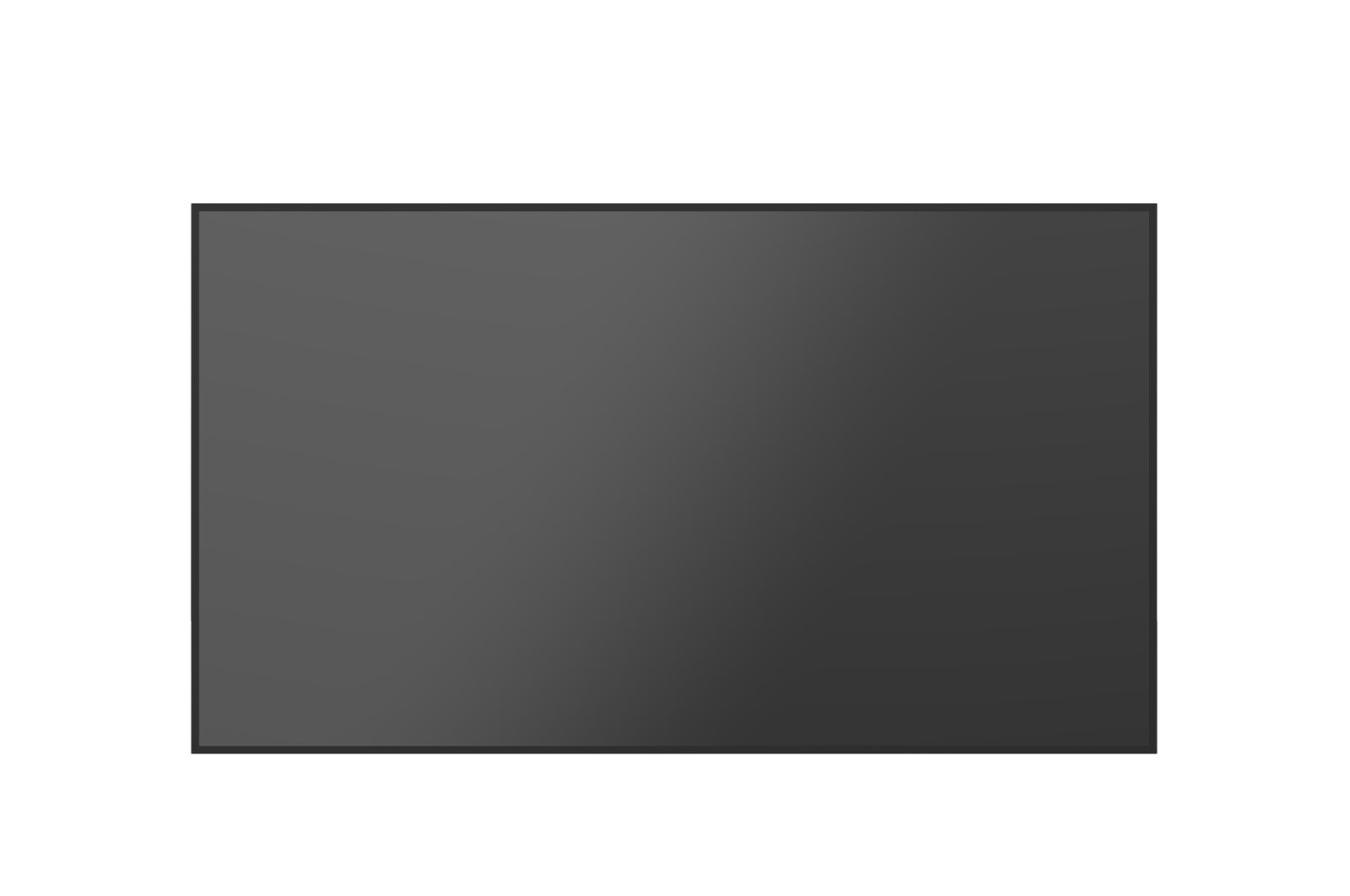

LG 110UH5Q-H 110" 4K UHD Signage Display, 500 nit, 120 Hz, webOS 6.1
PRODUCT DESCRIPTION
LG 110UH5Q-H 110" UHD Standard Signage with webOS (110UH5Q-H) - 3 Years Local Warranty
110" 4K UHD for Maximum Impact
The LG 110UH5Q-H is a 110-inch UHD standard signage display with a 3,840 x 2,160 ADS panel, direct backlight, 120 Hz refresh rate and 500 nit (typ.) brightness. LG rates it for 24/7 operation with a minimum panel life of 50,000 hours — for atriums, lobbies, auditoriums and large meeting spaces.
Anti-Glare Surface and 10-Bit Colour
A 25% haze surface treatment reduces reflections, while 10-bit colour depth (1.07 billion colours) and BT709 95% colour gamut keep images smooth on the large canvas.
webOS 6.1 Built In
LG webOS 6.1 plays content without an external media player, with local contents scheduling, Group Manager, USB Plug & Play, Play via URL, gapless playback and Screen Share. Wi-Fi and Bluetooth are built in, and HDMI2 supports ARC.
Remotely Managed
LG lists conformal coating on the power board and compatibility with LG SuperSign CMS, SuperSign Cloud, SuperSign Control+ and LG ConnectedCare, plus Crestron Connected, SNMP and Wake on LAN support.
Need help sizing a signage project? Email sales@sourceit.com.sg with your screen size, viewing distance and content source, and we will recommend the right model.
LG 110UH5Q-H Datasheet — Technical Specifications
General
| Product Name | LG 110UH5Q-H 110" UHD Standard Signage |
| Part Number | 110UH5Q-H |
| Series | UH5Q-H UHD Signage |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 110" |
| Panel Technology | ADS |
| Backlight | Direct |
| Native Resolution | 3,840 x 2,160 (4K UHD), 16:9 |
| Refresh Rate | 120 Hz |
| Brightness | 500 nit (typ.) |
| Contrast Ratio | 1,200:1; dynamic 1,000,000:1 (min.) |
| Colour Gamut | BT709 95%, NTSC 68% (CIE1931) |
| Colour Depth | 10 bit, 1.07 billion colours |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 25% (typ.) |
| Panel Life (Min.) | 50,000 hours |
| Operation Hours | 24/7 |
| Portrait / Landscape | Yes / Yes |
Connectivity
| Inputs | HDMI x 3 (HDCP 2.2/1.4, ARC on HDMI2), RS-232C (4-pin phone jack), RJ45 (LAN), USB 2.0 Type-A x 2 |
| Outputs | Audio, RS-232C (4-pin phone jack) |
| Wireless | Wi-Fi and Bluetooth (built-in) |
| Speakers | 10 W x 2 (6 Ω) |
Mechanical
| Bezel | Black, 18 mm (even) |

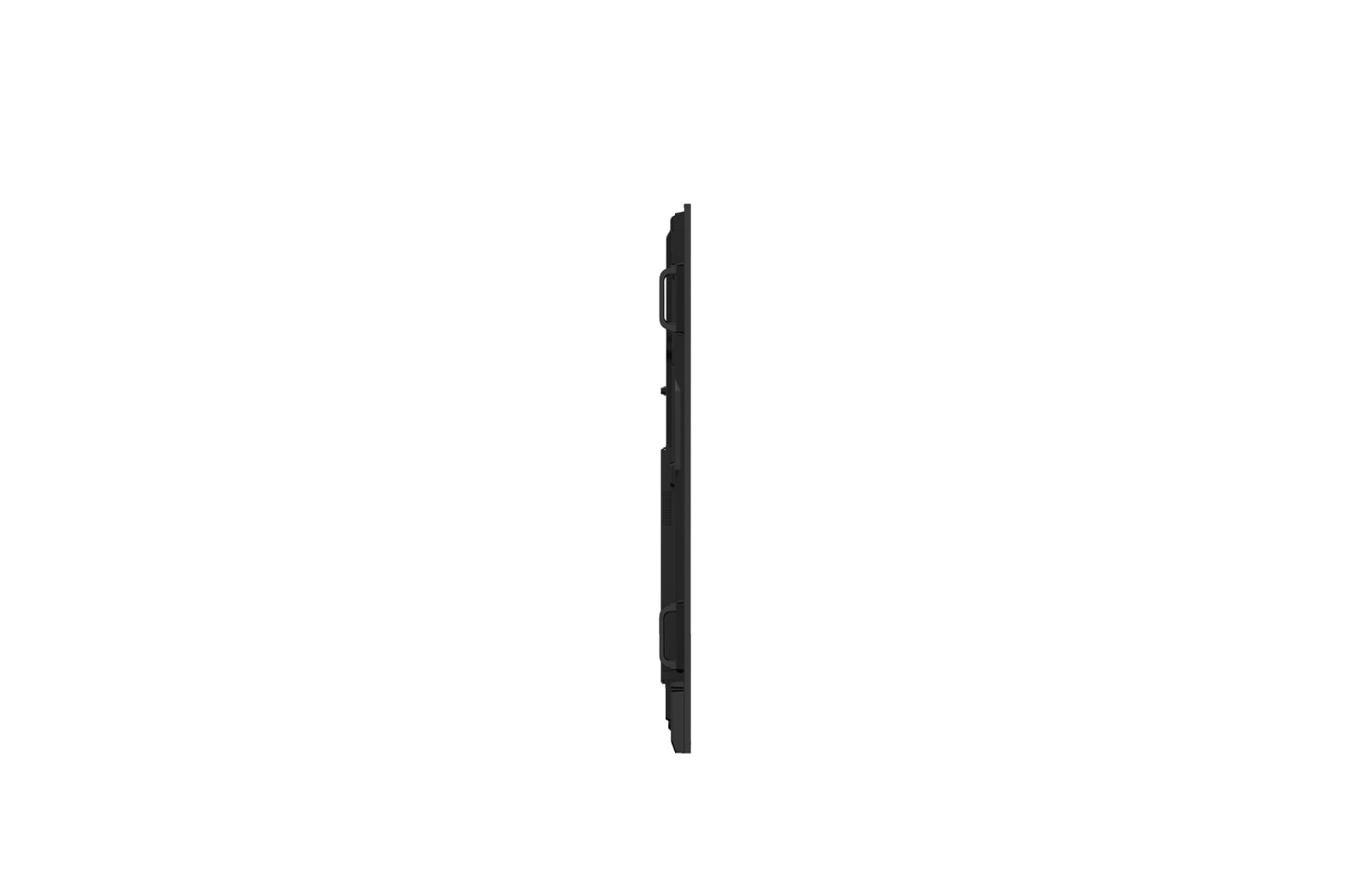

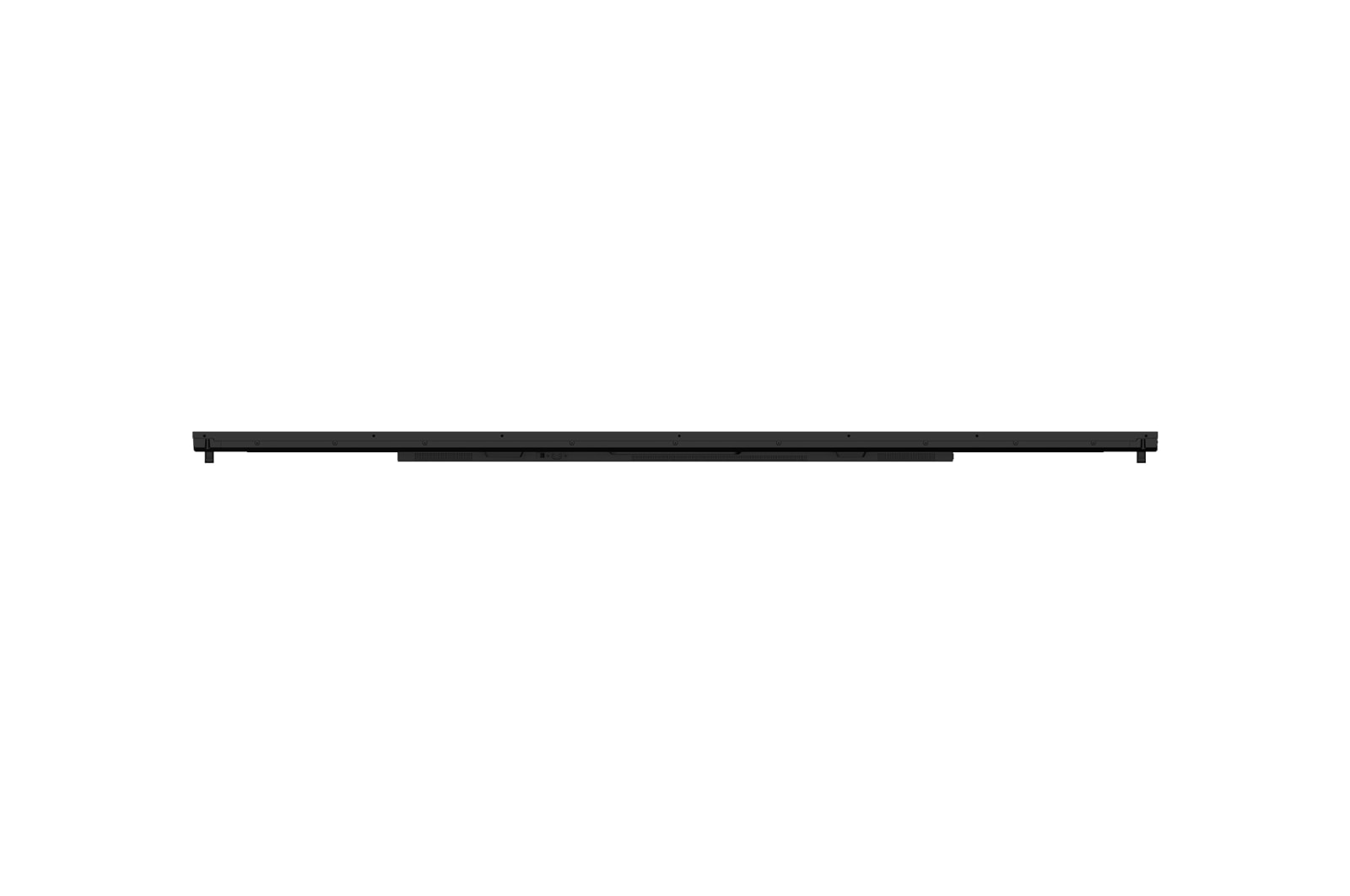

| Dimensions (W x H x D) | 2,481.7 x 1,410.8 x 68.6 mm |
| Weight (Head) | 64.45 kg |
| Carton Dimensions (W x H x D) | 2,660 x 1,600 x 280 mm |
| Packed Weight | 103.05 kg |
| Handle | Yes (4) |

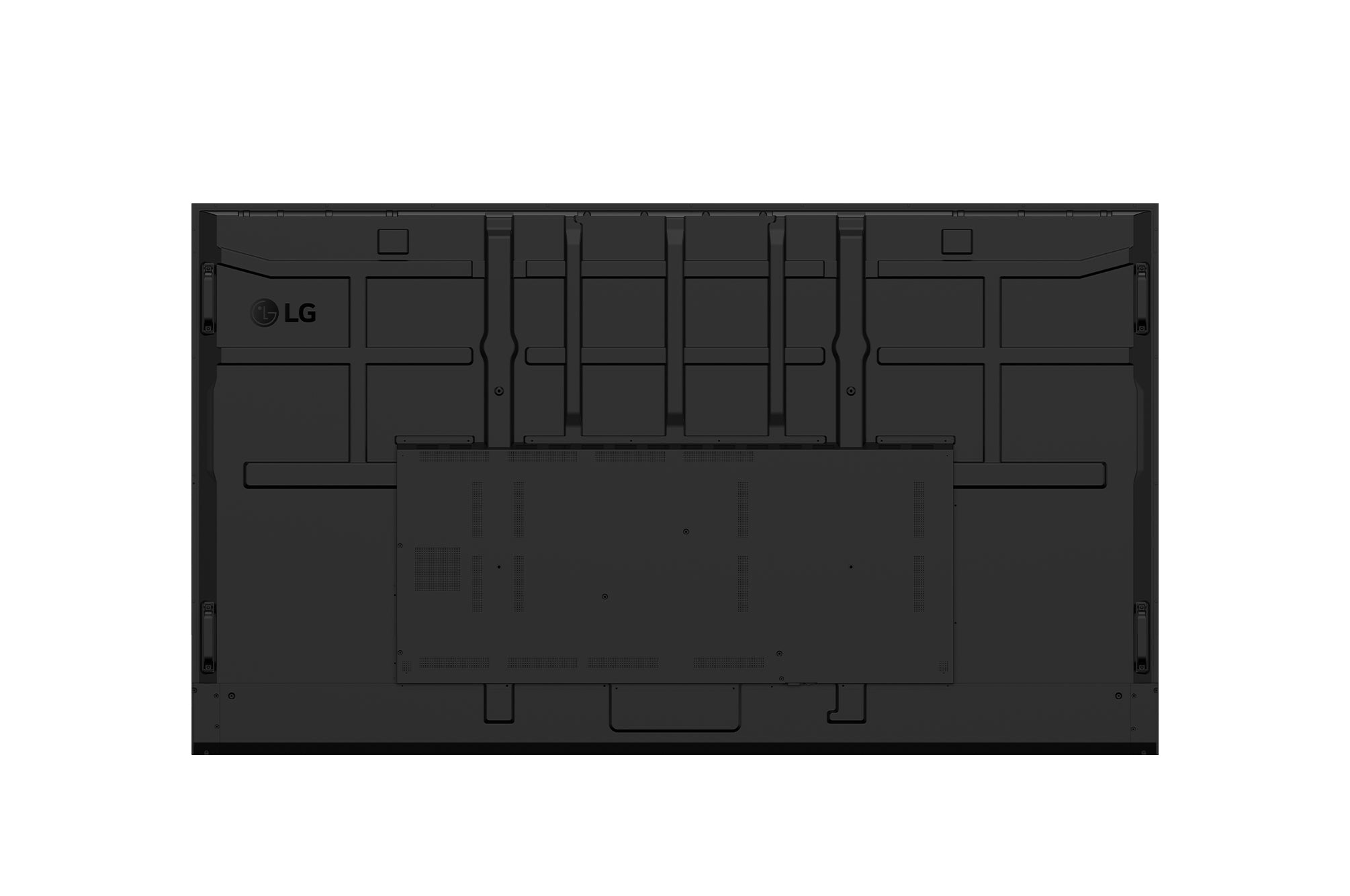

| VESA Mount | 800 x 600 mm |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 369 W typ. / 502 W max.; Smart Energy Saving (70%) 259 W; DPM 0.5 W; power off 0.5 W |
| Heat Dissipation | 1,259.1 BTU/hr (typ.), 1,712.9 BTU/hr (max.) |
| Operating Temperature | 0 °C to 40 °C (portrait: 0 °C to 35 °C) |
| Operating Humidity | 10% to 80% |
| Conformal Coating (Power Board) | Yes |
Certifications
| Safety | IEC 62368-1:2018; UL 62368-1:2019 |
| EMC | FCC Class B / CE / RCM |
| ErP / Energy Star | No / No |
Compatibility & Software Support
Platform
LG webOS 6.1 with 8 GB internal memory (system 5.52 GB + available 2.48 GB). Features listed by LG include local contents scheduling, Group Manager, USB Plug & Play, Fail Over, booting logo and no-signal image, RS-232C and local network sync, PIP, PBP, Screen Share, Video Tag (4, max. one HDMI input), Play via URL, screen and external-input rotation, gapless playback, Tile Mode, setting data cloning, ISM method, Auto Set ID, status mailing, Beacon, HDMI-CEC, webRTC and Pro:Idiom. Sensors listed by LG: temperature, auto brightness and acceleration (gyro).
LG Software
| SuperSign CMS | Yes |
| SuperSign Cloud | Yes |
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| LG ConnectedCare | Yes |
| Mobile CMS | Yes |
Control & Integration
Crestron Connected, SNMP, Control Manager, Wake on LAN, PM Mode and Smart Energy Saving.
Package Contents & UH5Q-H Series Ordering Information
In the Box
Remote controller, power cord, regulation book, phone-to-D-Sub9 gender.
Optional Accessories (LG)
LG lists a wall mount as optional (no part number published). Wall brackets and installation are not included in the price.
Related Large-Format LG UHD Signage on SourceIT
| Size | Part No. |
| 86" | 86UH5Q-E |
| 86" | 86UH5N-M |
| 98" | 98UH5J-H |
| 110" (this listing) | 110UH5Q-H |
Datasheet & Downloads
| LG product page (Global) | 110UH5Q-H on lg.com |
| LG spec sheet and datasheet (PDF) | 110UH5Q-H on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 110UH5Q-H.
Frequently Asked Questions — LG 110UH5Q-H
Can it run content without a media player?
Yes. webOS 6.1 plays content from internal memory, USB Plug & Play or a URL, and works with LG SuperSign CMS and SuperSign Cloud for scheduling.
Can it be mounted in portrait?
Yes. LG lists portrait and landscape orientation; in portrait LG specifies an operating temperature of 0 °C to 35 °C.
Is it suitable for 24/7 use?
Yes. LG rates it for 24/7 operation with a minimum panel life of 50,000 hours.
Is a wall bracket included?
No. Wall mounting brackets and installation are quoted separately. The VESA pattern is 800 x 600 mm and the head weighs 64.45 kg, so professional installation is required.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
