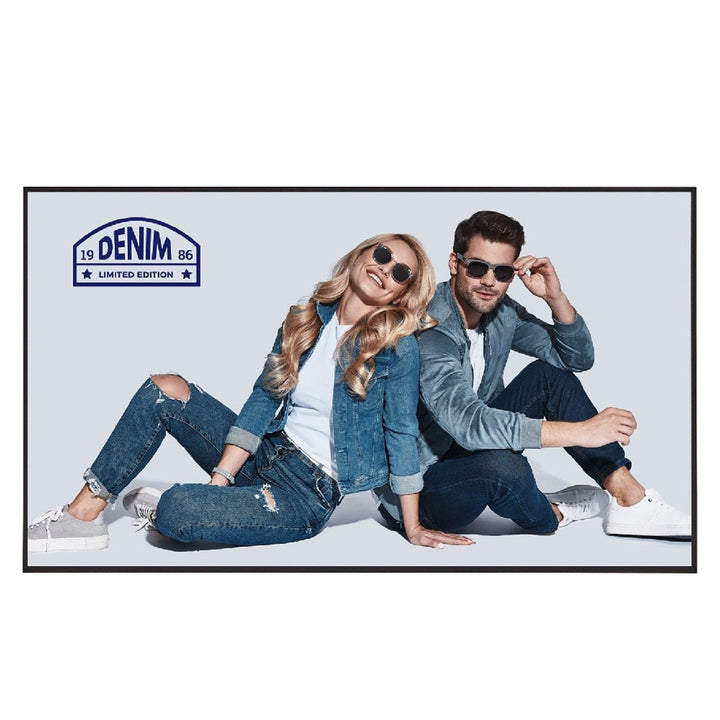

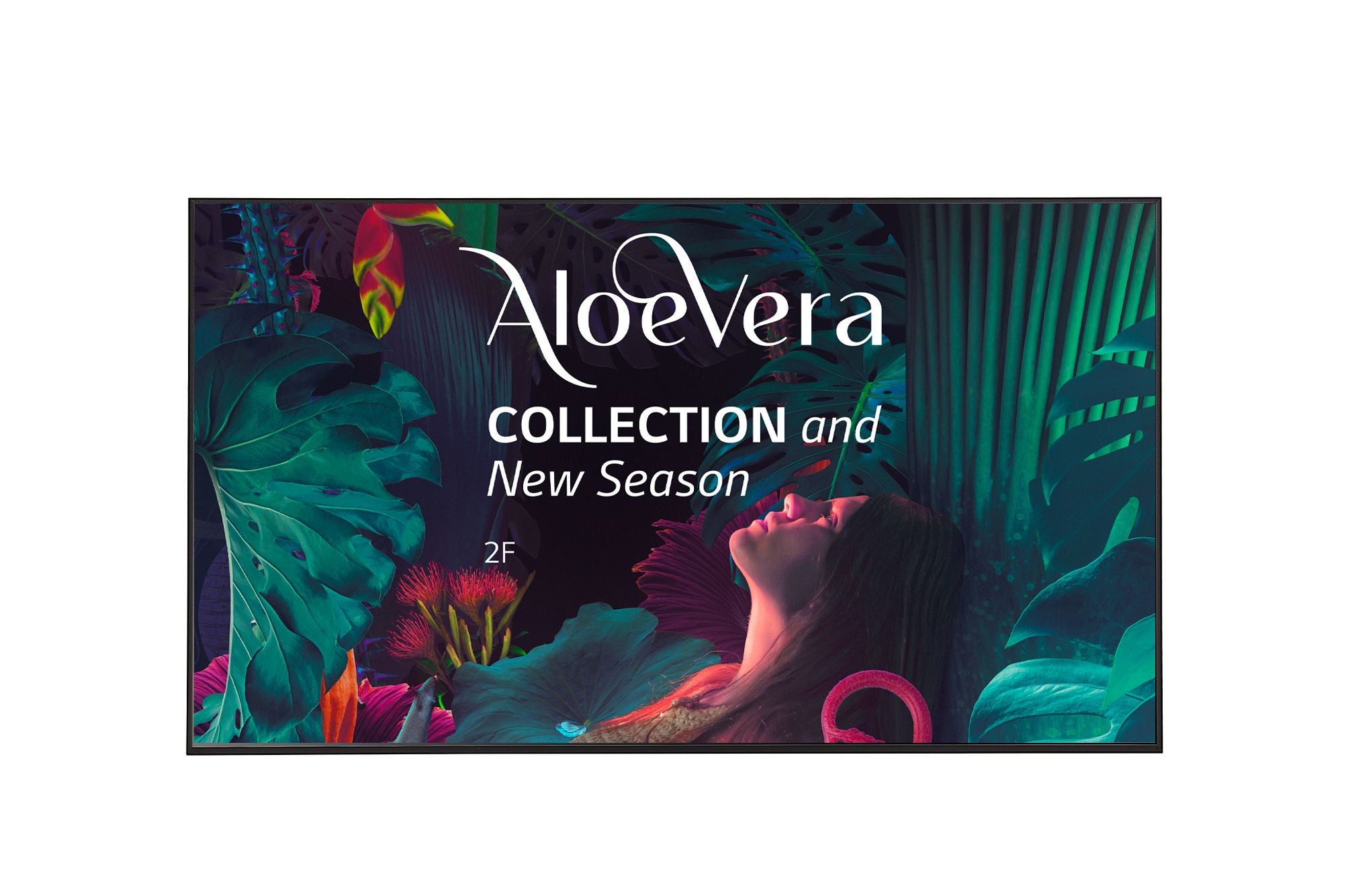

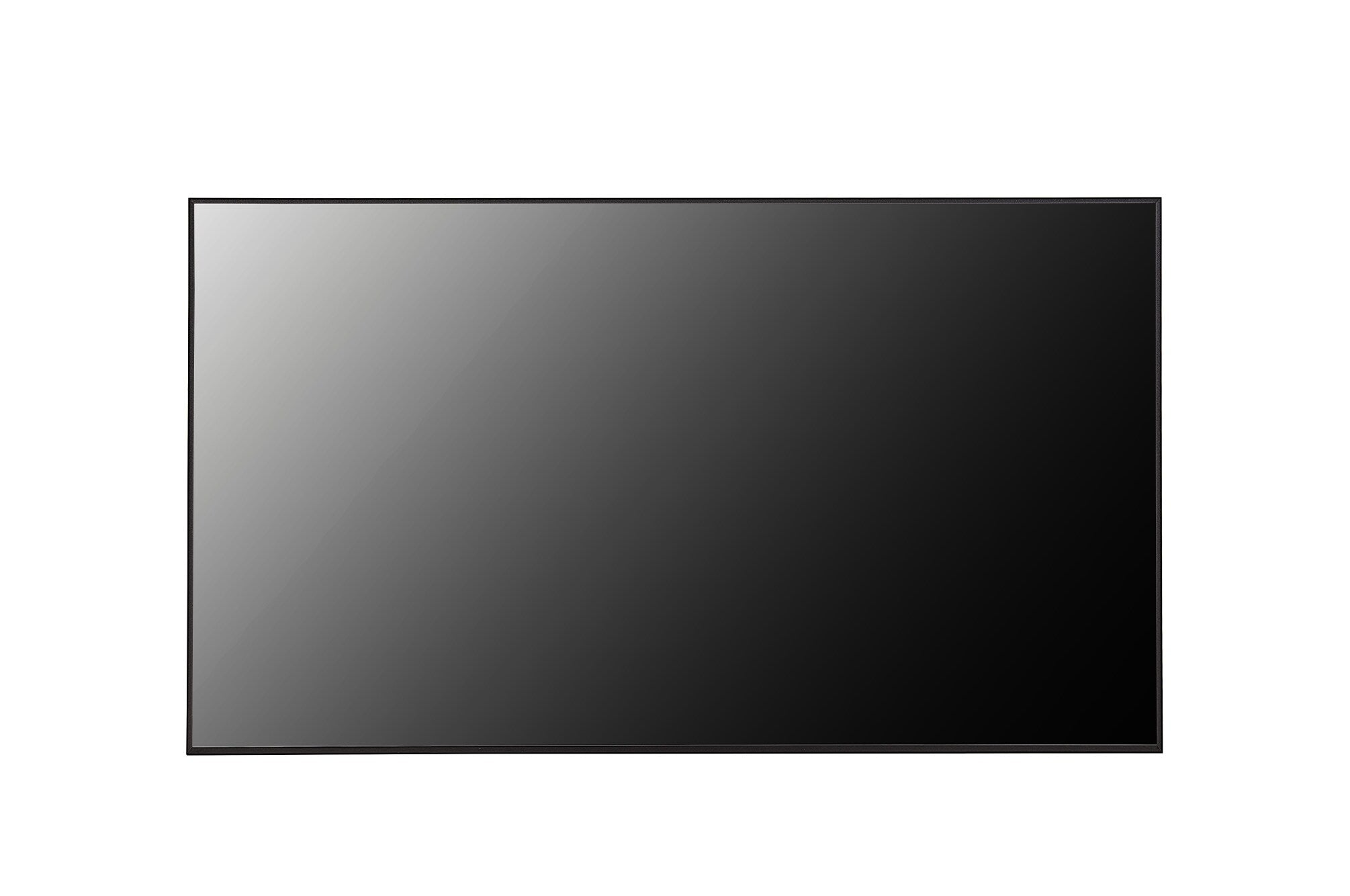

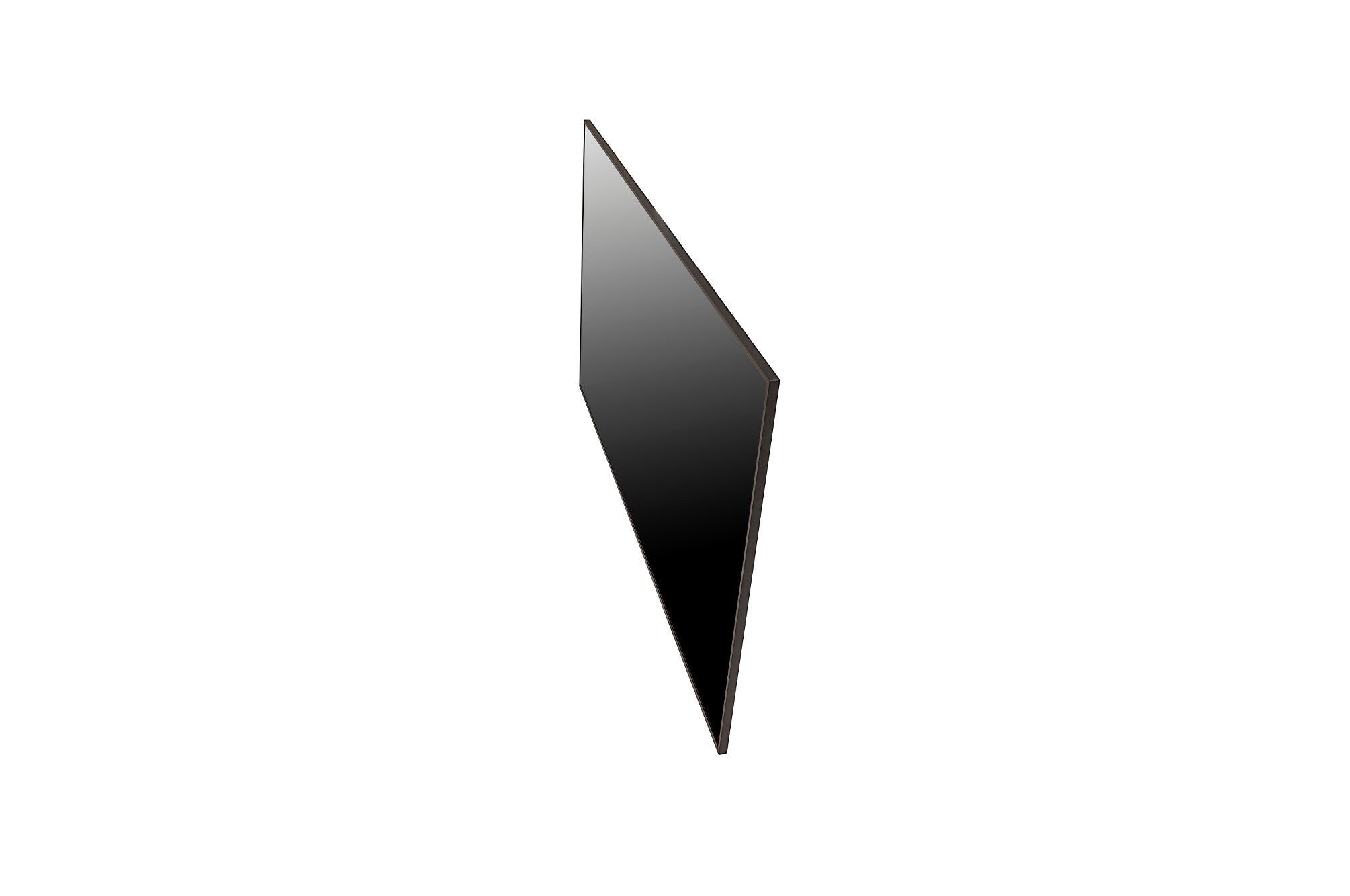

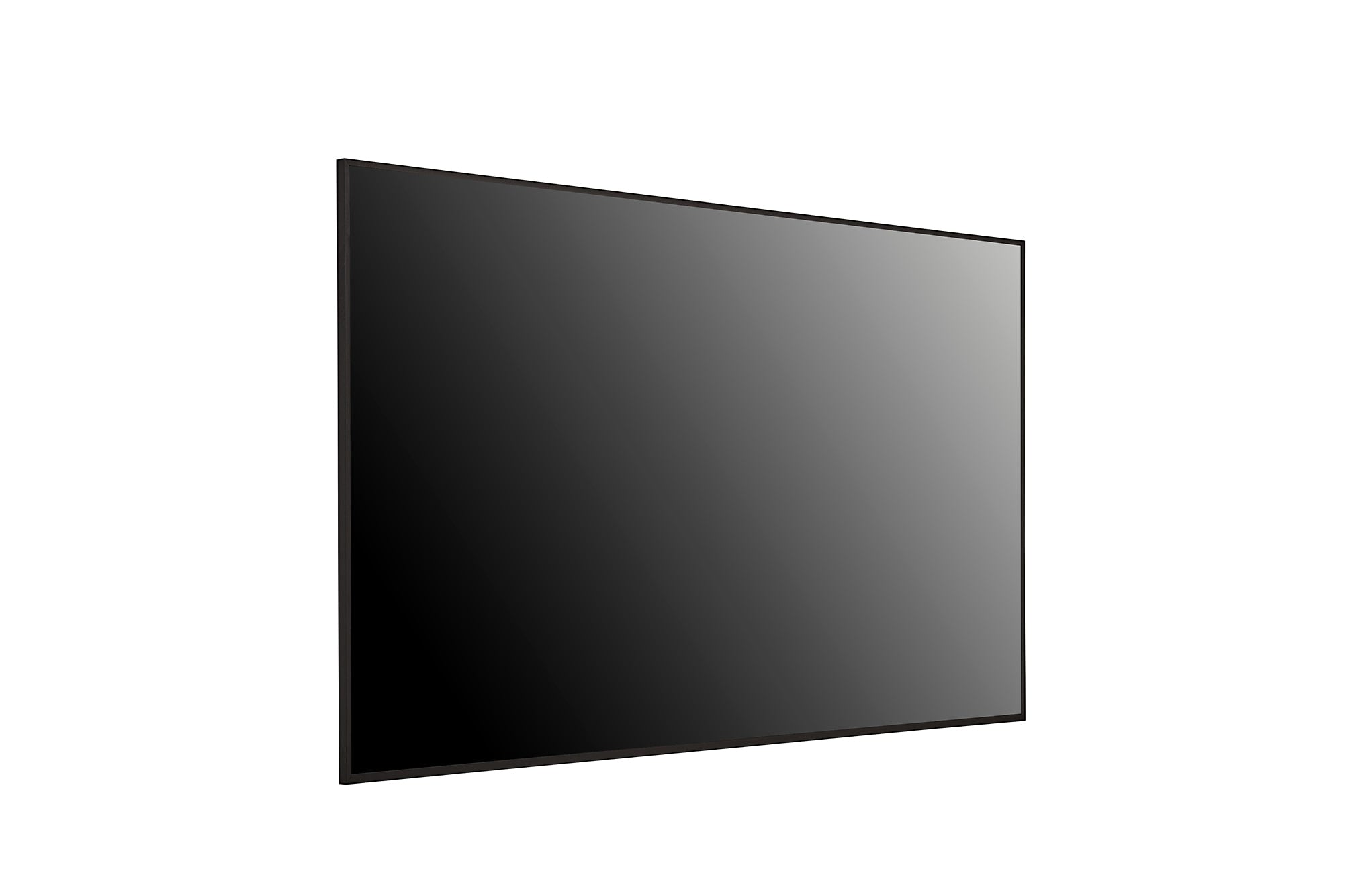

LG 86UH5N-M 86" 4K UHD Signage Display, 500 nit, 24/7, webOS 6.0
PRODUCT DESCRIPTION
LG 86UH5N-M 86" UHD Standard Signage with webOS (86UH5N-M) - 3 Years Local Warranty
Large 86" 4K UHD Signage for 24/7 Use
The LG 86UH5N-M is an 86-inch UHD standard signage display with a 3,840 x 2,160 IPS panel, 500 nit (typ.) brightness and a 25% haze anti-glare surface. LG rates it for 24/7 operation with a minimum panel life of 50,000 hours, for lobbies, retail, transport and corporate spaces.
Slim 13.4 mm Bezel, Portrait or Landscape

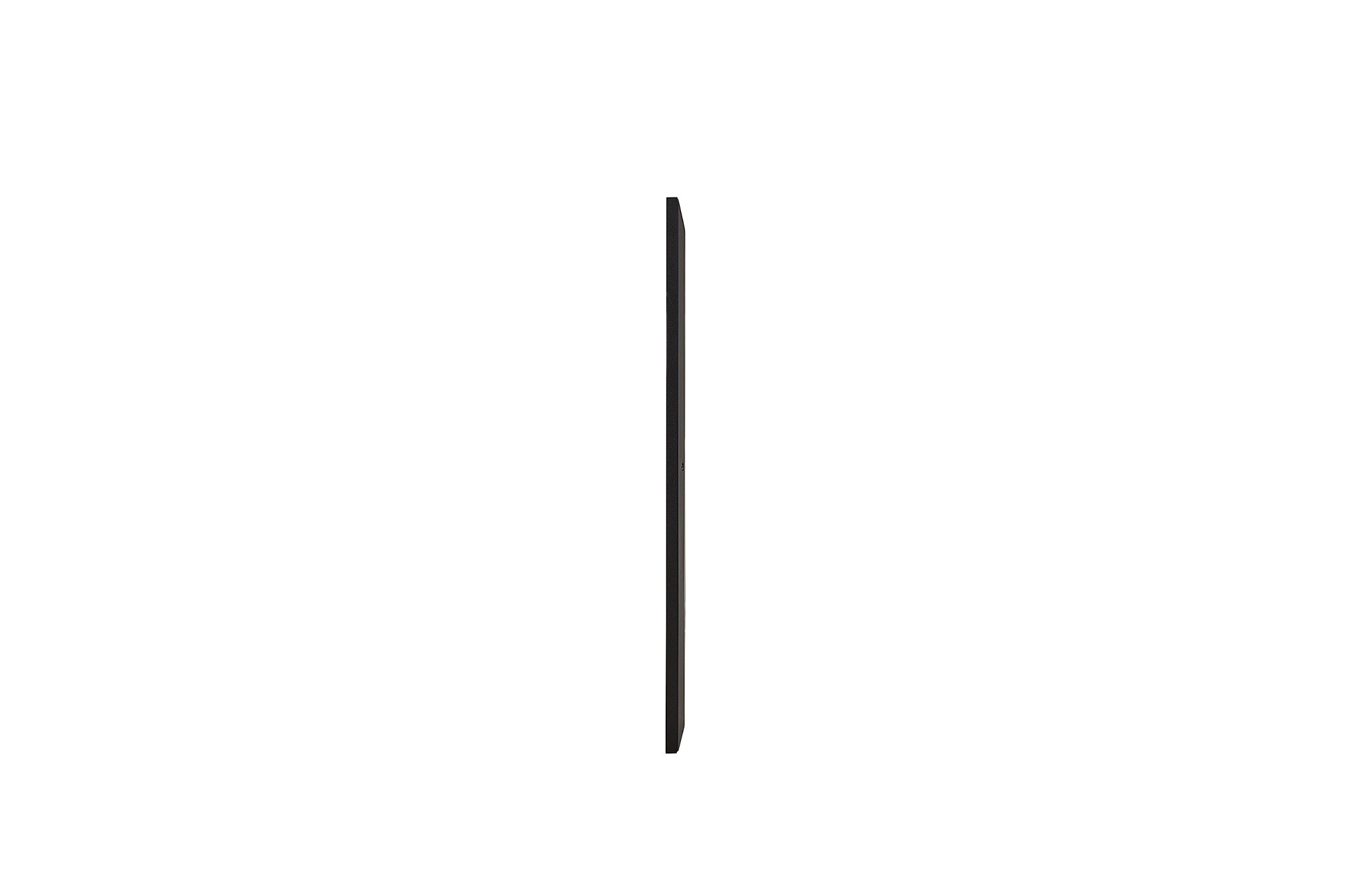

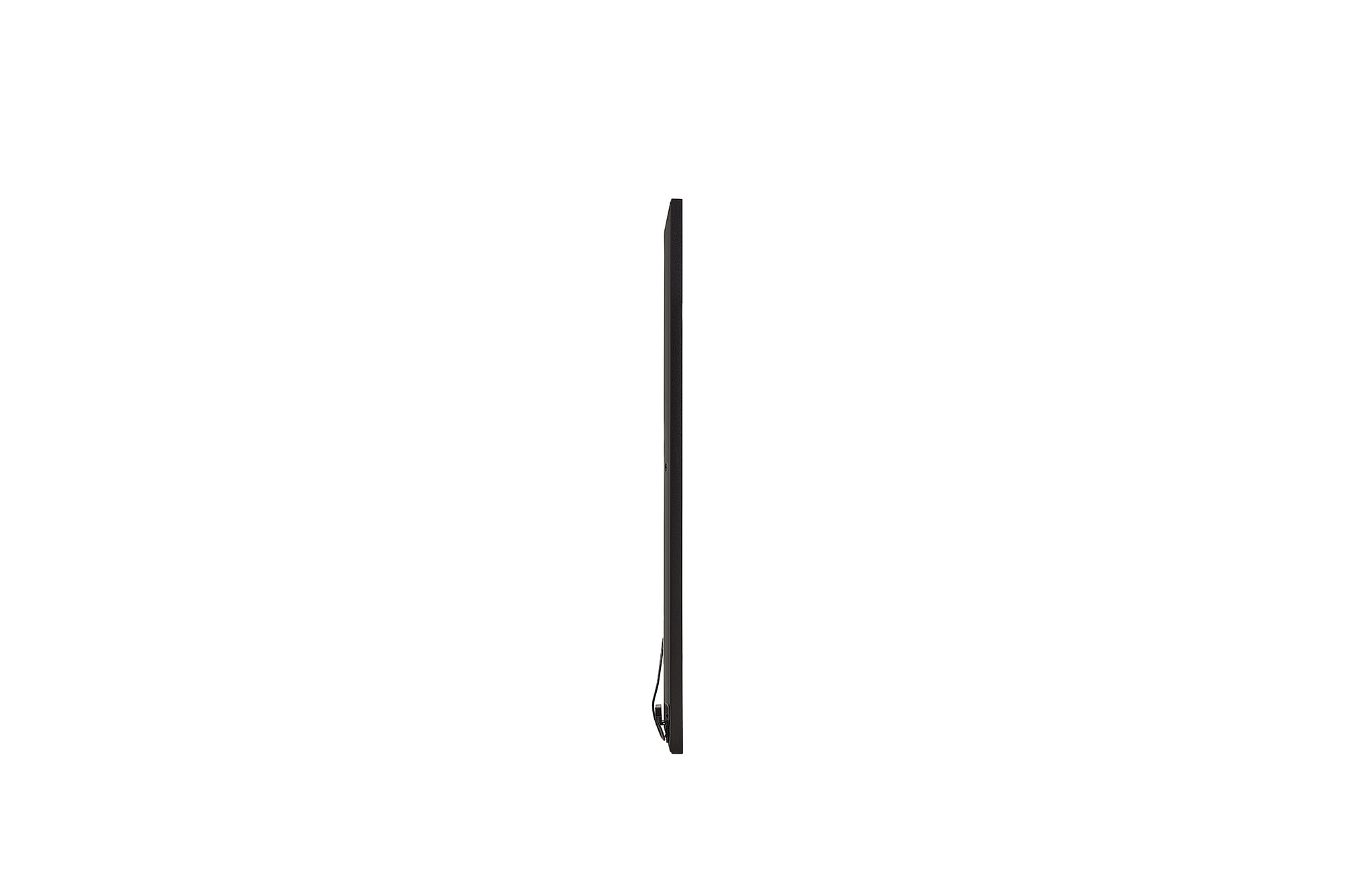

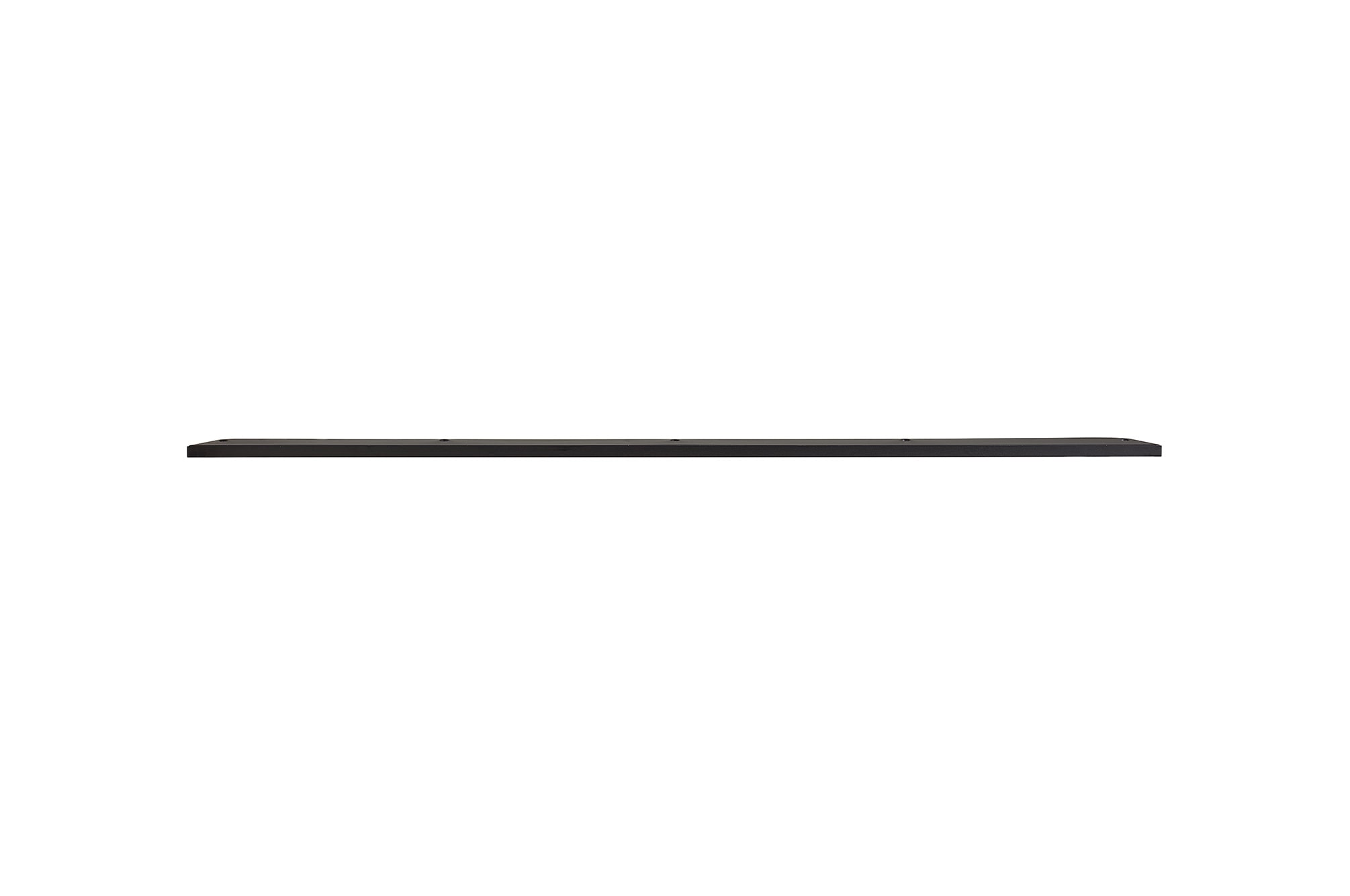

A 13.4 mm bezel and 29.7 mm depth (without IR receiver and handles) keep the large panel slim on the wall. LG supports portrait and landscape installation, and Tile Mode supports multi-screen layouts of up to 15 x 15 displays. Carry handles are built in.
webOS 6.0 Built In
LG webOS 6.0 with 16 GB internal memory plays content without an external media player, with local contents scheduling, Group Manager, USB Plug & Play, Play via URL, gapless playback, Screen Share and Video Tag (4). Wi-Fi and Bluetooth are built in.
Durable and Remotely Managed
LG lists IP5X dust protection, conformal coating on the power board, and fire-rating certifications BS476 Part 7 and EN13501-1 for the case. It is compatible with LG SuperSign CMS, SuperSign Cloud, SuperSign Control+ and LG ConnectedCare, and supports Crestron Connected, SNMP and Wake on LAN.
Need help sizing a signage project? Email sales@sourceit.com.sg with your screen size, viewing distance and content source, and we will recommend the right model.
LG 86UH5N-M Datasheet — Technical Specifications
General
| Product Name | LG 86UH5N-M 86" UHD Standard Signage |
| Part Number | 86UH5N-M |
| Series | UH5N-M UHD Signage |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 86" |
| Panel Technology | IPS |
| Backlight | Edge |
| Native Resolution | 3,840 x 2,160 (UHD), 16:9 |
| Refresh Rate | 120 Hz |
| Brightness | 500 nit (typ.) |
| Contrast Ratio | 1,200:1; dynamic 1,000,000:1 |
| Colour Gamut | BT709 95% |
| Colour Depth | 8 bit (D), 1.07 billion colours |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 25% |
| Panel Life | 50,000 hours (min.) |
| Operation Hours | 24/7 |
| Portrait / Landscape | Yes / Yes |
Connectivity
| Inputs | HDMI x 3 (3840 x 2160 @ 60 Hz, HDCP 2.2/1.4), DisplayPort x 1 (3840 x 2160 @ 60 Hz, HDCP 2.2/1.3), RS-232C (4-pin phone jack), RJ45 (LAN), IR, USB 2.0 Type-A x 2 |
| Outputs | Audio, RS-232C (4-pin phone jack); IR out: no (IR daisy chain supported via RS-232C in/out) |
| Wireless | Wi-Fi and Bluetooth (built-in) |
| Speakers | 10 W x 2 (built-in) |
Mechanical
| Bezel | Black, 13.4 mm |
| Dimensions (W x H x D) | 1,928.8 x 1,099.8 x 29.7 mm (without IR receiver and handles) |
| Weight (Head) | 52.7 kg (LG: TBD) |
| Carton Dimensions (W x H x D) | 2,100 x 1,250 x 253 mm (LG: TBD) |
| Packed Weight | 65.5 kg (LG: TBD) |
| Handle | Yes |
| VESA Mount | 600 x 400 mm |
Power & Environment
| Power Consumption | 197 W typ. / 297 W max.; Smart Energy Saving (70%) 138 W; DPM 0.5 W; power off 0.5 W (typ./max./SES figures marked TBD by LG) |
| Heat Dissipation | 672 BTU/hr (typ.), 1,013 BTU/hr (max.) (LG: TBD) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80% |
| IP Rating | IP5X |
| Conformal Coating (Power Board) | Yes |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class B / CE / KC |
| ErP / Energy Star | N/A / Yes |
| BS476 Part 7 | Class 1 (case top / back cover) |
| EN13501-1 | Class A1 (case top) / Class A2 (back cover) |
Compatibility & Software Support
Platform
LG webOS 6.0 with 16 GB internal memory (eMMC). Features listed by LG include local contents scheduling, Group Manager, USB Plug & Play, Fail Over, booting logo and no-signal image, RS-232C and local network sync, PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, screen and external-input rotation, gapless playback, Tile Mode (max. 15 x 15), setting data cloning, ISM method, Auto Set ID, status mailing, Beacon, HDMI-CEC, webRTC and Pro:Idiom. Sensors listed by LG: temperature sensor, auto brightness sensor (IR) and acceleration (gyro) sensor.
LG Software
| SuperSign CMS | Yes |
| SuperSign Cloud | Yes |
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| LG ConnectedCare | Yes |
| Mobile CMS | Yes |
Control & Integration
Crestron Connected, SNMP, Control Manager, Wake on LAN, PM Mode and Smart Energy Saving.
Package Contents & UH5N-M Series Ordering Information
In the Box
Remote controller (with 2 batteries), power cord, quick setup guide, regulation book, phone-to-RS232C gender, cable holders (6), 7-pin cable holder (1).
Optional Accessories (LG)
Wall mount LSW640A/B. Wall brackets and installation are not included in the price.
Related Large-Format LG UHD Signage on SourceIT
| Size | Part No. |
| 86" | 86UH5Q-E |
| 86" (this listing) | 86UH5N-M |
| 98" | 98UH5J-H |
| 110" | 110UH5Q-H |
Datasheet & Downloads
| LG product page (Singapore) | 86UH5N-M on lg.com/sg |
| LG spec sheet and datasheet (PDF) | 86UH5N-M on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 86UH5N-M.
Frequently Asked Questions — LG 86UH5N-M
Can it run content without a media player?
Yes. webOS 6.0 plays content from its 16 GB internal memory, USB Plug & Play or a URL, and works with LG SuperSign CMS and SuperSign Cloud for scheduling.
Can it be mounted in portrait?
Yes. LG lists both portrait and landscape orientation for the 86UH5N-M.
Is it suitable for 24/7 use?
Yes. LG rates it for 24/7 operation with a minimum panel life of 50,000 hours.
Is a wall bracket included?
No. Wall mounting brackets and installation are quoted separately; LG's optional wall mount is LSW640A/B, and the VESA pattern is 600 x 400 mm. At about 52.7 kg, professional installation is recommended.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
