J5Create JTD568 Thunderbolt 4 Quad Display Docking Station
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JTD568 Thunderbolt 4 Quad Display Docking Station - 2 Years Local Warranty
A desktop docking station that connects your laptop to external monitors, wired network, peripherals and charging through a single cable.
Key Features

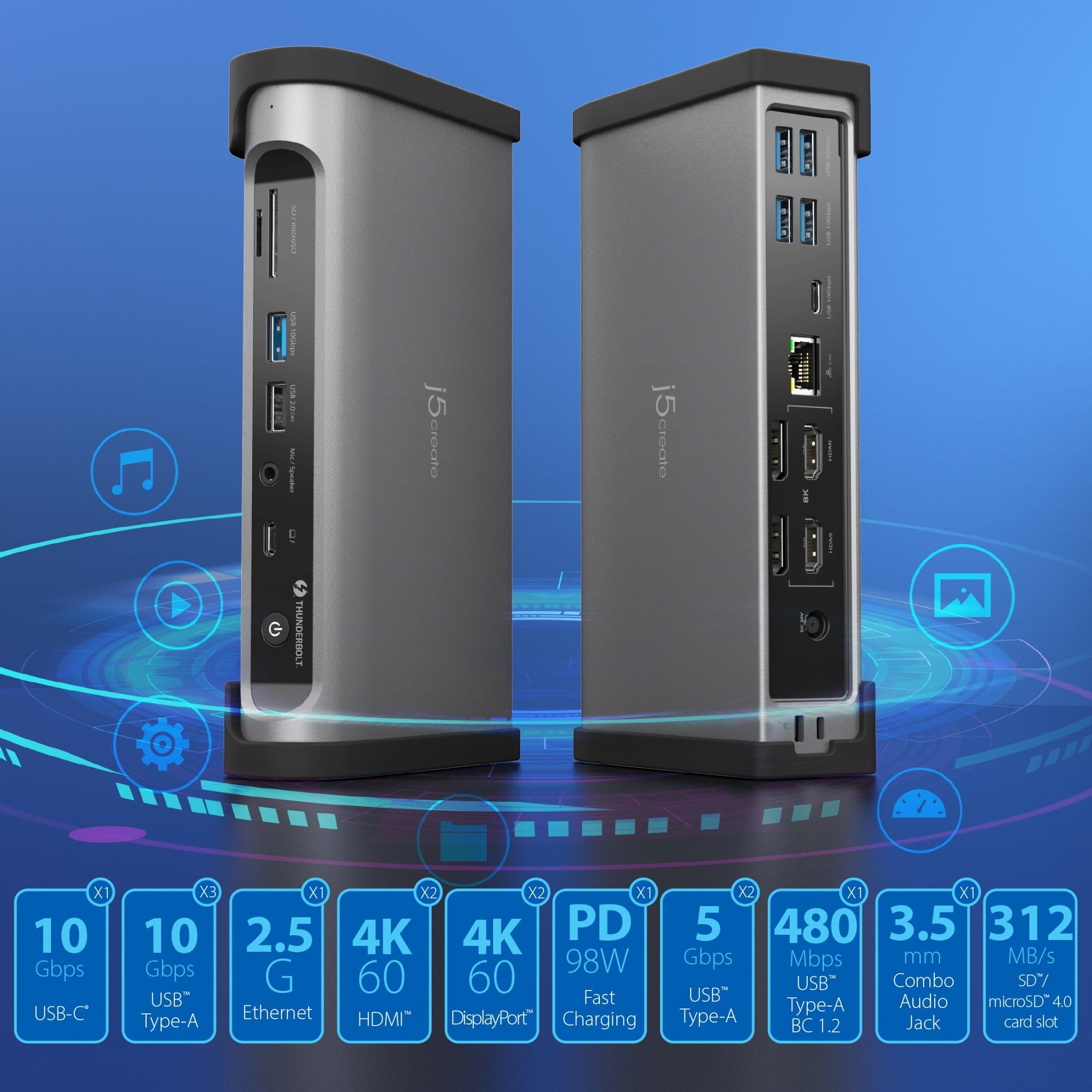

- 15-in-1 Thunderbolt 4 dock with 40Gbps host link
- Up to four 4K 60Hz displays, dual 5K or a single 8K 60Hz via 2 x HDMI 2.1 and 2 x DisplayPort 1.4
- 2.5 Gigabit Ethernet and SD/microSD 4.0 UHS-II reader (up to 312 MB/s)

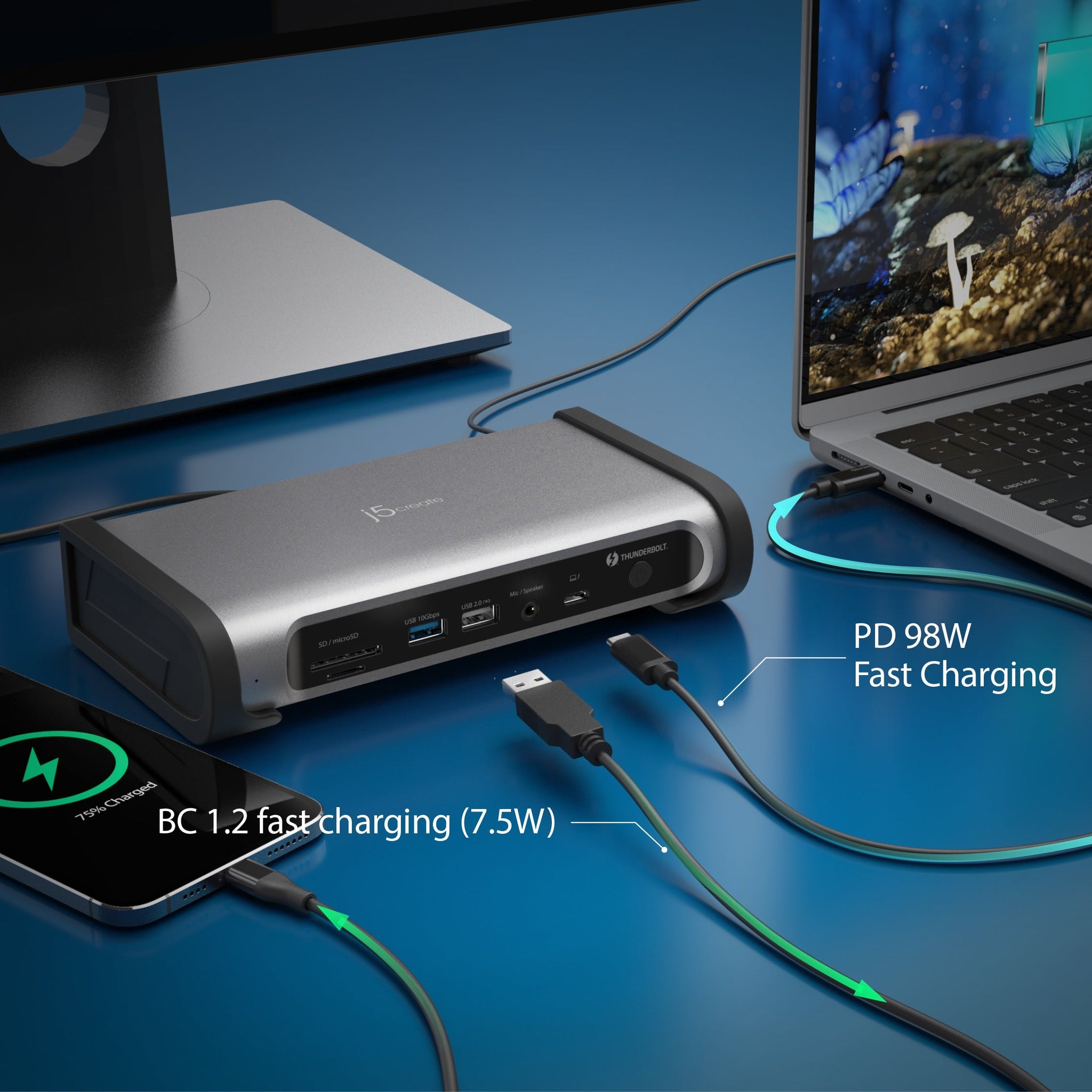

- Up to 98W laptop charging from the bundled 135W adapter
- K-Slot anti-theft lock
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JTD568 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JTD568 |
| Product Name | Thunderbolt 4 Quad Display Docking Station |
| EAN | 4712795088311 |

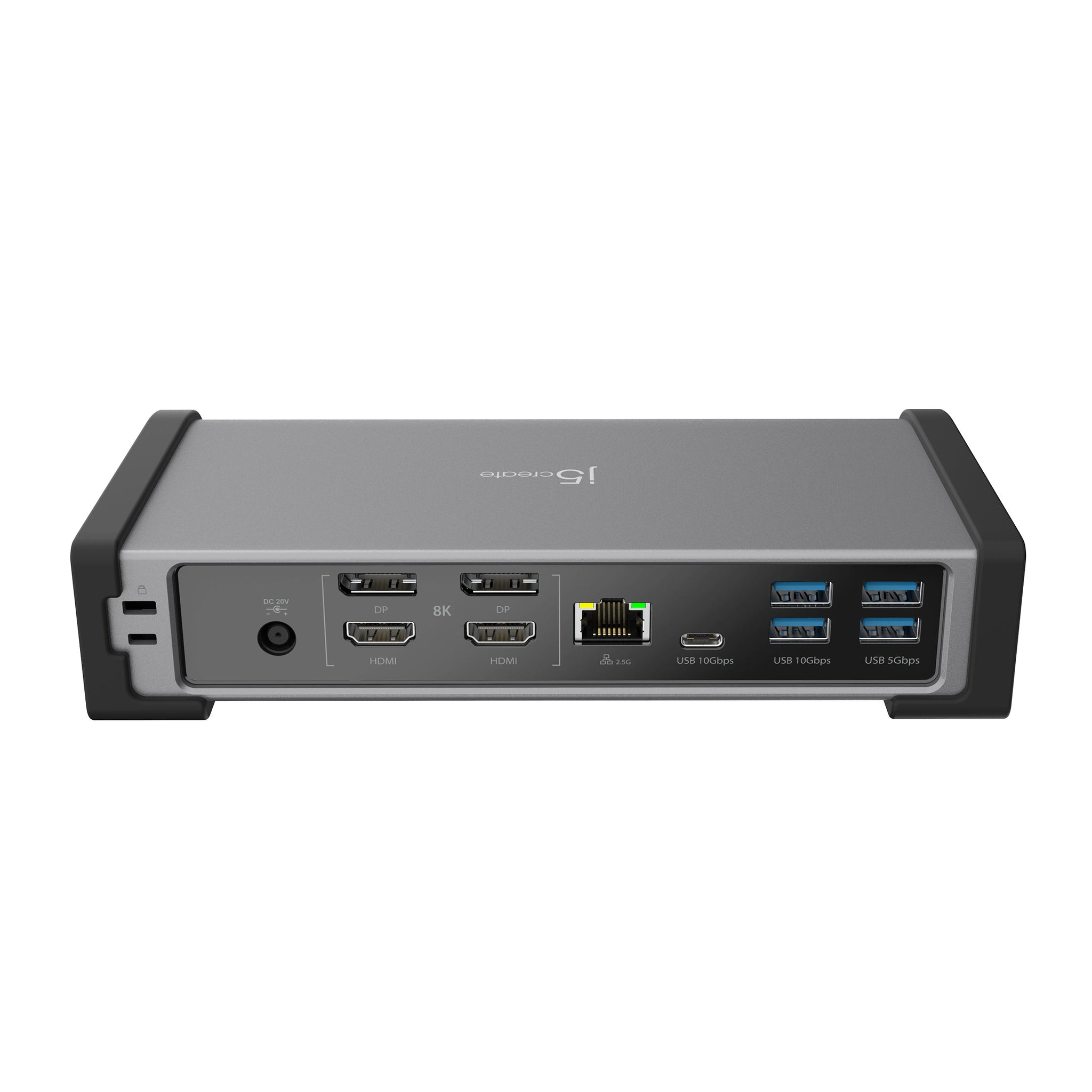

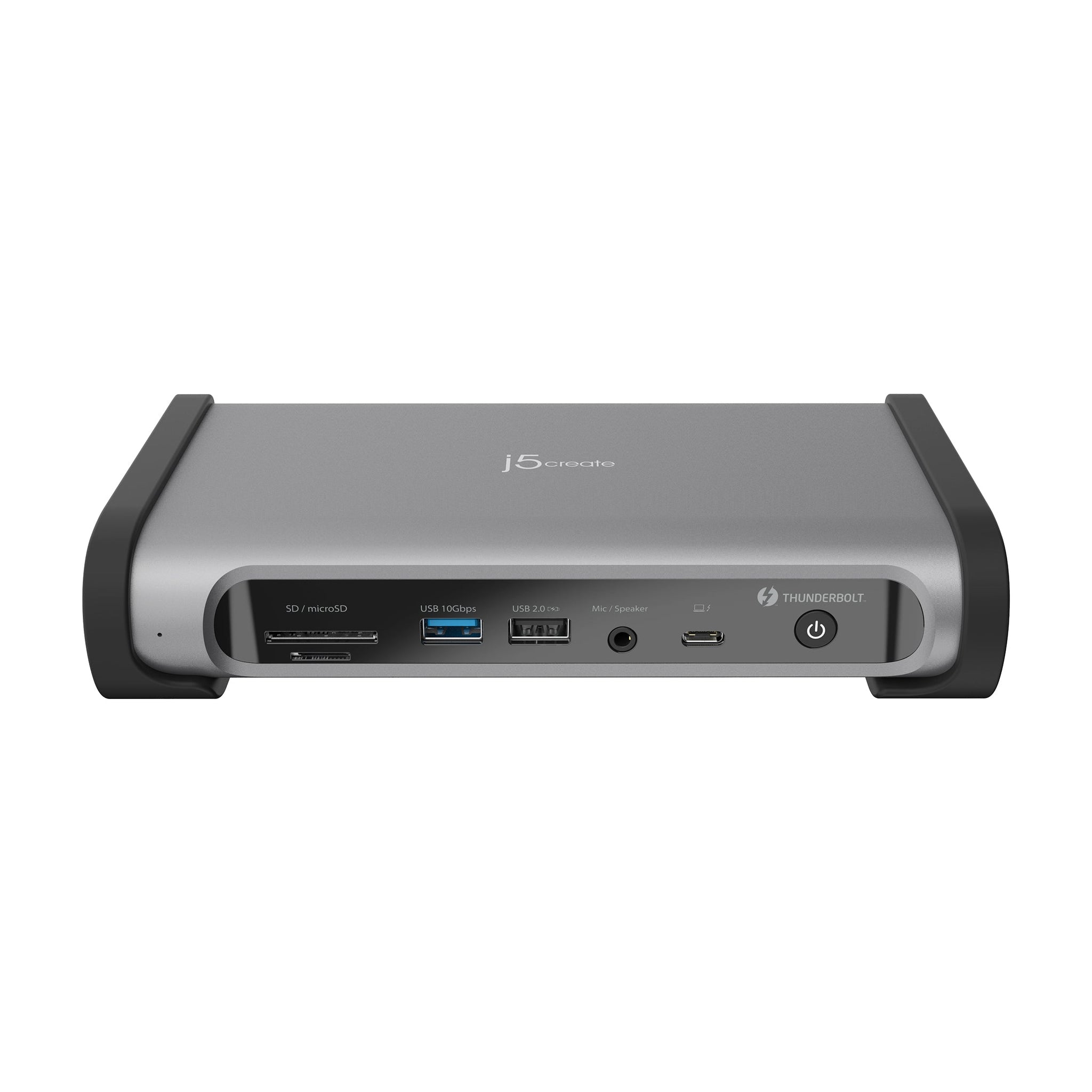

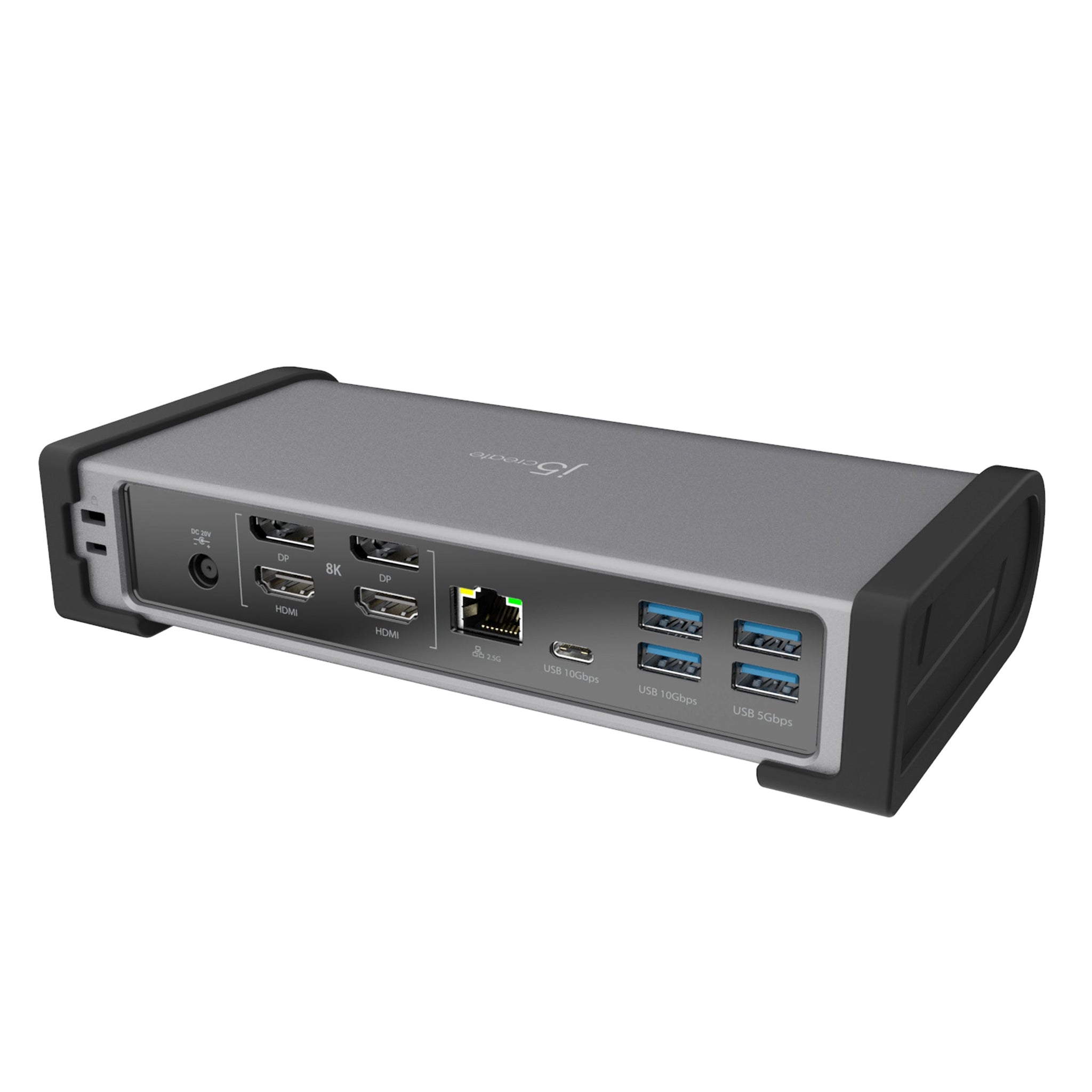

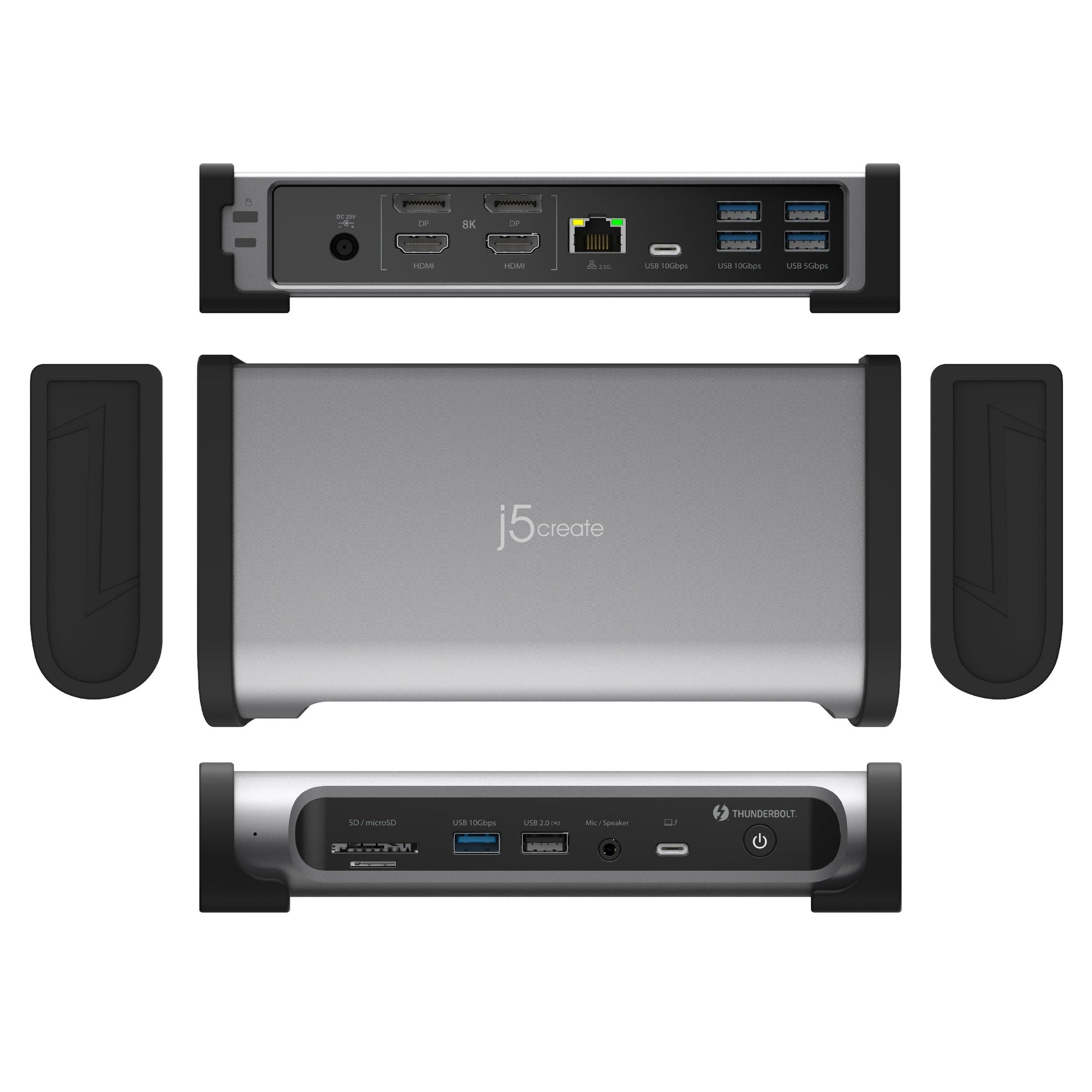

Ports
| Host connector | Thunderbolt 4 (98W USB-C PD host port) |
| Video | 2 x HDMI 2.1; 2 x DisplayPort 1.4 |
| USB-C | 1 x USB-C 10Gbps |
| USB-A | 3 x USB 3.2 Gen 2 Type-A; 2 x USB 3.2 Gen 1 Type-A; 1 x USB 2.0 with BC1.2 charging |
| Network | RJ45 2.5 Gigabit Ethernet |
| Card reader | SD / microSD 4.0 UHS-II (up to 312 MB/s) |
| Audio | 3.5mm combo jack |
| Security | K-Slot |
Video Output
| Displays supported | 4 |

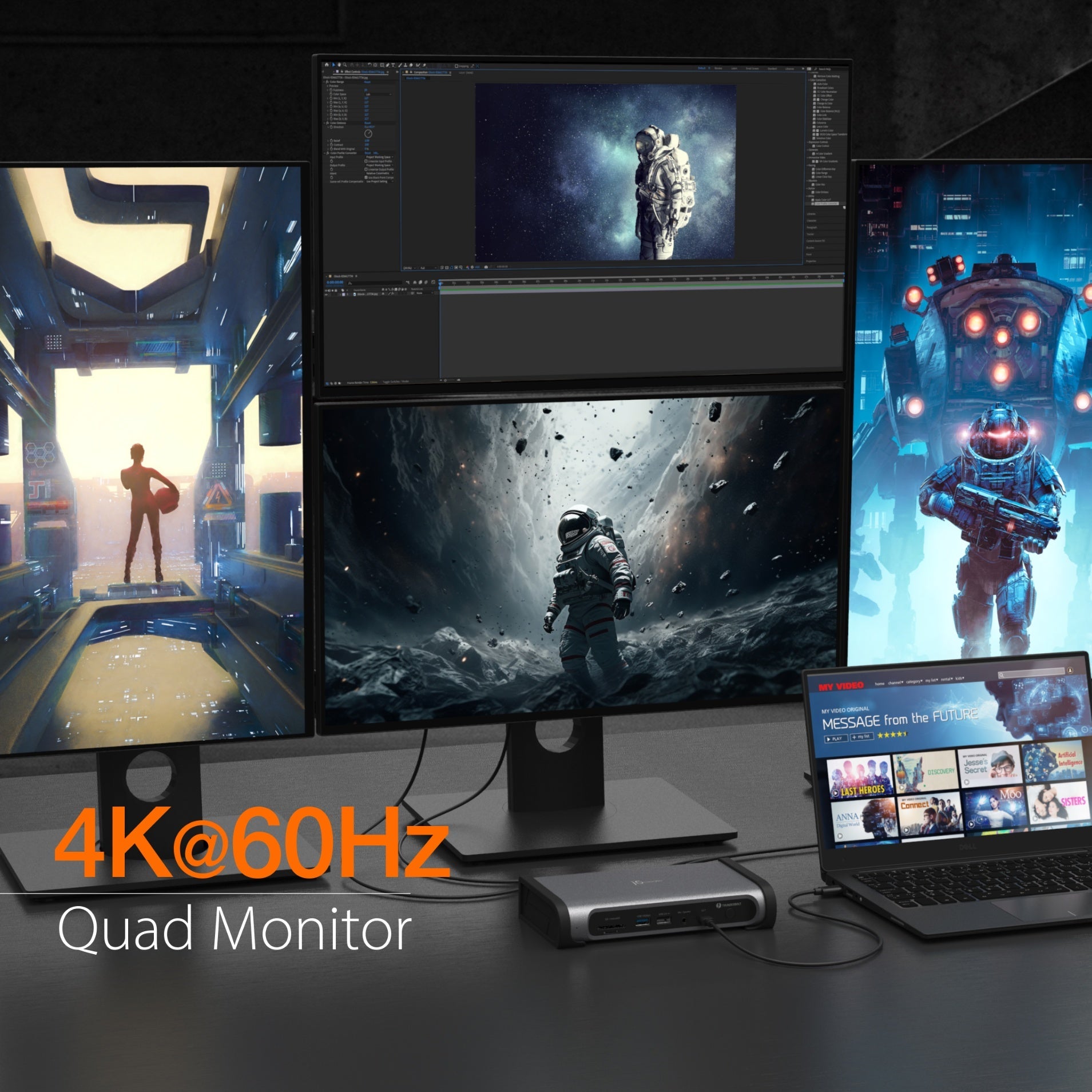

| Quad display | 4K @ 60Hz |

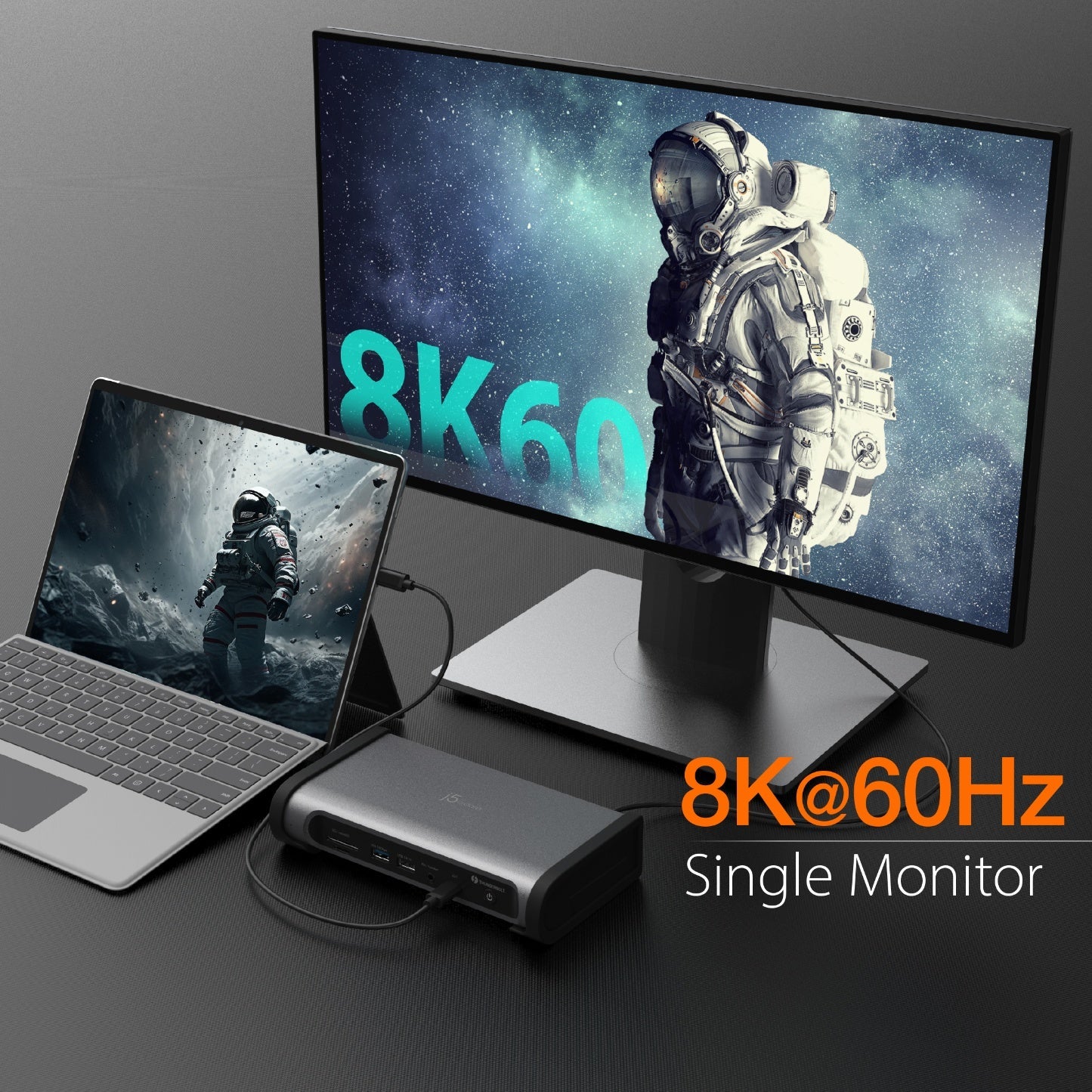

| Single display | 8K @ 60Hz (7680 x 4320) |
| Other | Dual 5K or triple 4K |
Performance
| Max data rate | Up to 40Gbps (host); 10Gbps peripheral ports |
Power
| AC adapter | 135W, 20V / 6.75A |
| Power Delivery | Up to 98W |
Physical
| Enclosure | Aluminum |
| Colour | Dark / Space Grey |
| Weight | approx. 681 g |
| Dimensions | 201 x 109 x 43 mm (W x D x H) |
| Operating temperature | 0 to 48°C |
Compatibility
| Host | Thunderbolt 4 Windows laptops and MacBook |
Compatibility & System Requirements
System Requirements
- Available Thunderbolt 4 port, or USB-C port with DisplayPort Alt Mode and USB Power Delivery 2.0/3.0
- 8K-capable display required for 7680 x 4320
Compatibility
| Host | Thunderbolt 4 Windows laptops and MacBook |
Package Contents & j5create Docking Stations Ordering Information
In the Box
- 1 x JTD568 Thunderbolt 4 Quad Display Docking Station
- 1 x 135W AC adapter (up to 96W PD charge)
- 1 x Thunderbolt 4 cable (80 cm / 2.6 ft)
- 1 x Quick Installation Guide (QIG)
j5create Docking Stations at SourceIT
| Model | Product |
| JCD552 | M.2 NVMe USB-C Gen 2 Docking Station |
| JCD543 | USB-C Triple Display Docking Station |
| JCD543P | USB-C Triple Display Docking Station with 100W PD Adapter |
| JCD554 | USB4 Triple 4K Display Docking Station |
| JTD568 (this listing) | Thunderbolt 4 Quad Display Docking Station |
| JCDP4140 | Dual 4K Powerbase Docking Station with Cable Management |
Datasheet & Downloads
| j5create product page | JTD568 on j5create.com |
| Quick Install Guide | Quick Install Guide (PDF) |
| Drivers | Drivers |
Need a document sent directly? Email sales@sourceit.com.sg quoting JTD568.
Frequently Asked Questions — j5create JTD568
How many external displays does it support?
4. Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JTD568 and the quantity for volume pricing and delivery lead time.
