J5Create JCD543P USB-C Triple Display Docking Station with 100W PD Adapter
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JCD543P USB-C Triple Display Docking Station with 100W PD Adapter - 2 Years Local Warranty
A desktop docking station that connects your laptop to external monitors, wired network, peripherals and charging through a single cable.
Key Features
- Bundled JUP2290 100W USB-C charger, so no separate laptop adapter is needed
- Up to three external displays via HDMI, DisplayPort and VGA
- Mirror and extended modes on Windows and macOS
- 100W USB-C Power Delivery pass-through to the laptop
- Gigabit Ethernet, SD/microSD reader, audio and USB 3.0 ports
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCD543P Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCD543P |
| Product Name | USB-C Triple Display Docking Station with 100W PD Adapter |
| EAN | 4712795084009 |

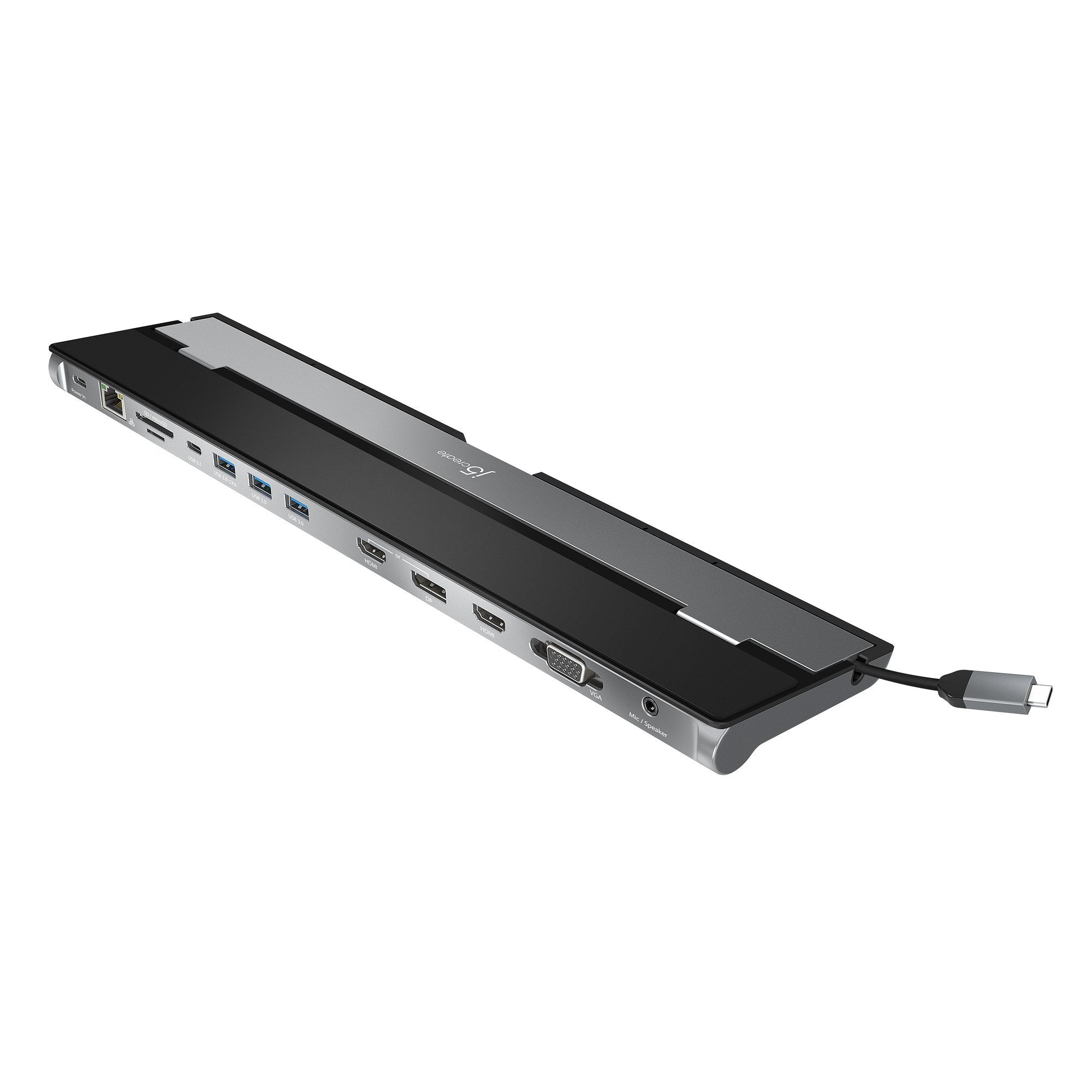

Ports
| Host connector | USB-C male |
| USB-A | 2 x USB 3.0 Type-A; 1 x USB 3.0 Type-A fast-charge |
| USB-C | 1 x USB-C data; 1 x USB-C Power Delivery input |

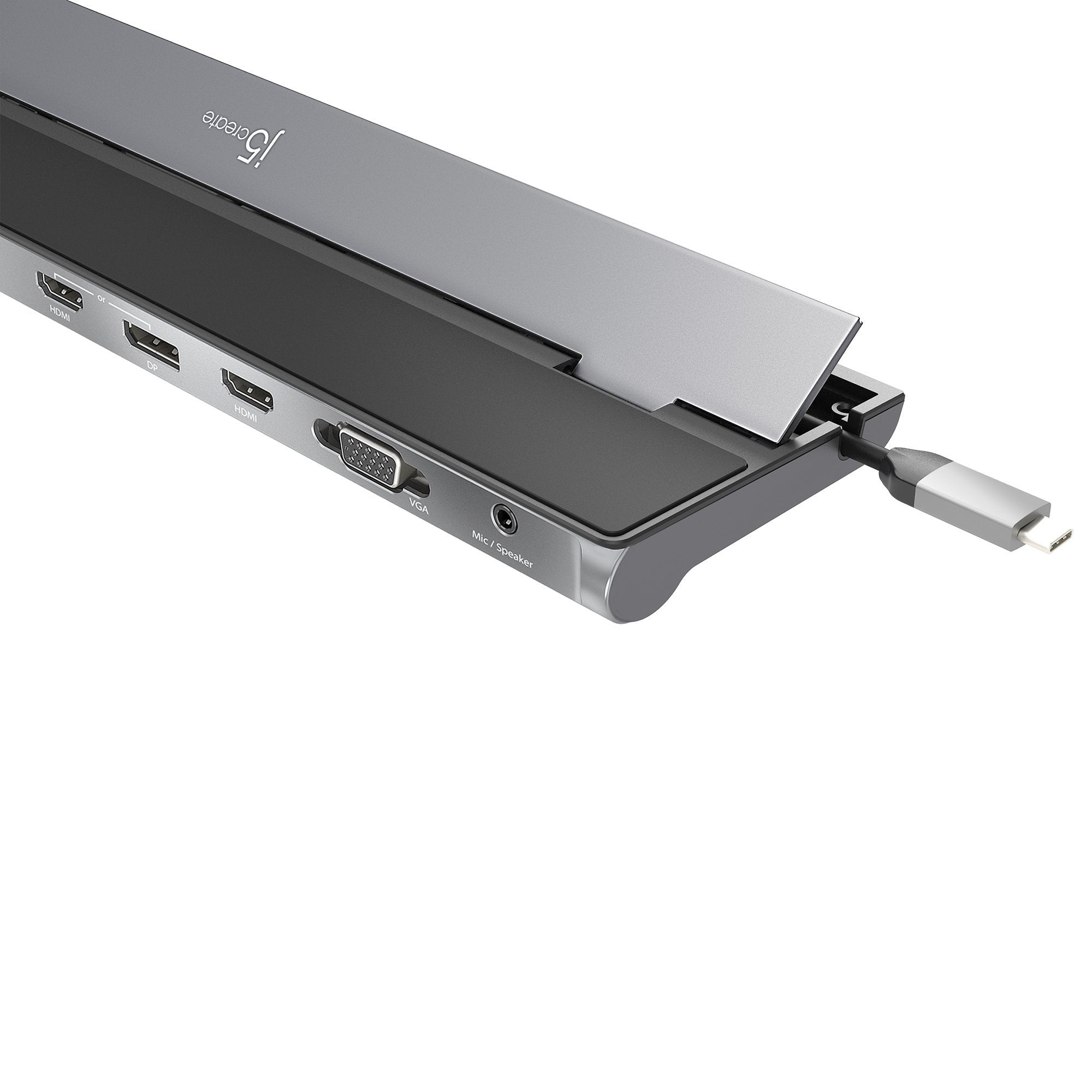

| Video | 2 x HDMI; 1 x DisplayPort; 1 x VGA |
| Network | RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Card reader | SD / microSD |
| Audio | 3.5mm combo jack |
Video Output
| Displays supported | Up to 3 external (4 incl. laptop, extended mode) |
| HDMI / DisplayPort | 3840 x 2160 @ 30Hz |
| VGA | 1920 x 1080 @ 60Hz |
| macOS mirror mode | 1080p with VGA connected (triple); 4K without VGA (dual) |
Performance
| Max data rate | 5Gbps |
Power
| Included adapter | JUP2290 100W USB-C Super Charger (USB-C 100W PD plus USB Type-A 5V/2A) |
| Adapter input | 110-220V |
| Power Delivery | Up to 100W via USB-C |
| Output voltage | Up to 20V |
Physical
| Enclosure | Aluminum |
| Colour | Silver or black |
| Dock weight | approx. 300 g |
| Operating temperature | 0 to 48°C (32 to 118°F) |
Compatibility & System Requirements
System Requirements
- Windows 10 or later, or macOS 10.14 or later
- Intel HD Graphics 505 or AMD Radeon R5
- USB-C port supporting DisplayPort Alt Mode and USB Power Delivery 2.0/3.0
- One 2K display: Intel Core i5 quad-core, 4 GB RAM; two: Core i7 quad-core, 8 GB RAM
- Driver installation required on macOS and Windows
- 4K-capable display for 3840 x 2160; PD 3.0 recommended
Package Contents & j5create Docking Stations Ordering Information

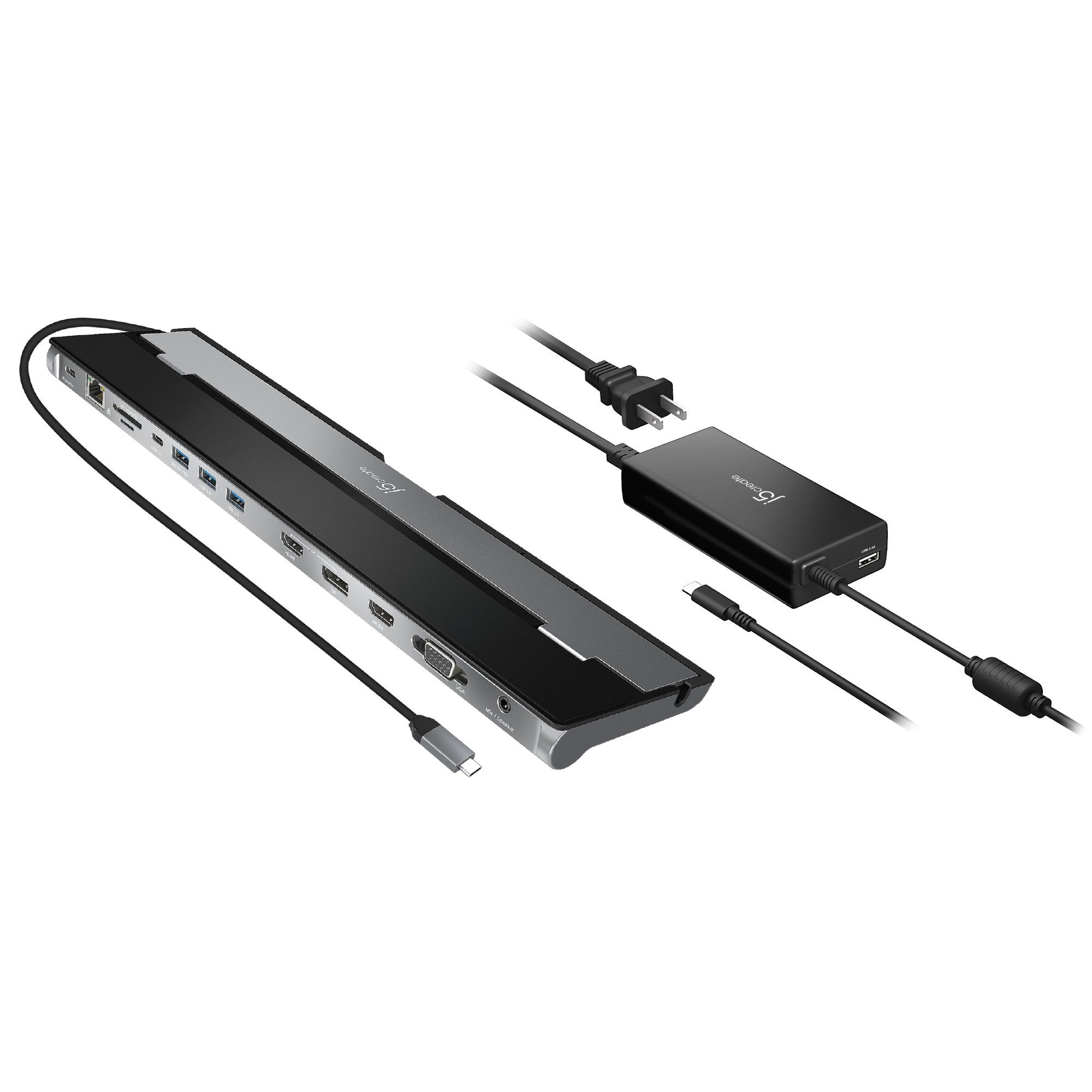

In the Box
- 1 x JCD543P USB-C Triple Display Docking Station
- 1 x JUP2290 100W USB-C Super Charger
- 1 x Quick Installation Guide
j5create Docking Stations at SourceIT
| Model | Product |
| JCD552 | M.2 NVMe USB-C Gen 2 Docking Station |
| JCD543 | USB-C Triple Display Docking Station |
| JCD543P (this listing) | USB-C Triple Display Docking Station with 100W PD Adapter |
| JCD554 | USB4 Triple 4K Display Docking Station |
| JTD568 | Thunderbolt 4 Quad Display Docking Station |
| JCDP4140 | Dual 4K Powerbase Docking Station with Cable Management |
Datasheet & Downloads
| j5create product page | JCD543P on j5create.com |
| Quick Install Guide | Quick Install Guide (PDF) |
| Country of Origin Declaration | Country of Origin Declaration (PDF) |
| Drivers | Drivers |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCD543P.
Frequently Asked Questions — j5create JCD543P
How many external displays does it support?
Up to 3 external (4 incl. laptop, extended mode). Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCD543P and the quantity for volume pricing and delivery lead time.
