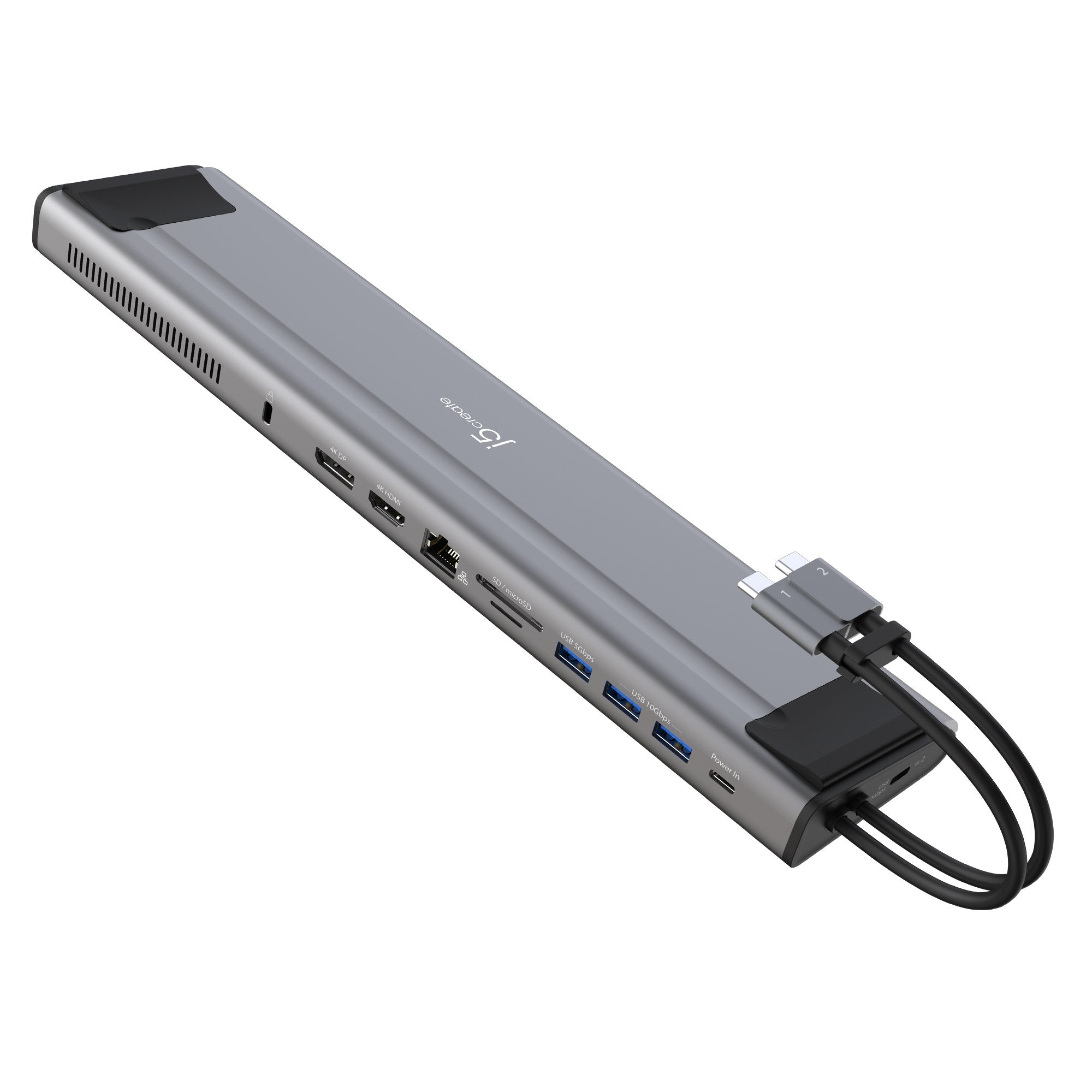

J5Create JCD552 M.2 NVMe USB-C Gen 2 Docking Station
PRODUCT DESCRIPTION
J5Create JCD552 M.2 NVMe USB-C Gen 2 Docking Station - 2 Years Local Warranty

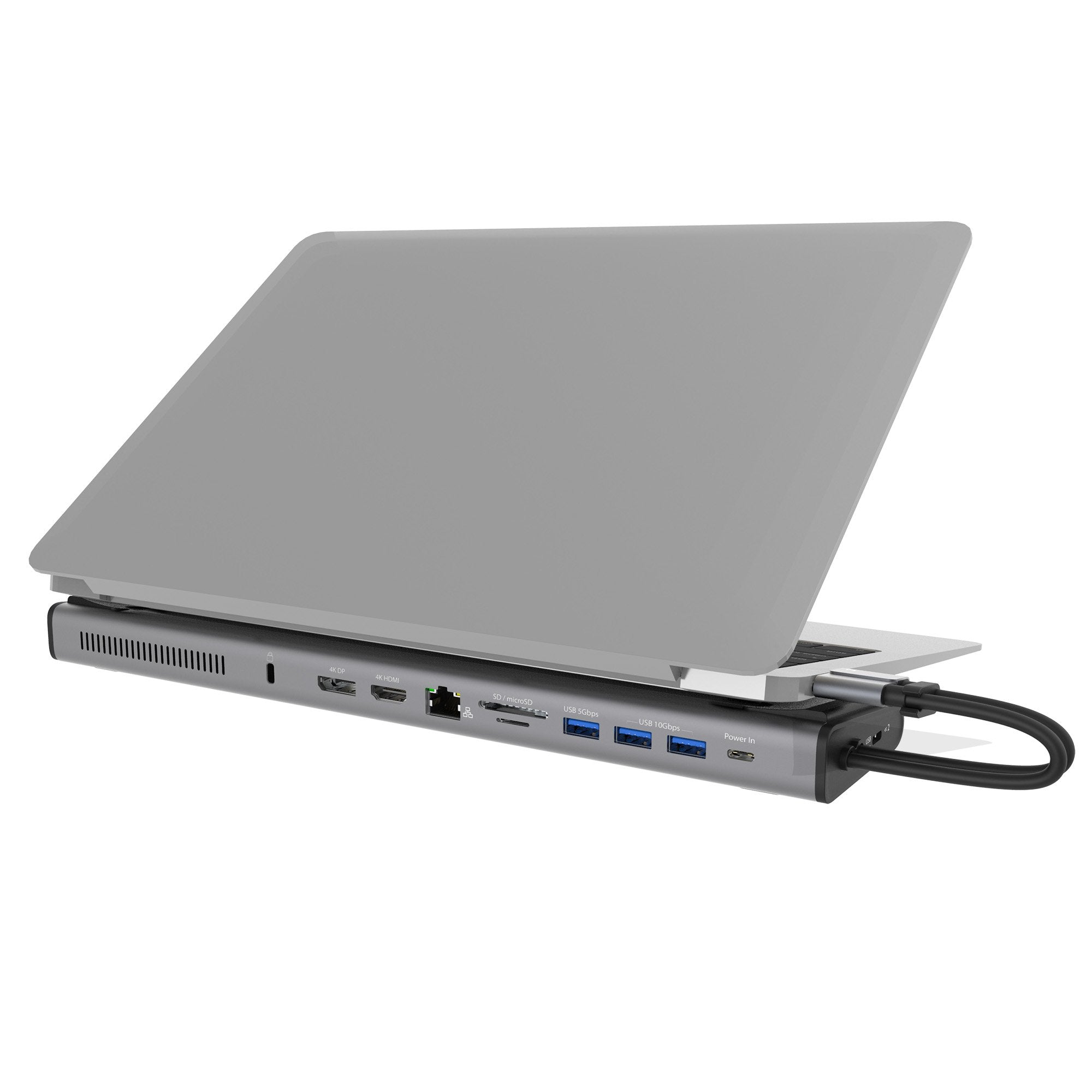

A desktop docking station that connects your laptop to external monitors, wired network, peripherals and charging through a single cable.
Key Features
- Built-in M.2 NVMe/SATA SSD slot (2230 to 2280) for extra storage

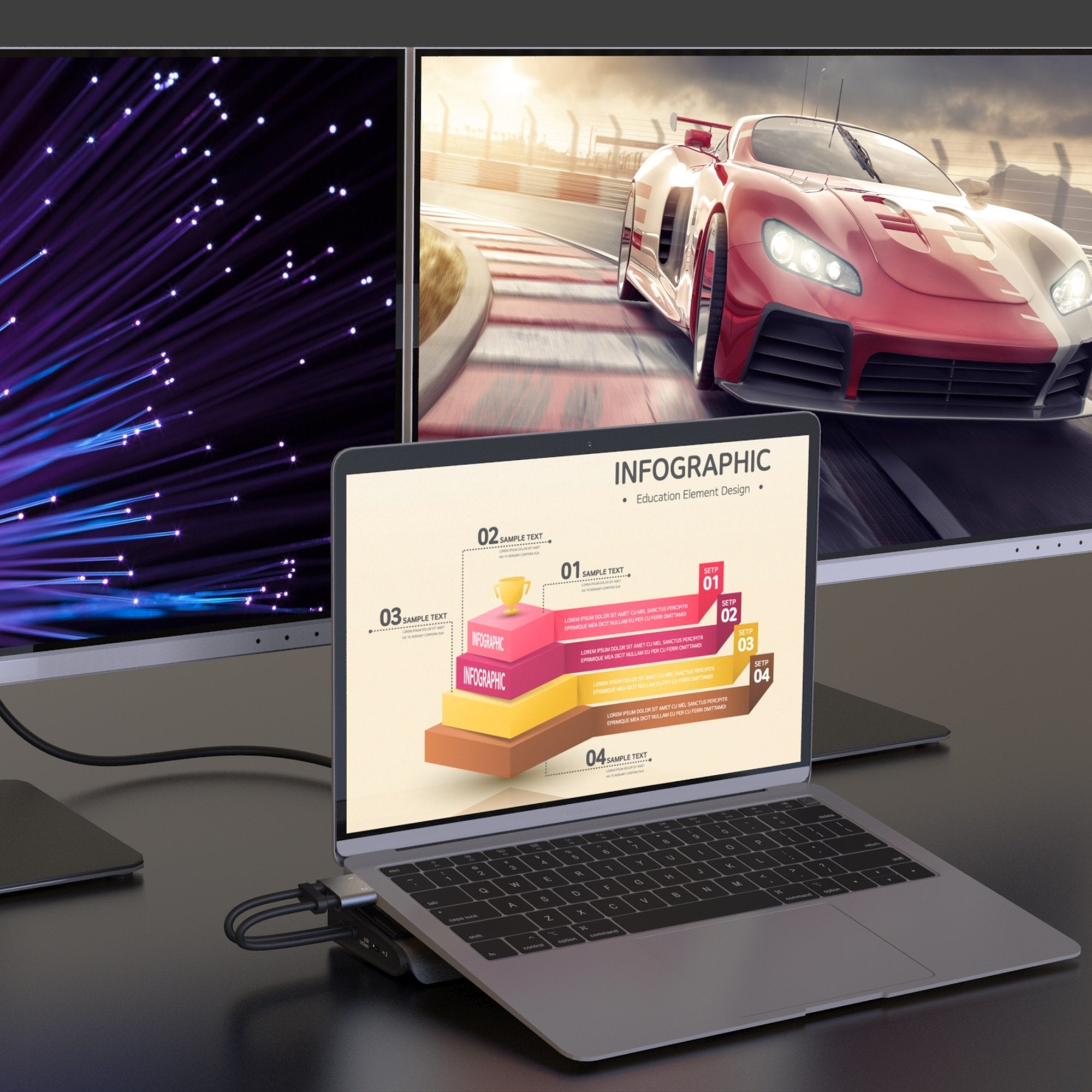

- Two 4K 60Hz displays via HDMI and DisplayPort
- USB 3.2 Gen 2 10Gbps ports plus Gigabit Ethernet and SD/microSD reader
- 100W USB-C Power Delivery pass-through

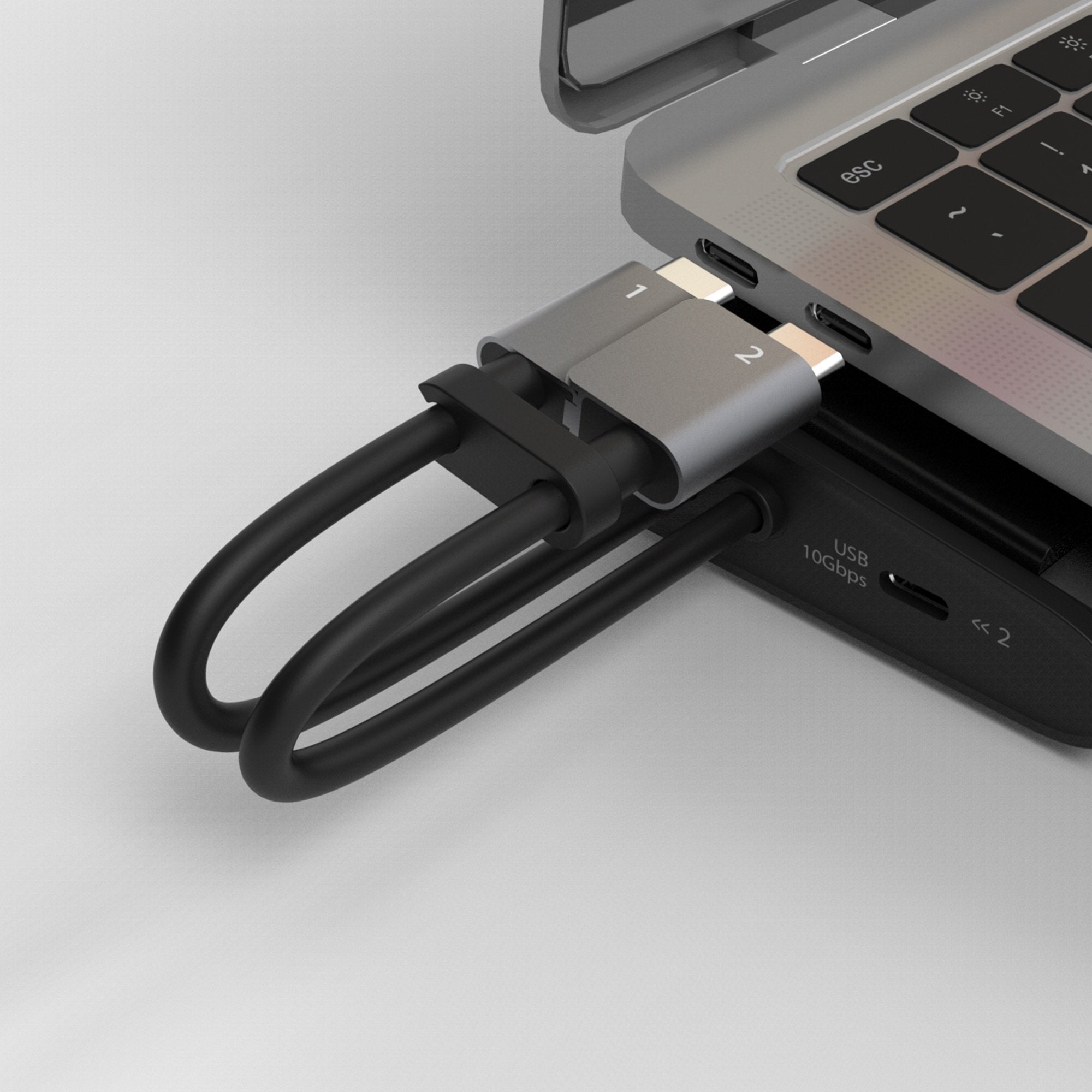

- Detachable magnetic dual USB-C host connector, Thunderbolt 3 compatible
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCD552 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCD552 |
| Product Name | M.2 NVMe USB-C Gen 2 Docking Station |
| EAN | 4712795086133 |

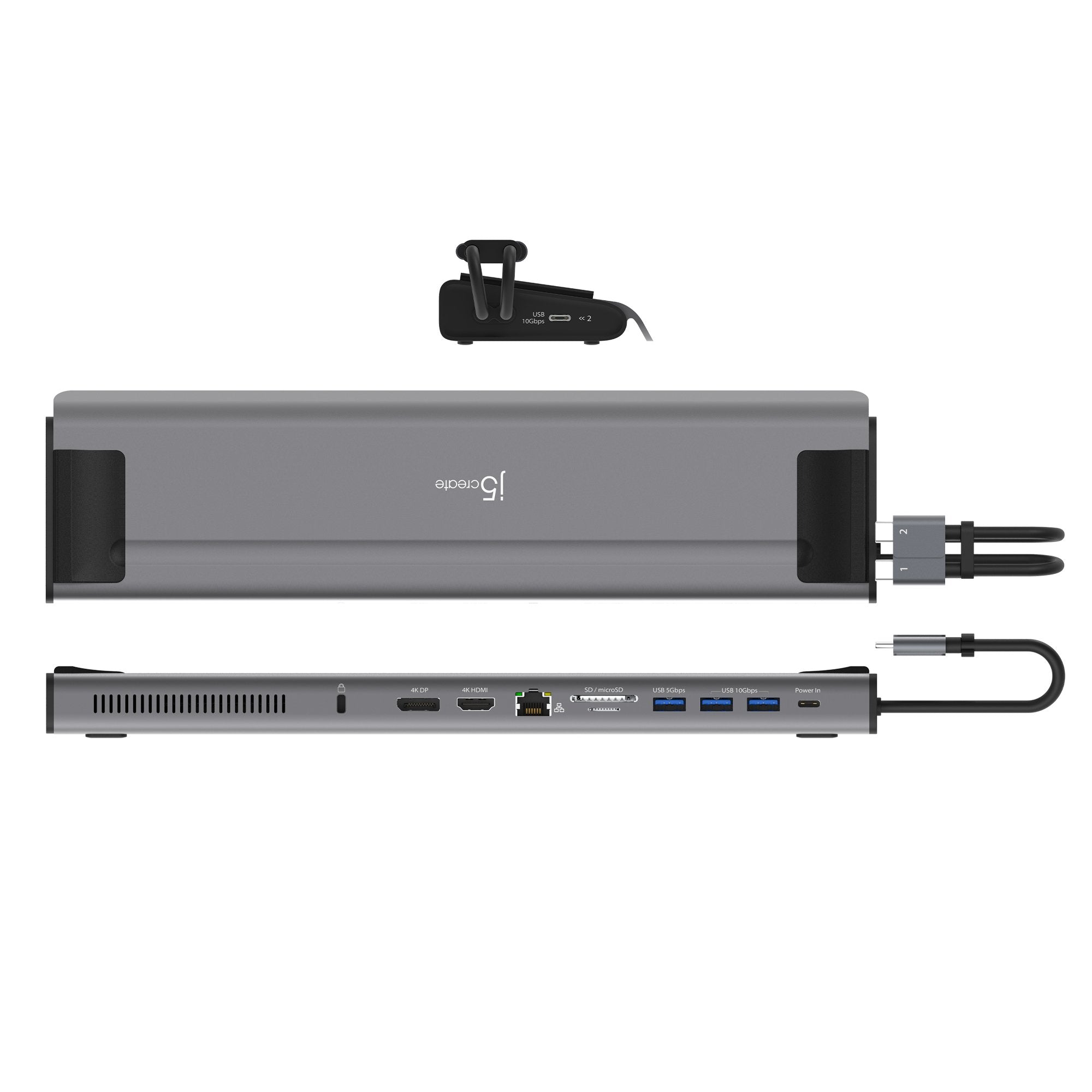

Ports
| Host connector | 2 x USB-C male (detachable, magnetic) |
| USB-C | 1 x USB-C 3.2 Gen 2 (10Gbps); 1 x USB-C Power Delivery 3.0 |
| USB-A | 2 x USB Type-A 3.2 Gen 2 (10Gbps); 1 x USB Type-A 3.2 Gen 1 (5Gbps) |
| Video | 1 x 4K HDMI; 1 x 4K DisplayPort |
| Network | RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Card reader | SD / microSD 3.0 |

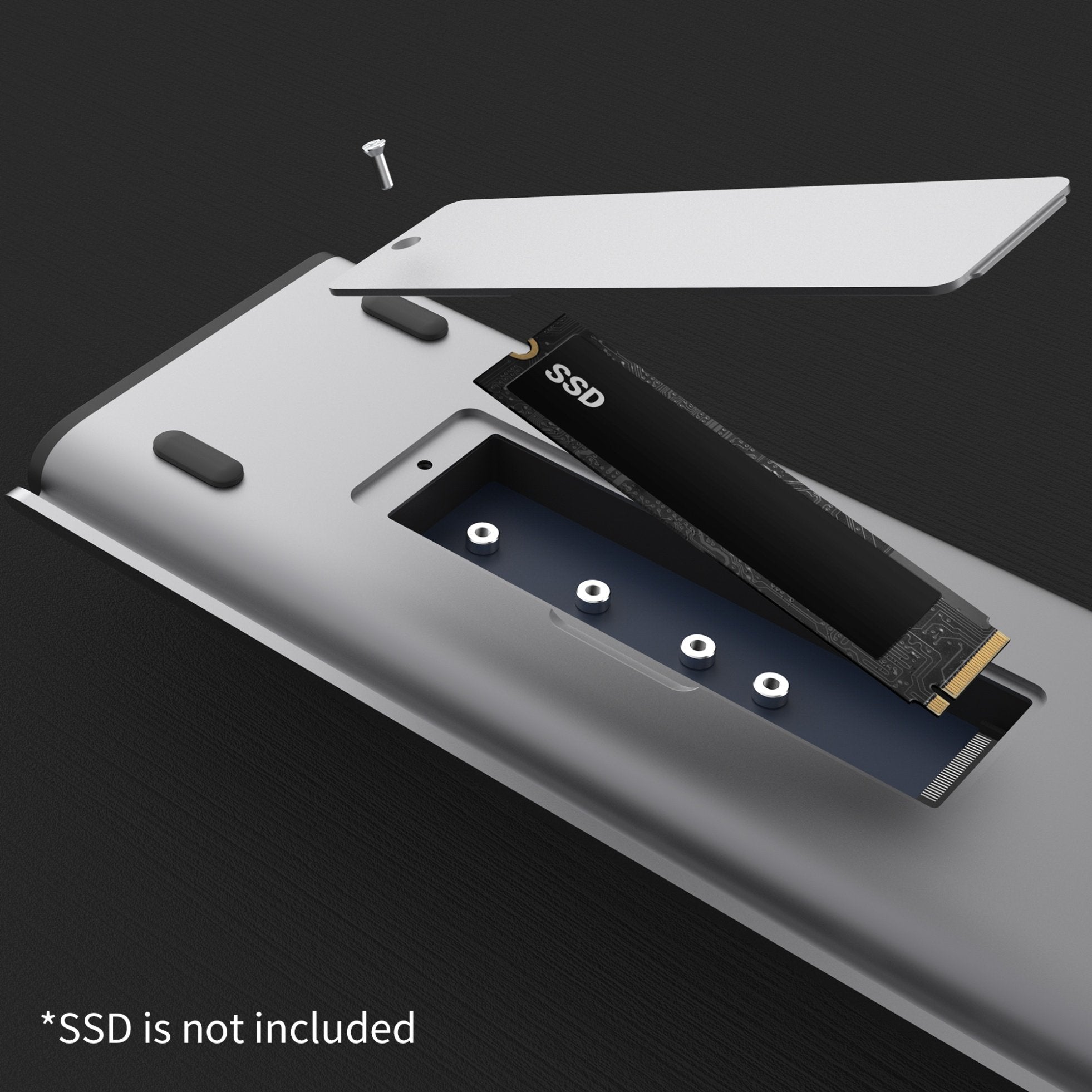

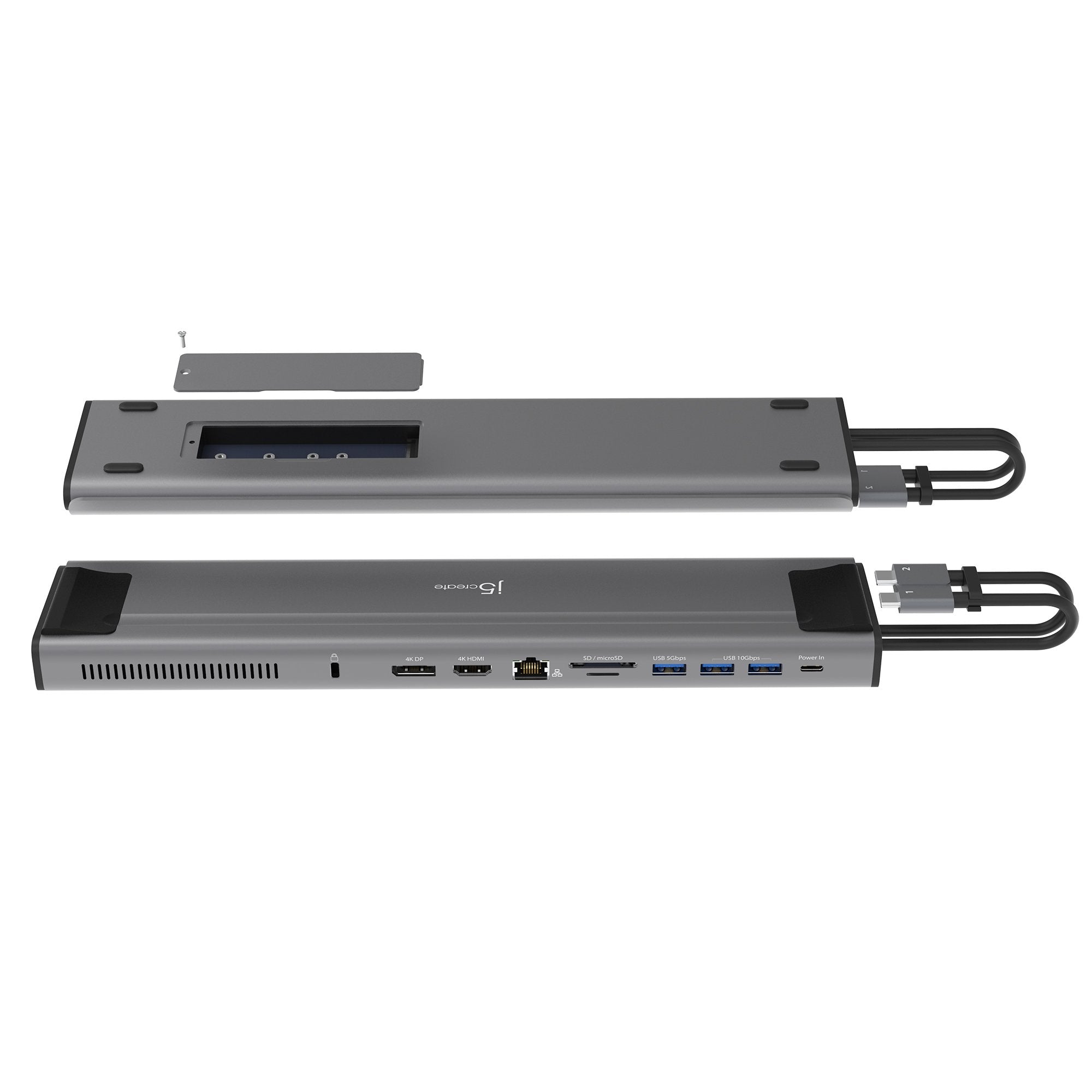

| Storage | 1 x M.2 NVMe/SATA slot (2230, 2242, 2260, 2280) |
| Security | Security lock slot |
Video Output
| Displays supported | 2 |
| Max resolution | 3840 x 2160 @ 60Hz |
| Audio | 2.1 via HDMI/DisplayPort |
Performance
| Max data rate | Up to 10Gbps |
| M.2 write speed | approx. 900 MB/s |
| M.2 read speed | approx. 925 MB/s |
Power
| Power source | Bus-powered |
| Input | 20V / 5A |
| Output | 20V / 5A |
| Power Delivery | Up to 100W via USB-C |
| Dock consumption | ≤600 mA |
Physical
| Enclosure | Aluminum |
| Colour | Grey and black |
| Cable length | 15 cm (0.6 in.) |
| Weight | approx. 378 g (0.83 lb) |
| Dimensions | 318 x 80 x 26 mm (12.5 x 3.14 x 1.02 in.) |
| Operating temperature | 0 to 48°C (32 to 118°F) |
| Storage temperature | -10 to 65°C (14 to 149°F) |
| Humidity | <85% non-condensing |
Compatibility & System Requirements
System Requirements
- USB-C port supporting DisplayPort Alt Mode and USB Power Delivery 2.0/3.0
- DisplayPort 1.4 on graphics/cable/source for 4K 60Hz
- 4K-capable display for 3840 x 2160

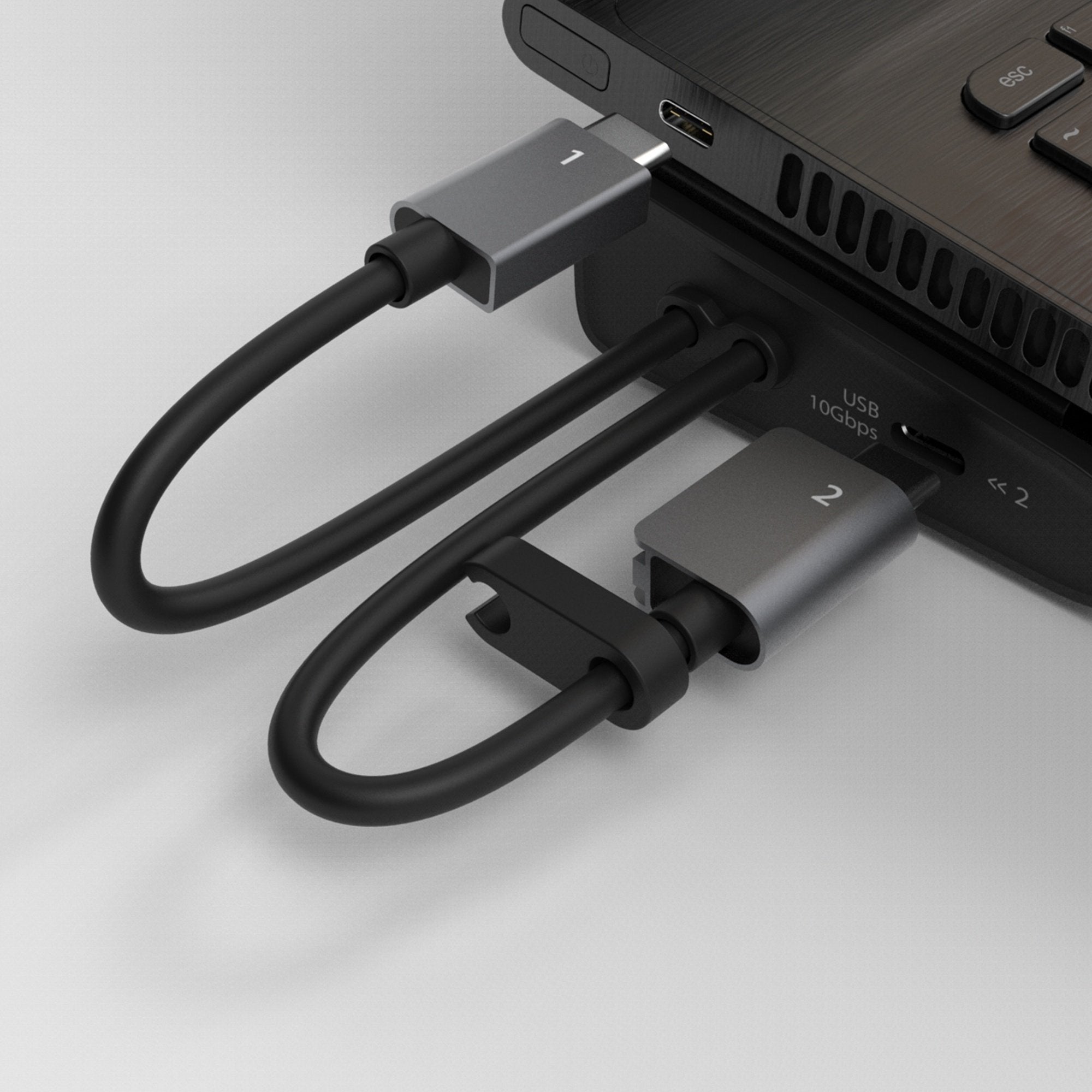

- Laptops with a single USB-C port connect the second host cable to the dock's 10Gbps USB-C port
- M1 MacBook Pro/Air support only one external display
Package Contents & j5create Docking Stations Ordering Information
In the Box
- 1 x JCD552 M.2 NVMe USB-C Gen 2 Docking Station
- 1 x Quick Installation Guide
j5create Docking Stations at SourceIT
| Model | Product |
| JCD552 (this listing) | M.2 NVMe USB-C Gen 2 Docking Station |
| JCD543 | USB-C Triple Display Docking Station |
| JCD543P | USB-C Triple Display Docking Station with 100W PD Adapter |
| JCD554 | USB4 Triple 4K Display Docking Station |
| JTD568 | Thunderbolt 4 Quad Display Docking Station |
| JCDP4140 | Dual 4K Powerbase Docking Station with Cable Management |
Datasheet & Downloads
| j5create product page | JCD552 on j5create.com |
| Quick Install Guide | Quick Install Guide (PDF) |
| Drivers | Drivers |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCD552.
Frequently Asked Questions — j5create JCD552
How many external displays does it support?
2. Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
How much charging power reaches my laptop?
Up to about 100W, based on j5create’s published output rating, when a suitable USB-C PD power adapter is connected (adapter sold separately unless listed in the box).
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCD552 and the quantity for volume pricing and delivery lead time.
