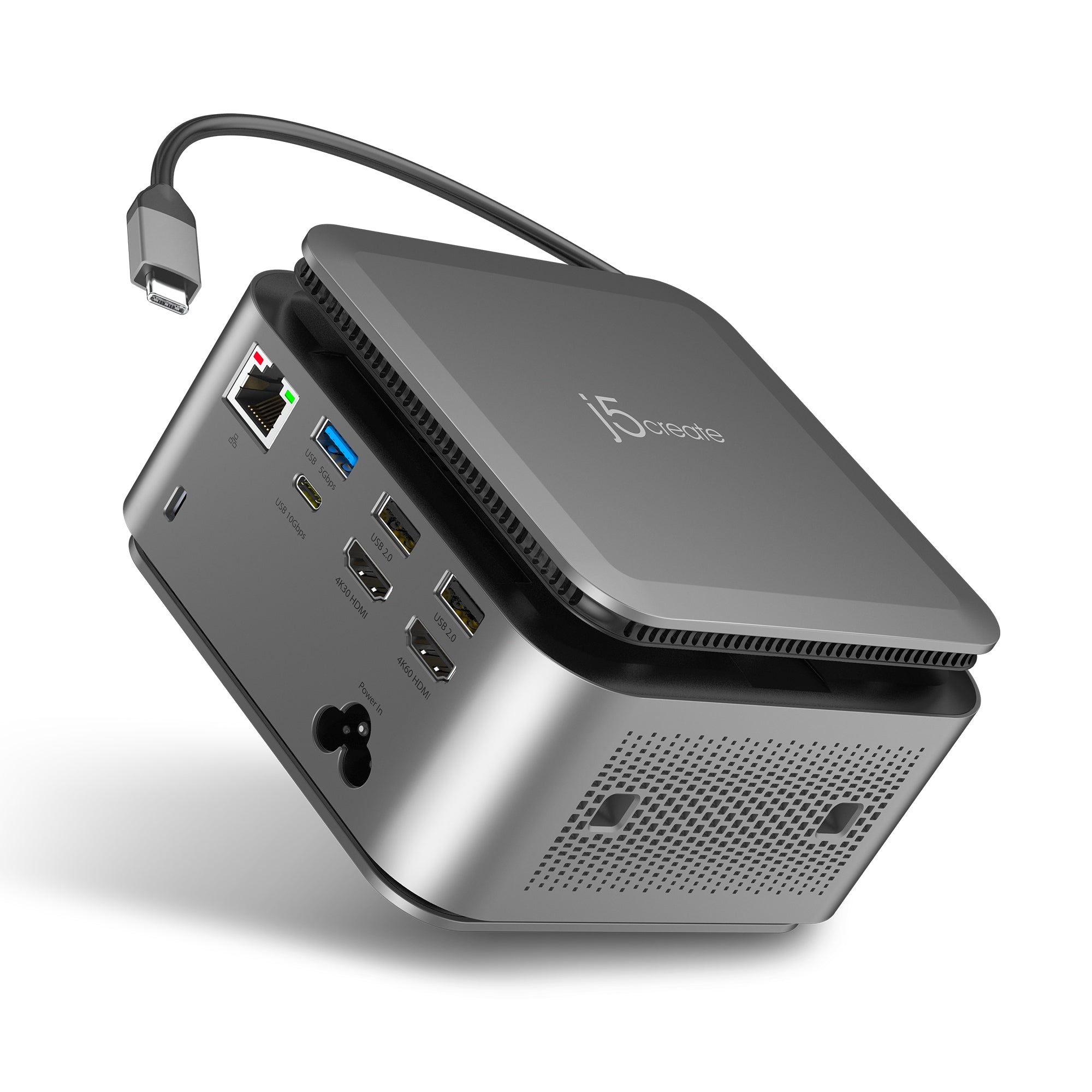

J5Create JCDP4140 Dual 4K Powerbase Docking Station with Cable Management
PRODUCT DESCRIPTION
J5Create JCDP4140 Dual 4K Powerbase Docking Station with Cable Management - 2 Years Local Warranty
A desktop docking station that connects your laptop to external monitors, wired network, peripherals and charging through a single cable.
Key Features

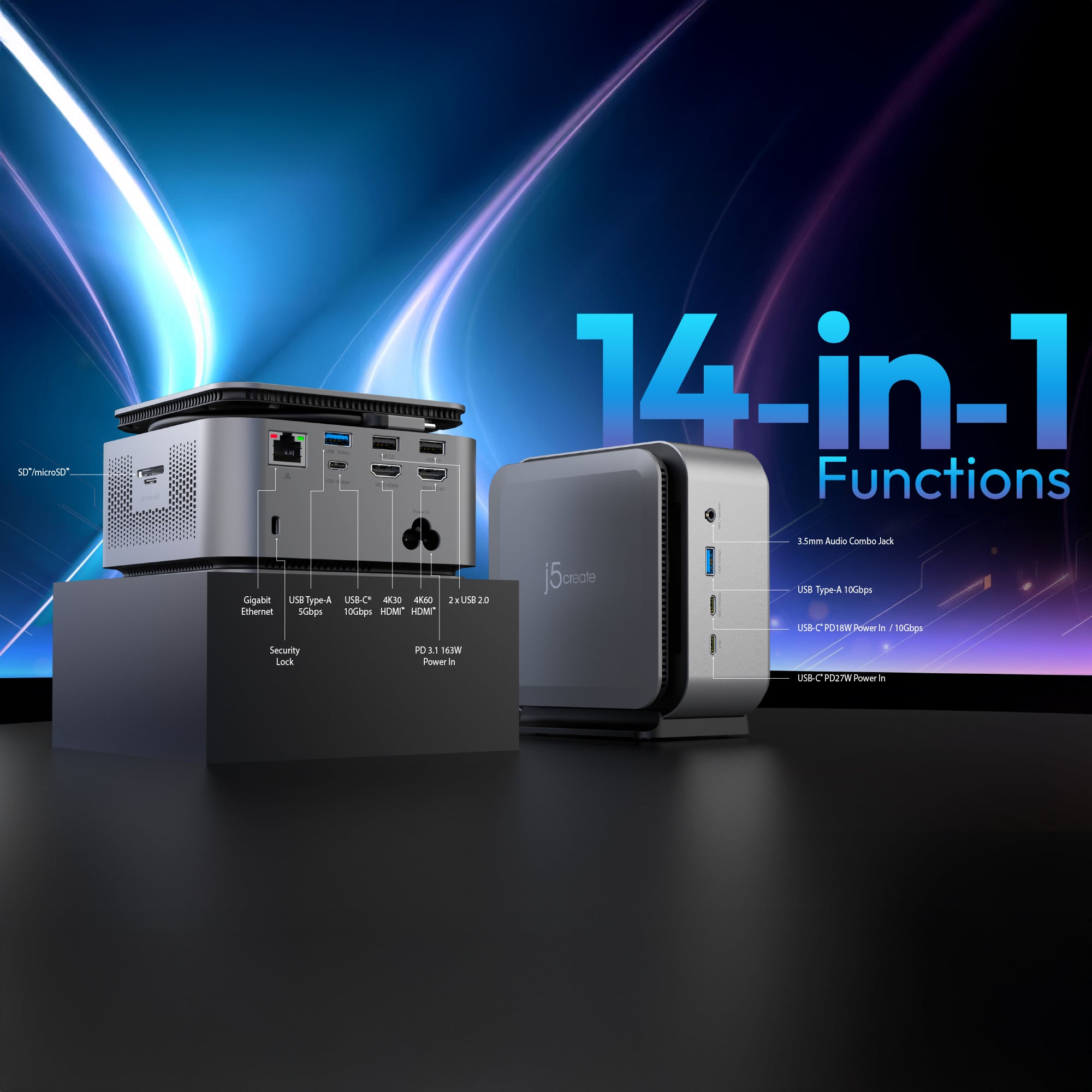

- 14-in-1 powered base with built-in AC supply and 100W PD laptop charging
- Dual 4K 60Hz HDMI displays (driver install required)
- Six USB ports including 27W and 18W USB-C charging ports
- Gigabit Ethernet and SD/microSD 3.0 reader

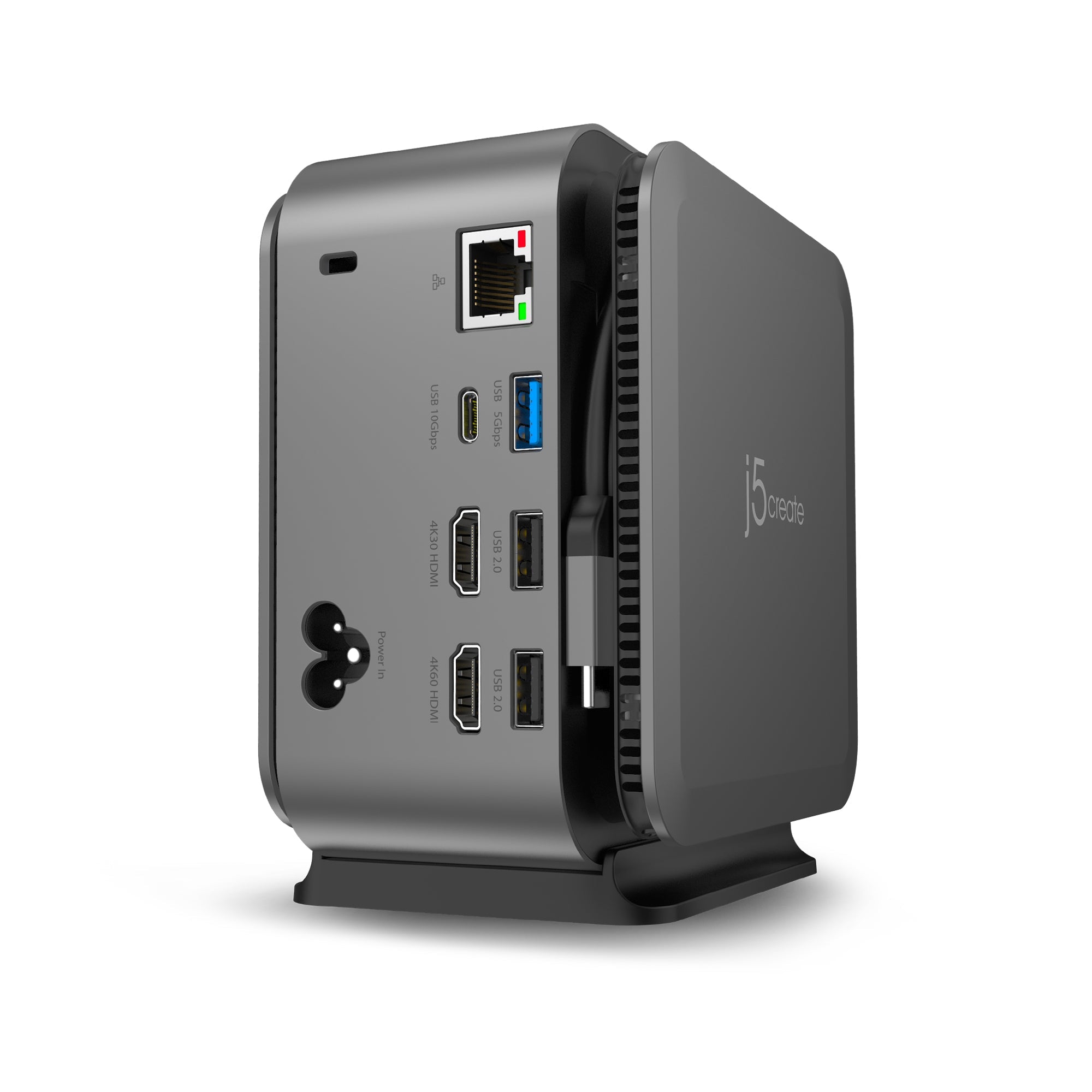

- Built-in cable organiser and vertical laptop holder
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCDP4140 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCDP4140 |
| Product Name | Dual 4K Powerbase Docking Station with Cable Management |
| EAN | 4712795089769 |

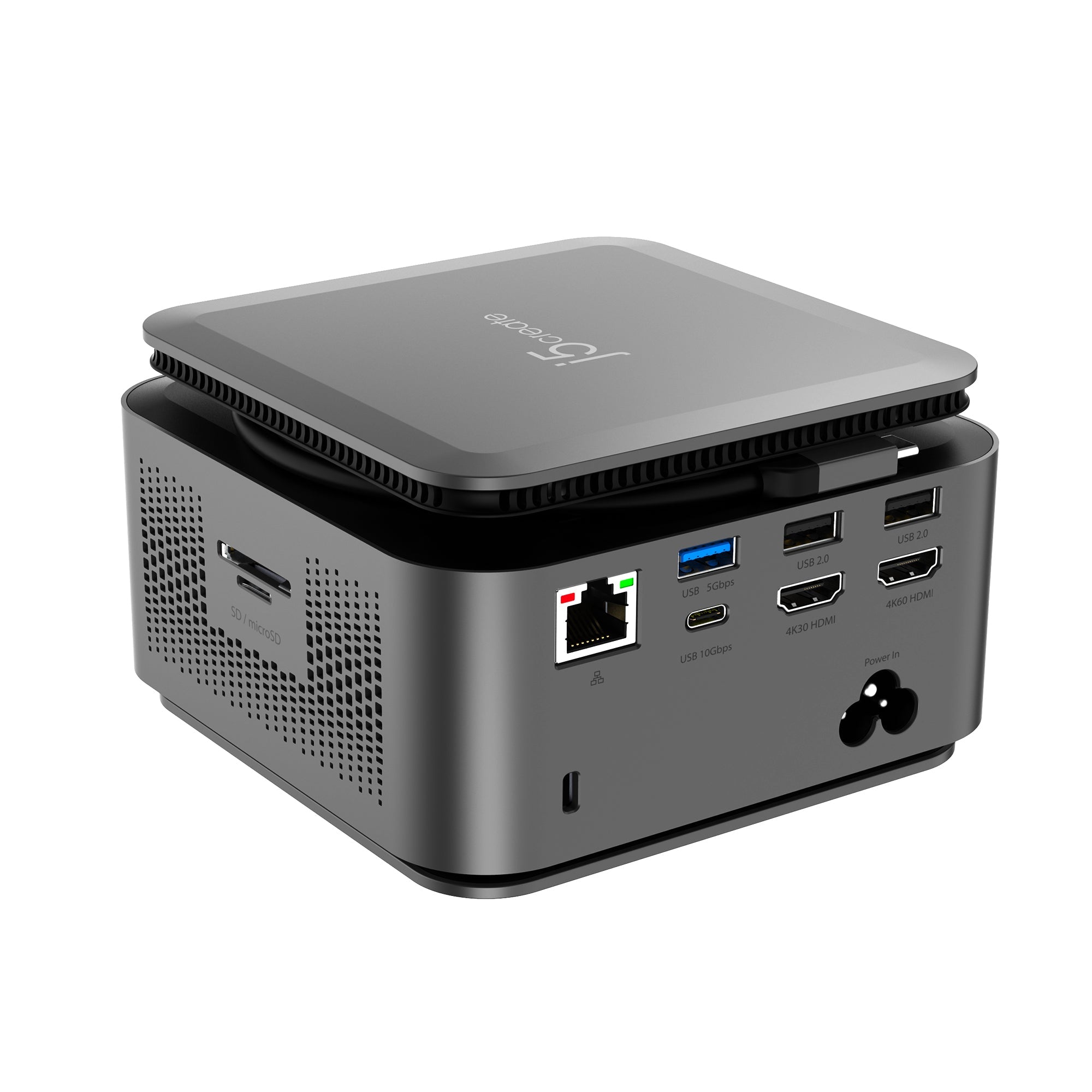

Ports
| Host connector | USB-C male (PD 3.0 100W, 20V/5A, DP Alt Mode) |

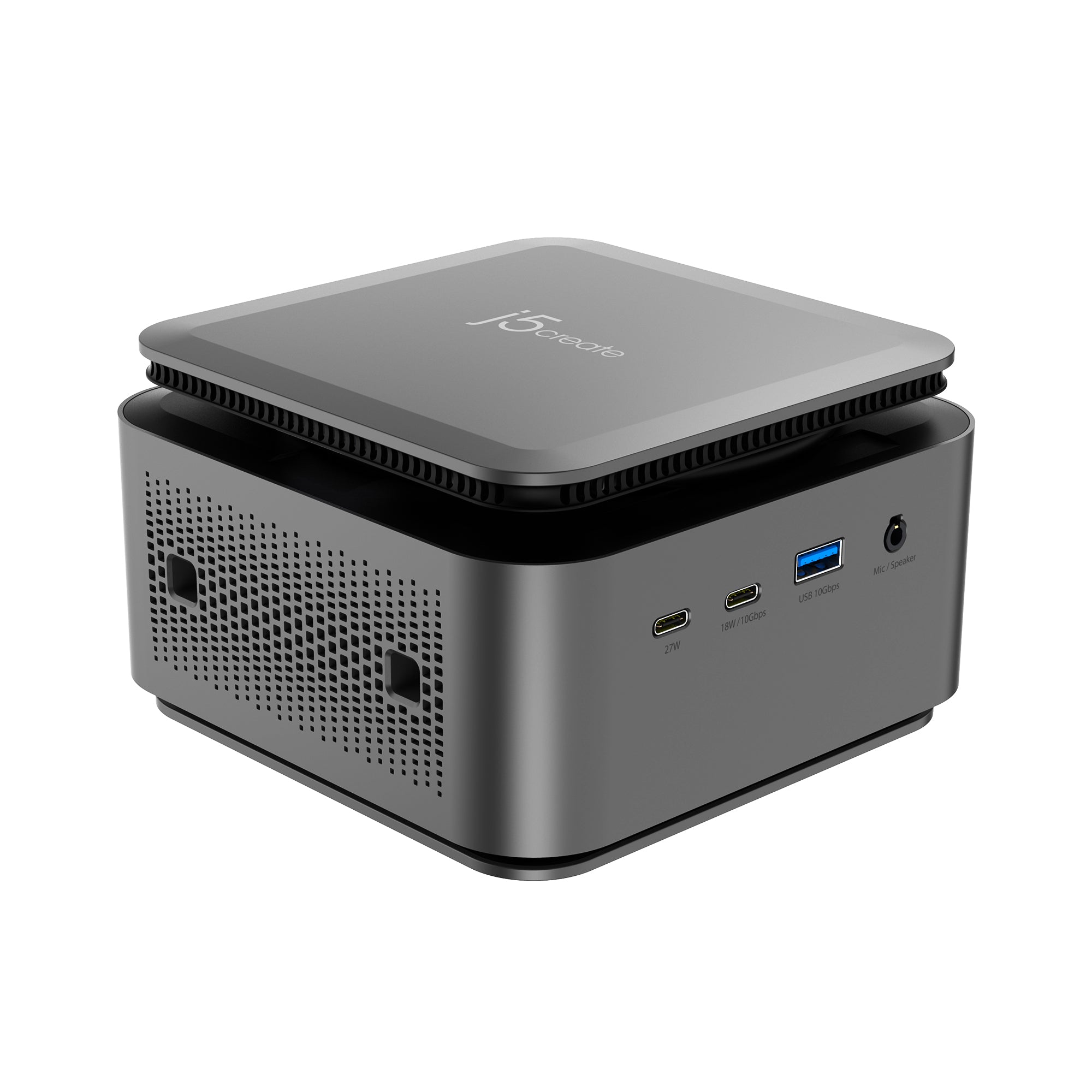

| USB-C | 1 x USB-C 27W charging only; 1 x USB-C 18W PD |
| USB-A | 2 x USB Type-A 5/10Gbps; 2 x USB Type-A 2.0 |
| Video | 2 x HDMI |
| Network | RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Card reader | SD / microSD 3.0 |
| Audio | 3.5mm combo jack |
Video Output

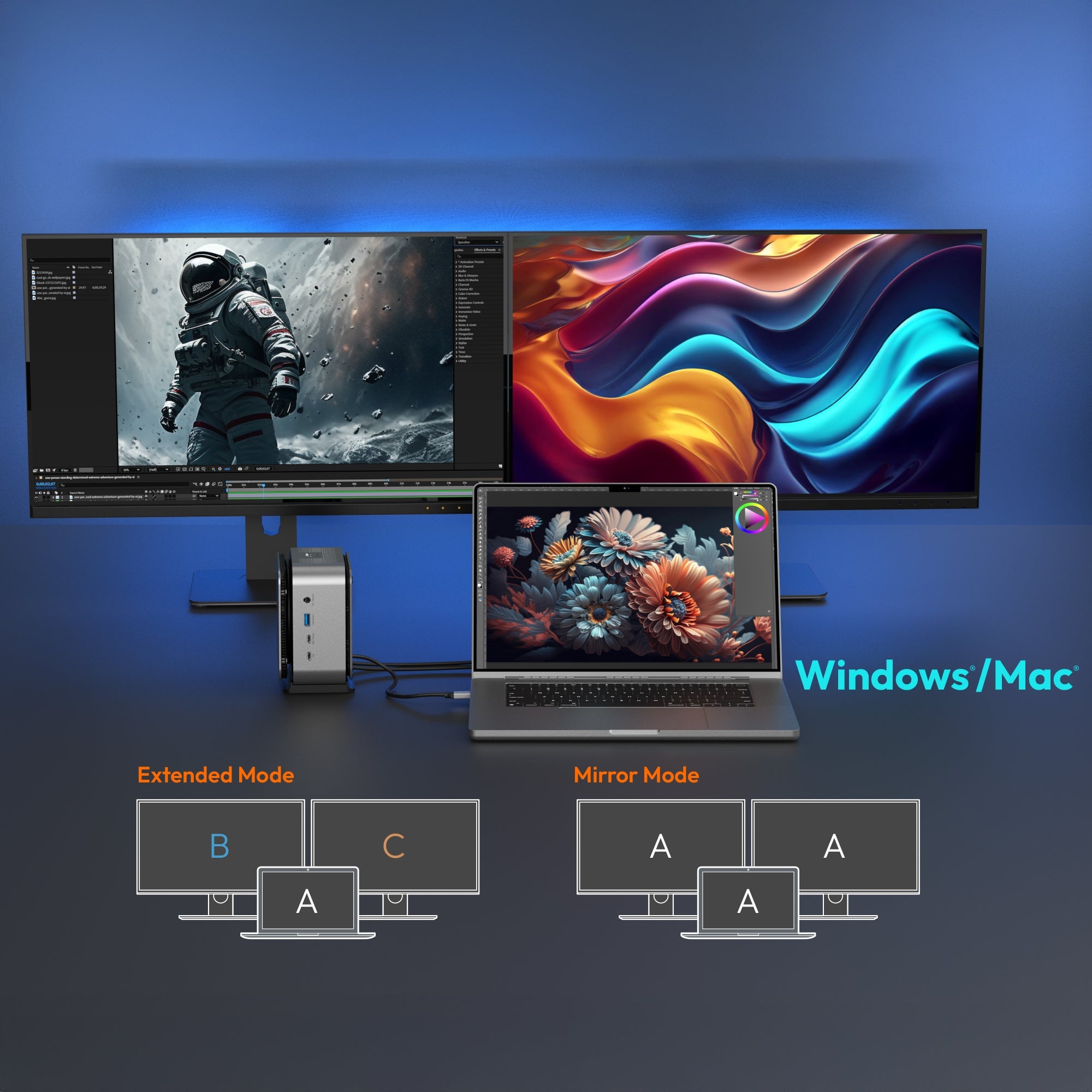

| Displays supported | 2 |
| Max resolution | 3840 x 2160 @ 60Hz |
Performance
| Max data rate | 10Gbps |
Power
| Input | AC 100-240V |
| Output | Up to 20V / 5A |
| Power Delivery | Up to 100W via USB-C |
| Total charging | 145W |
Physical
| Enclosure | Plastic |
| Colour | Space Grey |

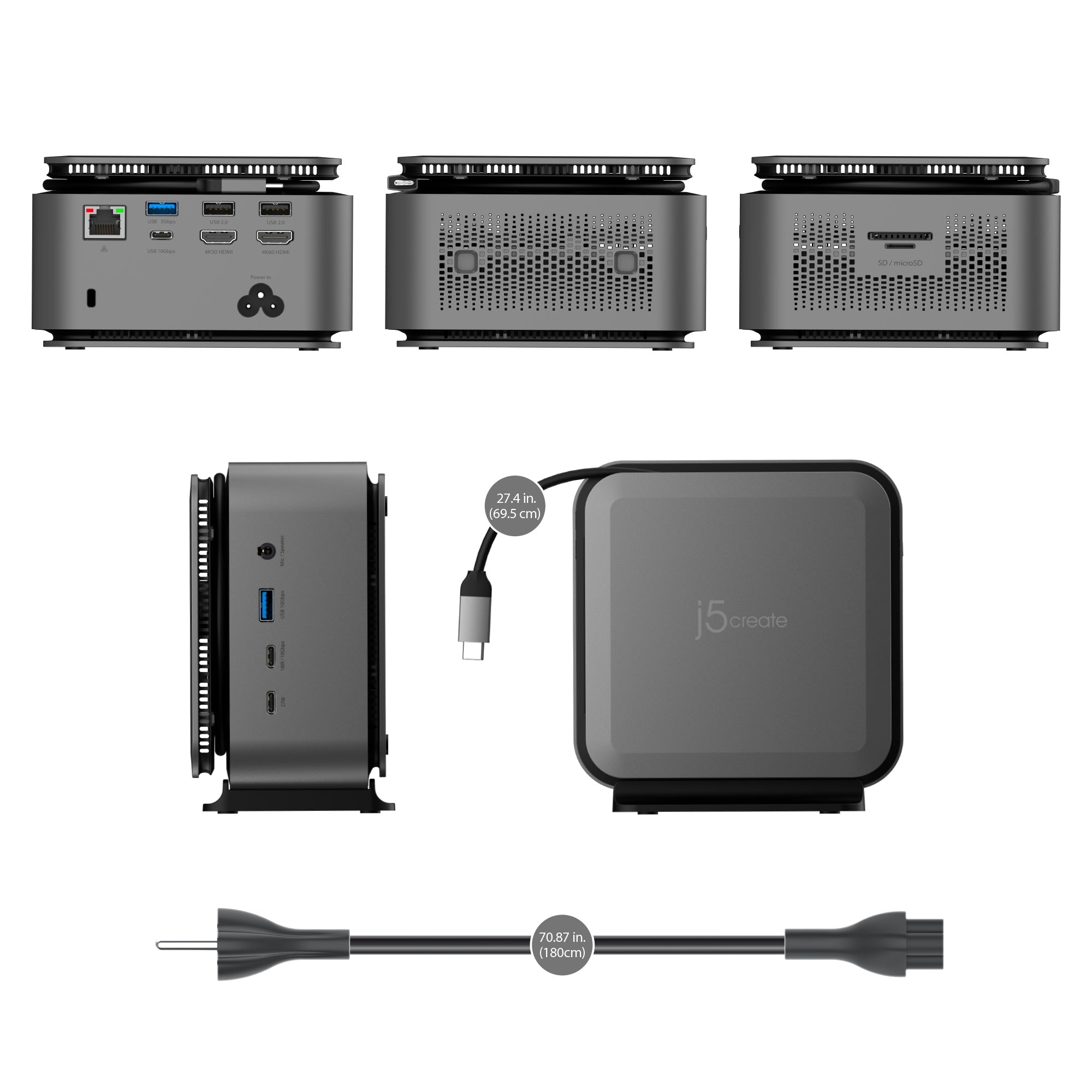

| Cable length | 69.5 cm (2.28 ft) USB-C host cable |
| Weight | approx. 759 g (1.67 lb) |
Compatibility
| OS | Windows 10 or later; macOS 10.14 or later |
| Laptops | M1-M5 MacBook or Windows laptops |
Compatibility & System Requirements
System Requirements
- Windows 10 or later, or macOS 10.14 or later
- USB-C port supporting DisplayPort Alt Mode and USB Power Delivery 2.0/3.0
- DisplayPort 1.4 on host for 4K 60Hz
- Driver installation required on macOS and Windows
Compatibility
| OS | Windows 10 or later; macOS 10.14 or later |
| Laptops | M1-M5 MacBook or Windows laptops |
Package Contents & j5create Docking Stations Ordering Information
In the Box
- 1 x JCDP4140 Dual 4K Powerbase Docking Station with Cable Management
- 1 x Detachable 3-pin power cord (region-specific length)
- 1 x Quick Installation Guide (QIG)
j5create Docking Stations at SourceIT
| Model | Product |
| JCD552 | M.2 NVMe USB-C Gen 2 Docking Station |
| JCD543 | USB-C Triple Display Docking Station |
| JCD543P | USB-C Triple Display Docking Station with 100W PD Adapter |
| JCD554 | USB4 Triple 4K Display Docking Station |
| JTD568 | Thunderbolt 4 Quad Display Docking Station |
| JCDP4140 (this listing) | Dual 4K Powerbase Docking Station with Cable Management |
Datasheet & Downloads
| j5create product page | JCDP4140 on j5create.com |
| Drivers | Drivers |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCDP4140.
Frequently Asked Questions — j5create JCDP4140
How many external displays does it support?
2. Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
How much charging power reaches my laptop?
Up to about 100W, based on j5create’s published output rating, when a suitable USB-C PD power adapter is connected (adapter sold separately unless listed in the box).
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCDP4140 and the quantity for volume pricing and delivery lead time.
