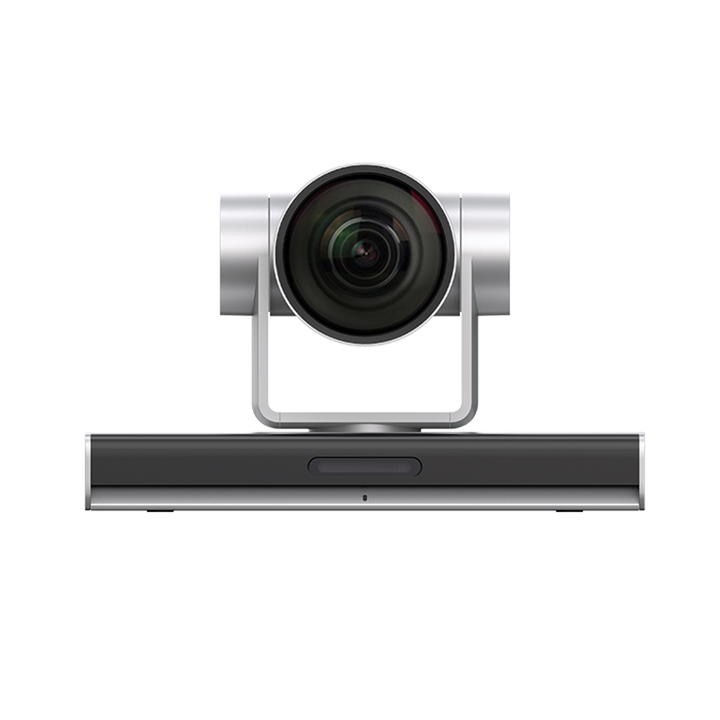

Huawei CloudLink Camera 200 4K 12x PTZ Video Conferencing Camera, C200-HW
Pricing available upon request
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
Shipping calculated at checkout.
PRODUCT DESCRIPTION
Huawei CloudLink Camera 200 4K 12x PTZ Video Conferencing Camera (C200-HW) - Local Warranty
The HUAWEI CloudLink Camera 200 (C200-HW) is a 4K ultra-HD PTZ conference camera with 12x optical zoom for Huawei UHD video conferencing endpoints and cloud-registered clients. Supplied with 12 V adapter and remote control.
Key Features
- 8.51 MP 1/2.5-inch CMOS sensor; 4K 25/30, 1080p 50/60 and 1080p 25/30 output.
- 12x optical zoom, F1.8-F3.56 aperture.
- 80° horizontal / 50° vertical field of view.
- Pan ±110°, tilt ±30°; 255 presets.
- HDMI 1.4b and USB 3.0 video outputs.
- On-screen display for standalone setup; controlled from the endpoint remote or touch panel.
Huawei C200-HW Datasheet — Technical Specifications
General
| Product Name | Huawei CloudLink Camera 200 4K 12x PTZ Video Conferencing Camera |
| Brand | Huawei |
| Huawei Part Number | 02413561 |
| Model | C200-HW |
Camera
| Image Sensor | 8.51 MP, 1/2.5-inch CMOS |
| Video Output | 4K 25/30, 1080p 50/60, 1080p 25/30 |
| Zoom | 12x optical |
| Aperture | F1.8 to F3.56 ±5% |
| Field of View | Horizontal 80°, vertical 50° |
| Pan / Tilt | Pan ±110°, tilt ±30° |
| Presets | 255 |
Connectivity
| Video Output Ports | 1 x USB 3.0, 1 x HDMI 1.4b |
| In the Box | Camera, 12 V adapter, remote control |
Compatibility & Ordering Information
For Huawei UHD video conferencing endpoints and cloud-registered soft clients.
Huawei Conference Audio & Camera
| Model | Huawei part / model |
| Huawei CloudLink Mic 500 Microphone Array | 02312SGN / HUAWEI Mic 500 |
| Huawei CloudLink Mic 500T Microphone Array | 02313KFB / CloudLink Mic 500T |
| Huawei CloudLink Camera 200 4K 12x PTZ Video Conferencing Camera | 02413561 / C200-HW |
Camera Accessories
| Accessory | Huawei part / model |
| Huawei VISCA RJ45 Camera Control Cable | 04050175 / CVISRJ454 |
| Huawei Camera Bracket for VPC600 / VPC620 / TE30 (VC8MBRAC1) | 21122854 / VC8MBRAC1 |
| Huawei DVI to HDMI Cable for HD Endpoints | 04050087 / CHDMIEC01 |
Datasheet & Downloads
| Product page | HUAWEI CloudLink Camera 200 |
Frequently Asked Questions — CloudLink Camera 200 4K 12x PTZ Video Conferencing Camera
Is it 4K?
Yes, it outputs up to 4K 30 fps, and 1080p at up to 60 fps.
How does it connect?
HDMI 1.4b or USB 3.0.
Is a remote included?
Yes, with a 12 V power adapter.
