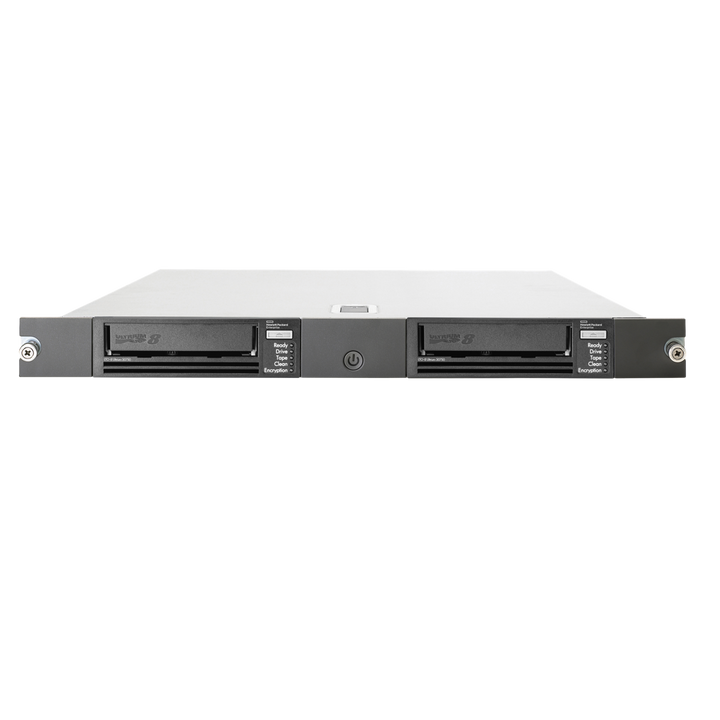

HPE StoreEver 1U Rack-mount Kit with LTO-9 Ultrium 45000 Internal Tape Drive and 5 LTO-9 Cartridges
PRODUCT DESCRIPTION
HPE StoreEver 1U Rack-mount Kit with LTO-9 Ultrium 45000 Internal Tape Drive and 5 LTO-9 Cartridges (P77034-B25) - Local Warranty
Rack-mount LTO-9 drive kit with media
HPE Smart Choice bundle P77034-B25 combines the HPE StoreEver 1U Generic Rack-mount Kit, an internal LTO-9 SAS tape drive, the 4 m SAS cable and five 45 TB data cartridges — a rack-ready standalone backup drive under one part number.
Room for a second drive
The 1U enclosure holds two half-height drives with its own power supply and fans, so a second LTO-8 or LTO-9 drive can be added later for up to 90 TB compressed and 600 MB/s.
Standard LTO protection
AES 256-bit hardware encryption, WORM media support, LTFS and 30-year media life; connect to an HPE Smart Array E208e-p SR Gen10 or other external SAS HBA.
HPE StoreEver 1U Rack-mount Kit with LTO-9 Ultrium 45000 Internal Tape Drive and 5 LTO-9 Cartridges Datasheet — Technical Specifications
Bundle
| Model | HPE StoreEver 1U Rack-mount Kit with LTO-9 Ultrium 45000 Internal Tape Drive and 5 LTO-9 Cartridges (P77034-B25) |
| Contents | 1 x HPE StoreEver 1U Generic Rack-mount Kit (BC029A); 1 x HPE StoreEver LTO-9 Ultrium 45000 Internal Tape Drive (BC040A); 1 x HPE StoreEver 1U Rack-mount Kit 12Gb SAS Cable (P35174-B21, 4 m Mini-SAS HD); 5 x HPE LTO-9 Ultrium 45 TB RW Data Cartridge |
| Capacity Out of the Box | 225 TB compressed (5 x 45 TB) |
| Rack-mount Kit | 1U enclosure for up to two half-height SAS tape drives, with power supply, fans, power cord and quick-deploy sliding rails; 4.32 cm H x 42.88 cm W x 64.14 cm D; 8.6 kg; 140 W maximum |
LTO-9 Ultrium Drive
| Native / Compressed Capacity | 18 TB / 45 TB (2.5:1) |
| Native Transfer Rate | 300 MB/s sustained (data-rate matching 100-300 MB/s); 1200 MB/s burst |
| Host Interface | 12Gb/s dual-port SAS |
| Media Compatibility | Reads and writes LTO-9 and LTO-8 media |
| Encryption | AES 256-bit hardware encryption with no performance loss |
| WORM / LTFS | WORM with HPE LTO-9 WORM media; LTFS supported |
| Buffer | 1024 MB |
| Power | 17 W idle / 33 W typical |
What's Included & Compatible Options
Everything listed under Contents above, pre-packaged under one HPE Smart Choice part number. HPE's model name reads "6x" cartridges while HPE's QuickSpecs contents list five — we list five; confirm with us at order time.
HPE StoreEver Tape Range — Ordering Information
| Model | Description |
| R1R75B | MSL 1/8 G2 autoloader, 0 drives |
| AH166A | MSL 1/8 G2 rack kit |
| AK379A | MSL2024 library, 0 drives |
| P77035-B25 | MSL 1/8 G2 bundle with LTO-8 drive + 5 cartridges |
| P77036-B25 | MSL2024 bundle with LTO-8 drive + 15 cartridges |
| P77037-B25 | MSL3040 bundle with LTO-9 drive + 20 cartridges |
| R6Q75A | MSL LTO-9 SAS drive kit |
| R6Q74A | MSL LTO-9 FC drive kit |
| Q6Q68A | MSL LTO-8 SAS drive kit |
| Q6Q67A | MSL LTO-8 FC drive kit |
| N7P37A | MSL LTO-7 SAS drive kit |
| N7P36A | MSL LTO-7 FC drive kit |
| BC042A | LTO-9 external drive |
| BC023A | LTO-8 external drive |
| BB874A | LTO-7 external drive |
| P77034-B25 (this listing) | 1U rack kit + LTO-9 internal drive + 5 cartridges |
| P77033-B25 | 1U rack kit + LTO-8 internal drive + 5 cartridges |
| K2R09A | Mini-SAS HD to 4 x Mini-SAS fan-out cable |
Datasheet & Downloads
| HPE QuickSpecs | HPE StoreEver Rack-mount Kits QuickSpecs |
| Tape drive QuickSpecs | HPE StoreEver LTO Ultrium Tape Drives QuickSpecs |
| HPE product page | HPE StoreEver Rack-mount Kits on hpe.com |
Frequently Asked Questions — HPE StoreEver 1U Rack-mount Kit with LTO-9 Ultrium 45000 Internal Tape Drive and 5 LTO-9 Cartridges
What else do I need?
A SAS HBA with an external Mini-SAS HD port in the backup server — HPE recommends the HPE Smart Array E208e-p SR Gen10 (804398-B21) for ProLiant Gen9 to Gen11 — and backup software.
Can I add a second drive?
Yes, any HPE StoreEver LTO-8 or LTO-9 internal SAS drive with its own cable; the kit holds two.
