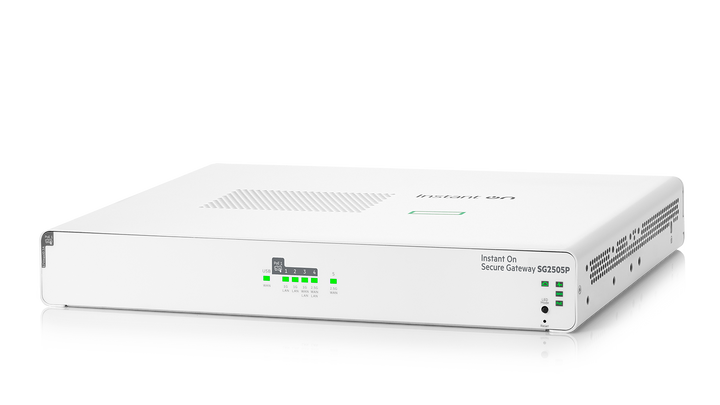

HPE Networking Instant On Secure Gateway SG2505P, 5-Port 2.5GbE Firewall with IDS/IPS, VPN and 64W PoE
PRODUCT DESCRIPTION
HPE Networking Instant On Secure Gateway SG2505P (S0G34A) - 2 Years Local Warranty
Multi-Gig Firewall, VPN and PoE in One Small-Business Gateway
The HPE Networking Instant On Secure Gateway SG2505P (S0G34A) is the larger of HPE's two Instant On Secure Gateways. It combines a firewall, intrusion detection and prevention (IDS/IPS), site-to-site and client VPN, and WAN failover in one cloud-managed box, and HPE recommends it for networks of up to 300 users.
HPE quotes 2.4 Gbps firewall and IDS/IPS throughput and 2.3 Gbps IPsec VPN throughput, so security inspection keeps up with multi-gigabit fibre broadband.
2.5GbE WAN Ports and Dual-ISP Resilience
Two 100/1000/2500 multi-gig ports (one WAN, one configurable WAN/LAN), plus a configurable Gigabit WAN/LAN port and two Gigabit LAN ports, let you connect two or more internet services for failover or load balancing. A USB-A 2.0 port is also provided.
64 W of Class 4 PoE Built In
Four ports deliver Class 4 PoE from a 64 W budget, so a small site can power access points or cameras directly from the gateway. It can sit on a desk, mount on a wall or go into a telco rack.
Managed from the Same App as Your Instant On Switches and Wi-Fi
The gateway is set up and monitored from the HPE Networking Instant On mobile app or cloud portal, alongside Instant On switches and access points. HPE highlights an AI-powered network assistant for creating policies, plus application visibility, VLANs (up to 22) and TPM 2.0 hardware security.
Supplied in Singapore with a 2-Year Warranty
SourceIT supplies the Instant On Secure Gateways locally with a GST invoice and a 2-year warranty. Not sure whether the SG1004 or SG2505P fits your site? Email sales@sourceit.com.sg with your user count, internet speed and PoE needs.
HPE Instant On Secure Gateway SG2505P S0G34A Datasheet — Technical Specifications
General
| Product Name | HPE Networking Instant On Secure Gateway SG2505P |
| Part Number | S0G34A |
| Series | HPE Networking Instant On Secure Gateway |
| Warranty | 2 years |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces & PoE
| Multi-Gig Ports | 1 x 100/1000/2500-Base-T WAN, 1 x 100/1000/2500-Base-T configurable WAN/LAN |
| Gigabit Ports | 1 x 10/100/1000-Base-T configurable WAN/LAN, 2 x 10/100/1000-Base-T LAN |
| USB | 1 x USB-A 2.0 |
| PoE | 4 ports Class 4, 64 W total budget |
Performance
| Firewall Throughput | 2.4 Gbps |
| IDS/IPS Throughput | 2.4 Gbps |
| VPN (IPsec) Throughput | 2.3 Gbps |
| Max Concurrent Sessions | 16,384 |
| Recommended Users | Up to 300 |
Power
| Power Supply | Internal |
| Max Power | 79.5 W |
| Idle Power | 5.6 W |
Physical & Environmental
| Dimensions | 4.39 x 30.96 x 23.42 cm (1.73 x 12.19 x 9.22 in) |
| Weight | 2.40 kg |
| Mounting | Tabletop, wall, telco rack |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 15% to 95% |
Security & Networking Features
| Security | Firewall, IDS/IPS detection and prevention, TPM 2.0 |
| VPN | Site-to-site VPN and client VPN |
| WAN | WAN failover and WAN load balancing |
| Networking | VLAN support (up to 22), application visibility |
| Other | Locator LED, quiet LED mode |
Management
| Options | HPE Networking Instant On mobile app and cloud portal |
Compatibility & Software Support
What It Is Suited To
Small and mid-sized offices, clinics, retail chains and multi-site businesses with up to 300 users and multi-gig internet. It works alongside HPE Networking Instant On switches and access points, which are managed from the same app.
Management Software
Set up and manage with the HPE Networking Instant On app (iOS and Android) or the Instant On web portal. Check HPE's Instant On pages for any security feature subscriptions available in your region before ordering.
Package Contents & Secure Gateway Ordering Information
In the Box
HPE Networking Instant On Secure Gateway SG2505P and documentation. HPE's QuickSpecs do not list the full carton contents, so confirm mounting hardware with us before ordering if it matters to your installation.
HPE Networking Instant On Secure Gateway — Ordering Information
| Instant On Secure Gateway SG1004 | 1 x 1GbE WAN, 1 x 1GbE WAN/LAN, 2 x 1GbE LAN | None | Up to 100 users | S0G33A |
| Instant On Secure Gateway SG2505P (this listing) | 1 x 2.5GbE WAN, 1 x 2.5GbE WAN/LAN, 1 x 1GbE WAN/LAN, 2 x 1GbE LAN | 4 x Class 4 PoE, 64 W | Up to 300 users | S0G34A |
Warranty Upgrade
Ask us about HPE support services available for the Instant On Secure Gateways.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking Instant On Secure Gateway QuickSpecs |
| HPE product page | HPE Networking Instant On Secure Gateway SG2505P |
| Startup guide | HPE Networking Instant On Secure Gateways Startup Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S0G34A.
Frequently Asked Questions — HPE Instant On Secure Gateway SG2505P S0G34A
How many users does it support?
HPE recommends it for up to 300 users.
Does it include a firewall and IDS/IPS?
Yes. HPE lists a firewall and IDS/IPS detection and prevention, with 2.4 Gbps IDS/IPS throughput.
Can I connect two internet lines?
Yes. It supports WAN failover and WAN load balancing using its configurable WAN/LAN ports.
Does it provide PoE?
Yes, four Class 4 PoE ports with a 64 W total budget.
What warranty do I get?
A 2-year warranty, supplied by SourceIT with local support and a GST invoice.
