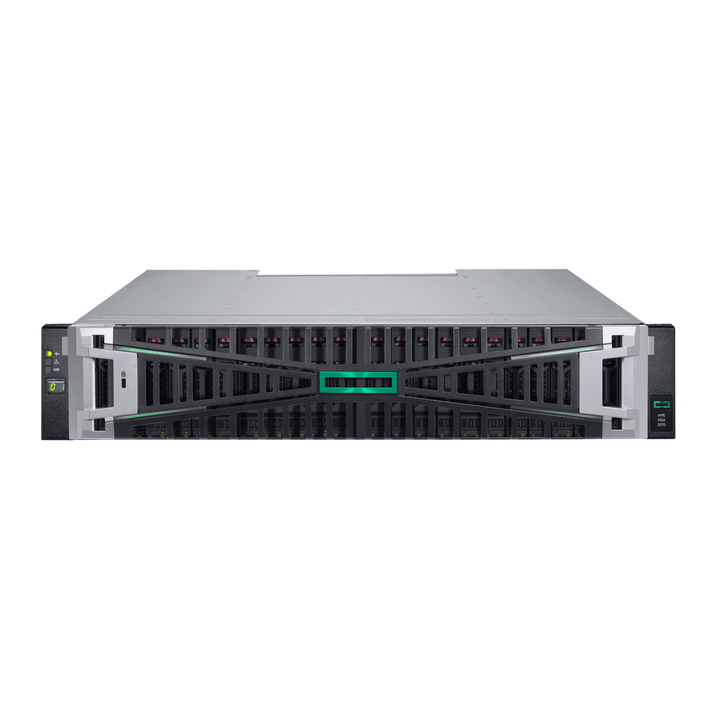

HPE MSA 2070 SFF 2x32Gb FC 4-port Controller 12x1.92TB SSD 4x32Gb SFP FC XCVR 23TB Storage Array
PRODUCT DESCRIPTION
HPE MSA 2070 SFF 2x32Gb FC 4-port Controller 12x1.92TB SSD 4x32Gb SFP FC XCVR 23TB Storage Array (P79245-B25) - Local Warranty
Pre-configured HPE MSA 2070 SAN array, ready to deploy
The HPE MSA 2070 SFF 2x32Gb FC 4-port Controller 12x1.92TB SSD 4x32Gb SFP FC XCVR 23TB Storage Array (P79245-B25) is an HPE Smart Choice bundle: a dual-controller HPE MSA 2070 array shipped with twelve Read Intensive SAS SSD drives already installed and configured as one pool, so it can be racked, zoned and serving volumes on day one.
32Gb Fibre Channel host connectivity
Two active/active 4-port 32Gb Fibre Channel controllers give 8 host ports per array, with a 4-pack of HPE MSA 32Gb Short Wave FC SFP+ transceivers included for the first four ports. MSA Gen7 adds a RAID-offload ASIC, 48 GB of cache and up to twice the IOPS of Gen6 for all-flash workloads.
Grow as you go
Add drives to the free bays or attach HPE MSA 2060 expansion enclosures as capacity needs grow; the array scales to 240 SFF or 120 LFF drives without replacing the controllers.
HPE MSA 2070 SFF 2x32Gb FC 4-port Controller 12x1.92TB SSD 4x32Gb SFP FC XCVR 23TB Storage Array Datasheet — Technical Specifications
Bundle
| Model | HPE MSA 2070 SFF 2x32Gb FC 4-port Controller 12x1.92TB SSD 4x32Gb SFP FC XCVR 23TB Storage Array (P79245-B25) |
| Base Array | HPE MSA 2070 32Gb Fibre Channel SFF Storage (S3T80A) |
| Drives Included | 12 x HPE MSA 1.92TB SAS 12G Read Intensive SFF SSD |
| Raw Capacity | 23 TB |
| Host Interface | 32Gb Fibre Channel, 4-port per controller (8 ports per array) |
| Transceivers Included | HPE MSA 32Gb Short Wave FC SFP+ 4-pack |
| Drive Warranty | 3 years (HPE, as stated in the drive part name) |
HPE MSA 2070 Platform
| Form Factor | 2U rack, SFF chassis with 24 x 2.5-inch bays; dual active/active 4-port controllers (8 host ports per array) |
| Cache | 48 GB data (read/write) cache plus system memory per array; SSD read cache up to 8.34 TB |
| Performance | Up to 2x the random IOPS and 30% more sequential bandwidth than MSA Gen6 (HPE); RAID-offload ASIC, battery-free cache backup |
| Expansion | 12Gb SAS expansion to up to 9 add-on enclosures (2U 24-SFF or 2U 12-LFF, any mix); up to 240 SFF or 120 LFF drives; 7.37 PB maximum raw |
| Drives Supported | SAS SSD (1.92 / 3.84 / 7.68 TB), Enterprise 10K SAS HDD, Midline 7.2K SAS HDD; self-encrypting drives supported |
| RAID | MSA-DP+ (erasure-coded with distributed spare), RAID 1, 5, 6, 10; 2 pools, 4 PiB per pool |
| Data Services | Thin provisioning and space reclamation, automated sub-LUN tiering, 64 snapshots standard (512 with Advanced Data Services), Volume Copy, Remote Snap asynchronous replication (ADS licence), SED encryption |
| Management | HPE MSA Storage Management Utility v4, CLI, RESTful Redfish/Swordfish API, HPE MSA Smart Assist health check, non-disruptive online firmware updates, VMware VAAI and vCenter plug-in, Veeam and Zerto integration |
| Power | Two redundant 580 W hot-plug AC power supplies (94% efficient), two 1.5 m C14 PDU cords; ENERGY STAR certified |
| Operating Systems | Microsoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix Hypervisor (per HPE SPOCK) |
| HPE Warranty | 3-year limited warranty on base array and drive enclosures with next-business-day parts delivery; bundled SSDs carry a 3-year warranty |
What's Included & Compatible Options
- 1 x HPE MSA 2070 SFF chassis with two 4-port 32Gb Fibre Channel controllers (HPE MSA 2070 32Gb Fibre Channel SFF Storage (S3T80A))
- 12 x HPE MSA 1.92TB SAS 12G Read Intensive SFF SSD (Read Intensive SAS SSD), factory-configured as a single storage pool (23 TB raw)
- 1 x HPE MSA 32Gb Short Wave FC SFP+ 4-pack transceiver (populates 4 of the 8 host ports)
- Two redundant hot-plug power supplies, PDU power cords and rack-mount kit
HPE Smart Choice bundles are pre-configured and ship as a single part number; factory options cannot be added, but further drives, transceivers and enclosures can be ordered separately.
HPE MSA Storage Range — Ordering Information
| Model | Description |
| R0Q74B | MSA 2060 16Gb FC SFF chassis |
| R0Q76B | MSA 2060 10GbE iSCSI SFF chassis |
| R0Q78B | MSA 2060 12Gb SAS SFF chassis |
| P79250-B25 | MSA 1060 FC bundle, 12 x 1.2 TB |
| P79251-B25 | MSA 1060 SAS bundle, 12 x 1.2 TB |
| P79247-B25 | MSA 2060 FC bundle, 12 x 2.4 TB |
| P79248-B25 | MSA 2060 iSCSI bundle, 12 x 2.4 TB |
| P79249-B25 | MSA 2060 SAS bundle, 12 x 2.4 TB |
| P79252-B25 | MSA 2060 FC LFF bundle, 12 x 20 TB |
| P76572-B25 | MSA 2070 16Gb FC all-flash, 23 TB |
| P76570-B25 | MSA 2070 16Gb FC all-flash, 46 TB |
| P76571-B25 | MSA 2070 iSCSI all-flash, 23 TB |
| P76569-B25 | MSA 2070 iSCSI all-flash, 46 TB |
| P79245-B25 (this listing) | MSA 2070 32Gb FC all-flash, 23 TB |
| P79246-B25 | MSA 2070 32Gb FC all-flash, 46 TB |
Datasheet & Downloads
| HPE QuickSpecs | HPE MSA Gen7 Storage QuickSpecs |
| Smart Choice QuickSpecs | HPE MSA Gen7 Smart Choice Supplemental QuickSpecs |
| Solution brief | HPE MSA Gen7 Storage Solution Brief |
| HPE product page | HPE MSA Storage on hpe.com |
Frequently Asked Questions — HPE MSA 2070 SFF 2x32Gb FC 4-port Controller 12x1.92TB SSD 4x32Gb SFP FC XCVR 23TB Storage Array
Is this a fixed configuration?
Yes. HPE Smart Choice bundles ship pre-configured with the controllers, drives and transceivers listed above. Additional drives, transceivers, enclosures and HPE Tech Care services are ordered as separate line items.
How many host ports are populated?
8 ports in total; the included 4-pack of transceivers populates four of them. Order a second HPE MSA 32Gb Short Wave FC SFP+ 4-pack to light up all 8 ports.
What warranty applies?
MSA Gen7 arrays carry a 3-year limited warranty with next-business-day parts delivery; the bundled SSDs carry their own 3-year warranty.
