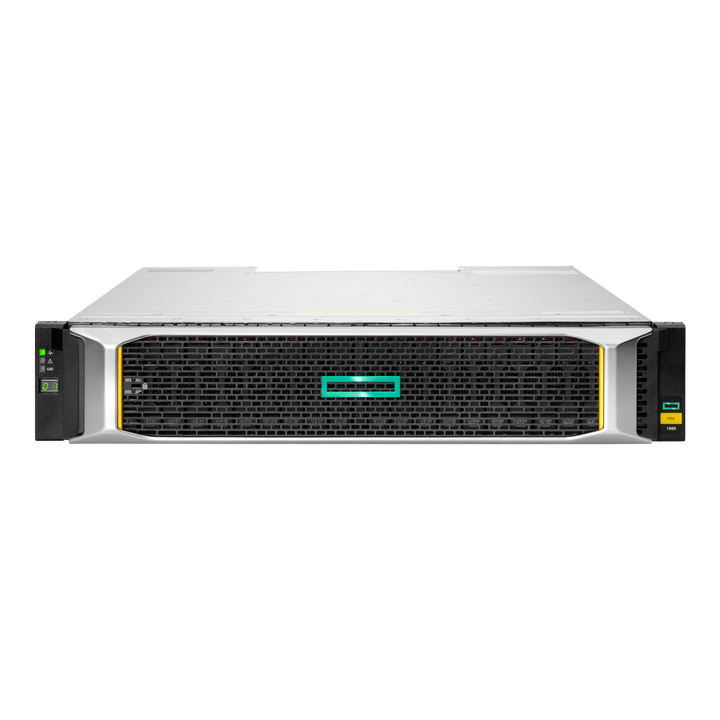

HPE MSA 1060 SFF 2x12Gb SAS 2-port Controller 12x1.2TB HDD 14TB Storage Array
PRODUCT DESCRIPTION
HPE MSA 1060 SFF 2x12Gb SAS 2-port Controller 12x1.2TB HDD 14TB Storage Array (P79251-B25) - Local Warranty
Pre-configured HPE MSA 1060 SAN array, ready to deploy
The HPE MSA 1060 SFF 2x12Gb SAS 2-port Controller 12x1.2TB HDD 14TB Storage Array (P79251-B25) is an HPE Smart Choice bundle: a dual-controller HPE MSA 1060 array shipped with twelve Enterprise 10K SAS HDD drives already installed and configured as one pool, so it can be racked, zoned and serving volumes on day one.
12Gb SAS host connectivity
Two active/active 2-port 12Gb SAS controllers give 4 host ports per array with no transceivers required. Automated tiering, snapshots and Remote Snap replication are built in.
Grow as you go
Add drives to the free bays or attach HPE MSA 2060 expansion enclosures as capacity needs grow; the array scales to 96 SFF drives without replacing the controllers.
HPE MSA 1060 SFF 2x12Gb SAS 2-port Controller 12x1.2TB HDD 14TB Storage Array Datasheet — Technical Specifications
Bundle
| Model | HPE MSA 1060 SFF 2x12Gb SAS 2-port Controller 12x1.2TB HDD 14TB Storage Array (P79251-B25) |
| Base Array | HPE MSA 1060 12Gb SAS SFF Storage (R0Q87B) |
| Drives Included | 12 x HPE MSA 1.2TB SAS 12G Enterprise 10K SFF HDD |
| Raw Capacity | 14.4 TB |
| Host Interface | 12Gb SAS, 2-port per controller (4 ports per array) |
| Transceivers Included | Not required (SAS) |
| Drive Warranty | 3 years (HPE, as stated in the drive part name) |
HPE MSA 1060 Platform
| Form Factor | 2U rack, dual active/active controllers; SFF chassis 24 x 2.5-inch bays |
| Host Ports | 2 per controller, 4 per array |
| Cache | 24 GB data (read/write) cache plus system memory per array |
| Performance | Over 154,000 IOPS (HPE) |
| Expansion | Up to 3 HPE MSA 2060 LFF/SFF drive enclosures; up to 96 SFF drives |
| Maximum Raw Capacity | 2.95 PB (all SFF) |
| RAID | RAID 0 (read cache only), 1, 5, 6, 10 and MSA-DP+ |
| Data Services | Thin provisioning, automated tiering, virtual snapshots (64 standard, 512 with Advanced Data Services), Volume Copy, Remote Snap replication, encryption with local key management |
| Management | HPE MSA Storage Management Utility (SMU) v4, CLI, RESTful API, HPE MSA Health Check |
| Dimensions | 8.9 cm H x 44.5 cm W (48.3 cm with bezel) x 50.8 cm D (66.9 cm to cable bend) |
| Weight | SFF controller enclosure 30 kg |
| Power | 100-240 VAC 50/60 Hz, two redundant hot-plug power supplies |
What's Included & Compatible Options
- 1 x HPE MSA 1060 SFF chassis with two 2-port 12Gb SAS controllers (HPE MSA 1060 12Gb SAS SFF Storage (R0Q87B))
- 12 x HPE MSA 1.2TB SAS 12G Enterprise 10K SFF HDD (Enterprise 10K SAS HDD), factory-configured as a single storage pool (14.4 TB raw)
- Two redundant hot-plug power supplies, PDU power cords and rack-mount kit
HPE Smart Choice bundles are pre-configured and ship as a single part number; factory options cannot be added, but further drives, transceivers and enclosures can be ordered separately.
HPE MSA Storage Range — Ordering Information
| Model | Description |
| R0Q74B | MSA 2060 16Gb FC SFF chassis |
| R0Q76B | MSA 2060 10GbE iSCSI SFF chassis |
| R0Q78B | MSA 2060 12Gb SAS SFF chassis |
| P79250-B25 | MSA 1060 FC bundle, 12 x 1.2 TB |
| P79251-B25 (this listing) | MSA 1060 SAS bundle, 12 x 1.2 TB |
| P79247-B25 | MSA 2060 FC bundle, 12 x 2.4 TB |
| P79248-B25 | MSA 2060 iSCSI bundle, 12 x 2.4 TB |
| P79249-B25 | MSA 2060 SAS bundle, 12 x 2.4 TB |
| P79252-B25 | MSA 2060 FC LFF bundle, 12 x 20 TB |
| P76572-B25 | MSA 2070 16Gb FC all-flash, 23 TB |
| P76570-B25 | MSA 2070 16Gb FC all-flash, 46 TB |
| P76571-B25 | MSA 2070 iSCSI all-flash, 23 TB |
| P76569-B25 | MSA 2070 iSCSI all-flash, 46 TB |
| P79245-B25 | MSA 2070 32Gb FC all-flash, 23 TB |
| P79246-B25 | MSA 2070 32Gb FC all-flash, 46 TB |
Datasheet & Downloads
| HPE QuickSpecs | HPE MSA 1060 Storage QuickSpecs |
| Best practices | HPE MSA 1060/2060/2062 Best Practices |
| HPE product page | HPE MSA 1060 Storage on hpe.com |
Frequently Asked Questions — HPE MSA 1060 SFF 2x12Gb SAS 2-port Controller 12x1.2TB HDD 14TB Storage Array
Is this a fixed configuration?
Yes. HPE Smart Choice bundles ship pre-configured with the controllers, drives and transceivers listed above. Additional drives, transceivers, enclosures and HPE Tech Care services are ordered as separate line items.
How many host ports are populated?
4 ports in total; SAS ports need no transceivers — connect directly with HPE Mini-SAS HD cables to an HPE SAS HBA.
What warranty applies?
The HPE MSA array warranty is stated in the HPE QuickSpecs linked below; the bundled drives carry the warranty stated in their part name. HPE Tech Care Basic or Essential uplifts (3 or 5 years) are available — ask us for a quotation.
