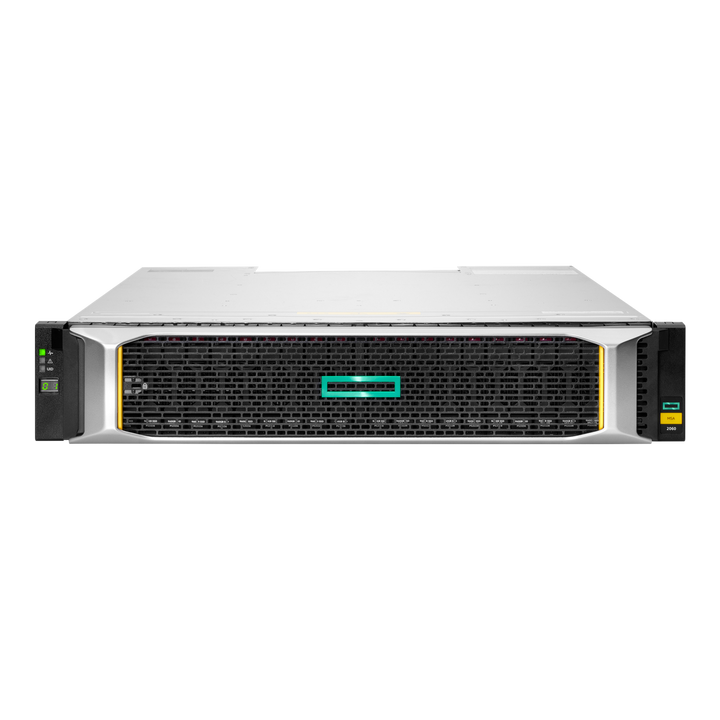

HPE MSA 2060 10GbE iSCSI SFF Storage
PRODUCT DESCRIPTION
HPE MSA 2060 10GbE iSCSI SFF Storage (R0Q76B) - Local Warranty
Hybrid-flash SAN storage for SMB and remote sites
The HPE MSA 2060 10GbE iSCSI SFF Storage (R0Q76B) is a dual-controller 2U array with 24 SFF bays, built to start small and scale: mix SSD, Enterprise SAS and Midline SAS drives in one system and let automated tiering place hot data on the fastest media.
10GbE iSCSI connectivity, up to 395,000 IOPS
Two active/active controllers with four 10GbE iSCSI ports each (8 per array) and 24 GB of cache deliver up to 395,000 IOPS — up to 80% faster than the previous MSA generation, according to HPE.
Designed for IT generalists
The Storage Management Utility v4 guides provisioning, snapshots and replication without storage-specialist skills; HPE MSA Health Check keeps an eye on firmware and configuration best practice.
HPE MSA 2060 10GbE iSCSI SFF Storage Datasheet — Technical Specifications
General
| Model | HPE MSA 2060 10GbE iSCSI SFF Storage (R0Q76B) |
| Host Interface | 10GbE iSCSI, 4 ports per controller (8 per array) |
| Drive Bays | 24 x 2.5-inch SFF (drives sold separately) |
| Transceivers | HPE MSA 10Gb Short Range iSCSI SFP+ 4-pack (C8R25B) — two packs populate all 8 ports |
HPE MSA 2060 Platform
| Form Factor | 2U rack, dual active/active controllers; SFF chassis 24 x 2.5-inch bays (LFF chassis 12 x 3.5-inch bays) |
| Host Ports | 4 per controller, 8 per array |
| Cache | 24 GB data (read/write) cache plus system memory per array; SSD read cache up to 8 TB |
| Performance | Up to 395,000 IOPS (HPE) |
| Expansion | Up to 9 HPE MSA 2060 LFF/SFF drive enclosures (10 units total); up to 240 SFF or 120 LFF drives |
| Maximum Raw Capacity | 7.37 PB (all SFF) |
| RAID | RAID 0 (read cache only), 1, 5, 6, 10 and MSA-DP+ distributed-parity |
| Data Services | Thin provisioning, automated sub-LUN tiering, virtual snapshots (64 standard, 512 with Advanced Data Services), Volume Copy, Remote Snap replication over FC or iSCSI, encryption with local key management |
| Management | HPE MSA Storage Management Utility (SMU) v4 web GUI, CLI, RESTful API, HPE MSA Health Check |
| Dimensions | 8.9 cm H x 44.5 cm W (48.3 cm with bezel) x 50.8 cm D (66.9 cm to cable bend) |
| Weight | SFF controller enclosure 30 kg; LFF controller enclosure 32 kg |
| Power | 100-240 VAC 50/60 Hz, two redundant hot-plug power supplies |
| Operating Systems | Microsoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix Hypervisor; certified for HPE Morpheus VM Essentials |
What's Included & Compatible Options
- 1 x 2U SFF chassis with two 4-port controllers
- 2 x AC power supplies and 2 x PDU power cords
- Rack-mount kit
Drives and transceivers are not included — order HPE MSA drives (singles or 6-packs) and, for FC or iSCSI models, HPE MSA SFP+ 4-packs separately.
HPE MSA Storage Range — Ordering Information
| Model | Description |
| R0Q74B | MSA 2060 16Gb FC SFF chassis |
| R0Q76B (this listing) | MSA 2060 10GbE iSCSI SFF chassis |
| R0Q78B | MSA 2060 12Gb SAS SFF chassis |
| P79250-B25 | MSA 1060 FC bundle, 12 x 1.2 TB |
| P79251-B25 | MSA 1060 SAS bundle, 12 x 1.2 TB |
| P79247-B25 | MSA 2060 FC bundle, 12 x 2.4 TB |
| P79248-B25 | MSA 2060 iSCSI bundle, 12 x 2.4 TB |
| P79249-B25 | MSA 2060 SAS bundle, 12 x 2.4 TB |
| P79252-B25 | MSA 2060 FC LFF bundle, 12 x 20 TB |
| P76572-B25 | MSA 2070 16Gb FC all-flash, 23 TB |
| P76570-B25 | MSA 2070 16Gb FC all-flash, 46 TB |
| P76571-B25 | MSA 2070 iSCSI all-flash, 23 TB |
| P76569-B25 | MSA 2070 iSCSI all-flash, 46 TB |
| P79245-B25 | MSA 2070 32Gb FC all-flash, 23 TB |
| P79246-B25 | MSA 2070 32Gb FC all-flash, 46 TB |
Datasheet & Downloads
| HPE QuickSpecs | HPE MSA 2060 Storage QuickSpecs |
| HPE data sheet | HPE MSA 2060 Storage Data Sheet (PDF) |
| Best practices | HPE MSA 1060/2060/2062 Best Practices |
| HPE product page | HPE MSA 2060 Storage on hpe.com |
Frequently Asked Questions — HPE MSA 2060 10GbE iSCSI SFF Storage
Does the array ship with drives?
No. This is the controller enclosure only; populate it with HPE MSA SAS SSDs, Enterprise 10K or Midline 7.2K HDDs, available individually or as 6-pack bundles.
Can I expand later?
Yes. Attach up to nine HPE MSA 2060 LFF or SFF drive enclosures for a maximum of 240 SFF or 120 LFF drives (7.37 PB raw).
What about the warranty?
The HPE MSA array warranty is stated in the HPE QuickSpecs linked below; HPE Tech Care Basic and Essential uplifts are available — ask us for a quotation.
