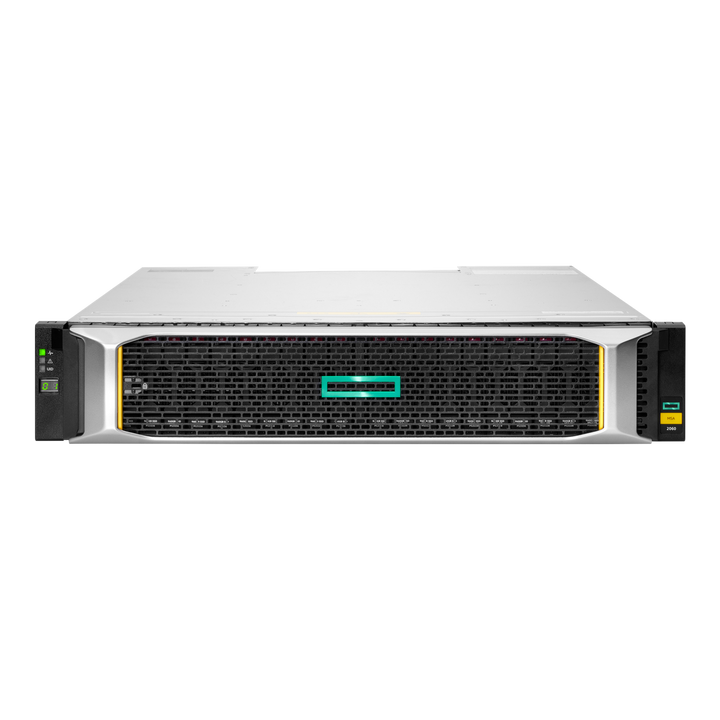

HPE MSA 2060 SFF 2x16Gb FC 4-port Controller 12x2.4TB HDD 4x16Gb SFP FC XCVR 29TB Storage Array
PRODUCT DESCRIPTION
HPE MSA 2060 SFF 2x16Gb FC 4-port Controller 12x2.4TB HDD 4x16Gb SFP FC XCVR 29TB Storage Array (P79247-B25) - Local Warranty
Pre-configured HPE MSA 2060 SAN array, ready to deploy
The HPE MSA 2060 SFF 2x16Gb FC 4-port Controller 12x2.4TB HDD 4x16Gb SFP FC XCVR 29TB Storage Array (P79247-B25) is an HPE Smart Choice bundle: a dual-controller HPE MSA 2060 array shipped with twelve Enterprise 10K SAS HDD drives already installed and configured as one pool, so it can be racked, zoned and serving volumes on day one.
16Gb Fibre Channel host connectivity
Two active/active 4-port 16Gb Fibre Channel controllers give 8 host ports per array, with a 4-pack of HPE MSA 16Gb Short Wave FC SFP+ transceivers included for the first four ports. Automated tiering, snapshots and Remote Snap replication are built in.
Grow as you go
Add drives to the free bays or attach HPE MSA 2060 expansion enclosures as capacity needs grow; the array scales to 240 SFF or 120 LFF drives without replacing the controllers.
HPE MSA 2060 SFF 2x16Gb FC 4-port Controller 12x2.4TB HDD 4x16Gb SFP FC XCVR 29TB Storage Array Datasheet — Technical Specifications
Bundle
| Model | HPE MSA 2060 SFF 2x16Gb FC 4-port Controller 12x2.4TB HDD 4x16Gb SFP FC XCVR 29TB Storage Array (P79247-B25) |
| Base Array | HPE MSA 2060 16Gb Fibre Channel SFF Storage (R0Q74B) |
| Drives Included | 12 x HPE MSA 2.4TB SAS 12G Enterprise 10K SFF HDD |
| Raw Capacity | 28.8 TB |
| Host Interface | 16Gb Fibre Channel, 4-port per controller (8 ports per array) |
| Transceivers Included | HPE MSA 16Gb Short Wave FC SFP+ 4-pack |
| Drive Warranty | 3 years (HPE, as stated in the drive part name) |
HPE MSA 2060 Platform
| Form Factor | 2U rack, dual active/active controllers; SFF chassis 24 x 2.5-inch bays (LFF chassis 12 x 3.5-inch bays) |
| Host Ports | 4 per controller, 8 per array |
| Cache | 24 GB data (read/write) cache plus system memory per array; SSD read cache up to 8 TB |
| Performance | Up to 395,000 IOPS (HPE) |
| Expansion | Up to 9 HPE MSA 2060 LFF/SFF drive enclosures (10 units total); up to 240 SFF or 120 LFF drives |
| Maximum Raw Capacity | 7.37 PB (all SFF) |
| RAID | RAID 0 (read cache only), 1, 5, 6, 10 and MSA-DP+ distributed-parity |
| Data Services | Thin provisioning, automated sub-LUN tiering, virtual snapshots (64 standard, 512 with Advanced Data Services), Volume Copy, Remote Snap replication over FC or iSCSI, encryption with local key management |
| Management | HPE MSA Storage Management Utility (SMU) v4 web GUI, CLI, RESTful API, HPE MSA Health Check |
| Dimensions | 8.9 cm H x 44.5 cm W (48.3 cm with bezel) x 50.8 cm D (66.9 cm to cable bend) |
| Weight | SFF controller enclosure 30 kg; LFF controller enclosure 32 kg |
| Power | 100-240 VAC 50/60 Hz, two redundant hot-plug power supplies |
| Operating Systems | Microsoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix Hypervisor; certified for HPE Morpheus VM Essentials |
What's Included & Compatible Options
- 1 x HPE MSA 2060 SFF chassis with two 4-port 16Gb Fibre Channel controllers (HPE MSA 2060 16Gb Fibre Channel SFF Storage (R0Q74B))
- 12 x HPE MSA 2.4TB SAS 12G Enterprise 10K SFF HDD (Enterprise 10K SAS HDD), factory-configured as a single storage pool (28.8 TB raw)
- 1 x HPE MSA 16Gb Short Wave FC SFP+ 4-pack transceiver (populates 4 of the 8 host ports)
- Two redundant hot-plug power supplies, PDU power cords and rack-mount kit
HPE Smart Choice bundles are pre-configured and ship as a single part number; factory options cannot be added, but further drives, transceivers and enclosures can be ordered separately.
HPE MSA Storage Range — Ordering Information
| Model | Description |
| R0Q74B | MSA 2060 16Gb FC SFF chassis |
| R0Q76B | MSA 2060 10GbE iSCSI SFF chassis |
| R0Q78B | MSA 2060 12Gb SAS SFF chassis |
| P79250-B25 | MSA 1060 FC bundle, 12 x 1.2 TB |
| P79251-B25 | MSA 1060 SAS bundle, 12 x 1.2 TB |
| P79247-B25 (this listing) | MSA 2060 FC bundle, 12 x 2.4 TB |
| P79248-B25 | MSA 2060 iSCSI bundle, 12 x 2.4 TB |
| P79249-B25 | MSA 2060 SAS bundle, 12 x 2.4 TB |
| P79252-B25 | MSA 2060 FC LFF bundle, 12 x 20 TB |
| P76572-B25 | MSA 2070 16Gb FC all-flash, 23 TB |
| P76570-B25 | MSA 2070 16Gb FC all-flash, 46 TB |
| P76571-B25 | MSA 2070 iSCSI all-flash, 23 TB |
| P76569-B25 | MSA 2070 iSCSI all-flash, 46 TB |
| P79245-B25 | MSA 2070 32Gb FC all-flash, 23 TB |
| P79246-B25 | MSA 2070 32Gb FC all-flash, 46 TB |
Datasheet & Downloads
| HPE QuickSpecs | HPE MSA 2060 Storage QuickSpecs |
| HPE data sheet | HPE MSA 2060 Storage Data Sheet (PDF) |
| Best practices | HPE MSA 1060/2060/2062 Best Practices |
| HPE product page | HPE MSA 2060 Storage on hpe.com |
Frequently Asked Questions — HPE MSA 2060 SFF 2x16Gb FC 4-port Controller 12x2.4TB HDD 4x16Gb SFP FC XCVR 29TB Storage Array
Is this a fixed configuration?
Yes. HPE Smart Choice bundles ship pre-configured with the controllers, drives and transceivers listed above. Additional drives, transceivers, enclosures and HPE Tech Care services are ordered as separate line items.
How many host ports are populated?
8 ports in total; the included 4-pack of transceivers populates four of them. Order a second HPE MSA 16Gb Short Wave FC SFP+ 4-pack to light up all 8 ports.
What warranty applies?
The HPE MSA array warranty is stated in the HPE QuickSpecs linked below; the bundled drives carry the warranty stated in their part name. HPE Tech Care Basic or Essential uplifts (3 or 5 years) are available — ask us for a quotation.
