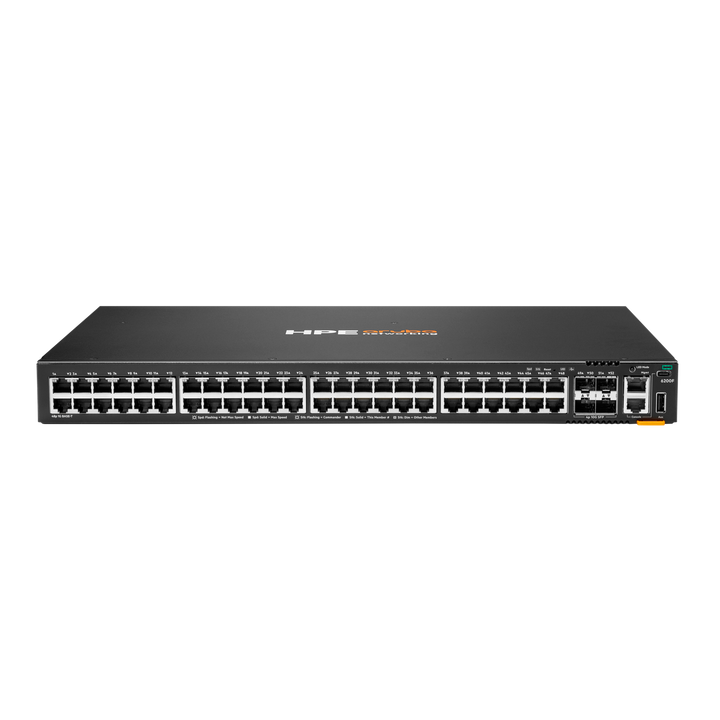

HPE Aruba Networking CX 6200F 48-Port Gigabit Stackable Managed Switch with 4 SFP+
PRODUCT DESCRIPTION
HPE Aruba Networking CX 6200F 48G 4SFP+ Switch (JL726B) - Limited Lifetime Local Warranty
Stackable CX Access Switching for Branch Offices, Campuses and SMB
The HPE Aruba Networking CX 6200F 48G 4SFP+ Switch (JL726B) is part of HPE Aruba Networking's CX 6200 series, a family of stackable access switches that HPE positions for enterprise branch offices, campuses and SMB networks. It provides 48 x 10/100/1000BASE-T + 4 x 1/10G SFP+, running the AOS-CX operating system used across HPE Aruba Networking CX switches.
HPE lists access control lists (ACLs), robust quality of service (QoS) and routing protocols such as static and access OSPF, giving a step up from Layer 2-only access switches.
High-Density Gigabit Access for Wired Desktops
With 48 x 1G RJ-45 ports and no PoE, this model suits wired desktops, printers and servers, or locations where PoE is supplied by a separate switch.
8-Member VSF Stacking and Built-In 10GbE Uplinks
Built-in 4 x 1/10G SFP+ uplinks help avoid bottlenecks at the access layer. HPE lists Virtual Switching Framework (VSF) stacking of up to eight members, so several switches can be managed as one.
Dynamic Segmentation and Flexible Management
HPE lists dynamic segmentation, which automatically applies and enforces consistent user-, device- and application-aware policies. Manage the switch from the cloud with HPE Aruba Networking Central, with HPE Aruba Networking Switch Multi-Edit Software, or locally through the web GUI or industry-standard CLI. Central cloud management is licensed separately; ask us to quote it with the switch.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the CX 6200F series locally with a GST invoice. HPE covers the CX 6200 series with its Limited Lifetime Warranty.
Need help choosing between the CX 6200F, CX 6100 and CX 6000 switches? Email sales@sourceit.com.sg with your port count, PoE devices and uplink needs.
HPE Aruba Networking CX 6200F JL726B Datasheet — Technical Specifications
General
| Product Name | HPE Aruba Networking CX 6200F 48G 4SFP+ Switch |
| Part Number | JL726B |
| Series | HPE Aruba Networking CX 6200F (AOS-CX stackable access switch) |
| Manufacturer Warranty | Limited Lifetime (HPE Aruba Networking) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports & PoE
| Ports | 48 x 10/100/1000BASE-T + 4 x 1/10G SFP+ |
| PoE | None (non-PoE model) |
| Uplinks | 4 x 1/10G SFP+ |
Performance
| Switching Capacity | Refer to HPE QuickSpecs |
| Throughput | Refer to HPE QuickSpecs |
| Stacking | VSF, up to 8 members |
Power
| Max Power | 120 W |
Physical & Environmental
| Form Factor | 1U |
| Dimensions | Refer to HPE QuickSpecs |
| Weight | 3.90 kg |
| Cooling / Acoustics | Refer to HPE QuickSpecs |
| Operating Temperature | 0 °C to 45 °C (up to 1.5 km / 5,000 ft) |
| Operating Humidity | 5% to 95% at 40 °C, non-condensing |
| Max Operating Altitude | 3.048 km (10,000 ft) |
Management
| Options | HPE Aruba Networking Central (cloud), Switch Multi-Edit Software, web GUI, CLI |
| Licensing | Central cloud management licensed separately |
Layer 2 / Layer 3
| Layer 2 | Layer 2 access switching, VSF stacking up to eight members |
| Layer 3 | Static routing, access OSPF |
| Security & QoS | ACLs, dynamic segmentation, robust QoS |
Compatibility & Software Support
What It Is Suited To
Enterprise branch offices, campus access closets, SMB networks, retail stores, clinics and schools that want a stackable managed access switch running AOS-CX, the same operating system used across HPE Aruba Networking CX campus switches. It pairs with HPE Aruba Networking access points managed from Central.
Management Software
Manage from HPE Aruba Networking Central (licensed separately), or stand-alone through the built-in web GUI or CLI. The SFP+ ports accept HPE Aruba Networking 1G SFP and 10G SFP+ transceivers and DAC cables; ask us to confirm the right optic for your fibre run.
Package Contents & CX 6200F Series Ordering Information
In the Box
HPE Aruba Networking CX 6200F 48G 4SFP+ Switch with mounting accessory kit and documentation. Confirm the exact carton contents and rack-mount hardware with us before ordering if it matters to your installation.
HPE Aruba Networking CX 6200F Series — Ordering Information
| CX 6200F 12G Class4 PoE 2G/2SFP+ 139W | 12 x 1G PoE + 2 x 1G RJ-45 + 2 x 1/10G SFP+ | Class 4 PoE, 139 W | R8Q72A |
| CX 6200F 24G 4SFP+ | 24 x 1G RJ-45 + 4 x 1/10G SFP+ | None | JL724B |
| CX 6200F 24G Class4 PoE 4SFP+ 370W | 24 x 1G PoE + 4 x 1/10G SFP+ | Class 4 PoE, 370 W | JL725B |
| CX 6200F 48G 4SFP+ (this listing) | 48 x 1G RJ-45 + 4 x 1/10G SFP+ | None | JL726B |
| CX 6200F 48G Class4 PoE 4SFP+ 370W | 48 x 1G PoE + 4 x 1/10G SFP+ | Class 4 PoE, 370 W | JL727B |
| CX 6200F 48G Class4 PoE 4SFP+ 740W | 48 x 1G PoE + 4 x 1/10G SFP+ | Class 4 PoE, 740 W | JL728B |
Warranty Upgrade
HPE offers Foundation Care support services for the CX 6200 series. Ask us to quote them with the switch.
Datasheet & Downloads
| HPE QuickSpecs | HPE Aruba Networking CX 6200 Switch Series QuickSpecs |
| HPE data sheet | HPE Aruba Networking CX 6200 Switch Series Data Sheet |
| Hardware guide | HPE Aruba Networking CX 6200F Switches and Accessories (PDF) |
| Installation guide | HPE Aruba Networking CX 6200F/M Installation and Getting Started Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting JL726B.
Frequently Asked Questions — HPE Aruba Networking CX 6200F JL726B
Is this a Layer 3 switch?
It is an access switch with Layer 3 features HPE lists as static and access OSPF routing, plus ACLs and QoS.
Can I stack it?
Yes. HPE lists VSF stacking of up to eight members.
Does it support PoE?
No. For PoE, choose the Class 4 PoE models in this series listed in the ordering table.
Do I need a subscription to use it?
No subscription is needed for local web GUI or CLI management. Cloud management with HPE Aruba Networking Central is optional and licensed separately.
What warranty do I get?
HPE Limited Lifetime Warranty, supplied by SourceIT with local support and a GST invoice.
