HPE Aruba Networking CX 6200F: High-Power PoE+ Switch for Enterprise-Grade Networks

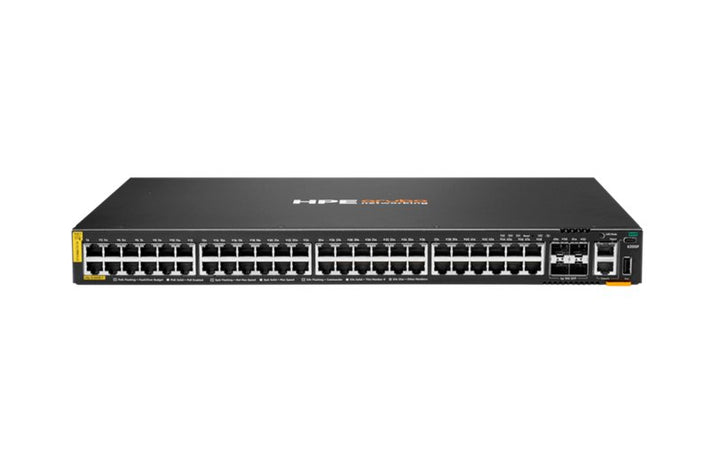

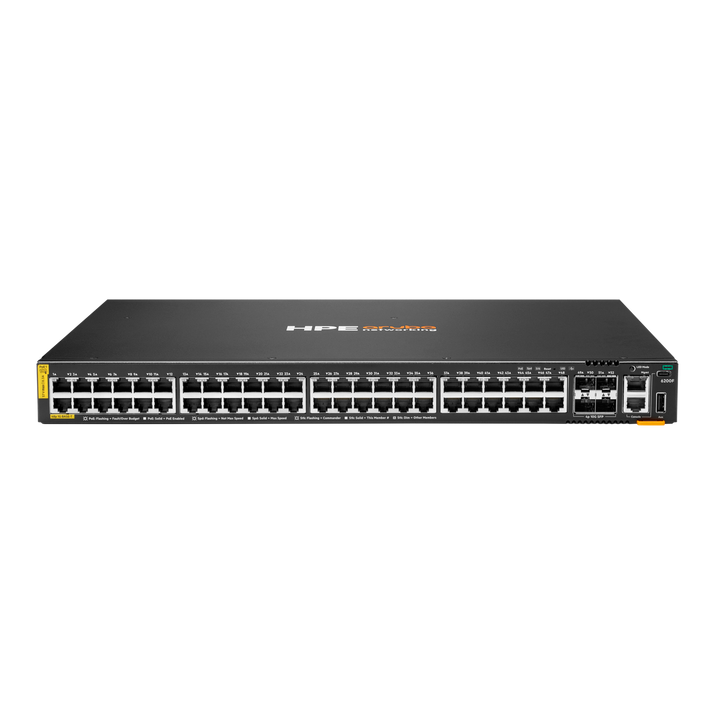

The HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728B) is a robust, fully managed Layer 2 and Layer 3 switch designed for enterprises, SMBs, and branch offices. Equipped with 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, it delivers fast and efficient connectivity for networked devices. With a high PoE budget of 740W, it supports Power-over-Ethernet (PoE) devices like IP cameras, wireless access points, and VoIP phones. This switch provides superior network performance, centralized management, and enhanced security features, making it an essential component for modern, future-proof network infrastructures.

48-Port High-Power PoE+ with Flexible Uplinks
The HPE Aruba Networking CX 6200F 48G PoE+ Switch (JL728B) is engineered to provide power and data over a single Ethernet cable, supporting Class 4 PoE with up to 30W per port. Its 740W PoE budget ensures ample power to run multiple high-consumption devices, such as access points, security cameras, and smart IoT devices. In addition, the 4 SFP+ uplink ports support high-speed 10Gbps connectivity, enabling seamless data transfer to network cores or data centers. The combined power and data capabilities make this switch ideal for large-scale deployments and high-density networks.

High Performance and Intelligent Automation
The Aruba CX 6200F 48-Port PoE+ Switch is built on a high-performance ASIC architecture, delivering up to 176 Gbps of switching capacity and 131 Mpps forwarding rate. This ensures high-speed data processing with minimal latency, even under heavy loads. The switch is equipped with intelligent automation and orchestration capabilities, allowing for zero-touch provisioning, network-wide updates, and automated error detection. Aruba Central provides a unified interface for network management, enabling IT teams to control multiple devices from a centralized location.

Advanced Security for Maximum Network Protection
The HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 740W Switch offers advanced security features that safeguard sensitive data and prevent unauthorized access. Role-based access control (RBAC) allows IT administrators to define and enforce security policies for users, devices, and applications. Additionally, the switch supports features like DHCP snooping, MAC address filtering, and port security to protect against internal and external threats. These comprehensive security capabilities are critical for businesses handling confidential information or operating in regulated industries.

Technical Specifications

• Model: HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728B)
• GTIN: 190017429108
• Ports: 48 x Gigabit Ethernet (PoE+), 4 x SFP+ uplink ports
• PoE Budget: 740W (up to 30W per port)
• Switching Capacity: 176 Gbps
• Forwarding Rate: 131 Mpps
• Dimensions: 44.25 x 27.9 x 4.4 cm
• Weight: 4.95 kg
• Management: Aruba Central, CLI, Web GUI
• Security Features: Role-based access control (RBAC), Dynamic Segmentation, DHCP snooping, MAC filtering
