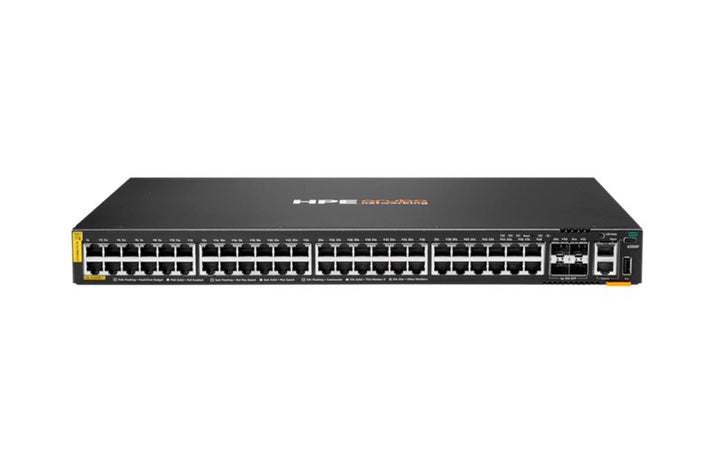

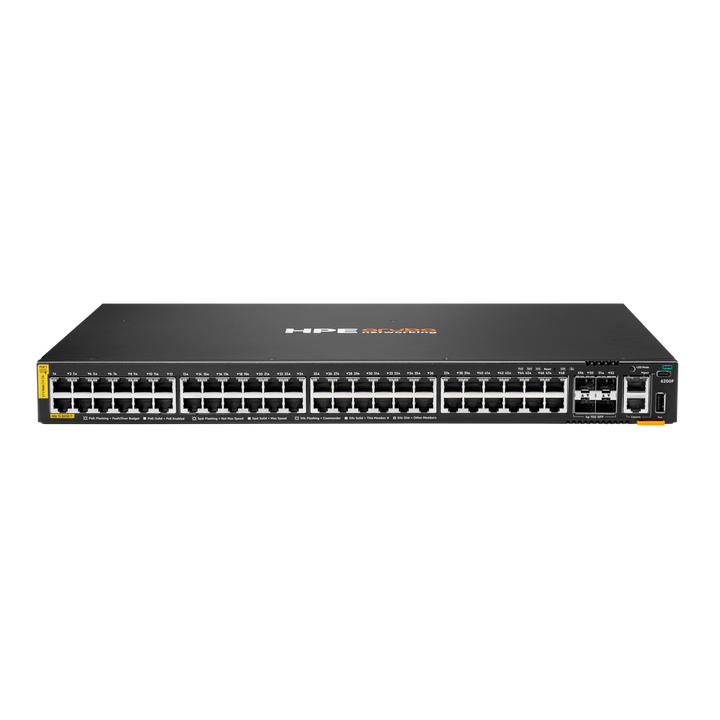

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727B) - Lifetime Warranty

HPE Aruba Networking CX 6200F: High-Capacity PoE+ Switch for Enterprise Networks
The HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727B) is a feature-rich, fully managed switch built to deliver high-speed connectivity and Power-over-Ethernet (PoE) support for modern networks. With 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, this switch ensures efficient and flexible network expansion. The 370W PoE power budget allows you to power connected devices such as IP cameras, wireless access points, and VoIP phones directly through Ethernet cables. Designed for enterprises, SMBs, and branch offices, this switch offers a seamless blend of performance, scalability, and security.

48-Port PoE+ Power with Flexible Connectivity
The Aruba CX 6200F 48G Class4 PoE Switch features 48 Gigabit Ethernet ports with Class 4 PoE capabilities, allowing each port to deliver up to 30W of power. This eliminates the need for separate power adapters for connected devices, such as access points, security cameras, and IP phones. Its 370W total PoE power budget ensures sufficient power for multiple high-demand devices. Additionally, the 4 SFP+ uplink ports offer 10Gbps connectivity to the network core or data center, facilitating smooth, high-speed data transfers and future-proof scalability.

Enterprise-Grade Performance and Automation
Built on a modern ASIC architecture, the HPE Aruba Networking CX 6200F 48G PoE+ Switch (JL727B) offers a switching capacity of 176 Gbps and a forwarding rate of 131 Mpps. It supports advanced Layer 2 and Layer 3 features, making it ideal for large-scale networks requiring high performance and low latency. The switch enables automation and smart orchestration using Aruba Central, which allows IT teams to manage multiple switches from a single interface. Zero-touch provisioning, AI-based insights, and real-time network analytics reduce manual workload, increase uptime, and optimize network performance.

Comprehensive Security and Role-Based Access Control
The Aruba CX 6200F 48G PoE+ Switch prioritizes network security with advanced protection features like role-based access control (RBAC), DHCP snooping, and MAC address filtering. These features help segment network traffic, enforce access control policies, and prevent unauthorized access to sensitive data. IT administrators can assign security roles to users, devices, and applications, ensuring access is granted only to authorized entities. With these robust security features, businesses can protect their networks from cyber threats while ensuring compliance with industry regulations.

Technical Specifications

• Model: HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727B)
• GTIN: 190017429085
• Ports: 48 x Gigabit Ethernet (PoE+), 4 x SFP+ uplink ports
• PoE Budget: 370W (up to 30W per port)
• Switching Capacity: 176 Gbps
• Forwarding Rate: 131 Mpps
• Dimensions: 44.25 x 27.9 x 4.4 cm
• Weight: 4.85 kg
• Management: Aruba Central, CLI, Web GUI
• Security Features: Role-based access control (RBAC), Dynamic Segmentation, DHCP snooping, MAC filtering
