HP ZBook X G1i 16 U7-255H 32GB 1TB RTX PRO 1000 Touch Mobile Workstation
PRODUCT DESCRIPTION
HP ZBook X G1i 16 inch Mobile Workstation PC (C9EY2PT) - 3 Years Local Warranty
Mobile Workstation Performance
HP ZBook X G1i 16 is configured with the Intel Core Ultra 7 255H, 32 GB DDR5-5600 memory, a 1 TB PCIe NVMe M.2 SSD and NVIDIA RTX PRO 1000 Blackwell Laptop GPU graphics with 8 GB GDDR7. Intel AI Boost provides an on-chip NPU for AI-accelerated features.
16-inch WUXGA Touch Display and Collaboration
The 16-inch WUXGA (1920 x 1200) touch display has an anti-glare finish rated at 300 nits. A 5 MP IR camera, Audio by Poly Studio and a backlit, spill-resistant keyboard with numeric keypad cover video calls and data entry.
Connectivity, Battery and Warranty
Wireless is Intel Wi-Fi 7 BE201 and Bluetooth 5.4, with a built-in RJ-45 port and two Thunderbolt 4 ports. Power comes from an 83 Wh battery with the HP 150 W slim smart AC adapter, and the unit carries 3 years of parts, labour and onsite support through SourceIT.
HP ZBook X G1i 16 Datasheet — Technical Specifications
General
| Product Name | HP ZBook X G1i 16 inch Mobile Workstation PC |
| Part Number | C9EY2PT |
| Product Line | HP ZBook mobile workstation |
| Local Warranty (Singapore) | 3 years parts, labour and onsite support (HP 3/3/3 limited warranty, with bundled HP 3-year Onsite Care Pack with Predictive Detection Alerts), supplied by SourceIT with a GST invoice |
Processor and Memory
| Processor | Intel Core Ultra 7 255H (up to 5.1 GHz with Intel Turbo Boost Technology, 24 MB L3 cache, 16 cores, 16 threads) |
| AI / NPU | Intel AI Boost, 13 NPU TOPS |
| Memory | 32 GB (1 x 32 GB) DDR5-5600 SODIMM |
| Memory Slots | 2 SODIMM slots (1 in use, 1 free) |
Graphics and Display
| Graphics | NVIDIA RTX PRO 1000 Blackwell Laptop GPU (8 GB GDDR7 dedicated); Intel integrated graphics |
| Display | 40.6 cm (16") WUXGA (1920 x 1200), touch, IPS, anti-glare, 300 nits |
| Touchscreen | Yes |
Storage and Operating System
| Internal Storage | 1 TB PCIe NVMe M.2 SSD |
| Operating System | Windows 11 Pro |
| Security Software | HP Wolf Pro Security Edition, 3-year licence |
Connectivity
| Wireless | Intel Wi-Fi 7 BE201 and Bluetooth 5.4 |
| Ethernet | Built-in RJ-45, Intel I219-V GbE |
| Mobile Broadband (WWAN) | No |

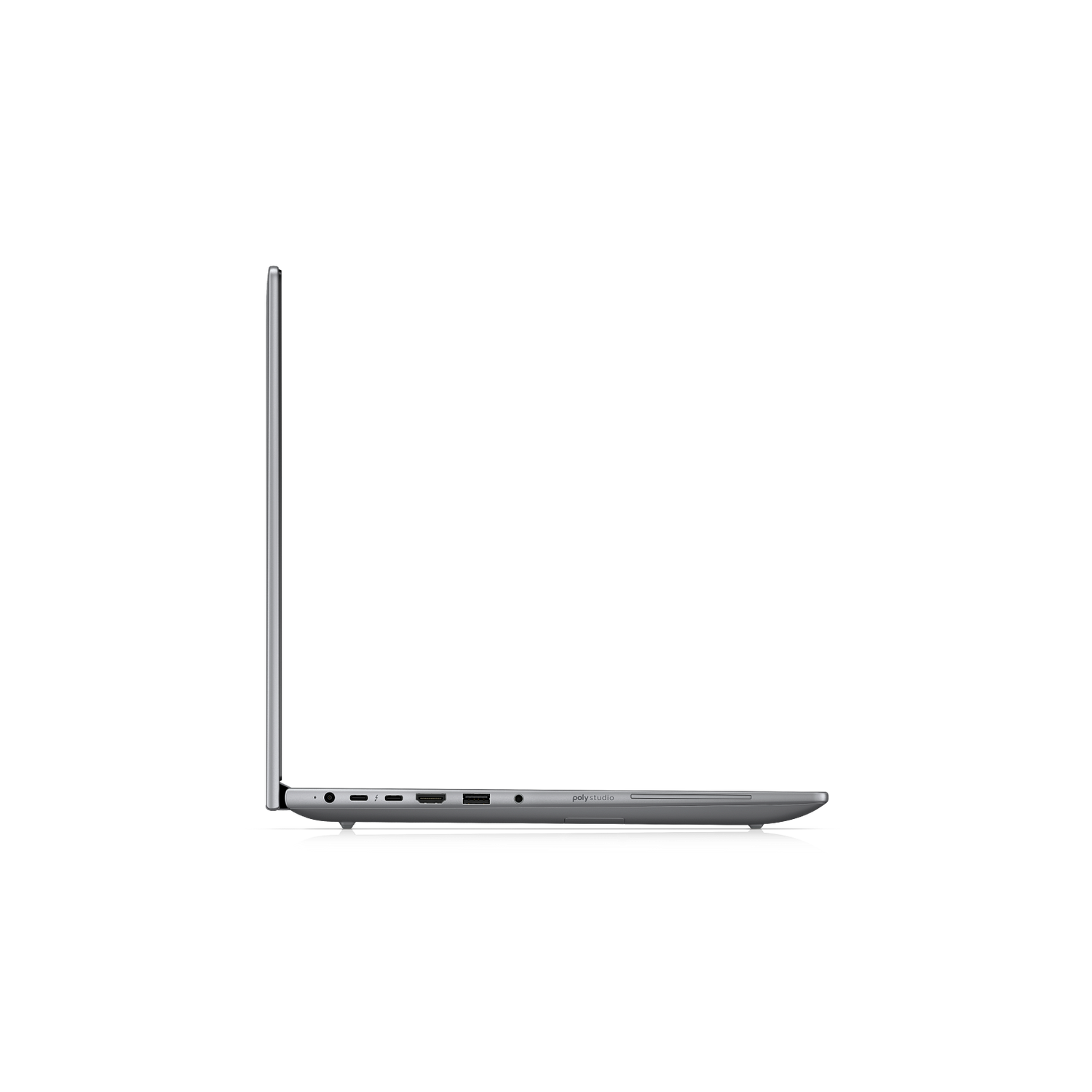

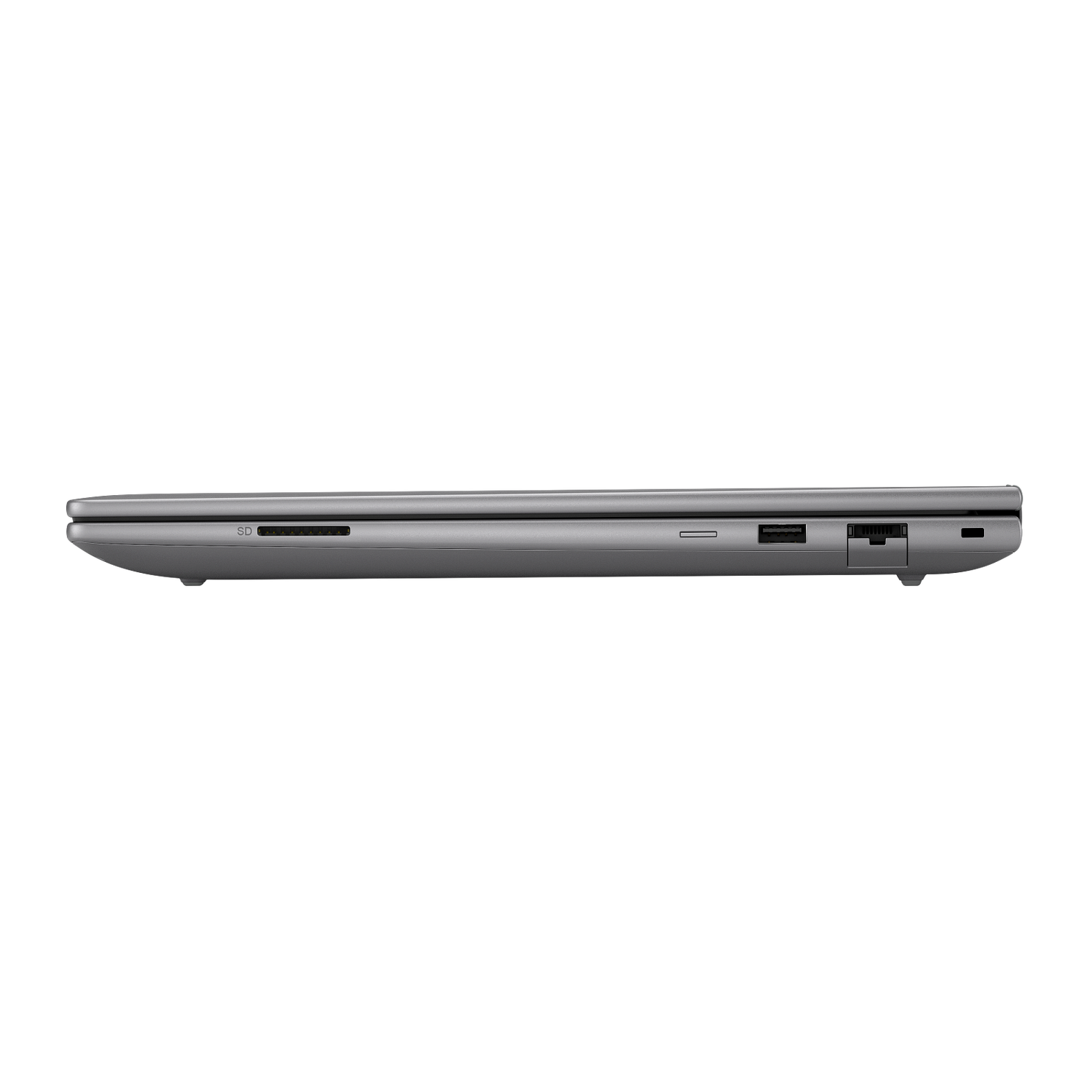

| Ports | Left: 1 USB Type-A 5Gbps (charging), 1 HDMI 2.1, 1 headphone/microphone combo, 1 power connector, 2 Thunderbolt 4 with USB Type-C 40Gbps (USB Power Delivery, DisplayPort 2.1). Right: 1 USB Type-A 5Gbps, 1 RJ-45, 1 nano security lock slot |
Camera, Audio and Input
| Camera | 5 MP IR camera |
| Audio | Audio by Poly Studio, dual stereo speakers, dual array digital microphones |
| Keyboard and Pointing Device | Spill-resistant, backlit keyboard with numeric keypad; clickpad with multi-touch gesture support |
| Security | Fingerprint sensor; HP Tamper Lock; no SmartCard reader; no NFC |
Power and Physical
| Battery | HP Long Life 6-cell, 83 Wh, HP Fast Charge |
| Power Adapter | HP 150 W slim smart AC adapter |
| Dimensions (W x D x H) | 35.9 x 25.1 x 2.3 cm |
| Weight | Starting at 2.04 kg |
Compatibility & Software Support
Operating System
Ships with Windows 11 Pro preinstalled, with HP Wolf Pro Security Edition (3 years).
Docking and Displays
The two Thunderbolt 4 ports support HP Thunderbolt and USB-C docks for single-cable desk setups; HDMI 2.1 connects an external monitor or projector directly, and the built-in RJ-45 port provides wired Gigabit Ethernet.
Typical Use
CAD, engineering simulation, data science and content creation that need a discrete NVIDIA RTX PRO GPU on a 16-inch touch display.
Package Contents & Ordering Information
In the Box
HP ZBook X G1i 16 (C9EY2PT), HP 150 W slim smart AC adapter, power cord and documentation.
HP ZBook Mobile Workstations
| Model | Configuration |
| HP ZBook Ultra G1a 14 (C1KR3PT) | Ryzen AI Max PRO 385, 32GB, 1TB SSD, OLED touch |
| HP ZBook X G1i 16 (C9EY2PT) (this listing) | Core Ultra 7 255H, 32GB, 1TB SSD, RTX PRO 1000, touch |
| HP ZBook 6 G2a 16 (E8TJ0AT) | Ryzen 7 8745HX, 24GB, 1TB SSD, RTX PRO 500 |
| HP ZBook 6 G2a 16 (E8TJ1AT) | Ryzen 9 9955HX, 48GB, 1TB SSD, RTX PRO 2000 |
| HP ZBook Ultra G3a 16 (E8ZS7AT) | Ryzen AI Max 485, 32GB, 1TB SSD |
| HP ZBook Ultra G3a 16 (E8ZS8AT) | Ryzen AI Max 490, 64GB, 1TB SSD |
| HP ZBook 8 G2a 14 (DS3X6AT) | Ryzen AI 7 PRO 450, 48GB, 1TB SSD |
| HP ZBook 8 G2a 16 (DS3X7AT) | Ryzen AI 7 PRO 450, 48GB, 1TB SSD |
| HP ZBook 8 G2i 14 (DS3X4AT) | Core Ultra 7 356H, 48GB, 1TB SSD, RTX PRO 500 |
| HP ZBook 8 G2i 16 (DS3X5AT) | Core Ultra 7 356H, 48GB, 1TB SSD, RTX PRO 500 |
| HP ZBook X G2i 16 (E67A7PT) | Core Ultra 7 356H, 32GB, 1TB SSD, RTX PRO 1000, touch |
Datasheet & Downloads
| HP product page | HP ZBook X G1i 16 on the HP Store |
| HP support | HP ZBook X G1i 16 — HP Support, drivers and manuals |
Frequently Asked Questions — HP ZBook X G1i 16
What is the exact configuration of C9EY2PT?
Intel Core Ultra 7 255H, 32 GB (1 x 32 GB) DDR5-5600 SODIMM, 1 TB PCIe NVMe M.2 SSD, NVIDIA RTX PRO 1000 Blackwell 8 GB, 40.6 cm (16") WUXGA touch display, Windows 11 Pro.
Can the memory be upgraded?
Yes. Memory is fitted in SODIMM slots: 2 SODIMM slots with 1 x 32 GB installed, leaving one slot free.
Does it have a touchscreen?
Yes, the 16-inch WUXGA display is a touchscreen.
Which graphics does it use?
NVIDIA RTX PRO 1000 Blackwell Laptop GPU with 8 GB GDDR7 dedicated memory, alongside Intel integrated graphics.
What warranty do I get?
3 years parts, labour and onsite support (HP 3/3/3 limited warranty, with bundled HP 3-year Onsite Care Pack with Predictive Detection Alerts), supplied by SourceIT with a GST invoice.
