HP ZBook 8 G2a 16 Ryzen AI 7 PRO 450 48GB 1TB Mobile Workstation
PRODUCT DESCRIPTION
HP ZBook 8 G2a 16 inch Mobile Workstation PC (DS3X7AT) - 3 Years Local Warranty
Mobile Workstation Performance
HP ZBook 8 G2a 16 is configured with the AMD Ryzen AI 7 PRO 450, 48 GB memory and a 1 TB PCIe Gen5 NVMe M.2 SSD. On-device AI is accelerated by the neural processing unit (AMD Ryzen AI, 50 NPU TOPS).
16-inch WUXGA Display and Collaboration
The 16-inch WUXGA (1920 x 1200) IPS anti-glare panel is rated at 400 nits. A 5 MP IR camera, Audio by Poly Studio and HP Premium Keyboard, spill-resistant, backlit, with numeric keypad cover video calls and everyday input.
Connectivity, Battery and Warranty
Wireless is MediaTek Wi-Fi 7 MT7925 (2x2) and Bluetooth 6.0. Power comes from a HP Long Life 3-cell, 68 Wh polymer battery with the HP 100 W wall mount USB Type-C GaN power adapter, and the unit carries 3 years of local onsite support through SourceIT.
Buying for a team or project roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
HP ZBook 8 G2a 16 Datasheet — Technical Specifications
General
| Product Name | HP ZBook 8 G2a 16 inch Mobile Workstation PC |
| Part Number | DS3X7AT |
| Product Line | HP ZBook mobile workstation |
| Local Warranty (Singapore) | 3 years onsite hardware support (HP 1-year limited warranty plus bundled HP 3-year Onsite Care Pack with Predictive Detection Alerts), supplied by SourceIT with a GST invoice |
Processor and Memory
| Processor | AMD Ryzen AI 7 PRO 450 (up to 5.1 GHz max boost clock, 16 MB L3 cache, 8 cores, 16 threads) |
| AI / NPU | AMD Ryzen AI, 50 NPU TOPS |
| Memory | 48 GB (2 x 24 GB) DDR5-5600 SODIMM |
| Memory Slots | 2 SODIMM slots (both in use) |
Graphics and Display
| Graphics | AMD Radeon 860M Graphics (integrated) |
| Display | 40.6 cm (16") WUXGA (1920 x 1200), IPS, anti-glare, 400 nits |
| Touchscreen | No |
Storage and Operating System
| Internal Storage | 1 TB PCIe Gen5 NVMe M.2 SSD |
| Operating System | Windows 11 Pro 64 |
Connectivity
| Wireless | MediaTek Wi-Fi 7 MT7925 (2x2) and Bluetooth 6.0 |
| Mobile Broadband (WWAN) | No |

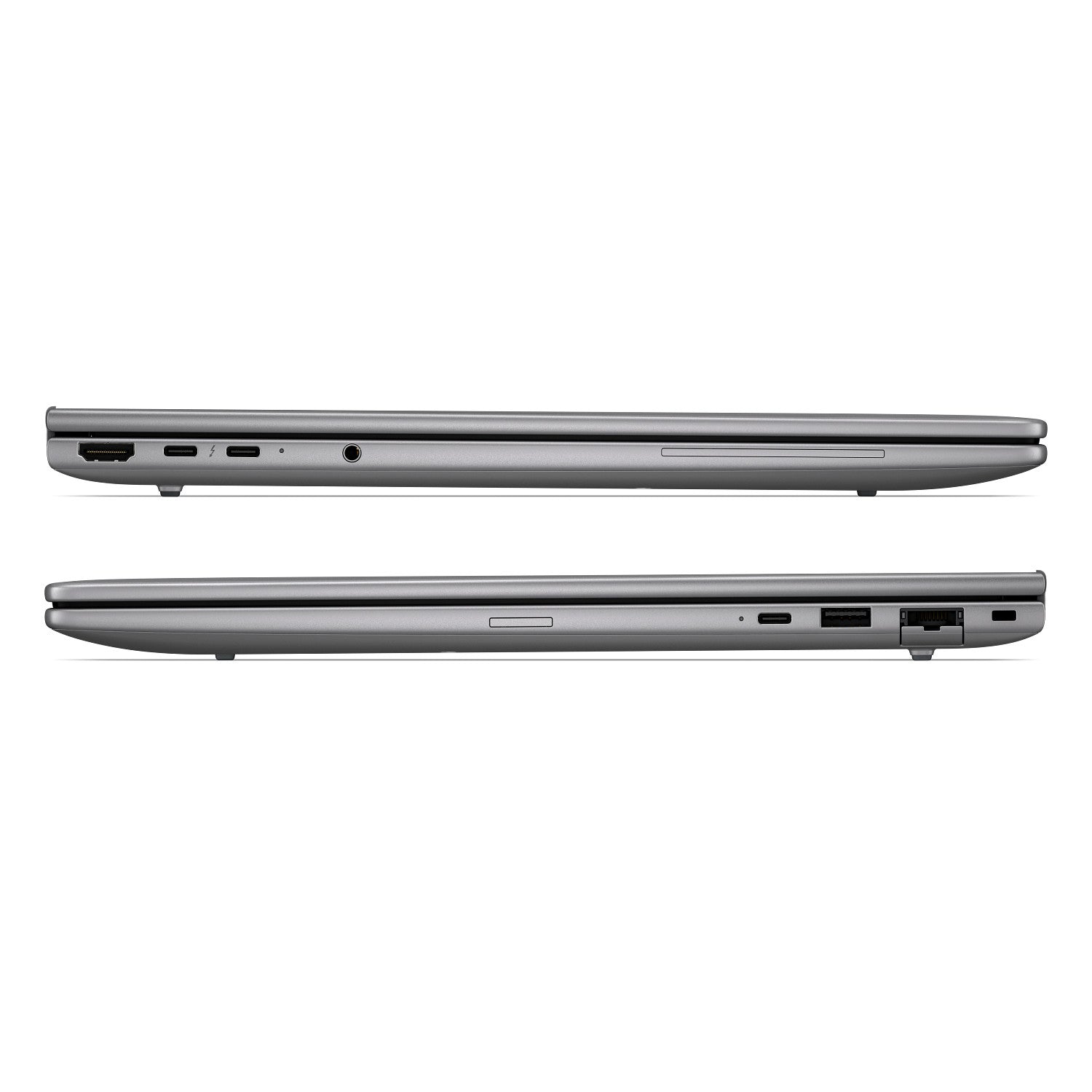

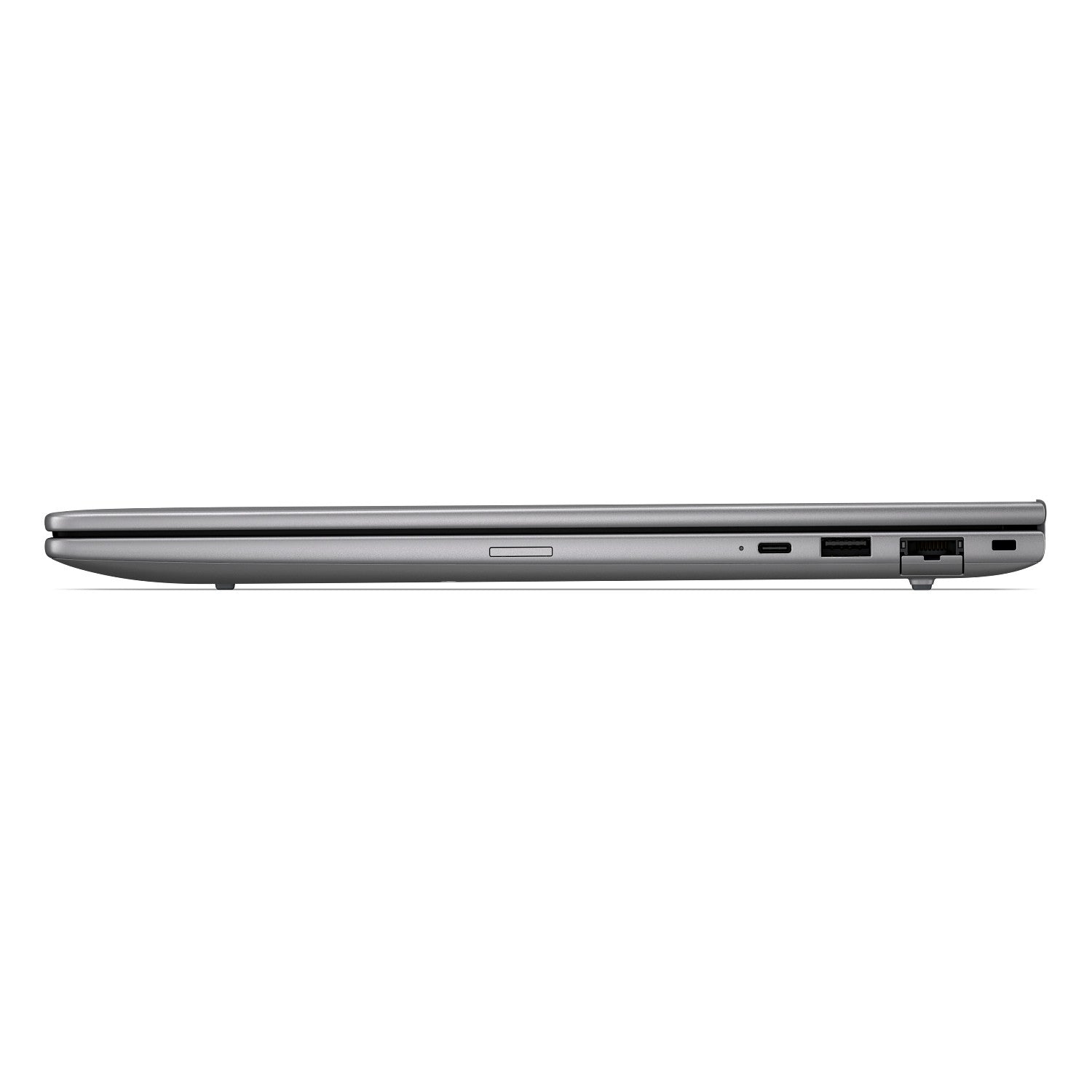

| Ports | Left: 1 HDMI 2.1, 1 3.5 mm audio combo jack, 2 Thunderbolt 4 with USB Type-C 40Gbps (USB Power Delivery, DisplayPort 2.1). Right: 1 USB Type-A 5Gbps, 1 nano security lock slot, 1 USB Type-C 10Gbps (USB Power Delivery, DisplayPort 1.4) |
Camera, Audio and Input
| Camera | 5 MP IR camera |
| Audio | Audio by Poly Studio, 2 integrated stereo speakers, discrete amplifiers, 2 integrated dual array digital microphones |
| Keyboard and Pointing Device | HP Premium Keyboard, spill-resistant, backlit, with numeric keypad; ClickPad Glass with multi-touch gesture support |
| Security | Fingerprint sensor; active SmartCard reader; no NFC |
Power and Physical
| Battery | HP Long Life 3-cell, 68 Wh polymer |
| Power Adapter | HP 100 W wall mount USB Type-C GaN power adapter |
| Dimensions (W x D x H) | 35.9 x 25 x 1.9 cm |
| Weight | Starting at 1.76 kg |
Compatibility & Software Support
Operating System
Ships with Windows 11 Pro 64 preinstalled.
Docking and Displays
The Thunderbolt and USB Type-C ports support HP Thunderbolt and USB-C docks for single-cable desk setups; an HDMI 2.1 port connects an external monitor or projector directly.
Typical Use
Engineering, analytics and content workflows that need workstation-class memory and storage in a portable chassis.
Package Contents & Ordering Information
In the Box
HP ZBook 8 G2a 16 (DS3X7AT), HP 100 W wall mount USB Type-C GaN power adapter, power cord and documentation.
HP ZBook Mobile Workstations
| Model | Configuration |
| HP ZBook X G1i 16 (DF7Q8AT) | Core Ultra 7 255H, 32GB, 1TB SSD, RTX PRO 1000, touch |
| HP ZBook Fury G1i 16 (D44HFUP) | Core Ultra 7 265HX vPro, 64GB, 4TB SSD, RTX PRO 3000 |
| HP ZBook 8 G2a 14 (DS3X6AT) | Ryzen AI 7 PRO 450, 48GB, 1TB SSD |
| HP ZBook 8 G2a 16 (DS3X7AT) (this listing) | Ryzen AI 7 PRO 450, 48GB, 1TB SSD |
| HP ZBook 8 G2i 14 (DS3X4AT) | Core Ultra 7 356H, 48GB, 1TB SSD, RTX PRO 500 |
| HP ZBook 8 G2i 16 (DS3X5AT) | Core Ultra 7 356H, 48GB, 1TB SSD, RTX PRO 500 |
| HP ZBook X G2i 16 (E67A7PT) | Core Ultra 7 356H, 32GB, 1TB SSD, RTX PRO 1000, touch |
Datasheet & Downloads
| HP product page | HP ZBook 8 G2a 16 on hp.com |
| HP support | HP ZBook 8 G2a 16 — HP Support, drivers and manuals |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DS3X7AT.
Frequently Asked Questions — HP ZBook 8 G2a 16
What is the exact configuration of DS3X7AT?
AMD Ryzen AI 7 PRO 450, 48 GB (2 x 24 GB) DDR5-5600 SODIMM, 1 TB PCIe Gen5 NVMe M.2 SSD, 40.6 cm (16") WUXGA (1920 x 1200) display, Windows 11 Pro 64.
Can the memory be upgraded?
Memory is fitted in SODIMM slots: 2 SODIMM slots (both in use).
Does it have a touchscreen?
No, this configuration has a non-touch display.
Which graphics does it use?
AMD Radeon 860M Graphics (integrated).
What warranty do I get?
3 years onsite hardware support (HP 1-year limited warranty plus bundled HP 3-year Onsite Care Pack with Predictive Detection Alerts), supplied by SourceIT with a GST invoice.
