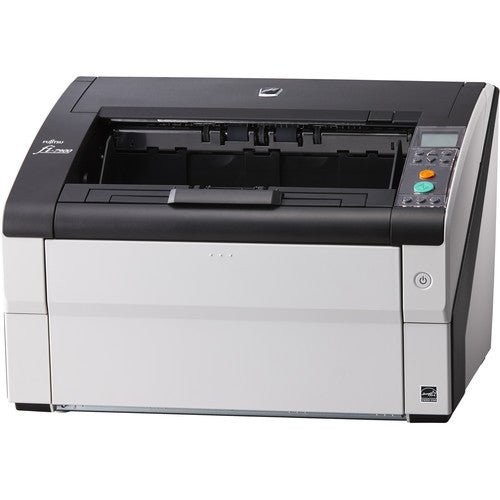

Ricoh fi-7900 A3 Production Document Scanner
PRODUCT DESCRIPTION
Ricoh fi-7900 A3 Production Document Scanner, 140 ppm / 280 ipm, 500-Sheet ADF (PA03800-B001) - 1 Year Local Warranty
140 ppm Production Scanning for Central Scanning Rooms
The Ricoh fi-7900 is an A3 production scanner built for high-volume, centralised capture. It scans at 140 pages per minute simplex and 280 images per minute duplex (A4 landscape, 200/300 dpi), holds 500 sheets in the ADF and is rated by Ricoh for an expected daily volume of 120,000 sheets.
Operator-Friendly Design

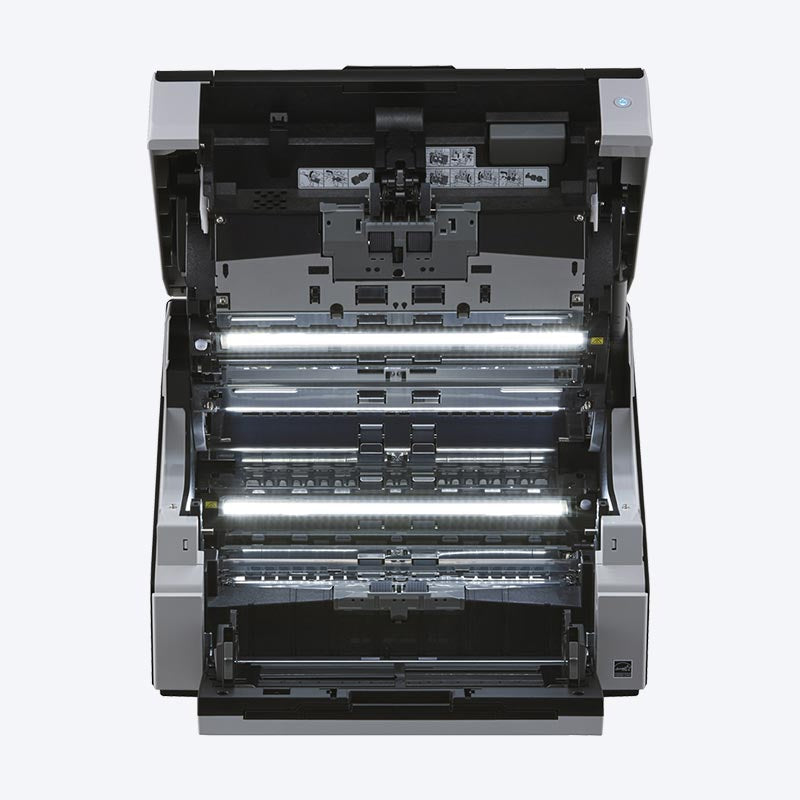

Job registration lets operators start preset jobs directly from the scanner, and the easily accessible operator panel with LCD status display keeps them informed. LED lights inside the unit make cleaning dust, debris and ink residue from the glass quick and easy.
Accurate Feeding for Mixed Batches
Automatic Separation Control calibrates the torque on the brake rollers so documents feed one at a time, while the fi Series Skew Reducer uses independent separator rollers so a skewed page does not affect the pages behind it. Ultrasonic overlap detection and length detection help prevent missed pages.
Organised Output and Smarter Software
The improved Stacking Control function and Elevator Stacker let operators gather scanned documents quickly and move on to the next batch. The PaperStream IP driver with Automatic Profile Selection applies the right image processing to each document type, and PaperStream Capture routes output to its destination.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and workflow and we will size it for you.
Ricoh fi-7900 Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-7900 Image Scanner |
| Part Number | PA03800-B001 |
| Series | Ricoh fi-7000 series (A3 production) |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | Colour CCD x 2 (front x 1, back x 1) |
| Light Source | White LED array x 4 (front x 2, back x 2) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Scanning Speed (A4 Landscape) | Simplex 140 ppm / Duplex 280 ipm (200/300 dpi) |
| Scanning Speed (A4 Portrait) | Simplex 105 ppm / Duplex 210 ipm (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | White / Black (selectable) |
Paper Handling
| Maximum Document Size | 304.8 x 431.8 mm (12 x 17 in) |
| Minimum Document Size | 52 x 74 mm (2 x 3 in) |
| Long Page Scanning | Up to 5,588 mm (220 in) |
| Paper Weight | 20 to 209 g/m² (5.4 to 56 lb) for A5 to A4; 41 to 209 g/m² (11 to 56 lb) for smaller than A5 or larger than A4 |
| ADF Capacity | 500 sheets (A4 80 g/m²) |
| Expected Daily Volume | 120,000 sheets |
| Multifeed Detection & Paper Protection | Overlap detection (ultrasonic sensor), length detection, lag detection |
Connectivity & Power
| Interface | USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V ±10% |
| Power Consumption | Operating 200 W or less; Sleep 3.2 W or less; Auto Standby (Off) less than 0.3 W |
Physical & Environmental
| Dimensions (W x D x H) | 460 x 430 x 310 mm |
| Weight | 32 kg (70 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2022 / 2019 / 2016 / 2012 R2 / 2012, per Ricoh's fi-7900 datasheet.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS) and WIA driver.
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide and Scanner Central Admin Server. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, blank page detection, static threshold, iDTC / Advanced DTC / SDTC, error diffusion, dither, de-screen, emphasis, dropout colour, sRGB output, hole-punch removal, cropping, index-tab cropping, split image, de-skew, edge correction, vertical streak reduction, character extraction, background pattern removal and automatic profile selection.
Package Contents & fi-7800 / fi-7900 Ordering Information
In the Box (per Ricoh)
fi-7900 scanner, AC cable, USB cable and setup DVD-ROM.
fi-7800 / fi-7900 A3 Production Models
| Model | A4 Landscape (ppm / ipm) | A4 Portrait (ppm / ipm) | Daily Volume | Part No. |
| fi-7800 | 110 / 220 | 90 / 180 | 100,000 | PA03800-B401 |
| fi-7900 (this listing) | 140 / 280 | 105 / 210 | 120,000 | PA03800-B001 |
Looking for the newer generation? Ask us about the fi-8820, fi-8930 and fi-8950, which add USB 3.2, Gigabit Ethernet and a 4.3-inch touchscreen.
Datasheet & Downloads
| Ricoh datasheet | fi-7900 Datasheet (PDF) |
| Ricoh product page | fi-7900 on pfu-asia.ricoh.com |
| Drivers & software | fi-7800 / fi-7900 downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03800-B001.
Frequently Asked Questions — Ricoh fi-7900
How fast is the fi-7900?
140 ppm simplex and 280 ipm duplex on A4 landscape, or 105 ppm / 210 ipm on A4 portrait, at 200/300 dpi.
Can it scan A3 documents?
Yes. It accepts documents up to 304.8 x 431.8 mm (12 x 17 in) in the ADF, and long pages up to 5,588 mm.
How does it connect?
By USB 2.0. The fi-7900 does not have a network port; if you need Gigabit Ethernet, ask us about the fi-8820, fi-8930 and fi-8950.
Does it work with a Mac?
Ricoh lists Windows 11, Windows 10 and Windows Server for the fi-7900. macOS and Linux are not listed on the datasheet.
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
