Ergotron TRACE™ Dual Conversion Kit

SKU: 47-110-224

S$276.00
Unit price per
Save S$10.12

Shipping calculated at checkout.

PRODUCT DESCRIPTION

Ergotron TRACE™ Dual Conversion Kit (47-110-224) - 15 Years Local Warranty

Add a Second Screen to an Existing TRACE Mount

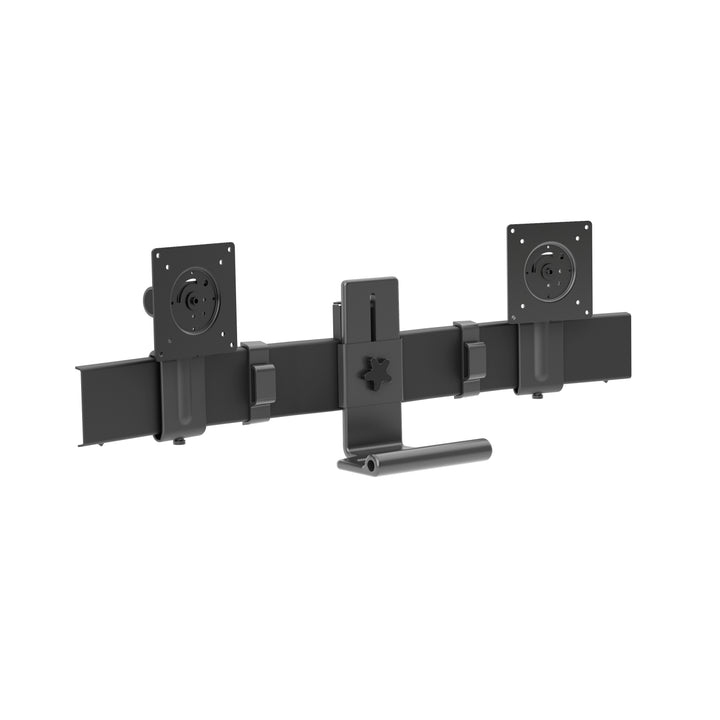

The Ergotron TRACE Dual Bow Conversion Kit converts your single configuration to a dual monitor set-up, in Ergotron's own words. Fit the bow and its two sliding pivots to an installed TRACE Monitor Mount (45-630-216 or 45-630-224) and a one-screen desk becomes a two-screen desk without replacing the mount, the clamp or the lift column. Note the direction — to convert a dual back to a single you need the Single Conversion Kit, 47-109-224.

One Lift Column, Two Displays

Because both screens share the host mount's Constant Force™ lift, they rise and fall together on a single consistent eye line — which is the ergonomic advantage a pair of separate arms cannot easily give you. The bow's sliding pivots let you set the gap between the two panels and angle each one inward, and each display still rotates a full 360° for portrait work.

A Cost-Effective Fleet Upgrade Path

For IT and facilities teams, this is the reason to specify single TRACE mounts as standard: desks that later need a second screen get upgraded individually instead of re-purchased. It is cheaper than a second mount, and it keeps one desk clamp on the rear edge rather than two — which matters on shallow desks and benching systems where rear-edge space is contested.

Matte Black, Backed 15 Years

Supplied in matte black to match the 45-630-224 mount, and covered by Ergotron's premium 15-year TRACE warranty. SourceIT supplies it with local Singapore warranty and a GST invoice. Ergotron does not publish separate size or weight ratings for the conversion kits — rather than estimate, we will check your two displays against the TRACE Dual's published envelope before you order.

Ergotron TRACE Dual Bow Conversion Kit Datasheet — Technical Specifications

General

Product Name	Ergotron TRACE™ Dual Bow Conversion Kit
Part Number	47-110-224
Finish	Matte Black
Function	Converts an installed TRACE single configuration to a dual-monitor set-up
Direction of Conversion	Single → Dual
Host Mount Required	Ergotron TRACE Monitor Mount (45-630-216 / 45-630-224)
Number of Displays After Conversion	2
Manufacturer Warranty	15-Year Manufacturer Warranty (Ergotron)
Local Warranty (Singapore)	Supplied by SourceIT Pte Ltd with local Singapore warranty and GST invoice

Display Compatibility

Ergotron does not publish separate screen-size, weight-capacity or VESA figures for the TRACE Dual Bow Conversion Kit on its official TRACE product sheet, and SourceIT does not quote numbers Ergotron has not stated. For guidance, the complete TRACE Dual Monitor Mount (45-631) is rated at 21.5″–27″ per display and 8.1–21.5 lbs (3.7–9.8 kg) — a converted single mount should be planned conservatively against that envelope. Contact SourceIT with your two display models before ordering and we will confirm the fit.

Adjustment & Motion

The kit supplies the bow and the two display pivots. Lift (11″ / 28 cm), pan (240°) and extension (15″ / 38.1 cm) are properties of the host TRACE mount and are unchanged by the conversion.

Design & Durability

Finish	Matte Black
Part Number	47-110-224
Cycle Testing (TRACE platform)	TRACE mounts are tested to 15,000 cycles
Manufacturer Warranty	15-Year Manufacturer Warranty (Ergotron)
Local Warranty (Singapore)	Yes — SourceIT Pte Ltd

Compatibility & Fit

Direction of conversion: single → dual. Ergotron's official wording is that this kit “converts your single configuration to a dual monitor set-up.” If you need the opposite — taking a dual TRACE back to one screen — order the TRACE Single Conversion Kit (47-109-224). The two kit names are easy to transpose; check before ordering.

What it fits: an installed Ergotron TRACE Monitor Mount, 45-630-224 or 45-630-216. It is not a standalone mount — there is no base, lift column, arm or desk clamp in the box.

Screen size after conversion: Ergotron caps the complete TRACE Dual at 27″ per display. Plan a converted setup against that ceiling — two ultrawides will not work on a TRACE bow.

Weight: Ergotron publishes no separate capacity figure for the kit. The bow and second pivot add mass that the host mount's lift must carry, so a converted single mount should be planned conservatively. Send SourceIT both monitor models and your mount's part number and we will confirm against Ergotron's data.

Finish: matte black only. On a white 45-630-216 host mount the bow will not colour-match. If finish consistency matters, consider ordering the complete TRACE Dual in white (45-631-216).

VESA fit: the TRACE platform uses VESA MIS-D — 75 x 75 mm and 100 x 100 mm.

Package Contents & TRACE Series Ordering Information

In the Box

TRACE dual bow (crossbar)
Handle
Sliding display pivots (2)
Mounting hardware and instructions

Ergotron does not publish a full itemised box list for the conversion kits on the TRACE product sheet; the above reflects the kit's stated function. It contains no base, lift column, arm or desk clamp.

TRACE Series Ordering Information

Ergotron TRACE Monitor Mount — Matte Black	45-630-224
Ergotron TRACE Monitor Mount — White	45-630-216
Ergotron TRACE Dual Monitor Mount — Matte Black	45-631-224
Ergotron TRACE Dual Monitor Mount — White	45-631-216
Ergotron TRACE Single Conversion Kit (dual → single) — Matte Black	47-109-224
Ergotron TRACE Dual Bow Conversion Kit (single → dual) — Matte Black (this listing)	47-110-224

TRACE Mounting Accessories (sold separately)

Slim Profile Clamp — White	98-490-216
Slim Profile Clamp — Matte Black	98-490-224
Grommet Mount — Matte Black	98-492-009

Datasheet & Downloads

SourceIT publishes only the figures Ergotron states officially. Where Ergotron does not publish a spec for this kit, we say so rather than estimate.

Frequently Asked Questions — Ergotron TRACE Dual Bow Conversion Kit

Which way round does this kit convert?
Single to dual. Ergotron's official description reads: “converts your single configuration to a dual monitor set-up.” To go the other way — dual back to single — order the TRACE Single Conversion Kit (47-109-224). The two kit names are easy to transpose, so check before ordering.

Can I use this on its own?
No. It supplies the bow and the two display pivots only — there is no base, lift column, arm or desk clamp. It must be fitted to an installed TRACE Monitor Mount (45-630). If you are starting from scratch, the complete TRACE Dual Monitor Mount (45-631) is the simpler order.

How big can the two monitors be after conversion?
Ergotron caps the complete TRACE Dual at 21.5″ to 27″ per display, and that is the sensible ceiling to plan a converted setup against. Two ultrawides will not work on a TRACE bow — if that is the requirement, keep the single mount and fit one larger screen instead.

What is the weight limit once converted?
Ergotron does not publish a separate capacity figure for the conversion kit, and SourceIT will not quote one it has not stated. For reference the complete TRACE Dual is rated 8.1–21.5 lbs (3.7–9.8 kg). The bow and second pivot add mass the host mount's lift must carry, so plan conservatively — send us both monitor models and we will confirm.

Is it available in white?
No — Ergotron lists this kit in matte black (47-110-224) only. On a white 45-630-216 host mount it will not colour-match. Where finish consistency matters, order the complete TRACE Dual in white (45-631-216) instead.

Do I need VESA adapters?
Usually not — the TRACE platform covers VESA MIS-D at 75 x 75 mm and 100 x 100 mm, which fits most business monitors. Displays with no VESA pattern or a deeply recessed housing may need the manufacturer's own adapter plate.

Is converting cheaper than buying a second mount?
Generally yes, and it also keeps one lift column and one desk clamp instead of two — which matters on shallow desks and benching where two separate mounts would compete for the same rear edge. For fleets, it lets you specify single TRACE mounts now and upgrade only the desks that actually need two screens.

Does the Ergotron TRACE Dual Bow Conversion Kit come with a Singapore warranty?
Yes. Every Ergotron TRACE Dual Bow Conversion Kit sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the TRACE Dual Bow Conversion Kit with a 15-year manufacturer warranty.
