Ergotron Tablet Management Desktop 16 For Apple iPad
PRODUCT DESCRIPTION
Ergotron Tablet Management Desktop 16 For Apple iPad (DM16-1024-3) - 5 Years Local Warranty
Charge, Sync and Lock Away 16 iPads on a Single Desktop

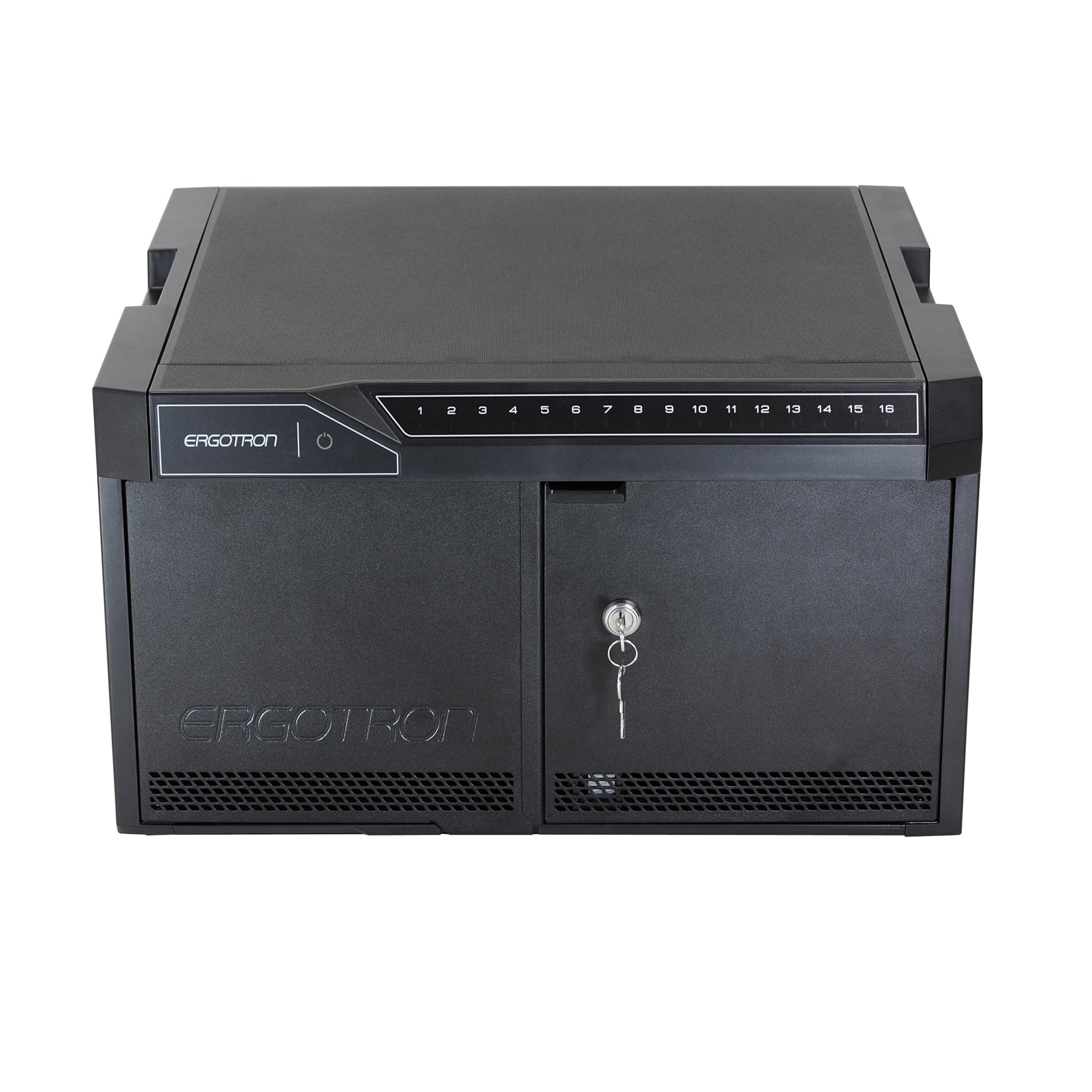

The Ergotron Tablet Management Desktop 16 (DM16-1024-3) is a compact, UL-certified steel charging cabinet that holds, charges and secures 16 tablets from one desk or counter. It is built for Singapore schools, polytechnics, clinics, training rooms and retail floors that issue a shared fleet of iPads each morning and need every unit charged, accounted for and locked away overnight — without a full-size charging cart or a dedicated store room.
A Full 2.4 A to Every Bay, Not Shared Between Them
Each of the 16 bays delivers the full 2.4 A charging current per device over USB, so a fleet charges at full rate rather than trickling because sixteen tablets are dividing one supply. That is the difference between a fleet that is ready for period one and one that is still catching up at recess.
Individual Status Indicators Show Exactly Which Tablets Are Ready
Ergotron's LED Individual Status Indicators (ISI) monitor the charging progress of each tablet separately — green for fully charged, amber for charging in progress. Staff can see at a glance which units are ready to hand out instead of unplugging devices to check, which is the single biggest time saver in a shared-device routine.
Sync Sixteen Tablets From One Laptop

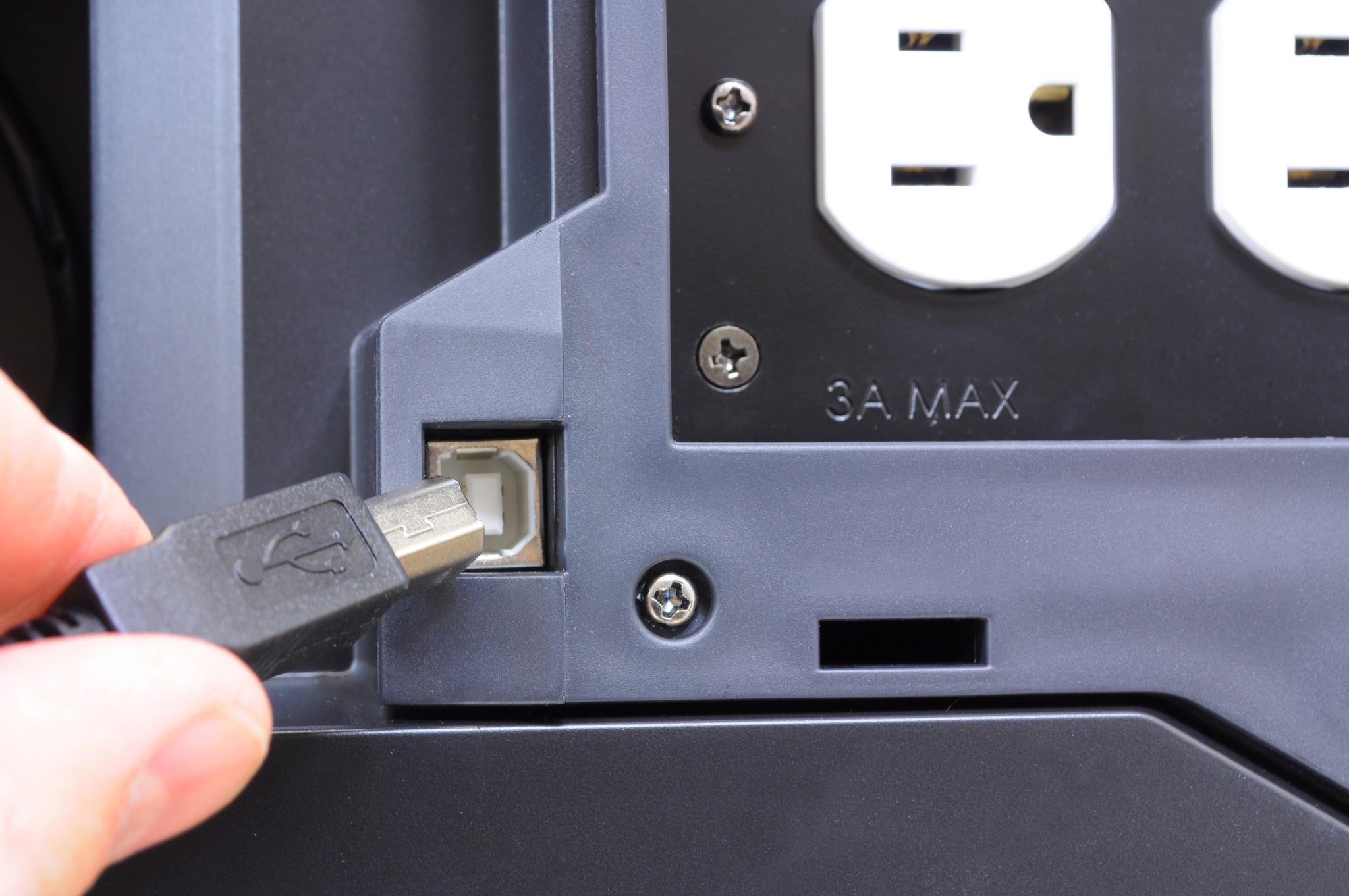

Beyond charging, the unit syncs up to 16 tablets at once. Connect a laptop to the cabinet's USB port to push images, apps or content across the whole fleet, or manage the devices wirelessly — useful at the start of term or when rolling out a new app across a department.
Steel Doors With a Three-Point Lock, Sized for a Counter
Durable steel access doors with a three-point lock assembly provide strong theft deterrence, and two keys are supplied. The cabinet measures 18.3″W x 16.2″D x 10.4″H (46.5 x 41.1 x 26.4 cm) and weighs 29 lbs (13 kg) empty, so it sits on a desk, counter or reception top rather than occupying floor space. An optional security mounting kit bolts it down where the location is unattended, and a dedicated cable-management drawer inside each module keeps the sixteen charging leads out of sight.
Ergotron Tablet Management Desktop 16 Datasheet — Technical Specifications
General
| Product Name | Ergotron Tablet Management Desktop 16 |
| Model | Tablet Management Desktop 16, 2.4 A with ISI |
| Part Number | DM16-1024-3 (black; UK / IE / HK / Singapore) |
| Product Type | Desktop tablet charging, syncing and storage cabinet |
| Device Capacity | 16 tablets |
| Certification | UL certified |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Electronics & Power Modules | 2 years on power modules; 1 year on all other non-power-supply electronic systems |
| Local Warranty (Singapore) | Supplied by SourceIT Pte Ltd with GST invoice |
Capacity & Device Fit
| Number of Devices | 16 |
| Bay / Slot Size | 7.9″H x 11.3″W x 0.85″D (20 x 28.8 x 2.2 cm) |
| Slot Sizing Note | The tablet, its power cord and any cover or case must all fit within the slot dimensions |
| Device Compatibility | Any Apple iPad with a 10.5″ screen or smaller |
| Maximum Weight Per Tablet | 2.2 lbs (1 kg) |
| Top Worksurface Capacity | 25 lbs (11.3 kg) |
Charging, Sync & Power
| Charging Current | Full 2.4 A per device, via USB |
| Status Indicators | LED Individual Status Indicators (ISI) monitor charging progress of each tablet — green fully charged, amber charging in progress |
| Power Indicator | Solid = charging; slow blink = ready to sync; fast blink = fault |
| Sync | Yes — USB or wireless; up to 16 tablets simultaneously via the cabinet USB port |
| Charging Cables | Not included — order the Lightning to USB Cable Kit (97-800) separately |
Design, Security & Durability
| Construction | Steel tube and aluminium extrusion framework; steel access doors |
| Finish | Black |
| Security | Durable steel doors with a three-point lock assembly; 2 keys supplied |
| Optional Anchoring | Security mounting kit (M6 security screws and wrench) to bolt the unit to a desk |
| Cable Management | Dedicated cable drawer located within each module |
| Product Dimensions | 18.3″W x 16.2″D x 10.4″H (46.5 x 41.1 x 26.4 cm) |
| Product Weight | 29 lbs (13 kg) unloaded |
| Shipping Dimensions | 21.2″ x 18.6″ x 12.8″ (53.8 x 47.3 x 32.5 cm) |
| Shipping Weight | 34 lbs (15.5 kg) |
Compatibility & Fit
Fit is decided by the bay dimensions, not by the model name on the tablet. Measure the device with its case and its charging cable in place before ordering.
| Bay / Slot Size | 7.9″H x 11.3″W x 0.85″D (20 x 28.8 x 2.2 cm) |
| What Must Fit in the Slot | The tablet, its power cord and any cover or case |
| Stated Device Compatibility | Any Apple iPad with a 10.5″ screen or smaller |
| Maximum Weight Per Tablet | 2.2 lbs (1 kg) |
| Number of Devices | 16 |
| Charging Interface | USB, 2.4 A per bay |
| Cables | Not supplied — Lightning to USB Cable Kit 97-800 sold separately |
| Sync Host | A laptop connected to the cabinet USB port, or wireless management |
| Mounting | Free-standing on a desk or counter; optional security mounting kit bolts it down |
| Top Worksurface Capacity | 25 lbs (11.3 kg) |
Thick or rugged cases are the usual fit problem. The 0.85″ (2.2 cm) slot depth has to take the tablet, the case and the cable together. Slim folio and shell cases are generally fine; heavy-duty rugged cases with integrated handles often are not, and are best removed for charging or checked against the slot depth first.
Non-Apple tablets. Ergotron states compatibility for Apple iPads with a 10.5″ screen or smaller. Android and Windows tablets of similar size will usually seat in the bay, but the charging cable must be sourced separately and the fit should be confirmed against the slot dimensions above — SourceIT can check a specific model for you.
Need more than 16 devices, or devices on the move? Step up to a mobile charging cart such as the Zip40 Charging and Management Cart, or wall-mount a Zip12 Charging Wall Cabinet where floor and desk space are both scarce.
Package Contents & Tablet Management Ordering Information
In the Box
- Tablet Management Desktop 16 cabinet
- Power cord
- 2 x keys for the three-point door lock
- Instruction manual
Important: charging cables are not included with DM16-1024-3. Ergotron recommends ordering the Lightning to USB Cable Kit (97-800) alongside the unit. Please confirm cable requirements with SourceIT when you quote.
Tablet Management Desktop — Regional Part Number
| DM16-1024-3 | Black — UK / IE / HK / Singapore (this listing) |
Related Ergotron Charging & Tablet Management Products at SourceIT
| DM12-1012-3 | Zip12 Charging Wall Cabinet (UK/SG) |
| DM12-1006-3 | Zip12 Charging Wall Cabinet (UK/SG) |
| DM40-2008-3 | Zip40 Charging and Management Cart (UK/SG) |
| DM40-2009-3 | Zip40 Charging Cart (UK/SG) |
| SV10-1400-0 | StyleView Tablet Cart SV10 |
| SV10-1800-0 | StyleView S Tablet Cart SV10 |
Datasheet & Downloads
- Ergotron Tablet Management Desktop 16 official product page (ergotron.com)
- Official Ergotron Tablet Management Carts & Desktop Unit product sheet (PDF)
- Official Ergotron Tablet Management Desktop 16 user guide, doc 888-24-273 (PDF)
Need the datasheet emailed as a PDF for a tender or quotation? Contact SourceIT Pte Ltd at sales@sourceit.com.sg.
Frequently Asked Questions — Ergotron Tablet Management Desktop 16
How many tablets does the Tablet Management Desktop 16 hold?
16. Each bay measures 7.9″H x 11.3″W x 0.85″D (20 x 28.8 x 2.2 cm), and the tablet, its cable and any case must all fit inside that space.
Which iPads does it fit?
Ergotron states any Apple iPad with a 10.5″ screen or smaller, up to 2.2 lbs (1 kg) each. Because the real constraint is the slot depth of 0.85″ (2.2 cm), a thick or rugged case may not fit even on a supported iPad — measure the device as you actually use it.
Are charging cables included?
No. DM16-1024-3 ships without charging cables. Ergotron's recommended companion is the Lightning to USB Cable Kit (97-800), which SourceIT can quote alongside the unit.
How fast does it charge, and do all 16 charge at the same rate?
Each bay delivers the full 2.4 A charging current per device over USB, so bays are not dividing a shared supply between them.
How do I know which tablets are ready?
LED Individual Status Indicators (ISI) monitor each tablet separately — green means fully charged, amber means charging in progress. A separate power LED shows solid when charging, a slow blink when the unit is ready to sync and a fast blink on a fault.
Can I sync the tablets as well as charge them?
Yes. Up to 16 tablets can be synced at once by connecting a laptop to the cabinet's USB port, and wireless management is also supported.
How secure is it, and can I bolt it down?
The cabinet uses durable steel access doors with a three-point lock assembly and ships with two keys. Note that this locks the cabinet as a whole — the 16 bays are not individually lockable. An optional security mounting kit (M6 security screws and wrench) lets you bolt the unit to a desk where it is left unattended.
Should I choose the desktop unit or a Zip cart?
The Desktop 16 suits a fixed base — a classroom, clinic or reception counter — where 16 devices are handed out and returned in the same room. Choose a Zip40 Charging and Management Cart when the fleet is larger or has to move between rooms, or a Zip12 Charging Wall Cabinet when neither desk nor floor space is available.
Does the Tablet Management Desktop 16 come with a Singapore warranty?
Yes. Every Ergotron Tablet Management Desktop 16 sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Tablet Management Desktop 16 with a 5-year manufacturer warranty, with 2 years on power modules and 1 year on all other non-power-supply electronic systems.
