Ergotron Zip12 Charging Wall Cabinet
PRODUCT DESCRIPTION
Ergotron Zip12 Charging Wall Cabinet, UK (DM12-1006-3) - Local Warranty
Wall-Mounted Charging and Security for 12 Tablets and Chromebooks
The Ergotron Zip12 Charging Wall Cabinet charges and secures up to 12 tablets or Chromebooks on the wall, protruding less than 15.2 cm and taking no floor space at all. In Singapore classrooms, training rooms and clinics where every square metre is contested, moving device storage onto an unused wall is the difference between a tidy room and a trolley parked in a walkway.

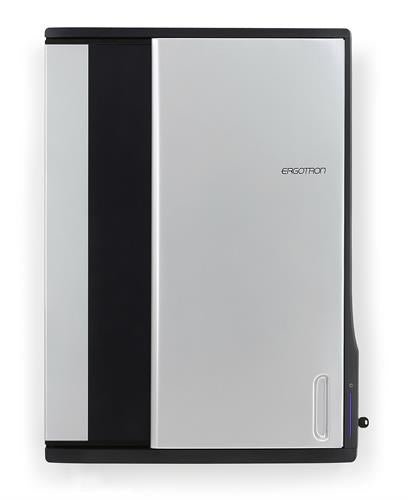

Six-Point Locking Steel Doors, Turned by a Single Wing Knob
A six-point locking bracket engaged by an easy-turn wing knob lock secures locking steel doors across the cabinet, and a smooth sliding door gives quick access when it is open. The mechanism is deliberately simple: staff who are securing a fleet at the end of a lesson should not be wrestling with a lock, and a cabinet that is awkward to close is a cabinet that gets left open.

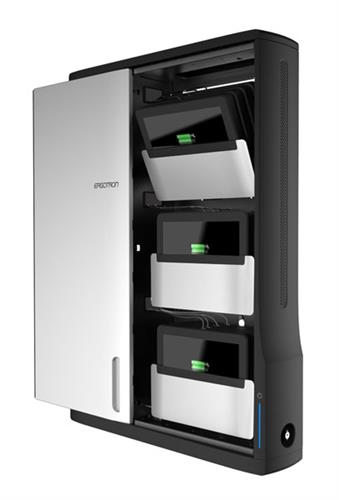

Show & Stow Tilting Trays Keep Cables Under Control
Each device sits in a Show & Stow tilting tablet tray that retracts automatically, with snap-in cable clips holding the leads where they belong. Charging runs on AC using each device's own adapter — adapters are not included — with a country-specific 12-receptacle outlet strip and a separate adapter compartment sized for oversized wall plugs and mini bricks.
Rated for Devices up to 12 Inches and 1.4 kg
Ergotron rates the cabinet for devices measuring up to 29 x 23 x 2.5 cm and weighing up to 1.4 kg, with a 20.1 kg total across all twelve bays, and lists Microsoft, Samsung, Apple, Lenovo, HP, Dell, Amazon, Asus and Acer devices as compatible. Check your fleet against that envelope before ordering — if you are running 14-inch Chromebooks or full-size laptops, the Zip12 Desktop or a Zip40 cart is the right product instead.
Mounts to Stud, Concrete or Hollow Wall, With a 12 V Cooling Fan
The cabinet ships with a wall bracket, a mounting template and hardware for wood stud, concrete and hollow-wall installation, plus two heavy-duty securing screws. A 12 V DC continuous-operation fan dissipates charging heat, and the unit is certified to UL 62368-1 and CAN/CSA C22.2 No. 62368-1-14, with RoHS, REACH and WEEE compliance.
The Correct Part Number for Singapore Deployment
Ergotron scopes the DM12-1006-3 SKU to the UK, Ireland, Singapore, Malaysia and Hong Kong — all Type G territories, all served by one part number. This is the SKU to order for a local deployment, and it is the same cabinet that ships to UK schools. SourceIT supplies it with local Singapore warranty support and a GST invoice.
Ergotron Zip12 Charging Wall Cabinet Datasheet — Technical Specifications
General
| Part Number | DM12-1006-3 |
| Product Type | Wall-mounted charging and storage cabinet |
| Series | Ergotron Zip12 |
| Regional Configuration | UK / Ireland / Singapore / Malaysia / Hong Kong |
| Certifications | UL 62368-1; CAN/CSA C22.2 No. 62368-1-14 |
| Compliance | RoHS, REACH, WEEE, EU 94/620/EC packaging |
| Operating Temperature | 0°C to 30°C (32°F to 86°F) |
| Operating Humidity | 10–90%, non-condensing |
| Storage Humidity | 5–95%, non-condensing |
| Frame | Limited lifetime, for as long as the original end user owns the product (Ergotron) |
| Mechanical Components | 5-Year Manufacturer Warranty (Ergotron) — casters, hinges, doors, handle, lock and padlock, dividers, shelves and fasteners |
| Electrical Components | 3-Year Manufacturer Warranty (Ergotron) — timer module, controller, electrical outlets, switches, power buttons, fans |
| Cables | 1-Year Manufacturer Warranty (Ergotron) — power and Ethernet cables |
| Local Warranty (Singapore) | Included with every SourceIT purchase |
Device Capacity & Fit
| Device Capacity | Up to 12 tablets and Chromebooks |
| Maximum Screen Size | 12 in |
| Maximum Device Dimensions | 29 x 23 x 2.5 cm (11.4 x 8.9 x 1.0 in) |
| Maximum Device Weight | 1.4 kg (3 lbs) per device |
| Total Device Capacity | 20.1 kg (44.4 lbs) |
| Listed Device Brands | Microsoft, Samsung, Apple, Lenovo, HP, Dell, Amazon, Asus, Acer |
| Maximum AC Adapter Size | 10.4 x 5.0 x 10.1 cm (4.1 x 2 x 4 in) |
Charging, Power & Thermal
| Charging Method | AC, using each device's own AC adapter |
| AC Adapters | Not included — supplied by the device owner |
| Adapter Storage | Separate compartment sized for oversized wall adapters and mini bricks |
| Outlet Strip | Country-specific, 12 receptacles |
| Power Cord | 1.8 m (6 ft) |
| Ventilation | One 12 V DC continuous-operation fan |
| Cable Management | Snap-in tablet tray cable clips; Show & Stow tilting tablet trays with automatic retraction |
Security, Mounting & Dimensions
| Security | Six-point locking bracket engaged by an easy-turn wing knob lock |
| Doors | Secure locking steel doors with a smooth sliding door for access |
| Mounting | Wall-mounting bracket and mounting template supplied |
| Mounting Hardware | For wood stud, concrete and hollow-wall installation; two heavy-duty securing screws |
| Wall Protrusion | Less than 15.2 cm (6 in) |
| Cabinet Dimensions | 66.9 x 90.5 x 15 cm (26.4 x 35.6 x 5.9 in), W x H x D |
| Cabinet Weight | 29.3 kg (64.5 lbs) |
| Shipping Dimensions | 104 x 73.5 x 21.4 cm (40.9 x 28.9 x 8.4 in) |
| Shipping Weight | 34.9 kg (77 lbs) |
Specifications above are taken from the official Ergotron Zip12 Charging Wall Cabinet datasheet. Ergotron does not publish an input voltage, amperage, per-bay output, slot geometry or divider adjustability for this cabinet, so none are stated here. Note also that this cabinet does not feature Ergotron's PowerShuttle technology — that is a Zip12 Desktop and Zip40 feature.
Compatibility & Fit
The Zip12 wall cabinet is sized for tablets and Chromebooks with screens up to 12 inches. The hard limits are a maximum device envelope of 29 x 23 x 2.5 cm and 1.4 kg per device, with a 20.1 kg total across all twelve bays. Ergotron lists Microsoft, Samsung, Apple, Lenovo, HP, Dell, Amazon, Asus and Acer devices as compatible.
Check the device envelope before ordering. A 12-inch screen limit and a 2.5 cm depth limit mean this cabinet suits iPads, Chromebooks and similar thin devices — it is not intended for full-size laptops. If your fleet runs 14-inch Chromebooks or laptops, the Zip12 Charging Desktop Cabinet takes devices up to 14 inches, and the Zip40 carts take up to 15.6 inches.
Charging is AC using each device's own adapter, and adapters are not included. The cabinet provides a country-specific 12-receptacle outlet strip and a separate adapter compartment sized to 10.4 x 5.0 x 10.1 cm, which accommodates oversized wall plugs and mini bricks. Confirm your adapters fit that envelope.
Mounting: the cabinet ships with a wall-mounting bracket, a mounting template and hardware for wood stud, concrete and hollow-wall installation, plus two heavy-duty securing screws. It protrudes less than 15.2 cm from the wall, which keeps it clear of circulation space in a corridor or classroom. At 29.3 kg before devices are loaded, confirm the wall construction will carry the mounted load — concrete and masonry walls, common in Singapore schools and offices, are well within scope.
Operating range is 0–30°C at 10–90% humidity, non-condensing. In an unconditioned corridor or store room in Singapore, check the ambient temperature stays inside that window.
Package Contents & Zip12 Ordering Information
In the box
- Zip12 charging and storage cabinet
- Wall-mounting bracket
- Mounting hardware
- Installation template
- 1.8 m (6 ft) power cord
- Key
Device AC adapters are not included.
Zip12 — regional part numbers
| DM12-1006-1 | Zip12 Charging Wall Cabinet — US / CA / MX |
| DM12-1006-2 | Zip12 Charging Wall Cabinet — EU |
| DM12-1006-3 | Zip12 Charging Wall Cabinet — UK / IE / SG / MY / HK (this listing) |
| DM12-1012-3 | Zip12 Charging Desktop Cabinet — UK / IE / SG / MY / HK |
For Singapore, order the -3 SKU. Ergotron scopes DM12-1006-3 to the UK, Ireland, Singapore, Malaysia and Hong Kong — it is the same cabinet as the UK item, listed against two territory groups in Ergotron's own documentation.
Larger Ergotron charging systems
| Zip40 Charging Cart | DM40-2009-3 — up to 40 devices, mobile |
| Zip40 Charging and Management Cart | DM40-2008-3 — adds Ethernet cabling for device management |
Datasheet & Downloads
- Ergotron Zip12 Charging Wall Cabinet — official datasheet (PDF)
- Ergotron Zip12 Charging Wall Cabinet — product page
- Ergotron Product Warranty Terms & Conditions (PDF)
Ergotron warrants its Zip charging systems by component rather than under a single headline term: limited lifetime on the frame, 5 years on mechanical components, 3 years on electrical components and 1 year on cables. We state it that way deliberately — the parts that actually wear on a charging product are the fans, outlets and controller, and those carry the 3-year electrical term rather than the frame's lifetime cover. Ergotron also sells a paid extended warranty for AC-power charging carts (part SRVC-DM5YR-PSCART), which is an add-on rather than the standard term. SourceIT supplies every Zip system with local Singapore warranty support and a GST invoice.
Frequently Asked Questions — Ergotron Zip12 Charging Wall Cabinet
How many devices does it hold, and what size?
Up to 12 tablets or Chromebooks with screens up to 12 inches. Each device must fit within 29 x 23 x 2.5 cm and weigh no more than 1.4 kg, with a total of 20.1 kg across the cabinet.
Are charging adapters included?
No. The Zip12 wall cabinet charges over AC using each device's own adapter. It supplies a country-specific 12-receptacle outlet strip and a separate adapter compartment sized to 10.4 x 5.0 x 10.1 cm, which takes oversized wall plugs and mini bricks — but the adapters themselves come from your devices.
Does it manage charging load automatically?
Not on this model. Ergotron's PowerShuttle load-management technology is a feature of the Zip12 Desktop Cabinet and the Zip40 carts, not the wall cabinet. The wall cabinet provides a 12-receptacle outlet strip without a stated power-management behaviour.
What is the difference between this and the Zip12 Desktop Cabinet?
They are genuinely different products, not just different mountings. The wall cabinet takes 12 devices up to 12 inches at 1.4 kg each and mounts to a wall. The desktop cabinet takes devices up to 14 inches and 2.3 kg, has adjustable Lift-N-Set shelves and Pop-N-Go bays, includes PowerShuttle load management, and sits on a worksurface. Choose by device size first, then by where you want it.
Which part number do I order for Singapore?
DM12-1006-3. Ergotron scopes that SKU to the UK, Ireland, Singapore, Malaysia and Hong Kong — the same cabinet listed against two territory groups.
What wall can it mount to?
Ergotron supplies hardware for wood stud, concrete and hollow-wall installation, along with a mounting template and two heavy-duty securing screws. The cabinet weighs 29.3 kg empty and protrudes less than 15.2 cm, so confirm your wall construction carries the loaded weight — concrete and masonry, standard in Singapore schools and offices, is comfortably within scope.
Will it overheat with all twelve bays charging?
The cabinet has one 12 V DC continuous-operation fan. Ergotron rates it for operation between 0 and 30°C at 10–90% relative humidity, non-condensing. Site it somewhere that stays inside that window rather than an unconditioned store room.
Is there a local Singapore warranty?
Yes. Every Ergotron Zip system sold by SourceIT comes with local Singapore warranty and a GST invoice. Ergotron backs the Zip range with a tiered manufacturer warranty rather than a single term: limited lifetime on the frame, 5 years on mechanical components (casters, hinges, doors, handle, lock, dividers, shelves), 3 years on electrical components (timer module, controller, outlets, switches, fans) and 1 year on cables. If you have seen a flat "lifetime" or "5 year" figure quoted for these products elsewhere, this tiered breakdown is the accurate position from Ergotron's own warranty policy.
