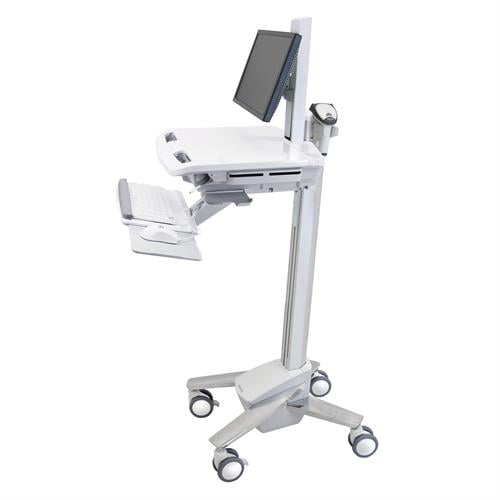

Ergotron StyleView® Cart with LCD Pivot, SV40 Medical Cart
PRODUCT DESCRIPTION
Ergotron StyleView® Cart with LCD Pivot, SV40 Light-Duty Medical Cart (SV40-6300-0) - 5 Years Local Warranty
Light-Duty Mobile LCD Cart with Full Pivot Motion
The Ergotron StyleView SV40 Cart with LCD Pivot brings a mounted display to the point of care in a light-duty, easy-to-move package. It supports displays up to 24″ and a 35 lbs (15.9 kg) payload — nearly double the laptop version — on the same 22.4″W x 19.75″D (56.7 x 50.2 cm) worksurface, making it the right choice where clinicians work from a full-size monitor and a thin client rather than a notebook.
25″ (63.5 cm) Lift Plus Independent Screen Adjustment
The lift column provides 25″ (63.5 cm) of sit-to-stand travel, and the LCD Pivot adds a further 5″ (13 cm) of independent screen height adjustment on top of that. Screen motion covers 25° of tilt, 24° of pan and 90° of rotation, so the display can be angled away from glare, turned toward a patient to review a scan, or rotated to portrait for reading long documents and lab reports.
Built for Shared, Multi-User Ward Environments
Because the screen adjusts independently of the worksurface, one cart serves a whole shift rotation: each clinician sets worksurface height for typing comfort and screen height for viewing comfort separately, rather than compromising on one setting for both. The secure CPU compartment, scanner holder bracket, mouse holder, wrist rest and negative-tilt keyboard tray come as standard.
Durable, Wipe-Down Build with Locking Casters
Aluminium, high-grade plastic and zinc-plated steel form an easy-to-clean exterior suited to daily disinfection protocols. Four 4″ (10.2 cm) casters, two of them lockable at the front, carry the 59.7 lb (27.1 kg) cart smoothly and hold it firm during use. Supplied by SourceIT in Singapore with local warranty and GST invoice.
Ergotron StyleView SV40 Datasheet — Technical Specifications
General
| Brand | Ergotron |
| Model | StyleView SV40 LCD Pivot |
| Part Number | SV40-6300-0 |
| Product Type | Mobile medical cart / workstation on wheels |
| Mount Type | LCD Pivot |
| Power System | Non-powered |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Capacity & Worksurface
| Supported Device / Screen Size | Displays up to 24″ |
| Weight Capacity | 35 lbs (15.9 kg) |
| Worksurface Dimensions | 22.4″W x 19.75″D (56.7W x 50.2D cm) |
| Storage Compartment | 17.75″W x 14.75″D x 4″H (45 x 37.5 x 10.1 cm) |
Adjustment & Motion
| Height Adjustment (Lift) | 25″ (63.5 cm) |
| Tilt | 25° |
| Pan | 24° |
| Rotation | 90° (portrait/landscape) |
| Independent Screen Adjustment | 5″ (13 cm) independent LCD adjustment |
| Casters | Four 4″ (10.2 cm) standard casters with no bearings; two front casters are lockable |
Design, Power & Durability
| Construction / Materials | Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and zinc-plated steel |
| Cable Management | Integrated cable storage |
| Product Weight | 59.7 lbs (27.1 kg) |
| Shipping Dimensions | 53.2″D x 24.2″W x 31.5″H (133 x 62 x 80 cm) |
| Shipping Weight | 79.8 lbs (36.2 kg) |
| Warranty Detail | 5-year warranty for mechanical components; 1-year warranty for electrical components |
All specifications above are taken from the official Ergotron StyleView SV40 Series product sheet. Where Ergotron does not publish a figure for this configuration, the row is omitted rather than estimated.
Compatibility & Fit
Display / device fit. This configuration supports Displays up to 24″ with a mounted weight capacity of 35 lbs (15.9 kg).
VESA pattern. Ergotron does not publish a VESA pattern for this configuration on its official product sheet. If you are mounting a specific display, contact SourceIT and we will confirm fit against Ergotron before you order.
Number of screens. This cart is supplied as a single-screen workstation. Ergotron offers a separate SV Dual Monitor Kit for StyleView carts where a second screen is required — see the ordering tables below.
Mounting and mobility. This is a mobile cart on a rolling base, not a desk-clamp, grommet or wall mount — there is no desk-thickness requirement and no wall fixing to plan. Four 4″ (10.2 cm) standard casters with no bearings; two front casters are lockable
Ultrawide and curved displays. Ergotron rates this mount by weight and diagonal size, not by aspect ratio. An ultrawide or curved panel that falls within the stated size and weight limits will mount, but its centre of gravity sits further from the mount than a conventional panel — check the display's own weight against the capacity figure above rather than assuming.
Singapore power. This configuration is non-powered and requires no mains connection for the cart itself.
Package Contents & StyleView Ordering Information
In the Box
- LCD Pivot
- worksurface
- secure CPU compartment
- scanner holder bracket
- mouse holder
- wrist rest
- negative-tilt keyboard tray
- cable storage
- four casters (two locking)
StyleView Cart Range — Ordering Information
|
StyleView Pole Cart 24-818-211 |
Pole cart, non-powered, white |
|
StyleView SV40 Laptop Cart SV40-6100-0 |
Light duty, laptop, non-powered |
|
StyleView SV40 Cart with LCD Pivot (this listing) SV40-6300-0 |
Light duty, LCD Pivot, non-powered |
|
StyleView SV41 Laptop Cart SV41-6100-0 |
Full featured, laptop, non-powered |
|
StyleView SV41 Cart with LCD Arm SV41-6200-0 |
Full featured, LCD Arm, non-powered |
|
StyleView SV42 Cart with LCD Pivot SV42-6302-3 |
Full featured, LCD Pivot, LiFe powered, UK |
|
StyleView SV43 Cart with LCD Arm, 1 Drawer (1x1) SV43-1210-0 |
Medication delivery, LCD Arm, non-powered |
|
StyleView SV43 Cart with LCD Pivot, 1 Drawer (1x1) SV43-1310-0 |
Medication delivery, LCD Pivot, non-powered |
|
StyleView SV44 Cart with LCD Arm, 3 Drawers (1x3) SV44-1232-3 |
Medication delivery, LCD Arm, LiFe powered, UK |
|
StyleView SV44 Cart with LCD Arm, 1 Tall Drawer (1x1) SV44-12B2-3 |
Medication delivery, LCD Arm, LiFe powered, UK |
|
StyleView SV44 Cart with LCD Pivot, 3 Drawers (1x3) SV44-1332-3 |
Medication delivery, LCD Pivot, LiFe powered, UK |
Related StyleView Accessories & Drawer Modules
| SV Primary Storage Drawer, Single | 97-863 |
| SV Primary Storage Drawer, Triple | 97-865 |
| SV Supplemental Storage Drawer, Single | 97-862 |
| SV Height-Adjustable Keyboard Arm | 97-827 |
| SV Dual Monitor Kit | 98-030 |
| SV Storage Bin | 97-740 |
| SV Front Tray | 98-134 |
| SV LiFe Replacement Battery | 97-618 |
Datasheet & Downloads
- Ergotron StyleView Medical Cart, Light Duty — LCD Cart (SV40-6300-0)
- StyleView SV40 Documentation Medical Cart — Product Sheet (PDF)
- StyleView® SV40 Electronic Medical Records (EMR) Cart — User's Guide (PDF)
- Dimensional Illustrations — SV40 / SV41 / SV42 / SV43 / SV44 Laptop Carts (PDF)
All documents above are hosted by Ergotron. Specifications published on this page are drawn from the official Ergotron StyleView SV40 Series product sheet.
Frequently Asked Questions — Ergotron StyleView SV40
What is the difference between the LCD Pivot and Laptop versions of the SV40?
The LCD Pivot version (SV40-6300-0) mounts a display up to 24″ with a 35 lbs (15.9 kg) capacity, offers 25″ (63.5 cm) of lift and adds 25° tilt, 24° pan and 90° rotation. The Laptop version (SV40-6100-0) carries laptops up to 17″ at 18 lbs (8.2 kg) with 20″ (51 cm) of lift and no screen articulation.
What size monitor can I mount?
Displays up to 24″, with a mounted weight of up to 35 lbs (15.9 kg).
Can the screen be rotated to portrait?
Yes — the LCD Pivot provides 90° of rotation, so the display can be set to portrait for chart and document review and returned to landscape for imaging.
How much height adjustment is there in total?
25″ (63.5 cm) on the lift column, plus a further 5″ (13 cm) of independent LCD height adjustment on the pivot itself, which can be set separately from the worksurface height.
Is this a single-screen or dual-screen cart?
It is supplied as a single-screen workstation. Ergotron offers a separate SV Dual Monitor Kit (98-030) for StyleView carts where two screens are needed.
How does the SV40 LCD Pivot compare with the SV41 Cart with LCD Arm?
The SV41 Cart with LCD Arm (SV41-6200-0) gives far more screen motion — 65° tilt, 180° pan and 360° rotation against the SV40's 25°/24°/90° — plus 27″ (68.6 cm) of lift and a full-featured accessory set. The SV40 LCD Pivot is lighter, more compact and better suited to tighter bays.
Does the Ergotron StyleView SV40 come with a Singapore warranty?
Yes. Every Ergotron StyleView SV40 sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the StyleView SV40 with a 5-year manufacturer warranty.
