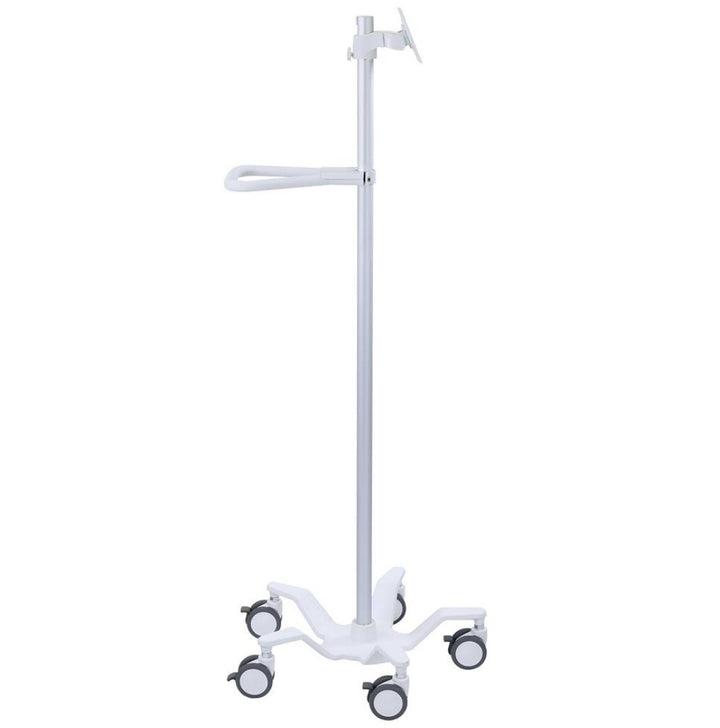

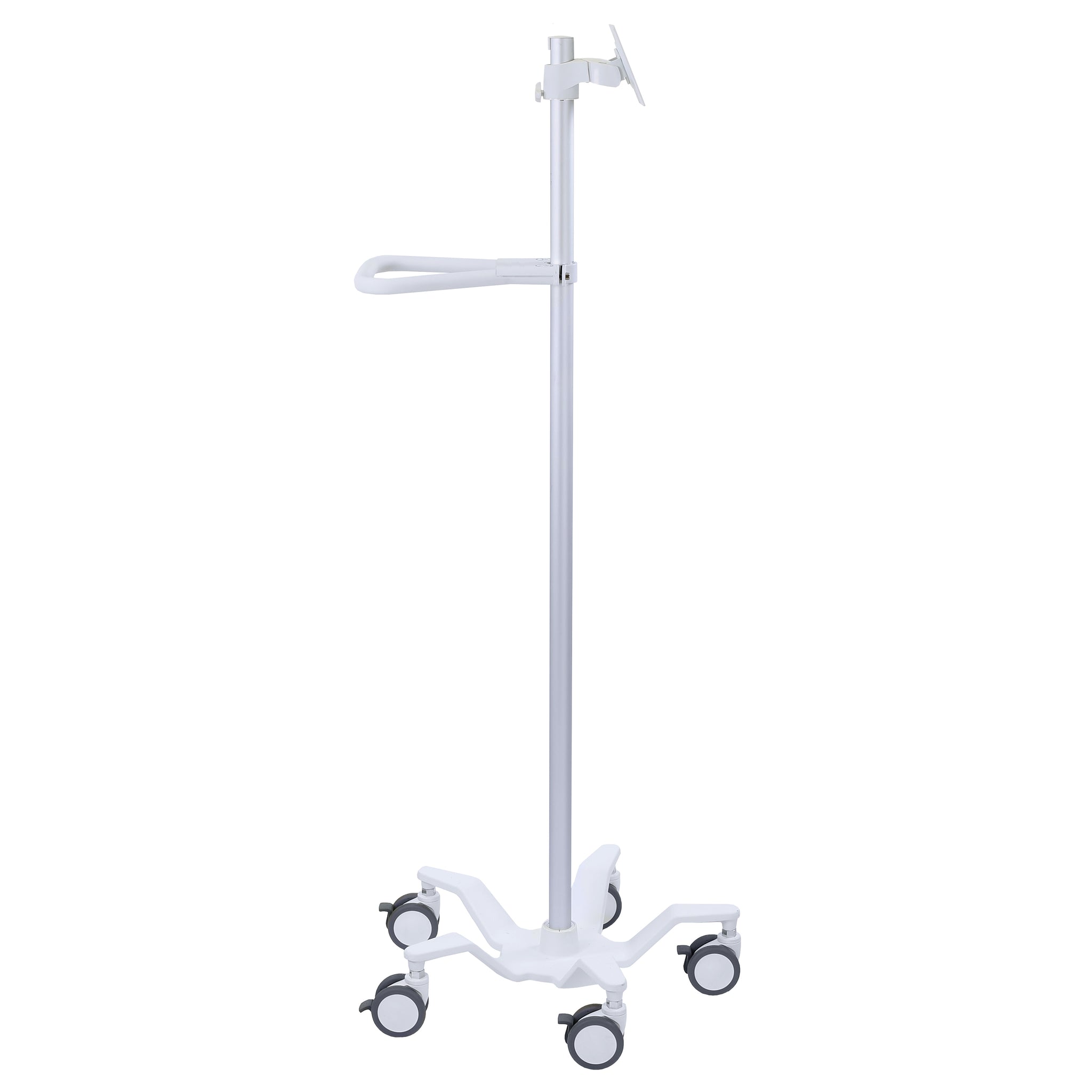

Ergotron StyleView® Pole Cart
PRODUCT DESCRIPTION
Ergotron StyleView® Pole Cart (24-818-211) - 5 Years Local Warranty
A Slim Pole Cart That Fits Where a Full Cart Cannot
The Ergotron StyleView Pole Cart is deliberately narrow. Ergotron describes the design as a slender profile that fits closely to a patient’s bedside, a student desk and similar tight positions — which is the whole reason to choose a pole cart over a worksurface cart. In Singapore wards, clinics and classrooms where floor space is the binding constraint, a cart that tucks in beside the bed rather than blocking the approach earns its place.
Light Enough to Move All Day
At 27.7 lbs (12.6 kg) the Pole Cart is one of the lightest mobile platforms Ergotron makes. Heavy-duty casters move it between rooms or floors, and a heavy-duty handle gives a convenient access point for precise movement — the detail that matters when a cart is being steered one-handed through a doorway while the other hand is occupied.
Modular by Design: VESA Plate and T-Slot
Ergotron builds the Pole Cart around a modular architecture with a VESA plate and a T-slot, so the system adapts as technology and needs change. That is a genuine procurement advantage: the same cart carries a tablet today and a different device in three years without being replaced. Ergotron rates the cart at 13 lbs (5.9 kg) — sized for tablets, small displays, thermal imaging cameras and similar smart devices rather than heavy monitors.
A Deep Accessory Range on One Pole
Ergotron names a full set of accessories for this cart: a Lockable Tablet Mount (45-460-026), a Mini PC Mount (80-107-200), an SV Wire Basket (98-135-216), an SV10 Tablet Conversion Kit / Easel (98-003), a Tilt Pivot (98-534), a T-Slot Bracket Kit (98-539) and LiFeKinnex Battery Brackets with Cable Box (98-524-211) for optional hot-swap power. All are ordered separately.
Non-Powered as Standard, Five-Year Warranty
As supplied, the Pole Cart is non-powered — there is no integrated battery to charge, manage or replace. If your workflow needs on-board power, Ergotron’s LiFeKinnex battery bracket and cable box is the sanctioned route, added later rather than bought upfront. Ergotron backs the StyleView Pole Cart with a 5-year warranty, and SourceIT supplies it with local Singapore warranty support and a GST invoice.
Ergotron StyleView Pole Cart Datasheet — Technical Specifications
General
| Product | Ergotron StyleView® Pole Cart |
| Part Number | 24-818-211 |
| Finish | White |
| Product Type | Slim, non-powered mobile pole cart |
| Power | Non-powered as supplied. Ergotron specifies no integrated battery. Optional hot-swap power is available via the LiFeKinnex Battery Brackets and Cable Box (98-524-211), ordered separately |
| 5-Year Manufacturer Warranty (Ergotron) | 5 years — the Ergotron StyleView Pole Cart datasheet states “5 years” |
| Local Warranty (Singapore) | Included with every cart sold by SourceIT |
Capacity & Mounting
| Weight Capacity | 13 lbs (5.9 kg) |
| Device Mounting | VESA plate and T-slot supporting a variety of Ergotron accessories |
| Typical Devices | Tablets, smart devices, thermal imaging cameras and supplies |
| VESA Pattern | Not published by Ergotron for this part number — Ergotron states only that the cart carries a VESA plate |
| Worksurface | Ergotron specifies no worksurface for this cart; devices mount to the pole |
Mobility & Footprint
| Base Footprint | 20.4 to 25 in (51.8 to 63.5 cm) |
| Casters | Heavy-duty casters that easily move between rooms or floors. Ergotron does not publish caster count, diameter or which lock |
| Handle | Heavy-duty handle — a convenient access point for precise movement |
| Design | Slender design fits closely to a patient’s bedside, a student desk and similar positions |
| Architecture | Modular — the system adapts quickly to changing technology and needs |
Weights & Shipping
| Product Weight | 27.7 lbs (12.6 kg) |
| Shipping Weight | 36.5 lbs (16.6 kg) |
| Shipping Dimensions | 52 x 24 x 10 in (132 x 60 x 24.5 cm) |
| Reference Document | Ergotron StyleView Pole Cart datasheet, © 2020 Ergotron |
Every figure above is taken from Ergotron’s official StyleView Pole Cart datasheet. A height-adjustment or lift range, a supported screen size, a VESA hole pattern, worksurface or keyboard-tray dimensions, caster count and diameter, construction materials and an itemised box contents list are not published by Ergotron for this part number and have been omitted rather than estimated. Ergotron’s datasheet contains no height-adjustment or sit-stand specification for this cart, so none is claimed here; mounting height is set when the accessory is fitted to the pole. Specifications from the powered StyleView SV4x carts have deliberately not been carried across.
Compatibility & Fit
Mounting: nothing to install. The Pole Cart is a free-standing mobile cart on a 20.4 to 25 in (51.8 to 63.5 cm) base. There is no desk clamp, no grommet and no wall fixing, so there is no desk thickness to check and nothing to drill — the reason it works in wards, clinics, classrooms and public areas where fixed installation is not permitted.
Specify by weight: 13 lbs (5.9 kg). This is a light-duty platform sized for tablets, small smart devices and thermal imaging cameras. It is not a monitor cart. Ergotron does not publish a supported screen size or a VESA hole pattern for this part number — only that the cart carries a VESA plate — so we do not quote either. If you intend to mount a display, send SourceIT the exact model and weight and we will confirm compatibility with Ergotron before you order.
On height. Ergotron’s datasheet publishes no height-adjustment range, lift travel or sit-stand specification for the Pole Cart, and we will not claim one. In practice the working height is set by where the accessory is mounted on the pole — Ergotron’s own description of the Tilt Pivot (98-534) is that you mount the pivot at your preferred height based on the application. If dynamic sit-stand adjustment is a requirement, specify a cart that publishes a lift figure, such as the StyleView Laptop Cart SV10 (SV10-1100-0) at 15 in (38.1 cm), and SourceIT will quote it.

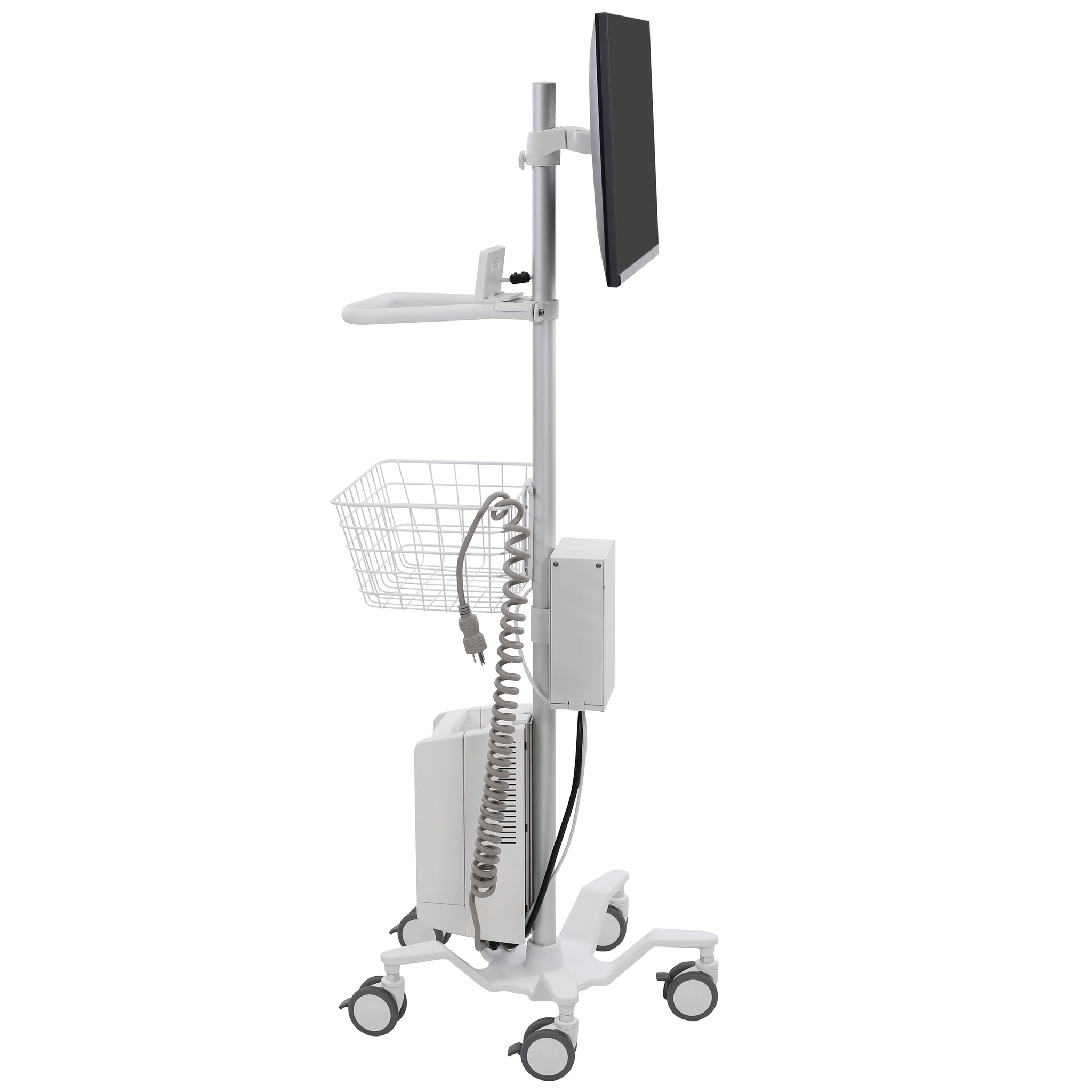

Building the cart out. The VESA plate and T-slot are what make this cart flexible. Ergotron names a lockable tablet mount, a mini PC mount, a wire basket, a tablet easel, a tilt pivot, a T-slot bracket kit and a LiFeKinnex battery bracket with cable box — all ordered separately. Decide the accessory set at the same time as the cart, because it determines what the cart can actually do.
| Mounting | Free-standing mobile cart — no desk clamp, grommet or wall fixing |
| Base Footprint | 20.4 to 25 in (51.8 to 63.5 cm) |
| Capacity | 13 lbs (5.9 kg) |
| Device Interface | VESA plate and T-slot |
| VESA Pattern | Not published by Ergotron for this part number |
| Screen Size | Not published by Ergotron — specify by weight |
| Height Adjustment | Not published by Ergotron for this cart — mounting height is set when the accessory is fitted |
| Power | Non-powered as supplied; optional LiFeKinnex hot-swap power (98-524-211) |
Package Contents & StyleView Ordering Information
In the box: Ergotron does not publish an itemised carton list for the StyleView Pole Cart. The cart is supplied as the pole, base and handle assembly with its VESA plate and T-slot; every device mount, basket, tray and power option listed below is ordered separately and is not included. Ask SourceIT to confirm current carton contents before ordering in quantity.
StyleView Pole Cart — Ordering
| 24-818-211 — StyleView Pole Cart, White (this listing) | 13 lbs (5.9 kg) · VESA plate and T-slot · 27.7 lbs (12.6 kg) · non-powered · 5-year warranty |
Ergotron lists no alternative finish or second part number for the StyleView Pole Cart — 24-818-211 in white is the only variant we can confirm.
Accessories Ergotron Names for the StyleView Pole Cart

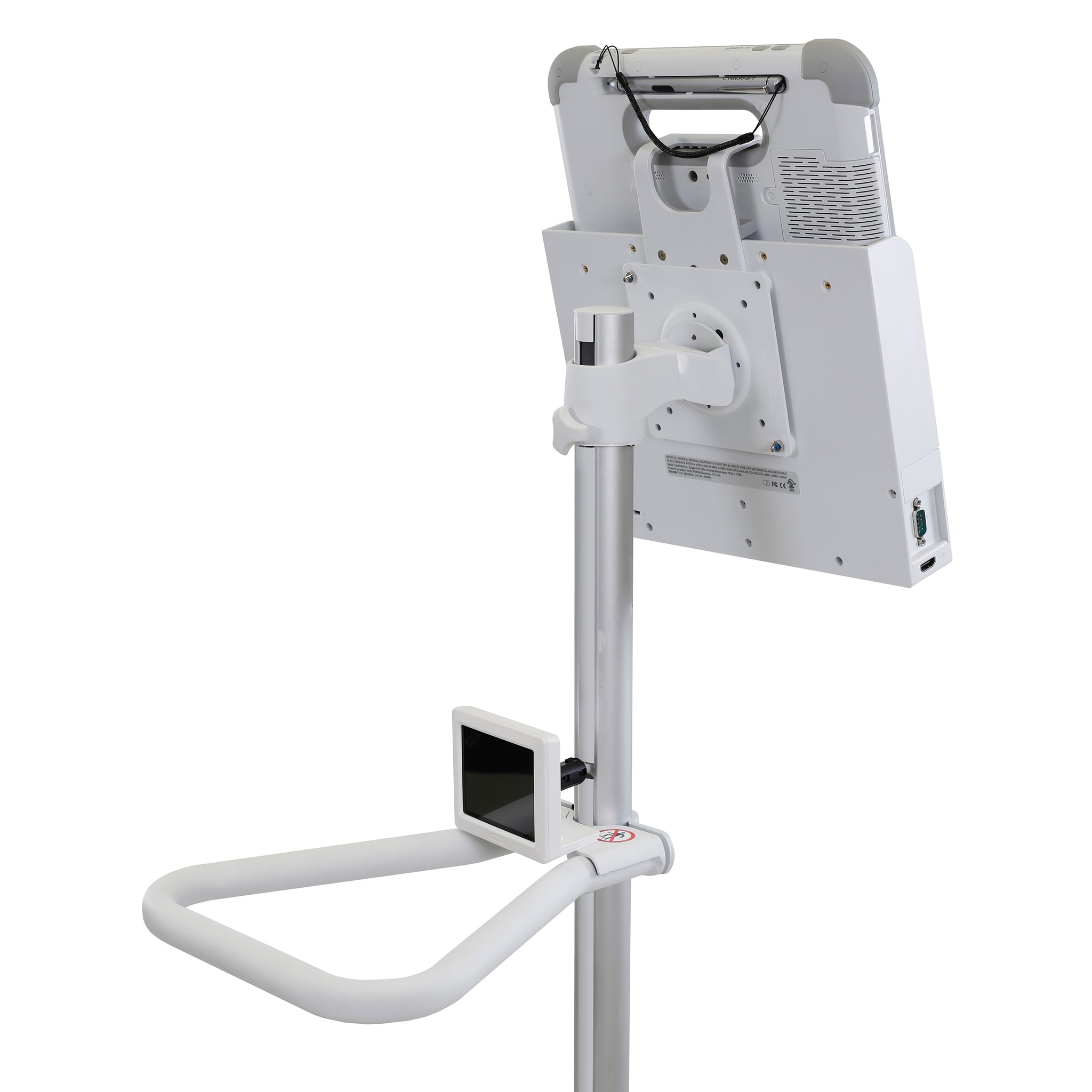

| 98-534 — Tilt Pivot for SV Pole Cart | Extra attachment for small monitors, tablets and accessories; mount at your preferred height |

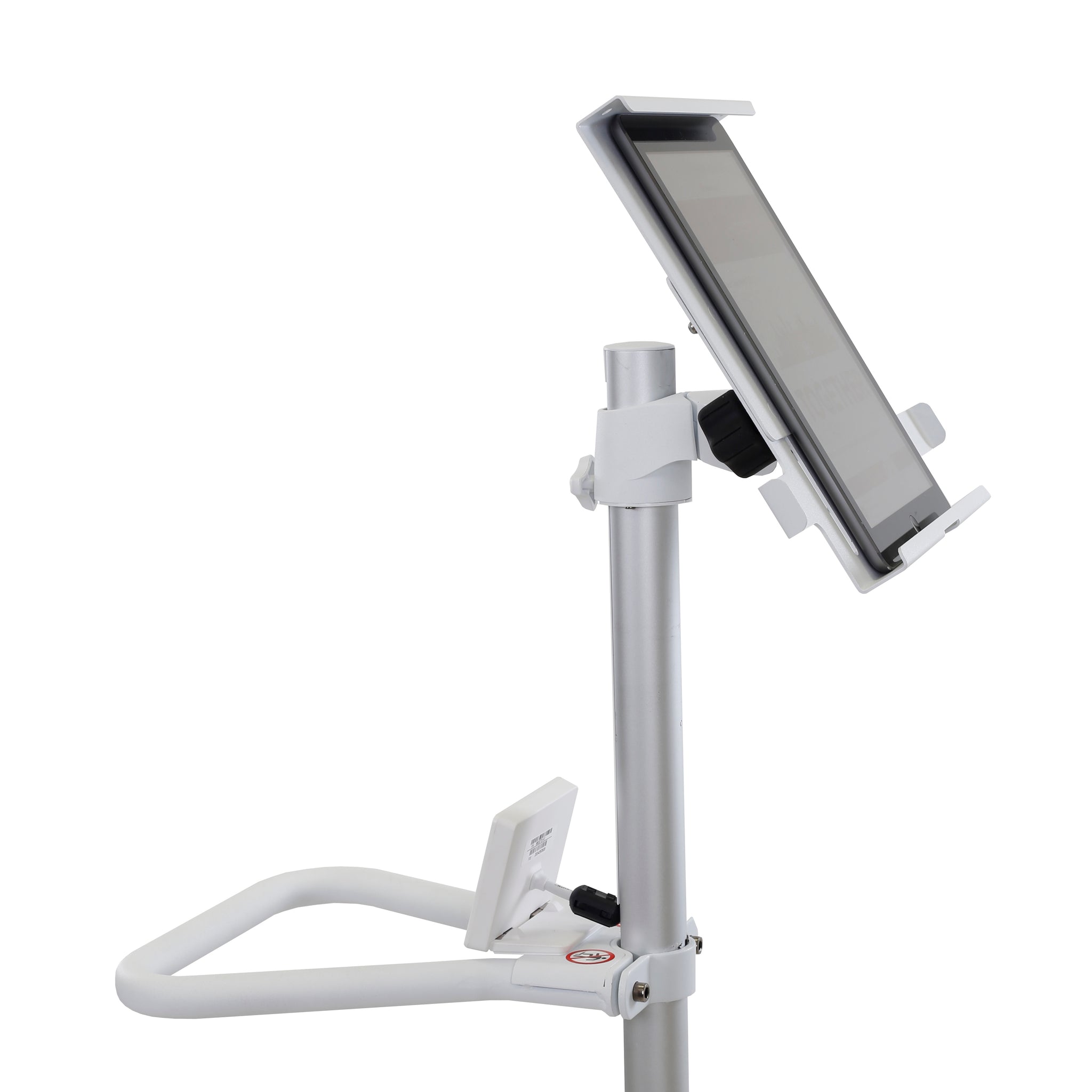

| 45-460-026 — Lockable Tablet Mount | Secure tablet mounting for the pole |
| 80-107-200 — Mini PC Mount | Carries a mini PC on the cart |
| 98-135-216 — SV Wire Basket, Large | Adds open storage to the T-slot |
| 98-003 — SV10 Tablet Conversion Kit, Easel | Easel-style tablet presentation |
| 98-539 — T-Slot Bracket Kit for SV Pole Cart | Additional T-slot mounting points |

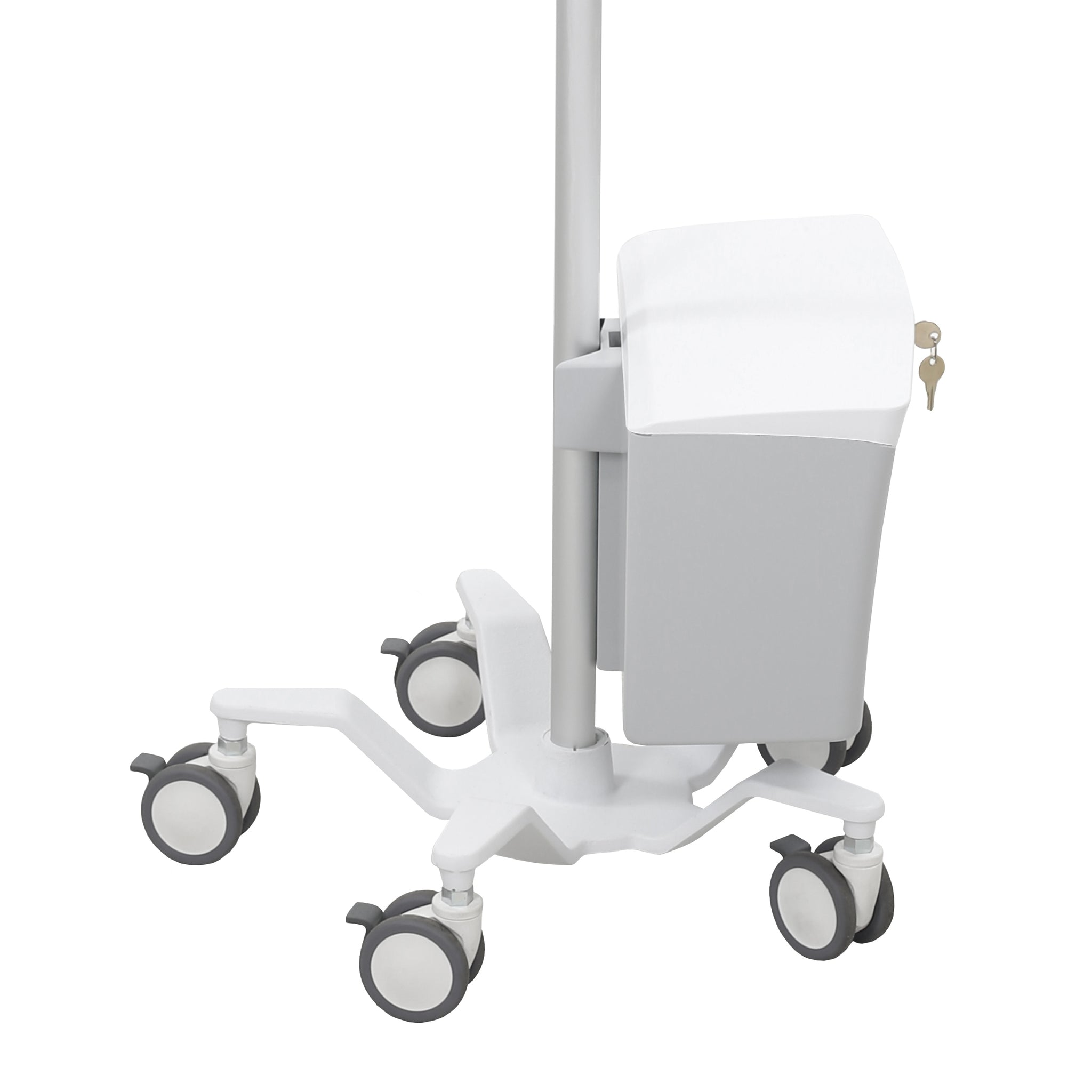

| 98-524-211 — LiFeKinnex Battery Brackets and Cable Box | Optional hot-swap battery power — the sanctioned route to a powered pole cart |
Other Ergotron Mobile Carts at SourceIT
| SV10-1100-0 — StyleView Laptop Cart SV10 | Laptop to 17 in · 10 lbs (4.5 kg) · 15 in (38.1 cm) lift · 7-year warranty |
| SV10-1400-0 — StyleView Tablet Cart SV10 | Tablet to 12 in · VESA MIS-D · 128° tilt · 7-year warranty |
| SV10-1800-0 — StyleView S-Tablet Cart SV10 | Microsoft Surface · 8 lbs (3.6 kg) · 23 x 17 in worksurface · 7-year warranty |
Datasheet & Downloads
- Ergotron StyleView Pole Cart — Official Datasheet (PDF)
- Ergotron StyleView Pole Cart (24-818) — Official Product Page
- Ergotron Tilt Pivot for SV Pole Cart (98-534) — Official Product Page
- Ergotron Limited Warranty Terms and Conditions (PDF)
SourceIT supplies Ergotron across Singapore with local warranty support and a GST invoice. Contact us for volume pricing, site survey and delivery scheduling.
Frequently Asked Questions — Ergotron StyleView Pole Cart
How much will the Pole Cart carry?
Ergotron rates it at 13 lbs (5.9 kg). That is sized for tablets, small smart devices, mini PCs and thermal imaging cameras rather than monitors. Weigh the device including its case or enclosure before ordering.
Is it height adjustable?
Ergotron publishes no height-adjustment range, lift travel or sit-stand specification for this cart, so we do not claim one. The working height is set when the accessory is fitted to the pole — Ergotron describes mounting the Tilt Pivot at your preferred height for the application. If you need dynamic sit-stand adjustment, specify a cart with a published lift figure such as the StyleView Laptop Cart SV10 (SV10-1100-0) at 15 in (38.1 cm).
What VESA pattern does the plate use?
Ergotron confirms the cart has a VESA plate but does not publish the hole pattern for this part number, so we will not quote one. Send SourceIT your device or mount and we will confirm the interface with Ergotron before you order.
Can I mount a monitor on it?
Only a small, light one, and only after checking. The 13 lbs (5.9 kg) rating is the constraint, and Ergotron publishes no supported screen size for this cart. The Tilt Pivot (98-534) is described by Ergotron as an attachment for small monitors, tablets and other accessories — ask us to confirm your specific display.
Does it come with a battery?
No. As supplied the Pole Cart is non-powered. Ergotron’s sanctioned route to on-board power is the LiFeKinnex Battery Brackets and Cable Box (98-524-211), ordered separately — which means you can add hot-swap power later rather than paying for it upfront.
Is the Tilt Pivot (98-534) the right accessory for this cart?
Yes. Ergotron lists it as an accessory on the Pole Cart’s own datasheet, and its official product page names it “Tilt Pivot for SV Pole Cart”. Ergotron does not publish the pivot’s own VESA pattern, capacity or tilt range, so confirm your device with SourceIT before ordering the pair.
How does it compare with an SV10 cart?
The SV10 carts have a worksurface, 15 in (38.1 cm) of published height adjustment, a larger 19 in square base and a 7-year warranty. The Pole Cart has no worksurface, no published lift figure and a lighter 13 lbs (5.9 kg) rating — but it is slimmer, lighter at 27.7 lbs (12.6 kg) and built to tuck in close where a worksurface cart would not fit. Choose the Pole Cart for bedside and tight-space device delivery; choose an SV10 when a clinician needs somewhere to work.
Is there a local warranty in Singapore?
Yes. Every Ergotron StyleView Pole Cart sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the StyleView Pole Cart with a 5-year manufacturer warranty.
