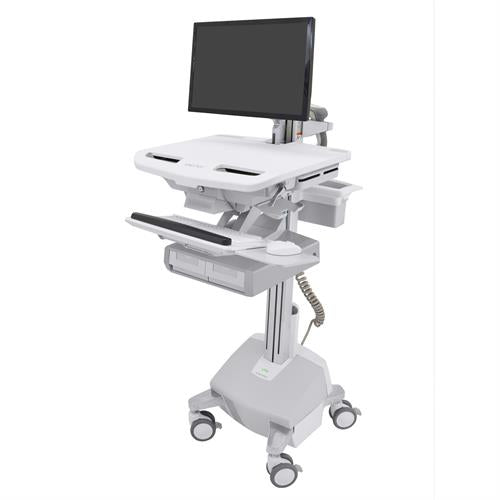

Ergotron StyleView® Cart with LCD Arm, LiFe Powered, 2 Drawers (2x1), UK (SV44-12A2-3)

• GTIN: 00698833056419
• Part Number: SV44-12A2-3
• Description: StyleView Cart with LCD Arm, LiFe Powered, 2 Drawers (2 medium drawers x 1 row)
• TAA (Trade Agreements Act) compliant
• Includes auto-locking drawer system (ADS), primary double drawer, drawer dividers, LCD arm, worksurface, CPU lock, secure CPU compartment, four-port USB hub, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, keyboard lights, left/right mouse tray, rear handle, storage basket, cable storage, four casters (lockable, 1 tracking function), single-battery 45 Ah LiFe power system, coiled cord, integrated AC outlets, power system user interface
• * Total maximum load on height-adjustment assembly = 33 lbs (15 kg). This is the sum of the following components: LCD pivot = 5–11 lbs (2.3–5 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); medium drawer ≤ 1 lbs (.5 kg)
• Note: If the combined LCD and CPU weight is greater than 23 lbs (10.4 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)
• † LCD and worksurface adjust 20" (51 cm) in tandem; LCD Arm adjusts 7" (17 cm) independently; maximum LCD height adjustment = 27" (68 cm)
• ‡ Portrait screen orientation may be incompatible with widescreen displays > 19"

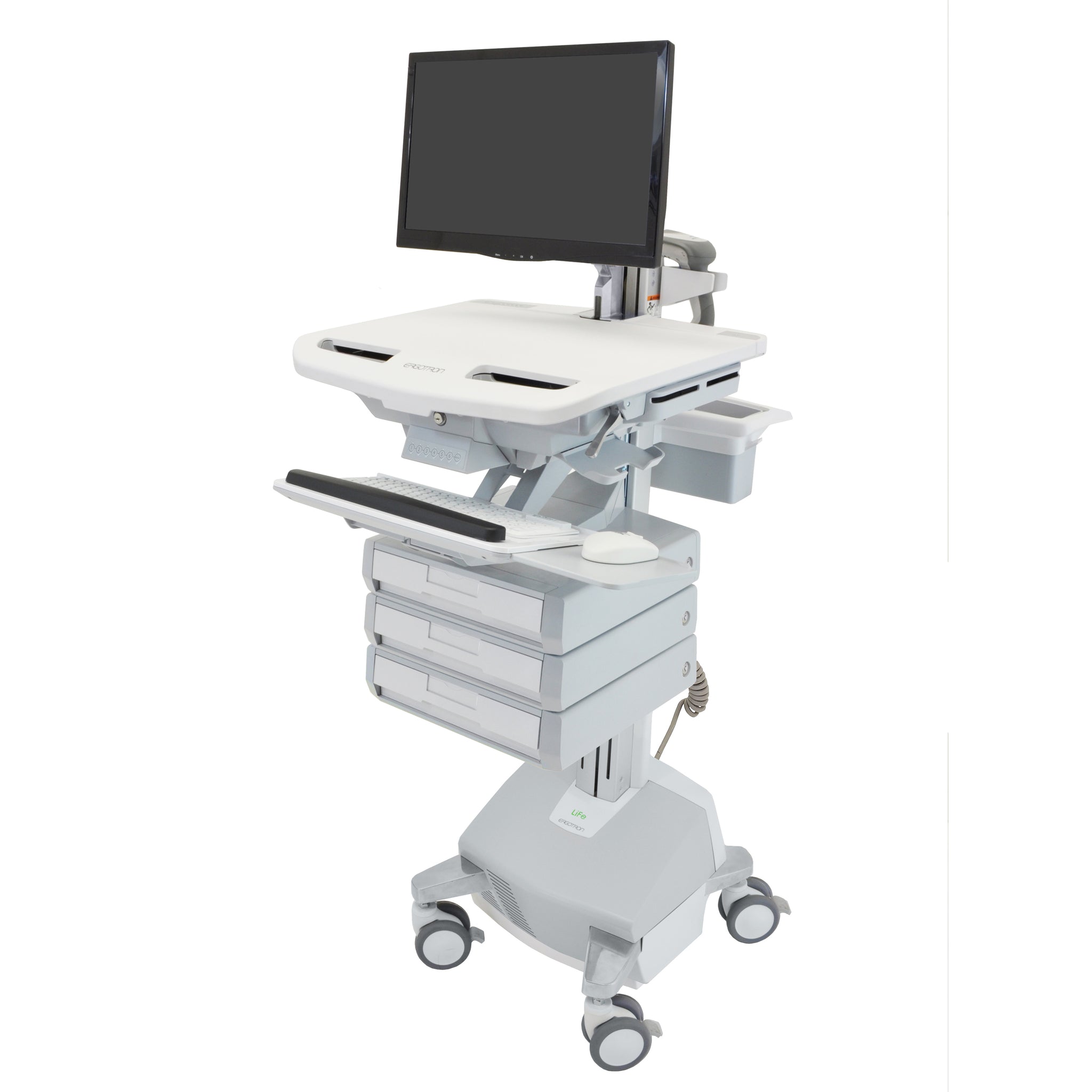

• Cart may be fitted with up to five rows of standard-height drawers. Vertical adjustment range is affected by the number of drawer rows: 0–2 rows = 20" (51 cm); 3 rows = 16" (41 cm ); 4 rows = 12" (30 cm); 5 rows = 8" (20 cm)

Cart may be fitted with up to three rows of tall drawers

• Shipping Dimensions: 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
• § Warranty: Five years for cart’s mechanical components, two years on power module; five years on LiFe battery, including three-year capacity guarantee

True Ergonomics

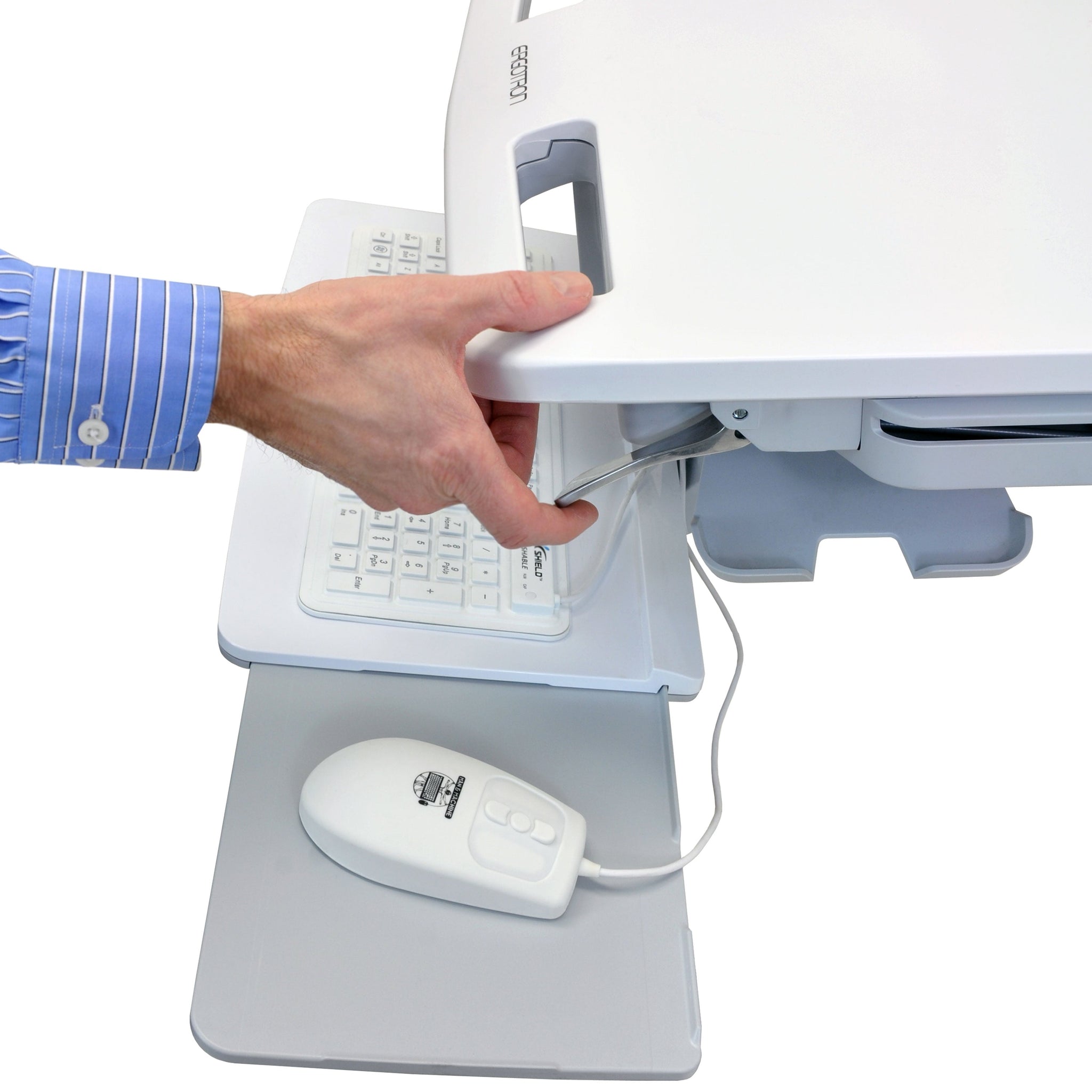

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
• Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
• Patented CF™ lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Safe

• For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A
• Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
• Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
• Large, smooth worksurface; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
• CPU lock provided inside the storage compartment for additional security
• Designed to meet guidelines established by the American National Standards Institute for computer use

All the Details Covered

• Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
• Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
• Button for LED lights is located conveniently on worksurface
• Rear basket keeps task-related items where they can be quickly accessed
• Universal mounting slot for accessories and equipment
• A unique cable management system conceals and organizes cords, making cleaning easy
• Ships fully assembled and is easily accessible from container
• Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
• Four-port USB hub
• Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
• Pre-routed cables provide quicker integration with equipment
• Integrated power outlets located within the cart

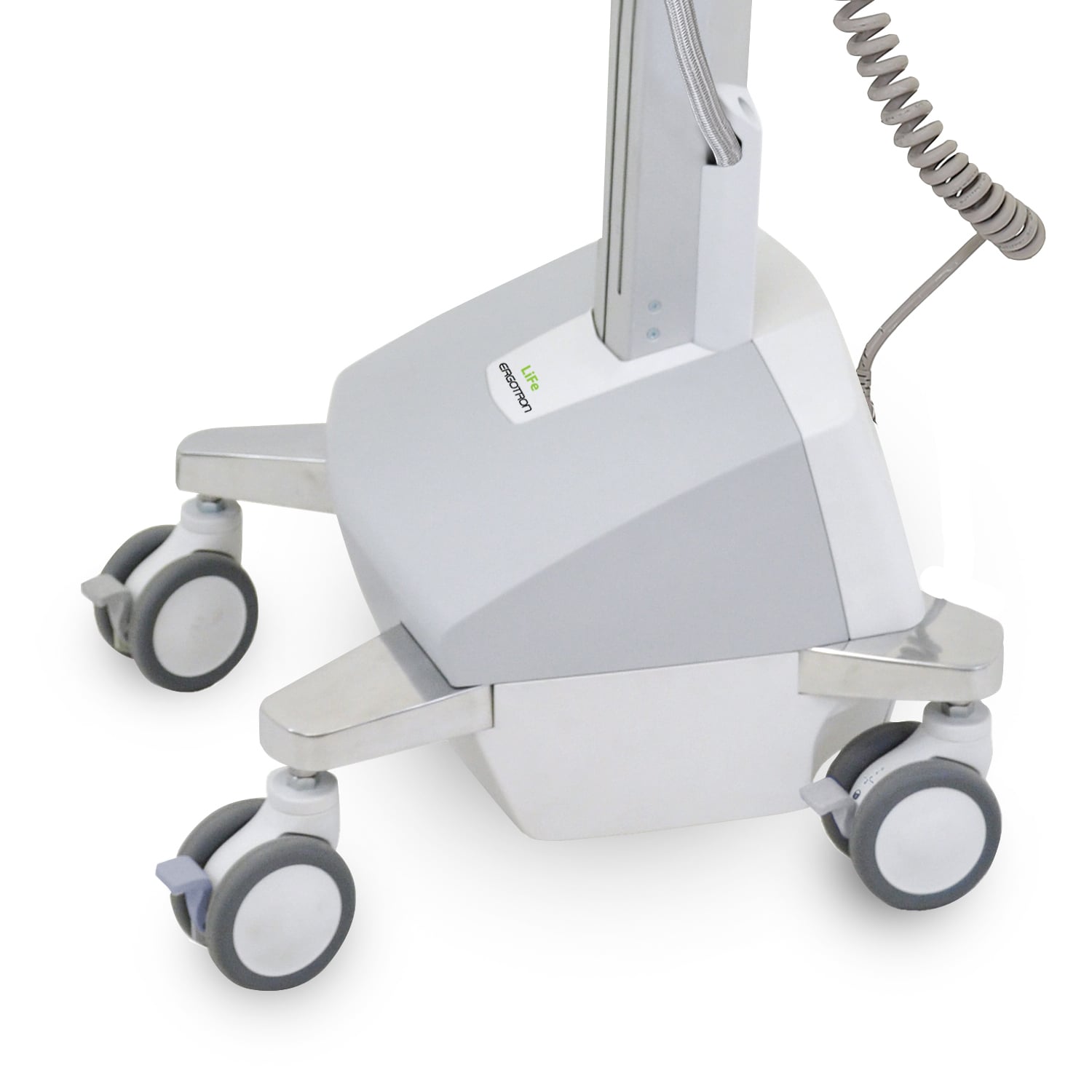

• Four ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability

Compatibility and Dimensions

• Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
• Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
• Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
• Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
• Output:
  US/CA/MX = 120VAC/60Hz, 150VA, 150W
  EU = 230VAC/50Hz, 150VA, 150W
  UK = 230VAC/50Hz, 150VA, 150W
  AU/NZ = 230VAC/50Hz, 150VA, 150W
  CN = 220VAC/50Hz, 150VA, 150W
  IN = 230VAC/50Hz/60Hz, 150VA, 150W
  CHE = 230VAC/50Hz, 150VA, 150W
• Grounded Plug:
  US/CA/MX = NEMA 5-15P Hospital Grade
  EU = European CEE 7
  UK = UK BS 1363
  AU/NZ = AS/NZS 3112
  CN = GB2009-1; GB1002-1
  IN = BS 546
  CHE = SEV 1011
• 45Ah, 12V DC, Lithium Iron Phosphate (LiFe) battery
