Ergotron Neo-Flex LCD Cart Two-Toned Gray
PRODUCT DESCRIPTION
Ergotron Neo-Flex LCD Cart Two-Toned Gray (24-206-214) - 3 Years Local Warranty

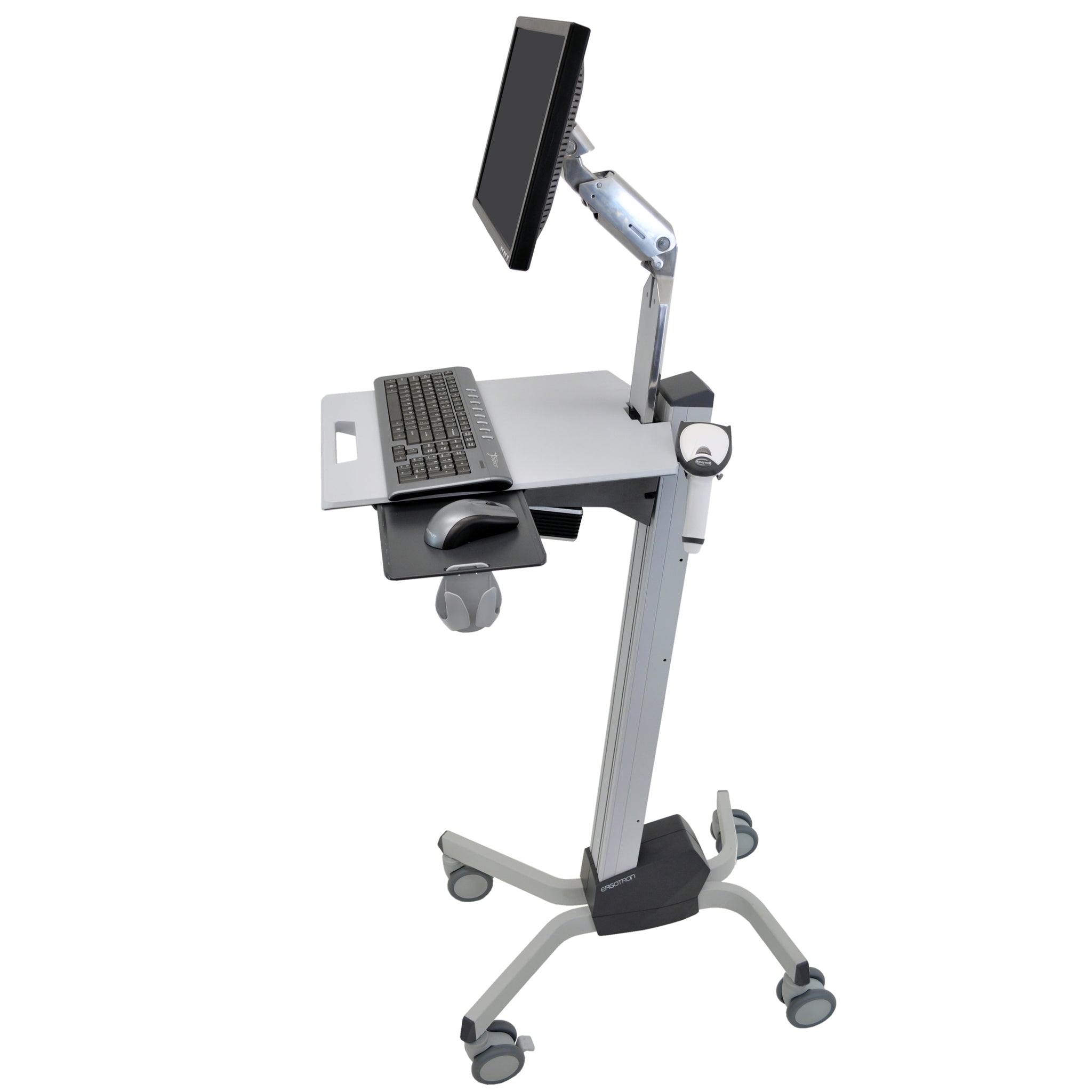

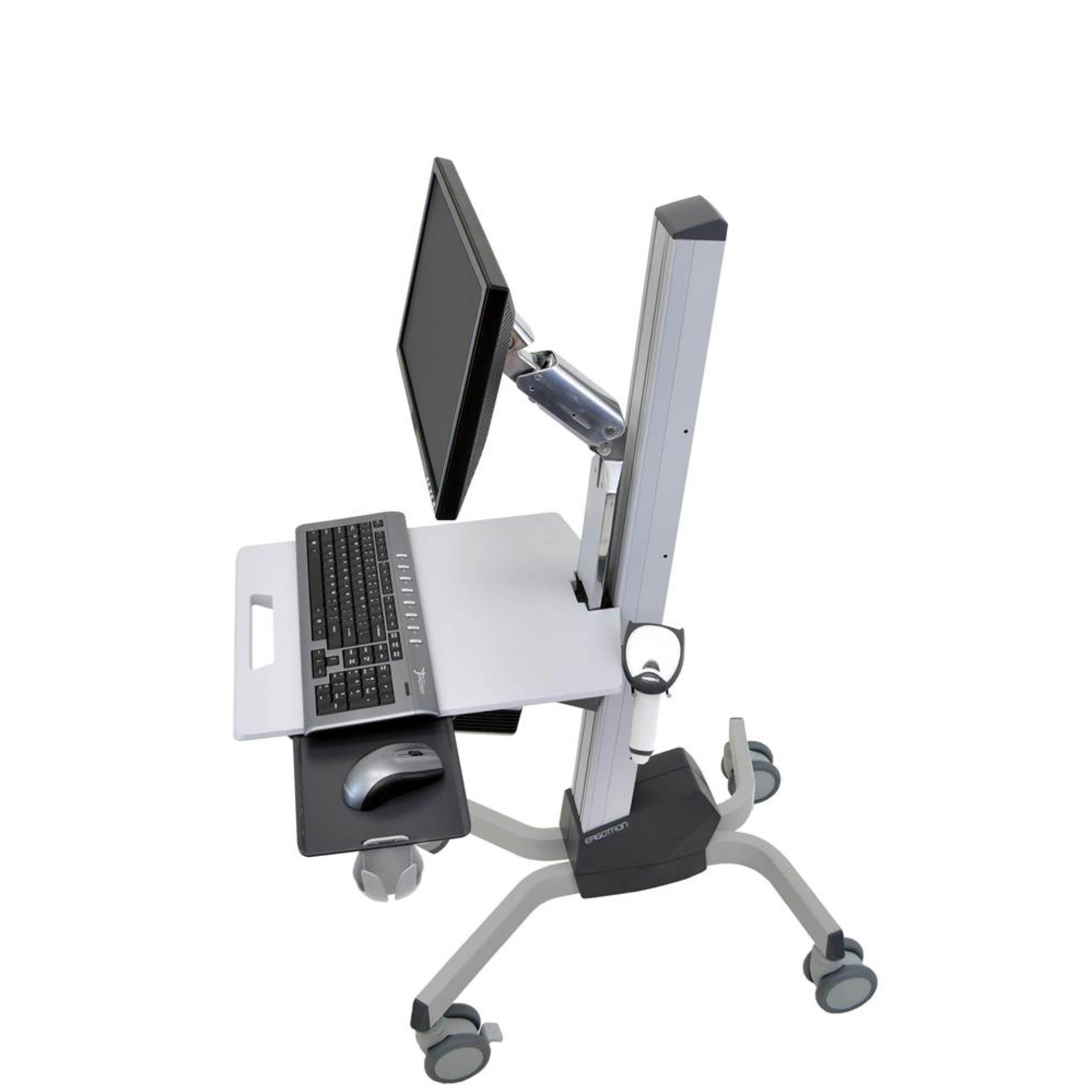

A Complete Mobile Sit-Stand Monitor Workstation
The Ergotron Neo-Flex LCD Cart puts a monitor on an articulating arm above a worksurface, on a rolling base that goes wherever the work is. Nothing clamps to a desk and nothing fixes to a wall — which is exactly why it works in leased Singapore office space, training rooms, retail floors and clinical areas where a permanent installation is not an option.

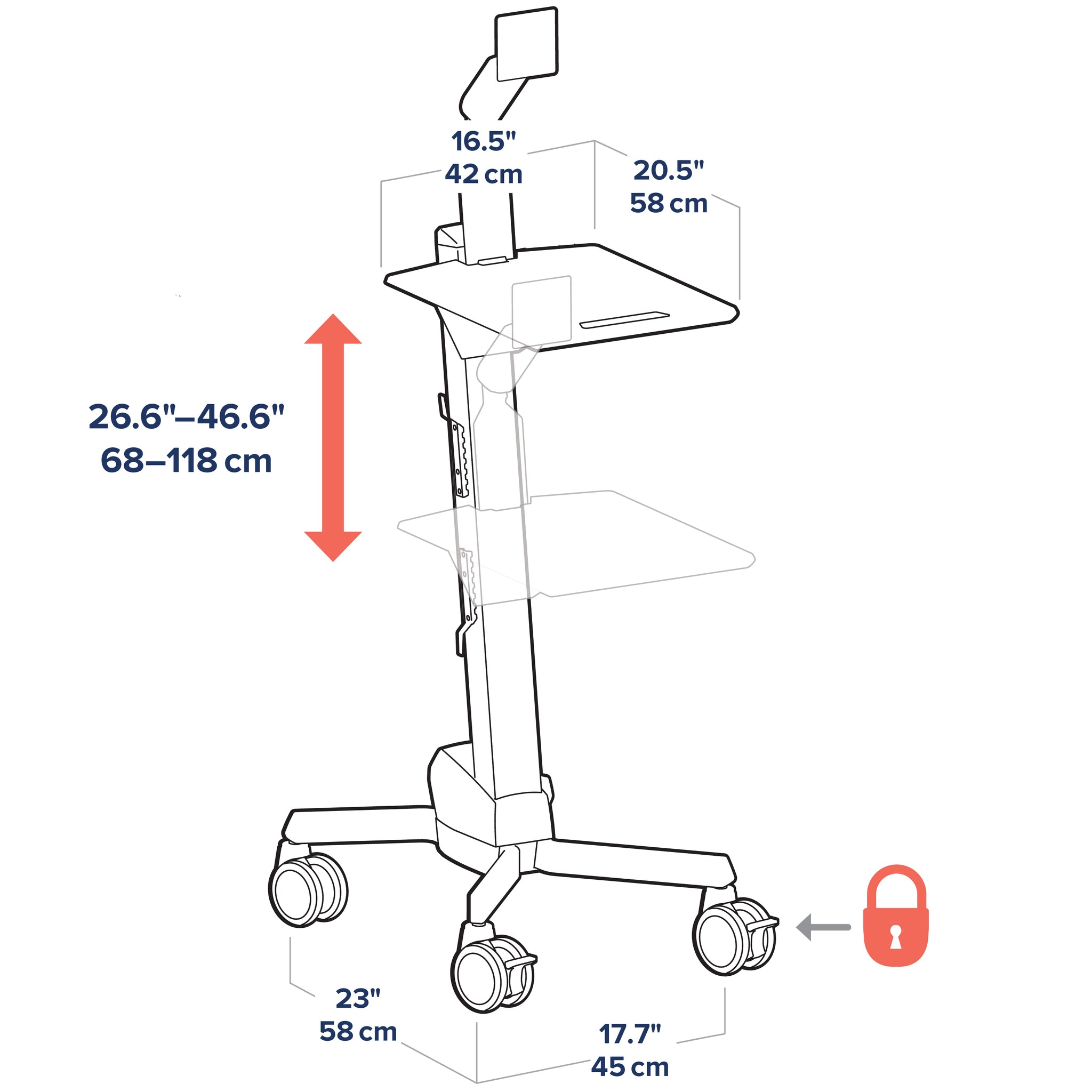

27 in of Height Adjustment, in Two Independent Stages
Ergotron specifies 27 in (68.6 cm) of total height adjustment, and the way it divides matters: 20 in (51 cm) of sit-to-stand travel with the monitor and worksurface moving in tandem, plus a further 7 in (17 cm) of independent screen adjustment on the arm. You set the working height for the person, then set the screen to their eye level separately — a real ergonomic advantage over carts where the display is fixed relative to the surface.

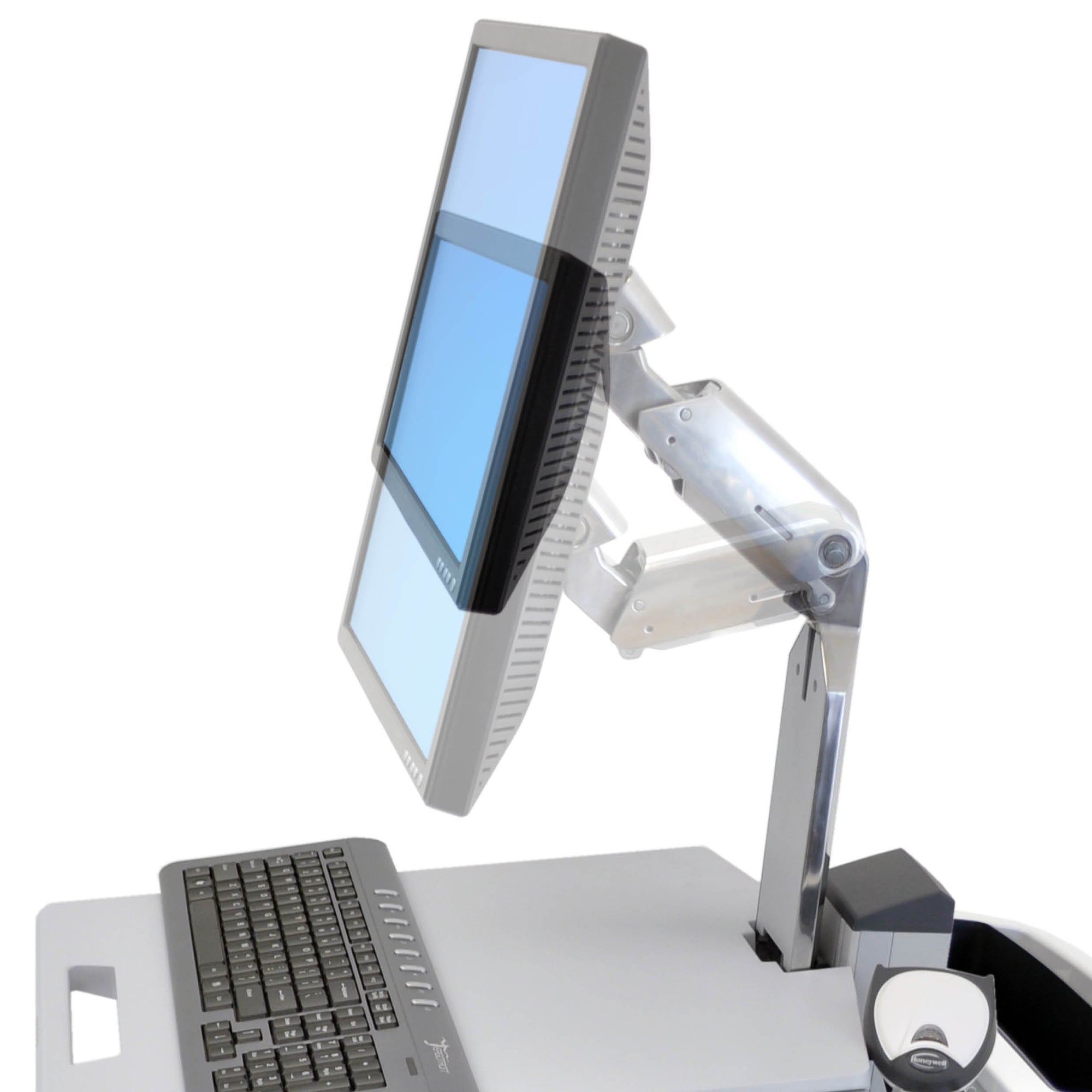

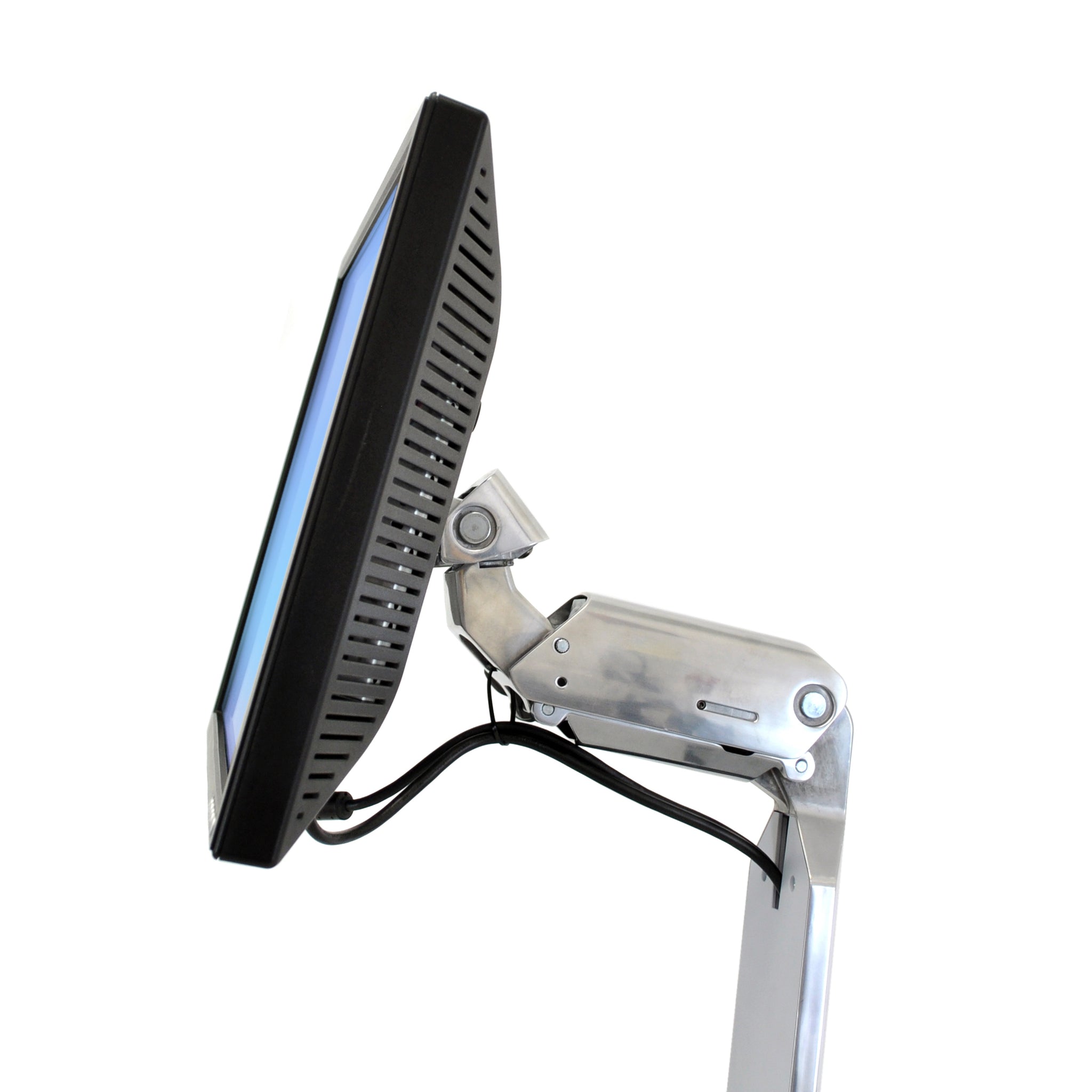

Constant Force Lift and Full Articulation
Ergotron's patented Constant Force lift technology means the surface rises and falls with a light touch and stays exactly where it is put, no crank and no motor. The arm adds 65° of tilt, 180° of pan and 360° of rotation, so the screen turns to portrait for documents, angles down for a seated user or swings round to face a colleague or a patient.
26 lbs of Capacity, Plus a Mini PC Underneath
The height-adjustment assembly carries up to 26 lbs (11.8 kg) in total, with the monitor on the arm limited to 12 lbs and a supported screen size up to 22 in. A VESA-compliant mini PC (75 x 75 mm or 100 x 100 mm) attaches to the underside, and cables route neatly through an expansive cable-management storage area — so display, computer and cabling all travel together on one base.
Durable, Cleanable, Backed for Three Years
The cart is built from aluminium, high-grade plastic and zinc-plated, powder-coated steel with a durable, easy-to-clean exterior in a two-toned grey finish, on a stable 17.7 in x 23 in (45 x 58 cm) wheel-to-wheel base. Ergotron backs all Neo-Flex products with a 3-year manufacturer warranty, and SourceIT supplies the cart with local Singapore warranty support and a GST invoice.
Ergotron Neo-Flex LCD Cart Datasheet — Technical Specifications
General
| Product | Ergotron Neo-Flex LCD Cart |
| Part Number | 24-206-214 |
| Finish | Two-toned grey (the -214 suffix denotes the two-toned grey finish) |
| Product Type | Mobile sit-stand monitor cart with articulating screen mount |
| Lift Technology | Ergotron patented Constant Force lift technology |
| 3-Year Manufacturer Warranty (Ergotron) | 3 years — confirmed on the Ergotron Neo-Flex LCD and Laptop Carts datasheet and in Ergotron's current published warranty document (3-year warranty on all Neo-Flex products) |
| Local Warranty (Singapore) | Included with every cart sold by SourceIT |
Display Compatibility
| Supported Monitor Size | Up to 22 in — Ergotron notes the size may be exceeded provided the screen weight stays within the mount's maximum capacity |
| Monitor Weight Limit | Up to 12 lbs on the articulating arm; accommodates most VESA-compatible monitors |
| Number of Screens | One |
| Mini PC Mounting | VESA-compliant 75 x 75 mm or 100 x 100 mm mini PC attaches to the underside |
Capacity & Adjustment
| Total Weight Capacity | Up to 26 lbs (11.8 kg) on the height-adjustment assembly |
| Total Height Adjustment | 27 in (68.6 cm) |
| Sit-Stand Adjustment | 20 in (51 cm) of monitor and worksurface moving in tandem |
| Independent Screen Height | A further 7 in (17 cm) of independent screen height adjustment on the articulating arm |
| Tilt | 65° |
| Pan | 180° |
| Rotation | 360° (portrait / landscape) |
Design & Durability
| Construction | Durable, easy-to-clean exterior of aluminium, high-grade plastic and zinc-plated / powder-coated painted steel |
| Cable Management | Safe, neat routing of cables through an expansive cable-management storage area |
| Wheel-to-Wheel Base | 17.7 in x 23 in (45 x 58 cm) |
| Product Weight | 38.8 lbs (17.6 kg) |
| Shipping Weight | 56 lbs (25.4 kg) |
| Shipping Dimensions | 21.75 x 15 x 45.25 in (55.2 x 38 x 115 cm) |
All figures above are taken from Ergotron's official Neo-Flex LCD and Laptop Carts datasheet and Ergotron's current warranty document. Caster count, caster diameter and the monitor VESA hole pattern are not published by Ergotron for this part number and are omitted rather than estimated — note in particular that the 75 x 75 mm / 100 x 100 mm figures on the datasheet refer to the underside mini-PC mount, not to the monitor interface.
Compatibility & Fit
The Neo-Flex LCD Cart is a self-contained mobile sit-stand workstation: a monitor on an articulating arm above a worksurface, on a rolling base. Nothing clamps to a desk and nothing fixes to a wall, so there is no desk thickness to check and no landlord permission required — which is why it suits leased Singapore office space, training rooms and clinical areas where fixed installations are not an option.
Height adjustment is 27 in (68.6 cm) in total, and it is worth understanding how that breaks down: 20 in (51 cm) of sit-to-stand movement with the monitor and worksurface travelling together, plus a further 7 in (17 cm) of independent screen height adjustment on the arm. That means you set the working height first and then fine-tune the screen to eye level separately — a genuinely better ergonomic outcome than a cart where the screen is fixed relative to the surface.
Two weight figures matter. The height-adjustment assembly carries up to 26 lbs (11.8 kg) total. Within that, the monitor on the articulating arm is limited to 12 lbs. Ergotron states a supported monitor size of up to 22 in, with the usual caveat that the size may be exceeded as long as screen weight stays within the mount's maximum. In practice a light modern 24 in panel often works where a heavy 22 in one would not — weight, not diagonal, is the deciding number. Larger curved or ultrawide panels are generally too heavy for a 12 lb arm limit; check the specification of your exact display, or ask SourceIT to check it.
The arm gives 65° of tilt, 180° of pan and 360° of rotation, so the screen can be turned to portrait for documents and code, or swung round to show a colleague or a patient. A VESA-compliant mini PC (75 x 75 mm or 100 x 100 mm) can be attached to the underside, keeping the whole workstation on one rolling base. Ergotron does not publish the monitor-side VESA hole pattern for this part number, so confirm your display's pattern with SourceIT before ordering.
| Screens | One monitor, up to 22 in (weight permitting) |
| Monitor Weight Limit | 12 lbs on the arm |
| Total Assembly Capacity | 26 lbs (11.8 kg) |
| Mounting | Mobile rolling base — no desk clamp, grommet or wall fixing |
| Wheel-to-Wheel Base | 17.7 in x 23 in (45 x 58 cm) |
| Mini PC Mount | VESA 75 x 75 mm or 100 x 100 mm, underside |
| Monitor VESA Pattern | Not published by Ergotron for this part number |
Package Contents & Neo-Flex Ordering Information
In the box: Ergotron does not publish a formal itemised carton list for the Neo-Flex LCD Cart. What Ergotron does confirm as part of the product is the cart with its Constant Force lift assembly, the articulating monitor arm, the cable-management storage area and the underside VESA mini-PC mount. Distributor listings additionally describe a scanner holder bracket, mouse holder, power-strip bracket and cable wrap; ask SourceIT to confirm current carton contents before ordering in quantity. Note that the Universal CPU Holder (80-105-064) is an optional accessory and is not included.
Neo-Flex LCD & Laptop Carts — Ordering
| 24-206-214 — Neo-Flex LCD Cart, Two-Toned Gray (this listing) | 27 in (68.6 cm) total height adjustment · 26 lbs (11.8 kg) · monitor to 22 in / 12 lbs · 65° tilt, 180° pan, 360° rotation |
| 24-205-214 — Neo-Flex Laptop Cart, Two-Toned Gray | 20 in (50.8 cm) height adjustment · 15 lbs (6.8 kg) · 16.5 x 17.5 in worksurface · integrated laptop security |
Ergotron Accessories Named on the Neo-Flex Cart Datasheet
| 97-546 — NF Cart Laptop Vertical Kit | Vertical laptop storage for Neo-Flex carts |
| 80-105-064 — Universal CPU Holder | Optional CPU holder — not included with the cart |
| 97-544 — NF Cart Wire Basket Kit | Adds a wire storage basket |
| 97-545 — NF Cart Handle and Basket Kit | Adds a push handle plus storage basket |
Other Ergotron Neo-Flex Carts & Stands at SourceIT
| 24-189-055 — Neo-Flex WideView WorkSpace Cart | Height-adjustable widescreen display cart |
| 24-194-055 — Neo-Flex Dual WideView WorkSpace | Dual-monitor workstation |
| 24-190-085 — Neo-Flex Mobile MediaCenter LD Cart | 27 to 60 in display · 25 to 50 lbs (11.3 to 22.7 kg) · VESA MIS-D/E/F |
| 24-191-085 — Neo-Flex Mobile MediaCenter VHD Cart | 37 to 75 in display · 50 to 90 lbs (22.7 to 40.8 kg) · VESA MIS-D/F |
| 24-192-085 — Neo-Flex Mobile MediaCenter UHD Stand | 50 to 80 in display · 90 to 120 lbs (40.8 to 54.4 kg) · VESA MIS-D/F |
Datasheet & Downloads
- Ergotron Neo-Flex LCD and Laptop Carts — Official Datasheet (PDF, covers 24-206-214 and 24-205-214)
- Ergotron Neo-Flex LCD Cart (24-206) — Official Product Page
- Ergotron Neo-Flex Laptop Cart (24-205) — Official Product Page
- Ergotron 888-24-125-W — Neo-Flex Laptop Cart Assembly Guide (PDF)
- Ergotron Neo-Flex Mobile MediaCenter Carts — Datasheet (PDF, related models)
SourceIT supplies Ergotron Neo-Flex carts across Singapore with local warranty support and a GST invoice. Contact us for volume pricing and delivery scheduling.
Frequently Asked Questions — Ergotron Neo-Flex LCD Cart
How much height adjustment does it really give?
27 in (68.6 cm) in total. That is 20 in (51 cm) of sit-to-stand movement with the monitor and worksurface travelling together, plus a further 7 in (17 cm) of independent screen adjustment on the articulating arm. The two-stage design means you set the working height for the user and then fine-tune the screen to eye level separately.
What size and weight of monitor will it take?
Ergotron specifies up to 22 in, and notes the size may be exceeded provided screen weight stays within the mount's maximum. The weight limits are the ones that decide it: up to 12 lbs for the monitor on the articulating arm, and up to 26 lbs (11.8 kg) total on the height-adjustment assembly. Check your display's weight rather than its diagonal, or send SourceIT the model and we will check it for you.
Will it take a curved or ultrawide monitor?
Usually not. Curved and ultrawide panels are generally heavier than the 12 lb arm limit allows. Ergotron's own guidance is that screen size can be exceeded only while staying inside the weight maximum, so the answer depends entirely on the specific panel — ask SourceIT to check the weight of yours before ordering.
Do I need a VESA adapter for my monitor?
Ergotron does not publish the monitor-side VESA hole pattern for this part number, so we cannot confirm it here. Note that the 75 x 75 mm / 100 x 100 mm figures on Ergotron's datasheet refer to the underside mini-PC mount, not to the monitor interface. Send SourceIT your monitor model and we will confirm what is needed.

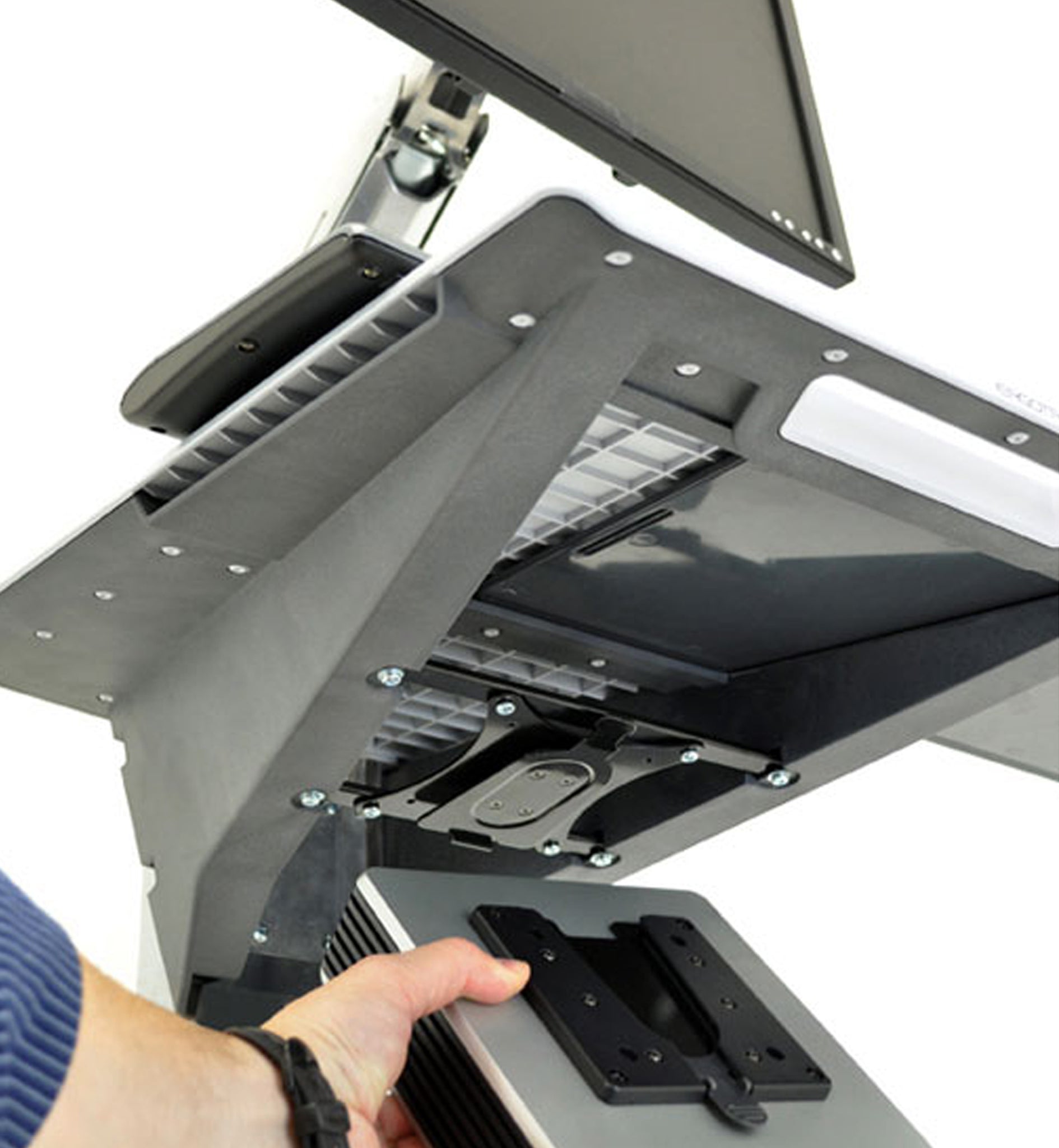

Can I mount a mini PC on it too?
Yes. Ergotron confirms a VESA-compliant mini PC with a 75 x 75 mm or 100 x 100 mm pattern attaches to the underside, which keeps the display, the computer and the cabling on one rolling base. The Universal CPU Holder (80-105-064) is a separate optional accessory for full-size machines and is not included.
Does it clamp to a desk or fix to a wall?
Neither. It is a self-contained mobile cart on a 17.7 in x 23 in (45 x 58 cm) wheel-to-wheel base, so there is no desk thickness to check and nothing to drill — which makes it practical in leased offices, training rooms and clinical areas where fixed installation is not permitted.
How does it compare with the Neo-Flex Laptop Cart?
The Neo-Flex Laptop Cart (24-205-214) carries a laptop on a 16.5 in x 17.5 in (42 x 44 cm) worksurface with 20 in (50.8 cm) of height adjustment, 15 lbs (6.8 kg) capacity and an integrated laptop security system. This LCD Cart mounts a monitor on an articulating arm instead, with more total travel (27 in) and more capacity (26 lbs / 11.8 kg), plus tilt, pan and rotation the laptop cart does not offer.
Is there a local warranty in Singapore?
Yes. Every Ergotron Neo-Flex LCD Cart sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Neo-Flex LCD Cart with a 3-year manufacturer warranty.
