Ergotron Neo-Flex® Keyboard Wall Mount
PRODUCT DESCRIPTION
Ergotron Neo-Flex® Keyboard Wall Mount (45-403-062) - 5 Years Local Warranty
A Keyboard Station Where There Is No Desk

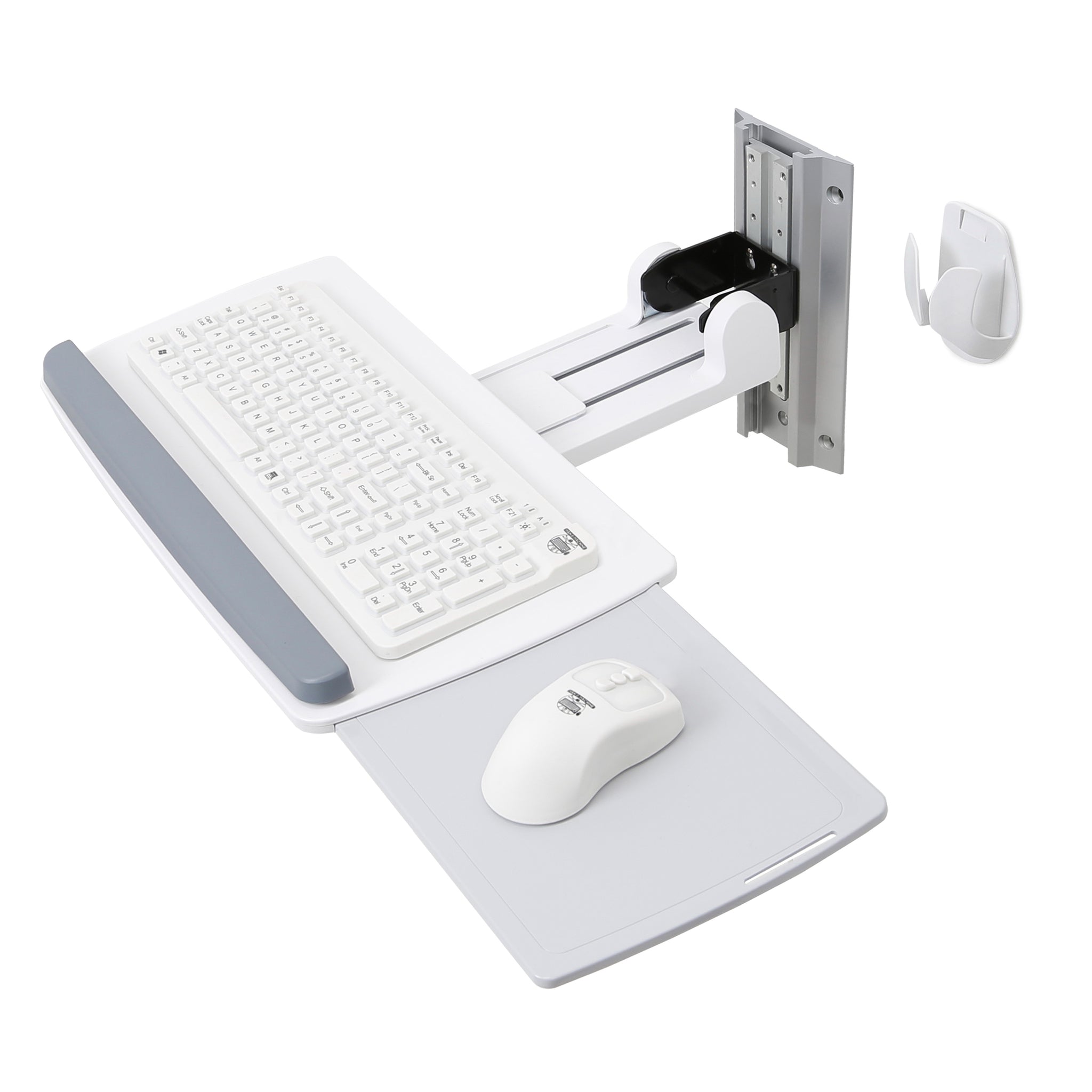

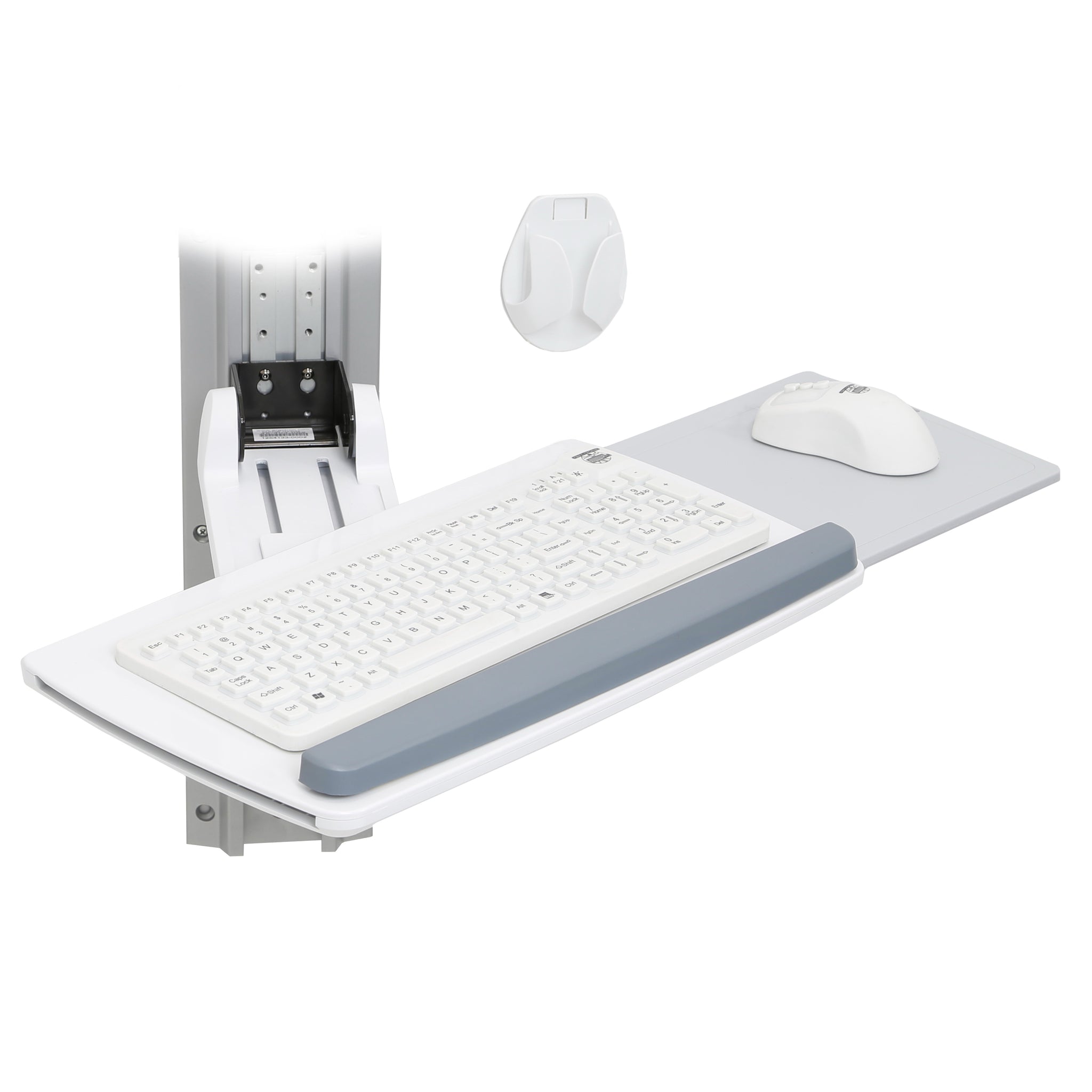

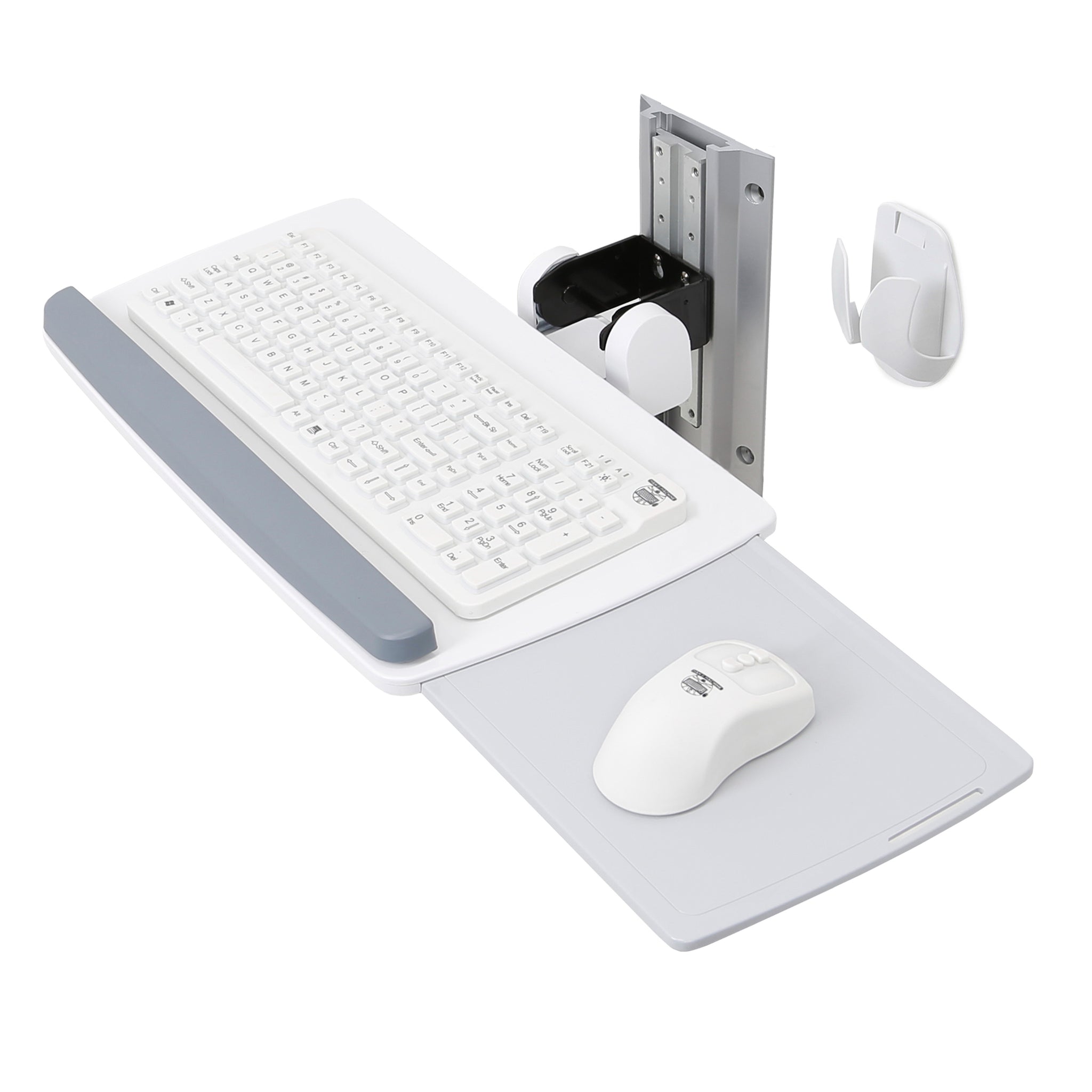

The Ergotron Neo-Flex Keyboard Wall Mount puts a keyboard and mouse on the wall and folds them away again afterwards. It is built for the places a desk cannot go: patient rooms and ward corridors, dispensary and lab benches, retail counters, warehouse and workshop kiosks — anywhere staff need a few minutes at a terminal and the floor space is needed back straight after.
Extends 19.25 Inches from the Wall, Then Folds Flat

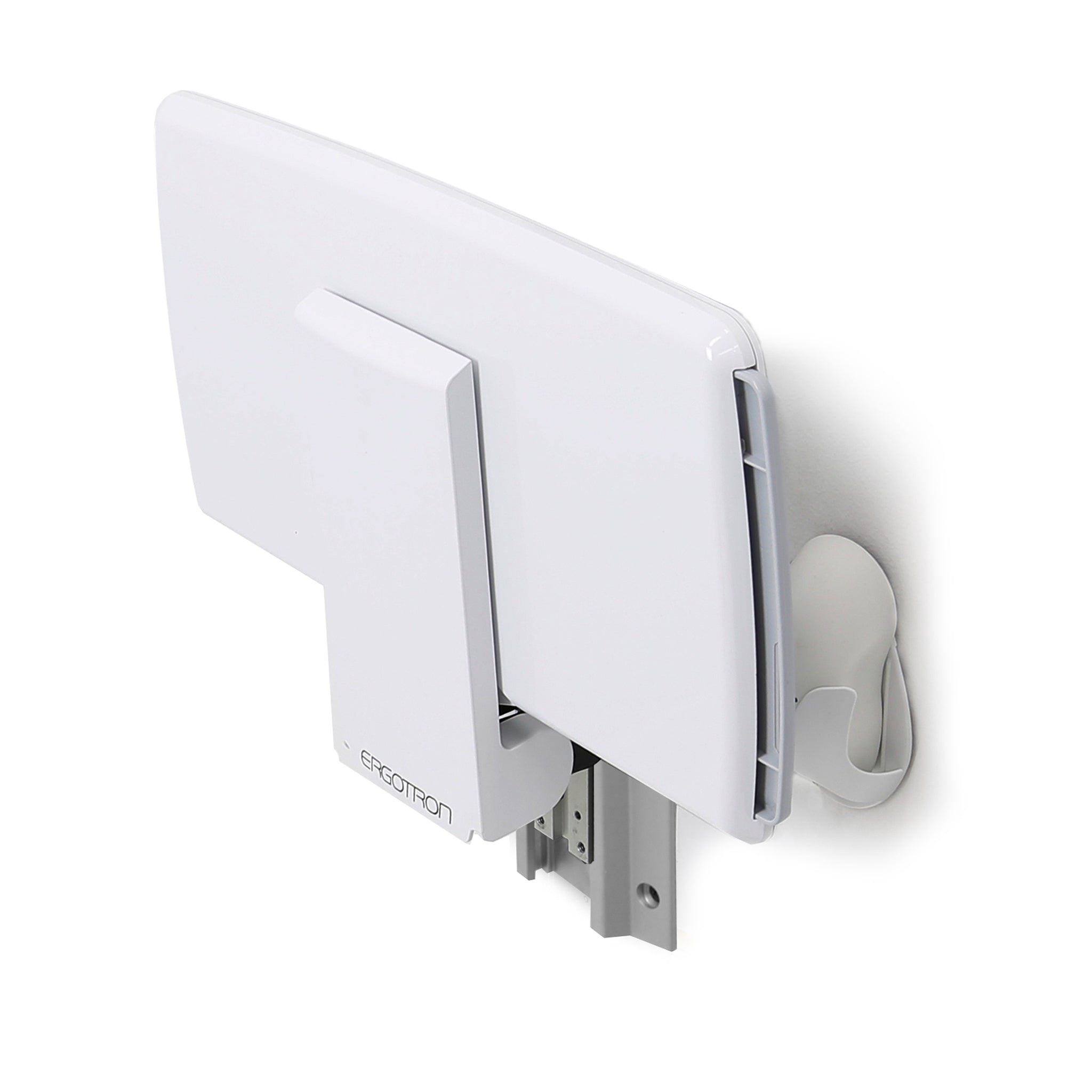

In use the tray reaches up to 19.25″ (49 cm) from the wall, putting the keyboard at a natural typing distance rather than pressed against it. When the job is done it folds back to a slim profile, keeping corridors clear and surfaces easy to clean.
Tilt, Pan and 5 Inches of Depth Adjustment
The tray tilts through 90°, pans 120° side to side and adjusts 5″ (13 cm) in depth, with a friction adjustment so the setting holds for the way your team works. Negative tilt is supported, which is the position that keeps wrists neutral when typing while standing.
Mounts to Wood, Concrete, Hollow Wall or Steel Stud
Ergotron supplies fixings for wood studs, hollow sheetrock, concrete and steel studs of 25 gauge or heavier, and specifies that the wall structure must support four times the total weight of the mounted equipment. The Keyboard Wall Mount carries a five-year Ergotron manufacturer warranty.
Ergotron Neo-Flex Keyboard Wall Mount Datasheet — Technical Specifications
General
| Product | Neo-Flex® Keyboard Wall Mount |
| Part Number | 45-403-062 |
| Finish | White |
| Mounting Type | Wall mount — slide-out keyboard tray |
| Supported Wall Types | Wood stud, hollow wall (sheetrock), concrete, steel stud 25 gauge or heavier |
Capacity & Worksurface
| Keyboard Weight Capacity | ≤ 5 lbs (2.3 kg) |
| Mouse Tray | Included (mouse pouch fitted during installation) |
Adjustment & Motion
| Keyboard Tilt / Rotation | 90° |
| Pan | 120° |
| Depth Adjustment | 5″ (13 cm) |
| Extension from Wall | Up to 19.25″ (49 cm) |
| Friction Adjustment | Adjustable — increase or decrease movement friction |
Design & Durability
| Wall Structure Requirement | Wall must support four times the total weight of mounted equipment |
| Included Fasteners | 1/4-20 x 2″ bolts, M6 x 70 mm anchors, ST6.3 x 50 mm screws, assorted nuts and washers |
| Shipping Dimensions | 20.75″ x 15.5″ x 5.7″ (53 x 39.5 x 14 cm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Compatibility & Fit
The Neo-Flex Keyboard Wall Mount takes a keyboard weighing up to 5 lbs (2.3 kg) with a mouse pouch fitted alongside. Ergotron does not publish tray dimensions for this model, so if you use an unusually wide mechanical or split keyboard, check its footprint before ordering.
This is a wall-mounted product, so desk thickness is not a consideration — wall structure is. Ergotron requires the wall to support four times the total weight of the mounted equipment, and supplies fixings for wood studs, hollow sheetrock, concrete and steel studs of 25 gauge or heavier. Confirm which of these you are fixing into before installation day.
In use it reaches up to 19.25″ (49 cm) from the wall with 5″ (13 cm) of depth adjustment, 90° of tilt (negative tilt supported) and 120° of pan. Pair it with the Neo-Flex Dual Monitor Wall Mount (28-514-800) or the Neo-Flex Wall Mount Lift (60-577-195) to build a complete wall-mounted workstation with no desk at all.
Package Contents & Neo-Flex Ordering Information
In the box: keyboard wall mount with slide-out tray and mouse pouch, plus a fastener set covering wood, hollow-wall, concrete and steel-stud installations — 1/4-20 x 2″ bolts, M6 x 70 mm anchors, ST6.3 x 50 mm screws and assorted nuts and washers.
Neo-Flex Wall-Mounted Range
| Neo-Flex Keyboard Wall Mount (white) | 45-403-062 (this listing) |
| Neo-Flex Dual Monitor Wall Mount (grey & black) | 28-514-800 |
| Neo-Flex Wall Mount Lift, single display (black) | 60-577-195 |
Related Neo-Flex Keyboard Products
| Neo-Flex Underdesk Keyboard Arm (black) | 97-582-009 |
Datasheet & Downloads
Frequently Asked Questions — Ergotron Neo-Flex Keyboard Wall Mount
What finish does it come in?
White (part number 45-403-062). Ergotron lists no other finish for this model.
How heavy a keyboard can it hold?
Up to 5 lbs (2.3 kg). A mouse pouch is included and fitted during installation.
How far does it come out from the wall?
Up to 19.25 inches (49 cm), with 5 inches (13 cm) of depth adjustment so you can set the reach that suits the station.
Can I tilt it for standing use?
Yes. The tray tilts through 90° including negative tilt — the position that keeps wrists neutral when typing while standing — and pans 120° side to side. A friction adjustment holds your setting.
What kind of wall can I fix it to?
Wood studs, hollow wall (sheetrock), concrete, and steel studs of 25 gauge or heavier. Ergotron requires that the wall structure support four times the total weight of the mounted equipment.
Should I choose this or the under-desk keyboard arm?
Choose this where there is no desk — a patient room, counter or kiosk. Choose the Neo-Flex Underdesk Keyboard Arm (97-582-009) when you have a desk and want the keyboard below its surface, with a larger 26.9″ tray.
Is there a local Singapore warranty?
Yes. Every Ergotron Neo-Flex Keyboard Wall Mount sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Neo-Flex Keyboard Wall Mount with a 5-year manufacturer warranty.
