Ergotron Neo-Flex® Adjustable Under Desk Keyboard Arm
PRODUCT DESCRIPTION
Ergotron Neo-Flex® Adjustable Under Desk Keyboard Arm (97-582-009) - 3 Years Local Warranty
Bring the Keyboard Down to a Neutral Typing Height
Most desks are built at a height that suits writing, not typing — which is why so many people work with their shoulders raised and their wrists bent up. The Ergotron Neo-Flex Underdesk Keyboard Arm mounts below the worksurface and gives 6 inches (15.2 cm) of height adjustment plus 15° of tilt, so the keyboard can sit where the forearms actually are.
A Full-Width 26.9″ Tray for Keyboard and Mouse Together
The one-piece phenolic tray measures 26.9″ x 8.9″ (68.3 x 22.6 cm) — wide enough for a full-size keyboard with a numeric pad and the mouse alongside it, rather than forcing the mouse up onto the desk where it pulls the shoulder out of position.
Slides Away When You Need the Desk Back
A 10.75″ (27.3 cm) track lets the tray glide out for typing and tuck back under the worksurface when the desk is needed for paperwork, a signature or a meeting. In smaller Singapore offices and shared hot-desks that recovered surface area is often the point.
Steel Mechanism, Clamp or Screw Fixing
The arm and slide mechanism are steel with a phenolic tray, and it fits worksurfaces 0.75–1.5 inches (19–38 mm) thick. Fit it with the front clamp and a single screw, or remove the clamp and fix with four screws where a permanent installation is wanted.
Ergotron Neo-Flex Underdesk Keyboard Arm Datasheet — Technical Specifications
General
| Product | Neo-Flex® Underdesk Keyboard Arm |
| Part Number | 97-582-009 |
| Finish | Black |
| Mounting Type | Under-desk; front clamp with single screw, or four screws with clamp removed |
| Supported Worksurface Thickness | 0.75–1.5″ (19–38 mm) |
Capacity & Worksurface
| Weight Capacity | 3 lbs (1.4 kg) |
| Keyboard Tray Width | 26.9″ (68.3 cm) |
| Keyboard Tray Depth | 8.9″ (22.6 cm) |
| Tray Design | Single large one-piece surface for larger keyboards and mouse equipment |
Adjustment & Motion
| Height / Lift | 6″ (15.2 cm) |
| Tilt | 15° |
| Track / Extension Travel | 10.75″ (27.3 cm) |
| Retraction | Tray stores under the worksurface when not in use |
Design & Durability

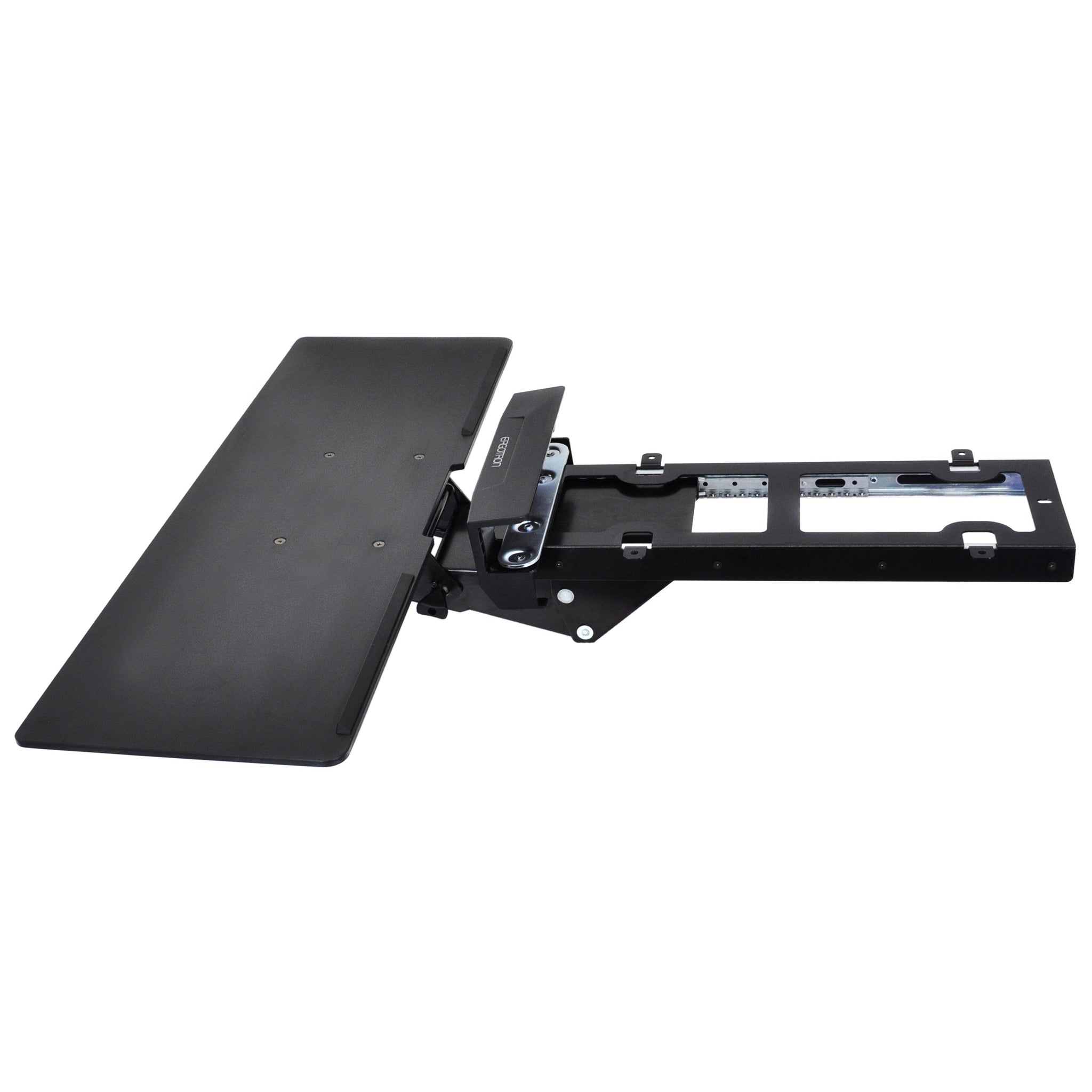

| Construction | Steel arm and slide mechanism; phenolic tray |
| Product Weight | 10.2 lbs (4.6 kg) |
| Shipping Dimensions | 34.2″ x 11″ x 12.75″ (87 x 28 x 32 cm) |
| Shipping Weight | 14.4 lbs (6.6 kg) |
| Manufacturer Warranty | 3-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Compatibility & Fit
The Neo-Flex Underdesk Keyboard Arm fits worksurfaces 0.75–1.5 inches (19–38 mm) thick — the range that covers most commercial desks and laminate worktops. Measure the desk edge before ordering; thicker solid-timber tops fall outside this range.

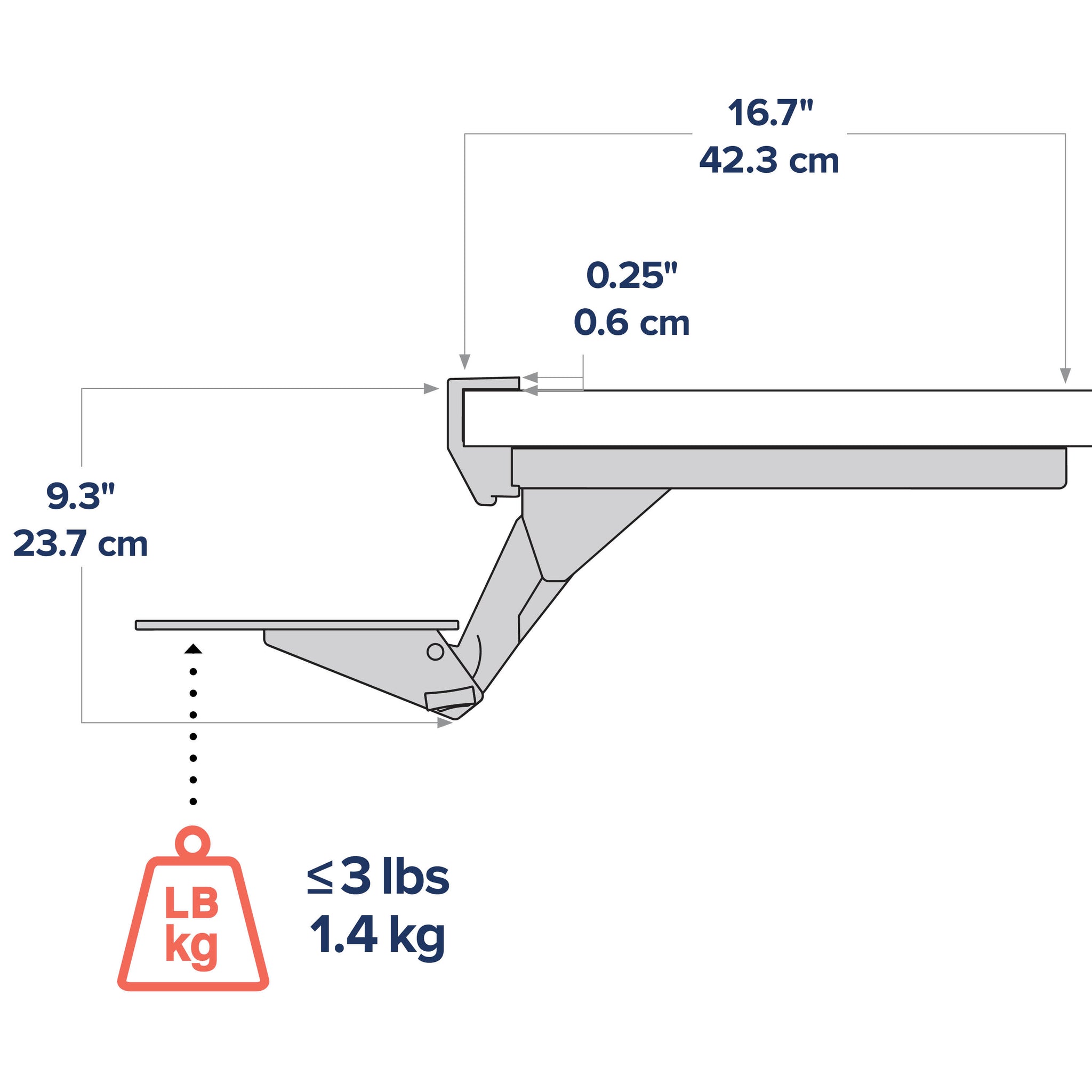

It mounts either with the front clamp and a single screw, or with four screws and the clamp removed for a permanent fitting. Ergotron’s own caution applies: mounting-surface materials vary widely, so confirm the underside of your desk is strong enough to carry the arm and the equipment on it. Some configurations call out less than 1/2″ (12.8 mm) of clearance.
The 26.9″ x 8.9″ (68.3 x 22.6 cm) one-piece tray takes a full-size keyboard and a mouse together, up to a 3 lbs (1.4 kg) load. Ergotron does not specify a separate mouse tray or a wrist rest for this model. For a wall-mounted keyboard instead of an under-desk one, see the Neo-Flex Keyboard Wall Mount (45-403-062).
Package Contents & Neo-Flex Ordering Information
In the box: arm, one-piece tray, desk clamp, slide mechanism and mounting hardware.
Neo-Flex Keyboard Range
| Neo-Flex Underdesk Keyboard Arm (black) | 97-582-009 (this listing) |
| Neo-Flex Keyboard Wall Mount (white) | 45-403-062 |
Related Neo-Flex Ergonomic Products
| Neo-Flex Notebook Lift Stand | 33-334-085 |
| Neo-Flex Dual LCD Monitor Lift Stand | 33-396-085 |
| Neo-Flex Touchscreen Stand | 33-387-085 |
Datasheet & Downloads
Frequently Asked Questions — Ergotron Neo-Flex Underdesk Keyboard Arm
How thick can my desk be?
The arm fits worksurfaces from 0.75 to 1.5 inches (19–38 mm) thick. Measure the desk edge before ordering — thicker solid tops fall outside the supported range.
Will a full-size keyboard and a mouse both fit?
Yes. The one-piece tray is 26.9″ x 8.9″ (68.3 x 22.6 cm), sized for larger keyboards with the mouse on the same surface. The tray load limit is 3 lbs (1.4 kg).
How much does it adjust?

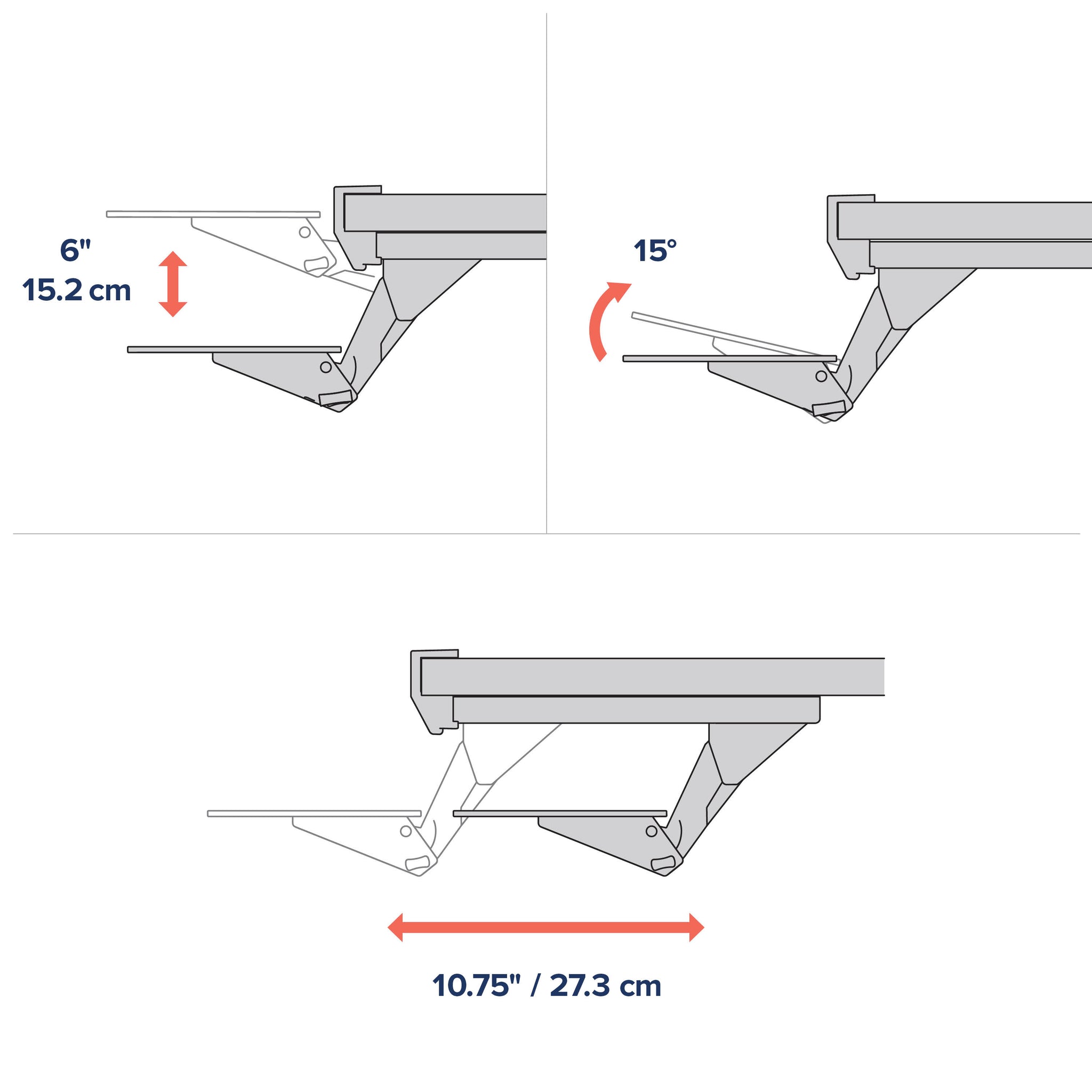

6 inches (15.2 cm) of height adjustment and 15° of tilt, with a 10.75″ (27.3 cm) track so the tray slides out for use and back under the desk afterwards.
Does it need to be screwed in permanently?
Not necessarily. It fits with the front clamp and a single screw, or you can remove the clamp and fix it with four screws for a permanent installation.
Is a wrist rest or separate mouse tray included?
Ergotron does not specify a wrist rest or a separate mouse platform for this model. The box contains the arm, one-piece tray, desk clamp, slide mechanism and mounting hardware.
Should I choose this or the Keyboard Wall Mount?
Choose this arm when you have a desk and want the keyboard below its surface. Choose the Neo-Flex Keyboard Wall Mount (45-403-062) when there is no desk at all — a patient room, a counter or an industrial kiosk.
Is there a local Singapore warranty?
Yes. Every Ergotron Neo-Flex Underdesk Keyboard Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Neo-Flex Underdesk Keyboard Arm with a 3-year manufacturer warranty.
