Ergotron Neo-Flex® Dual Monitor Wall Mount
PRODUCT DESCRIPTION
Ergotron Neo-Flex® Dual Monitor Wall Mount (28-514-800) - 5 Years Local Warranty
Two Screens on the Wall, Zero Desk Footprint

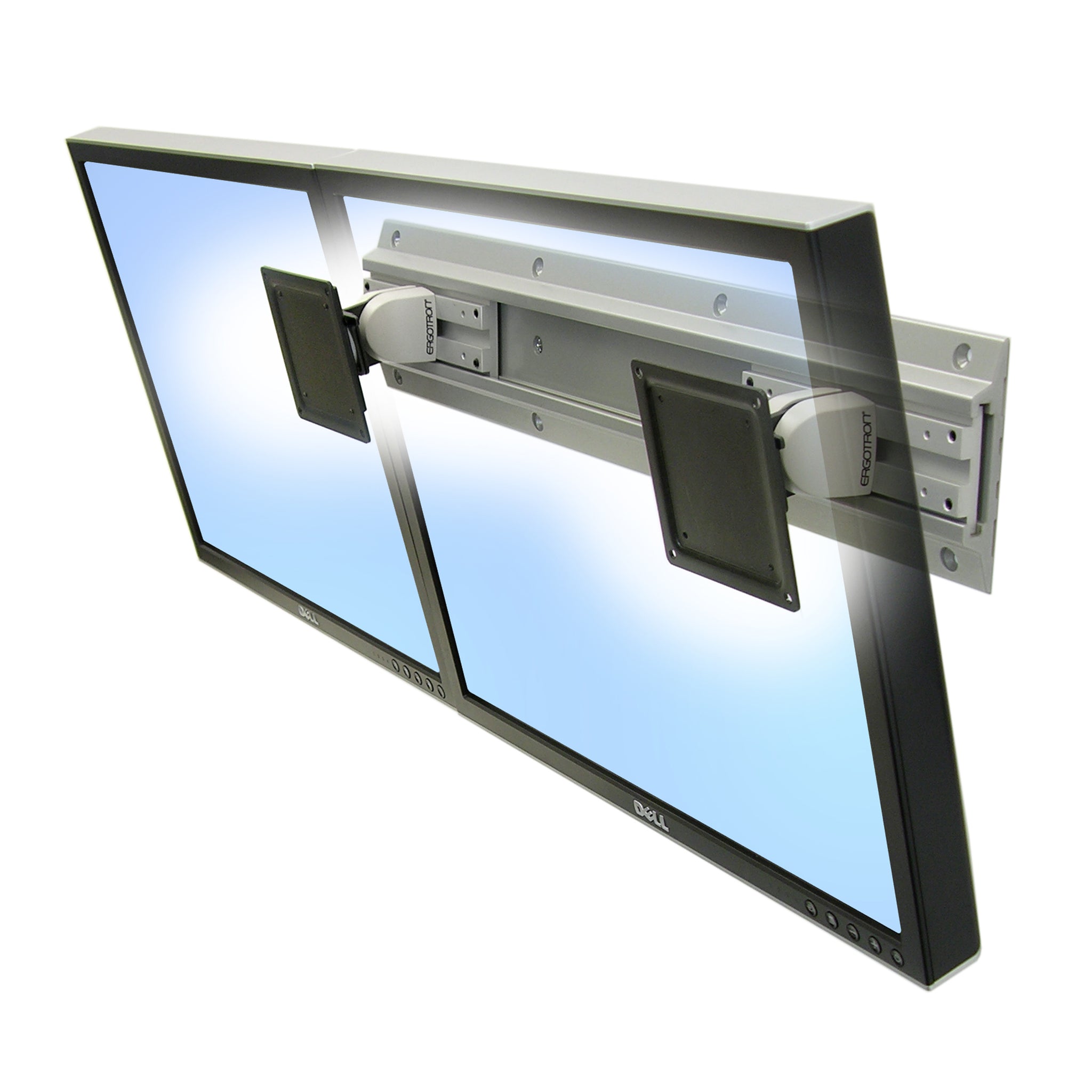

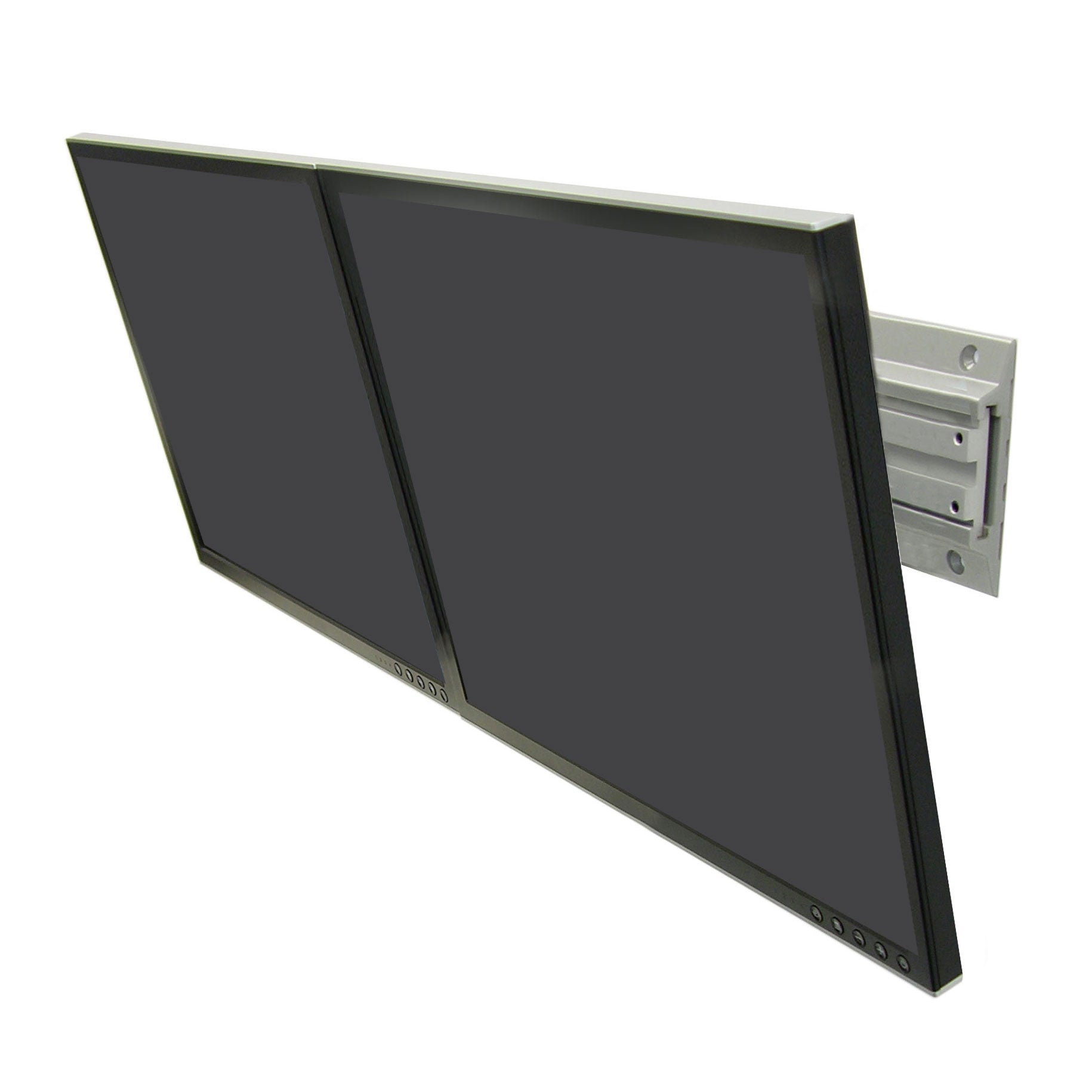

The Ergotron Neo-Flex Dual Monitor Wall Mount carries two displays of up to 24 inches on a single wall plate, taking both screens — and their stands — off the work surface entirely. In Singapore offices, clinics and shop-floor kiosks where every square foot of desk is spoken for, moving the displays to the wall is often the fastest way to reclaim usable working space.
50 lbs (22.7 kg) of Total Capacity Across Two Pivots
The mount is rated to a combined 50 lbs (22.7 kg), with each pivot carrying up to 25 lbs (11.3 kg). That headroom covers the great majority of 22″–24″ commercial panels, and Ergotron notes that the quoted screen size may be exceeded so long as the display weight stays inside the rated capacity.
Independent Tilt and Full Portrait/Landscape Rotation
Each display tilts through 180° and rotates a full 360° between portrait and landscape. That matters for document-heavy and code-heavy work, for pharmacy and dispensary screens, and for any station where one operator reads a long form while another reads a wide dashboard.
VESA MIS-D Fit for Standard Commercial Panels
The mount uses the VESA MIS-D interface, the pattern carried by the overwhelming majority of business-class monitors in this size class. Ergotron backs the Neo-Flex Dual Monitor Wall Mount with a five-year manufacturer warranty — longer than most wall mounts in its price band.
Ergotron Neo-Flex Dual Monitor Wall Mount Datasheet — Technical Specifications
General
| Product | Neo-Flex® Dual Monitor Wall Mount |
| Part Number | 28-514-800 |
| Finish | Grey & black |
| Displays Supported | Dual (2) |
| Mounting Type | Wall mount |
Display Compatibility
| Typical Screen Size | Up to 24″ per display |
| Weight Capacity (total) | ≤ 50 lbs (22.7 kg) |
| Weight Capacity (per pivot) | 25 lbs (11.3 kg) |
| VESA Compatibility | VESA MIS-D |
| Screen-Size Note | Ergotron: screen size may be exceeded provided display weight stays within the mount’s maximum weight capacity |
Adjustment & Motion
| Tilt | 180° per display |
| Rotation | 360° portrait / landscape per display |
| Lift / Height Adjustment | Not applicable — fixed mounting height |
Design & Durability
| Shipping Dimensions | 30″ x 6″ x 6″ (76.2 x 15.2 x 15.2 cm) |
| Shipping Weight | 12 lbs (5.5 kg) |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Compatibility & Fit
The Neo-Flex Dual Monitor Wall Mount carries two displays of up to 24 inches on the VESA MIS-D pattern, up to 50 lbs (22.7 kg) combined and 25 lbs (11.3 kg) on each pivot. Ergotron notes that the 24″ figure is a guide only — a larger panel is acceptable so long as its weight stays within the rated capacity, which is the specification to check first for ultrawide or curved screens.
This is a wall-mounted product, not a desk clamp or grommet mount, so there is no desk-thickness requirement — the constraint is the wall itself. Fix into sound structure and, where the wall is uncertain, verify the substrate before installing. Each screen tilts 180° and rotates a full 360°, so portrait/landscape mixing is supported on either side.

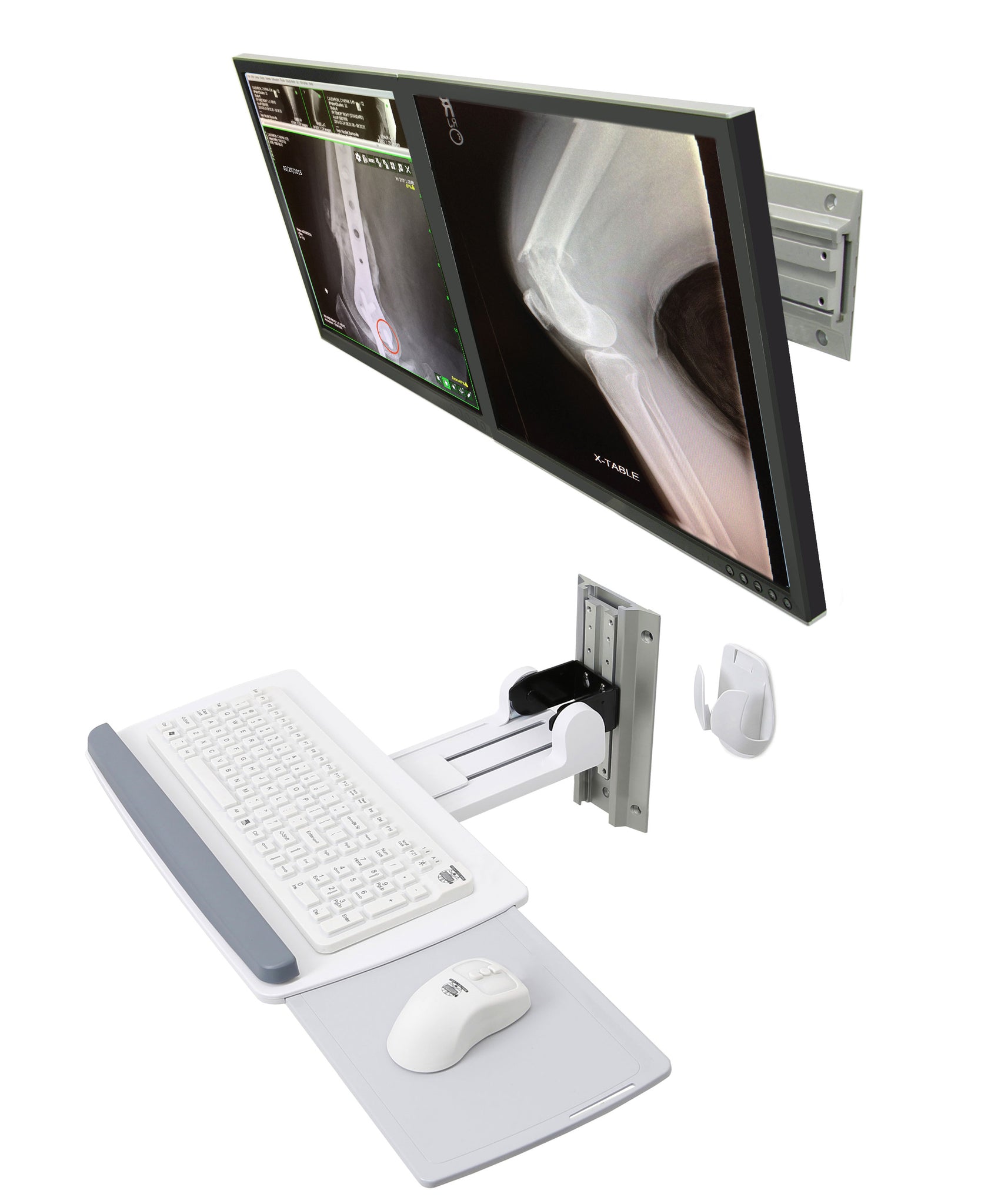

Pair it with the Neo-Flex Keyboard Wall Mount to build a complete wall-mounted input station with no desk at all; if you need a single screen with vertical height adjustment instead, the Neo-Flex Wall Mount Lift is the sibling product.
Package Contents & Neo-Flex Ordering Information
In the box: Neo-Flex dual monitor wall mount assembly with two display pivots and mounting hardware. Ergotron does not publish an itemised box-contents list for this part number.
Neo-Flex Wall-Mounted Range
| Neo-Flex Dual Monitor Wall Mount (grey & black) | 28-514-800 (this listing) |
| Neo-Flex Keyboard Wall Mount (white) | 45-403-062 |
| Neo-Flex Wall Mount Lift, single display (black) | 60-577-195 |
Related Neo-Flex Desktop Stands
| Neo-Flex Dual LCD Monitor Lift Stand | 33-396-085 |
| Neo-Flex Touchscreen Stand | 33-387-085 |
Datasheet & Downloads
Frequently Asked Questions — Ergotron Neo-Flex Dual Monitor Wall Mount
How many monitors does it hold, and how big can they be?
Two displays, each typically up to 24 inches. Ergotron allows a larger screen so long as the display weight stays inside the mount’s rated capacity.
What is the weight limit?
A combined 50 lbs (22.7 kg) across the mount, with a maximum of 25 lbs (11.3 kg) on each of the two pivots.
What VESA pattern do my monitors need?
VESA MIS-D. Check your monitor’s rear mounting pattern against MIS-D before ordering; most business-class 22″–24″ panels comply.
Can I put one screen in portrait?
Yes. Each display rotates a full 360° and tilts through 180° independently of the other, so you can run one portrait and one landscape.
Does it adjust up and down like a monitor arm?
No. This is a fixed-height dual wall mount — the tilt and rotation are the adjustments. If you need vertical height adjustment on the wall, look at the Neo-Flex Wall Mount Lift (60-577-195), which gives 5″ (13 cm) of lift for a single screen.
Where does it make the biggest difference?
Anywhere the desk is the bottleneck — nurses’ stations, dispensaries, reception counters, control rooms and classroom kiosks — because it removes both monitor stands from the work surface completely.
Is there a local Singapore warranty?
Yes. Every Ergotron Neo-Flex Dual Monitor Wall Mount sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Neo-Flex Dual Monitor Wall Mount with a 5-year manufacturer warranty.
