Ergotron Neo-Flex® Wall Mount Lift
PRODUCT DESCRIPTION
Ergotron Neo-Flex® Wall Mount Lift (60-577-195) - 3 Years Local Warranty
Constant Force Lift on a Wall-Mounted Screen
The Ergotron Neo-Flex Wall Mount Lift adds 5 inches (13 cm) of smooth vertical travel to a single wall-mounted display, using Ergotron’s patented Constant Force lift-and-pivot technology. One light touch moves the screen and it holds position — no knobs, no tools, no re-tensioning between users.
Built for Shared and Multi-User Stations

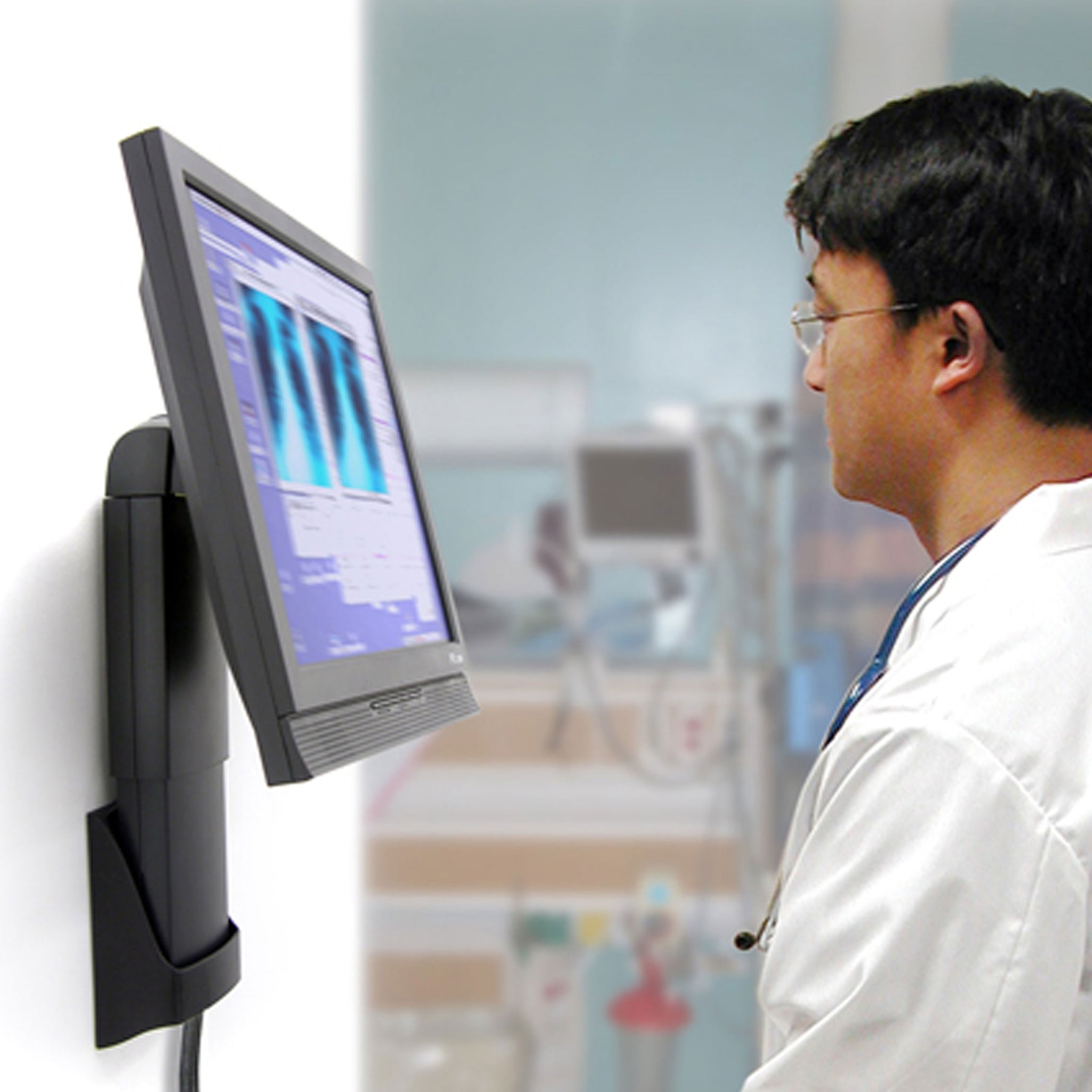

Because the height changes in seconds, the mount suits stations used by several people through the day: ward and consultation rooms, reception counters, workshop terminals and shared kiosks. Ergotron publishes recommended install heights — roughly 24″ (610 mm) for standing users and 39″ (991 mm) for seated users of average height — so the 5″ of travel lands in the right band for the group using it.
Tilt, Pan and Portrait Rotation on One Screen

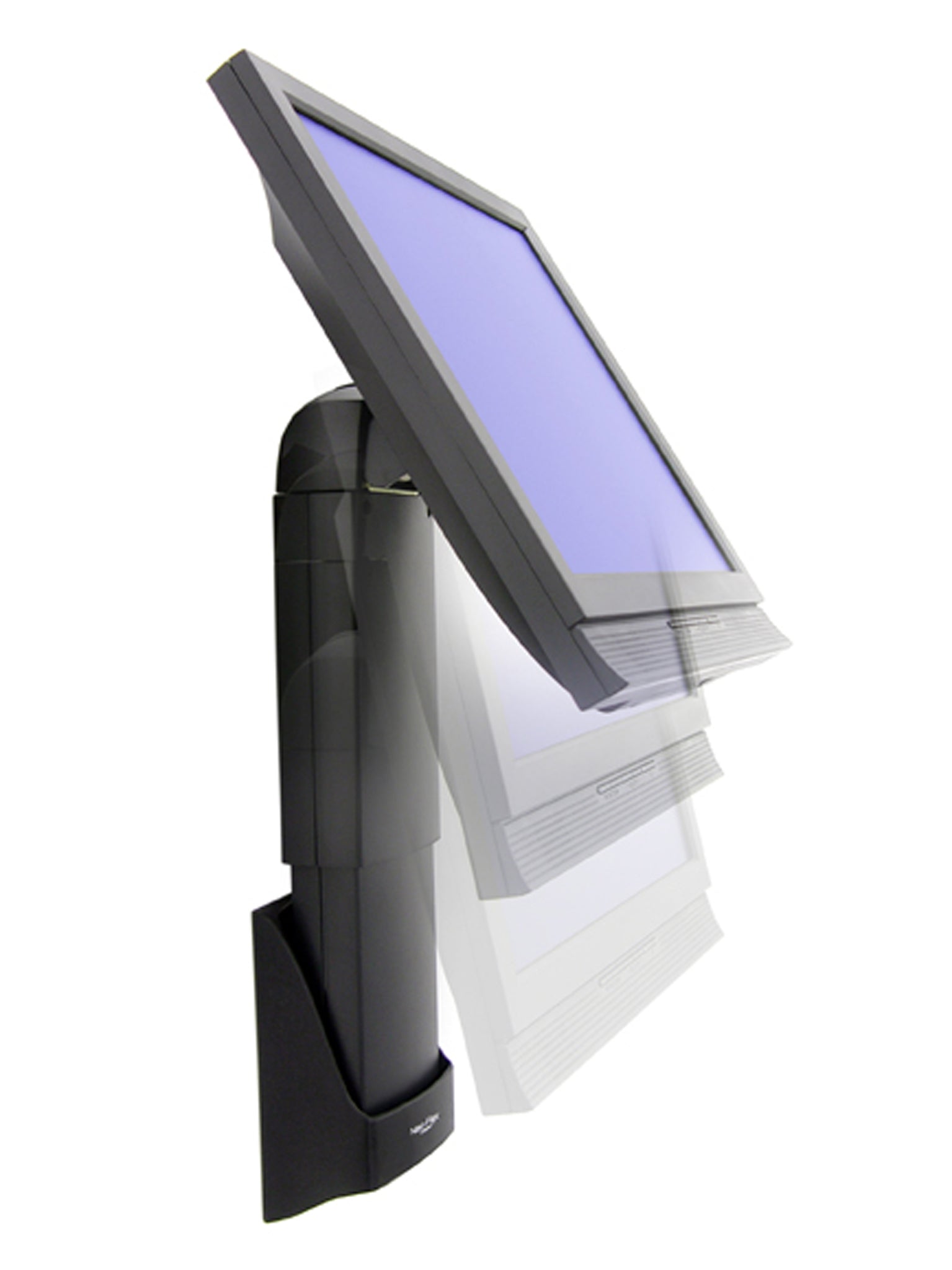

Beyond the lift, the mount gives 35° of tilt, 70° of pan and 90° of rotation between portrait and landscape. That covers glare correction against Singapore’s bright interiors, angling the screen toward a patient or customer, and flipping to portrait for long documents and forms.
Supports Displays up to 27 Inches, VESA MIS-D
The lift carries displays weighing 6–16 lbs (2.7–7.3 kg), typically up to 27 inches, on VESA MIS-D 75 x 75 mm or 100 x 100 mm patterns. Ergotron recommends attaching to a wood stud where possible and adding a Wall Track accessory where extra support is wanted.
Ergotron Neo-Flex Wall Mount Lift Datasheet — Technical Specifications
General
| Product | Neo-Flex® Wall Mount Lift |
| Part Number | 60-577-195 |
| Finish | Black |
| Displays Supported | 1 |
| Mounting Type | Wall mount — sturdy vertical surface; attach to wood stud where applicable |
| Lift Technology | Patented Constant Force (CF) lift-and-pivot motion |
Display Compatibility
| Typical Screen Size | Up to 27″ |
| Weight Capacity | 6–16 lbs (2.7–7.3 kg) |
| VESA Compatibility | VESA MIS-D |
| Display Hole Patterns | 75 x 75 mm and 100 x 100 mm |
| Screen-Size Note | Ergotron: screen size may be exceeded provided display weight stays within the mount’s maximum weight capacity |
Adjustment & Motion
| Lift / Height Adjustment | 5″ (13 cm) |
| Tilt | 35° |
| Pan | 70° |
| Rotation | 90° portrait / landscape |
Design & Durability
| Display Attachment | Four screws to the wall lift |
| Recommended Mount Height (standing user 5’4″–5’9″) | 24″ (610 mm) |
| Recommended Mount Height (seated user 5’3″–5’11″) | 39″ (991 mm) |
| Shipping Dimensions | 18.3″ x 5″ x 5.6″ (46.5 x 12.7 x 14.2 cm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Manufacturer Warranty | 3-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Compatibility & Fit
The Neo-Flex Wall Mount Lift takes a single display of up to 27 inches weighing 6–16 lbs (2.7–7.3 kg) on a VESA MIS-D plate with 75 x 75 mm or 100 x 100 mm holes. Note the lower bound as well as the upper: a very light panel under 6 lbs will not load the Constant Force mechanism correctly.
For ultrawide and curved panels, weight is the specification that governs, not the diagonal — Ergotron states the screen size may be exceeded provided the display weight stays within capacity. Many 34″ ultrawides exceed 16 lbs, so check the panel weight in its manual before ordering.
This is a wall product, so there is no desk-thickness question; the requirement is a sturdy vertical surface, with Ergotron recommending attachment to a wood stud where applicable and a separately-ordered Wall Track accessory where additional support is wanted. For two screens on the wall see the Neo-Flex Dual Monitor Wall Mount (28-514-800); to add a keyboard to the same wall, see the Neo-Flex Keyboard Wall Mount (45-403-062).
Package Contents & Neo-Flex Ordering Information
In the box: Neo-Flex Wall Mount Lift with Constant Force lift mechanism and display-attachment screws. Ergotron does not publish an itemised box-contents list for this part number; wall fixings appropriate to your substrate may need to be sourced separately.
Neo-Flex Wall-Mounted Range
| Neo-Flex Wall Mount Lift, single display (black) | 60-577-195 (this listing) |
| Neo-Flex Dual Monitor Wall Mount (grey & black) | 28-514-800 |
| Neo-Flex Keyboard Wall Mount (white) | 45-403-062 |
Related Neo-Flex Desktop Stands
| Neo-Flex Dual LCD Monitor Lift Stand | 33-396-085 |
| Neo-Flex Touchscreen Stand | 33-387-085 |
Datasheet & Downloads
Frequently Asked Questions — Ergotron Neo-Flex Wall Mount Lift
How much height adjustment does it give?
5 inches (13 cm) of vertical lift, using Ergotron’s patented Constant Force technology — the screen moves with a light touch and stays where you leave it.
What size and weight of monitor does it take?
A single display typically up to 27 inches, weighing 6–16 lbs (2.7–7.3 kg). The lower limit matters as well as the upper — a panel lighter than 6 lbs will not work correctly with the lift mechanism.
What VESA pattern do I need?
VESA MIS-D, with display hole patterns of 75 x 75 mm or 100 x 100 mm.
How high should I mount it on the wall?
Ergotron’s guidance is about 24″ (610 mm) for standing users around 5’4″–5’9″ and about 39″ (991 mm) for seated users around 5’3″–5’11″, adjusting one inch for every inch of difference in user height.
What kind of wall does it need?
A sturdy vertical surface. Ergotron recommends attaching to a wood stud where applicable, and adding a separately-ordered Wall Track accessory to increase support.
How does it compare with the Dual Monitor Wall Mount?
The Neo-Flex Dual Monitor Wall Mount (28-514-800) carries two screens at a fixed height with a 50 lbs (22.7 kg) total capacity. This lift carries one screen but adds 5″ of height adjustment, tilt and pan — choose it when different people use the same station.
Is there a local Singapore warranty?
Yes. Every Ergotron Neo-Flex Wall Mount Lift sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Neo-Flex Wall Mount Lift with a 3-year manufacturer warranty.
