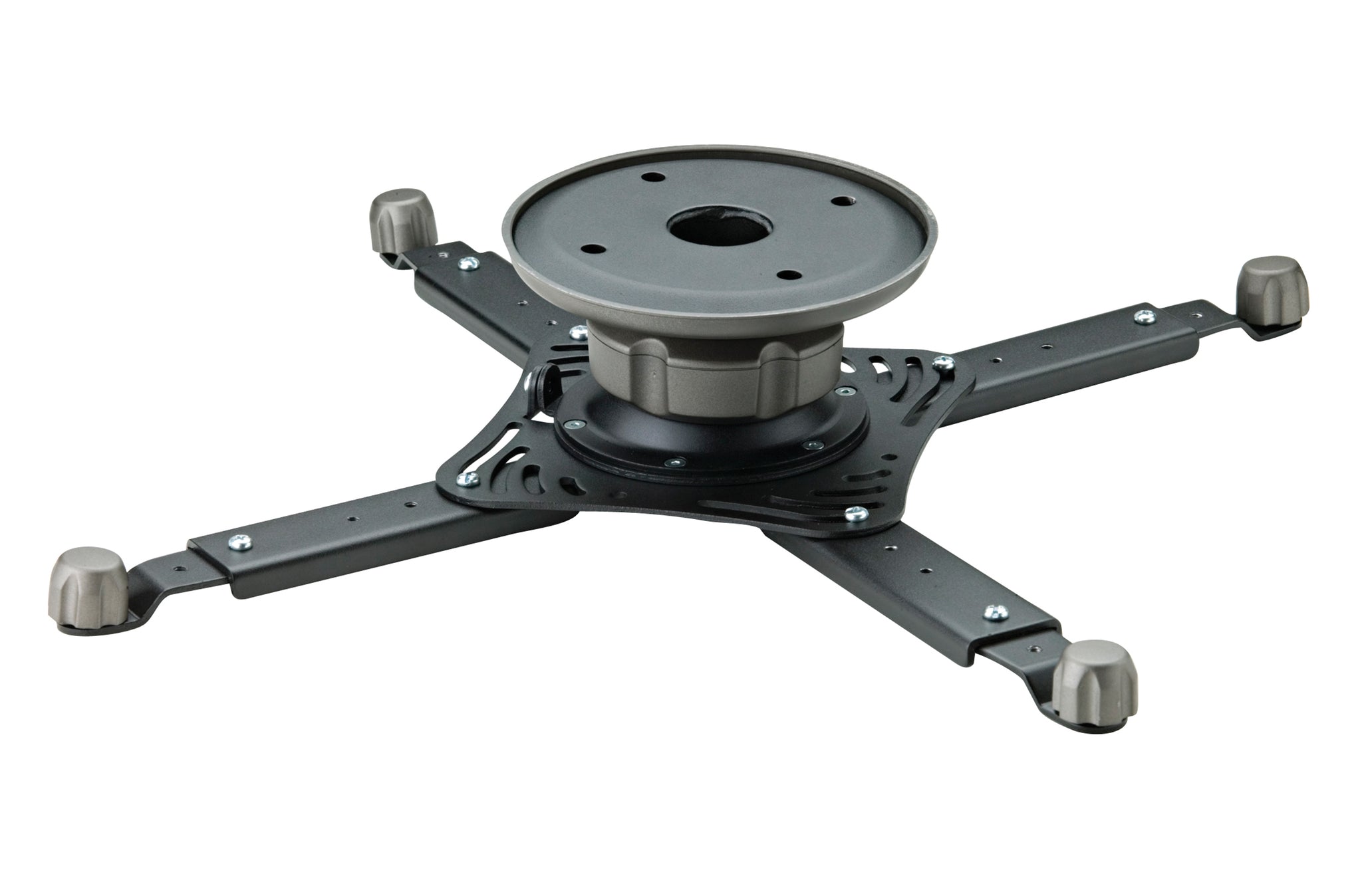

Ergotron Neo-Flex® Ceiling Projector Mount
PRODUCT DESCRIPTION
Ergotron Neo-Flex Ceiling Projector Mount (60-623) - Local Warranty
Infinitely Adjustable Pitch, Roll and Yaw After Installation
Ergotron's own description of this mount names the specification that matters on a ceiling install: infinitely adjustable pitch, roll and yaw. A ceiling-mounted projector is almost never square to the screen on the first attempt, and being able to correct all three axes after the mount is fixed is what turns a two-hour alignment into a five-minute one.
Three Axes Beat Keystone Correction
Digital keystone correction crops and softens the image to hide a mechanical misalignment. Getting pitch, roll and yaw physically right instead preserves the projector's native resolution and brightness — which in a meeting room or lecture theatre is the difference between a sharp image and a merely acceptable one.
Ceiling Mounting Where the Ceiling Is Not Cooperative
Suspended ceilings, service voids and beam positions rarely line up with where the projector needs to hang. Post-installation adjustment across all three axes gives the installer room to work with the ceiling that exists rather than the one on the drawing.
Ergotron Neo-Flex Ceiling Projector Mount Datasheet — Technical Specifications
General
| Product | Ergotron Neo-Flex Ceiling Projector Mount |
| Part Number | 60-623 |
| Type | Ceiling-mounted projector mount |
| Ergotron Product Page Title | Adjustable Ceiling Projector Mount | Ergotron Neo-Flex |
| Warranty | Local warranty — see the note below |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Adjustment & Motion
| Pitch | Infinitely adjustable after installation |
| Roll | Infinitely adjustable after installation |
| Yaw | Infinitely adjustable after installation |
| Source | Ergotron product page for 60-623 |
Published Specification Limits — please read before ordering
| Projector Weight Capacity | Not published by Ergotron. Distributor listings widely quote 40 lb (18.1 kg), but we could not confirm that figure in any Ergotron document and will not state it as a specification |
| Degrees of Pitch, Roll and Yaw | Not published by Ergotron as figures — only that all three are infinitely adjustable |
| Drop or Extension Below the Ceiling | Not published by Ergotron |
| Projector Mounting Pattern | Not published by Ergotron |
| Ceiling Structure Requirements | Not published by Ergotron |
| Dimensions, Weight, Materials | Not published by Ergotron |
| Box Contents | Not published by Ergotron |
| Datasheet | Ergotron publishes no datasheet PDF for this part number that we could locate |
Compatibility & Fit
We are publishing this page with fewer specifications than the rest of our Ergotron range, deliberately. Ergotron maintains a product page for the Neo-Flex Ceiling Projector Mount but publishes no datasheet for it, and the only specification we can attribute to Ergotron itself is that pitch, roll and yaw are infinitely adjustable after installation. On a product that suspends equipment above people's heads, we would rather show you that gap than fill it with numbers we cannot trace to the manufacturer.
What that means in practice. Distributor listings for this part circulate a projector weight limit of 40 lb (18.1 kg), a hex-pin anti-theft feature, adjustable projector legs and a box-contents list. Those figures are consistent across several independent resellers, and they may well be correct — but they do not appear in any Ergotron document we could reach, and they disagree with each other on the applicable UL standard and on the warranty term. Tell us your projector's make, model and weight and we will confirm the mount's rating with Ergotron or the distributor before anything ships.
Before you specify a ceiling mount at all, two things are worth settling: the projector's own mounting-hole pattern, and what the ceiling can carry. Neither is published for this mount, and a ceiling installation is not a place to discover a mismatch. Send us the projector model and a description of the ceiling construction and we will work it through with you.
Package Contents & Neo-Flex Ordering Information
Ergotron publishes no box-contents list for this mount. Reseller listings describe a projector plate, articulation unit, ceiling plate, projector legs, a coupler and a hardware kit — consistently, but without an Ergotron source we present that as background rather than as the packing list. Ask us and we will confirm the contents before you order.
Ergotron Neo-Flex Mount Ordering Information
| 60-623 (this listing) | Neo-Flex Ceiling Projector Mount — infinitely adjustable pitch, roll and yaw |
Related Ergotron Display Mounts at SourceIT
| 60-614 | Neo-Flex Fixed Wall Mount, UHD — 175 lb (79.4 kg), up to 80" |
| 60-604-003 | WM Low Profile Wall Mount — 175 lb (79.4 kg), 1.25" profile |
| 60-602-003 | WM Low Profile Wall Mount, XL — hole patterns to 800 mm |
| 60-600-009 | SIM90 Signage Integration Mount — display plus mini PC |
Ergotron AV and Presentation Products at SourceIT
| 24-190-085 | Neo-Flex Mobile MediaCenter LD Cart |
| 24-191-085 | Neo-Flex Mobile MediaCenter VHD Cart |
| 24-220-055 | TeachWell Mobile Digital Workspace |
Datasheet & Downloads
- Ergotron Neo-Flex Ceiling Projector Mount product page (60-623)
- Ergotron Product Warranty Terms & Conditions (PDF)
Ergotron publishes no datasheet PDF or installation guide for this part number that we could locate, which is unusual in its range and is why this page carries so few figures. Ask us and we will request current documentation from Ergotron or the distributor for your project.
Frequently Asked Questions — Ergotron Neo-Flex Ceiling Projector Mount
How heavy a projector will it hold?
Ergotron publishes no weight capacity for this mount. Distributor listings widely quote 40 lb (18.1 kg), but that figure is not traceable to an Ergotron document and we will not state it as a specification for a product suspended above people. Send us your projector's model and weight and we will confirm the rating before you order.
What adjustment does it offer?
Ergotron states that pitch, roll and yaw are all infinitely adjustable after installation. It publishes no degree figures for any of the three.
Why does this listing have fewer specifications than your other Ergotron pages?
Because Ergotron publishes fewer. There is no datasheet for this part number that we could find, and the numbers circulating on reseller sites disagree with each other on the UL standard and the warranty term. We publish what the manufacturer states and flag the rest rather than presenting unverified figures as fact.
Will it fit my projector's mounting holes?
Ergotron publishes no mounting pattern for this product. Send us the projector make and model and we will check the interface before you commit.
What does the ceiling need to support?
Ergotron publishes no ceiling structure requirement, stud spacing or fixing specification. For any ceiling installation, the structure has to be assessed by whoever is installing it — tell us about the ceiling and we will get the manufacturer's guidance for your case.
Can I use it with a drop pole or extension column?
Ergotron publishes no drop or extension figure for this mount. If your room needs the projector at a specific height below the ceiling, ask us before ordering.
Does it come with a warranty in Singapore?
Yes. Every Ergotron Neo-Flex Ceiling Projector Mount sold by SourceIT comes with local Singapore warranty and a GST invoice. Ergotron's published warranty schedule gives a 3-year term for Neo-Flex products under its Monitor Mounts category, which does not clearly extend to a projector mount, and distributor listings disagree between three and five years — so we do not quote a manufacturer duration on this page. Ask us and we will confirm the current term with Ergotron for your order.
