Ergotron SIM90 Signage Integration Mount
PRODUCT DESCRIPTION
Ergotron SIM90 Signage Integration Mount (60-600-009) - 5 Years Local Warranty
Display, Mini PC and Power Brick on One Wall Mount

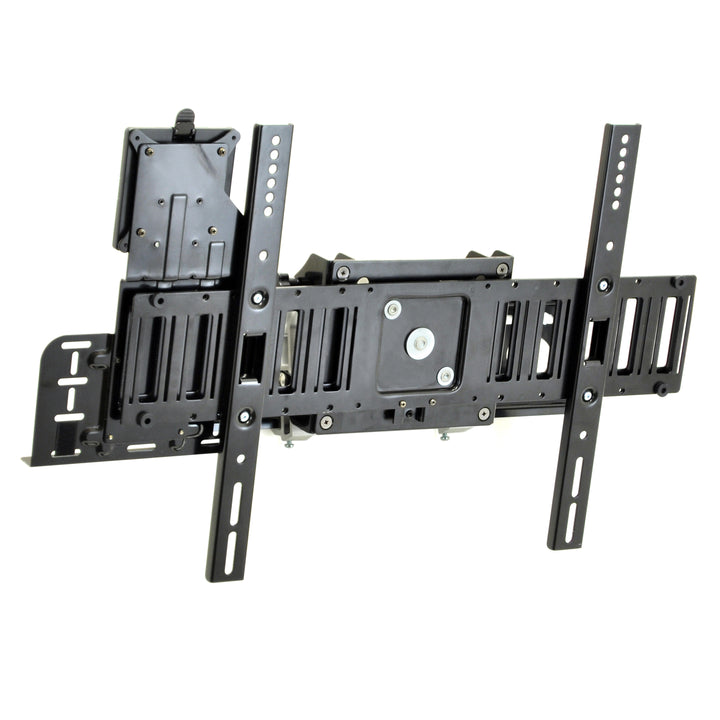

The SIM90 mounts the whole digital-signage stack in one part number: a display of up to 105 lb (47.6 kg), a VESA 75/100 mm mini PC of up to 7 lb (3.2 kg) and its power brick of up to 3 lb (1.4 kg), for a total system capacity of 115 lb (52.2 kg). Nothing sits on the floor and nothing is cable-tied to the back of the panel.

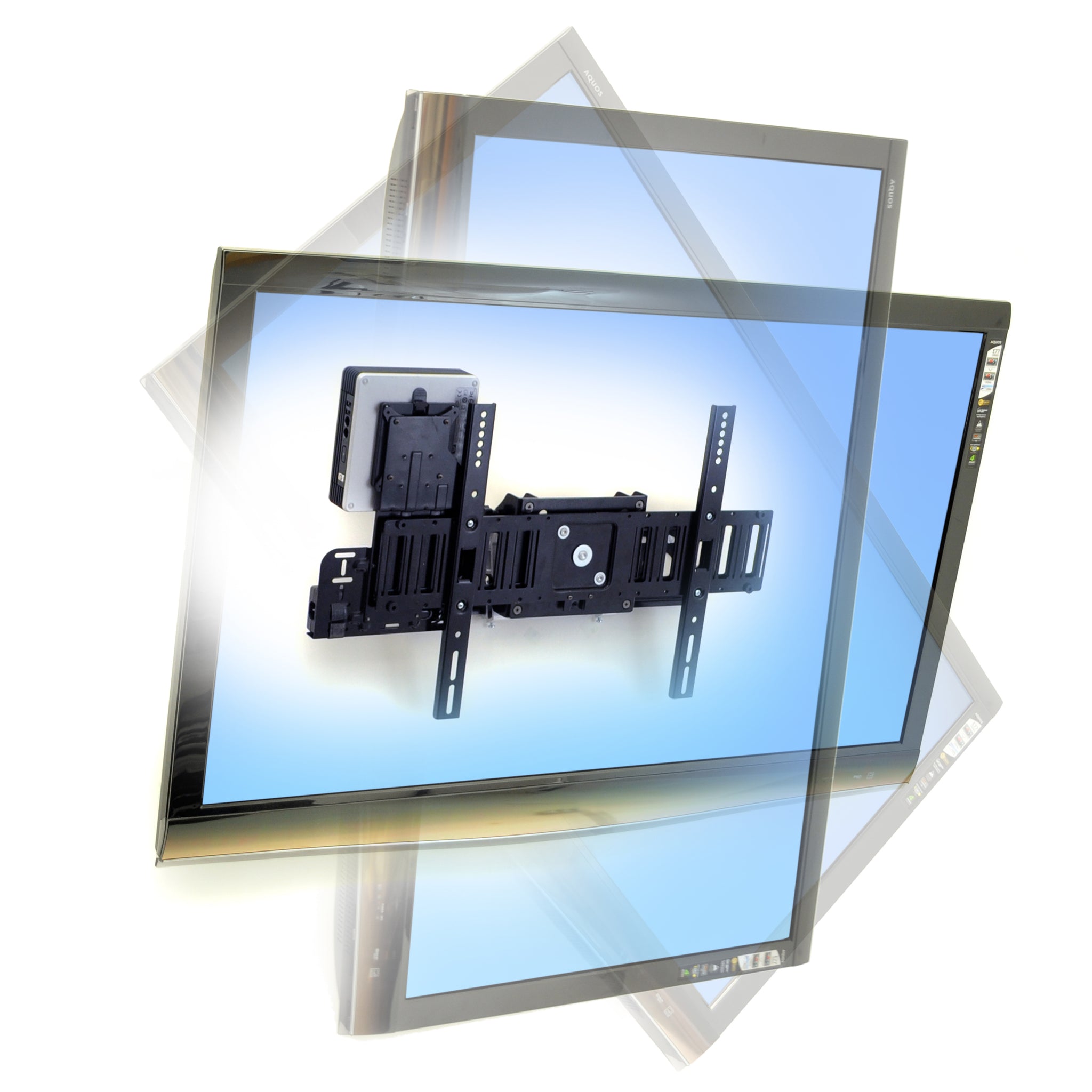

90° Rotation Between Portrait and Landscape Without Reinstalling the Display
Signage briefs change. The SIM90 rotates the panel through 90° from landscape to portrait without removing it from the wall, which turns a half-day re-install into a few minutes' work — the single most useful feature for retail and F&B operators in Singapore who reformat content seasonally.

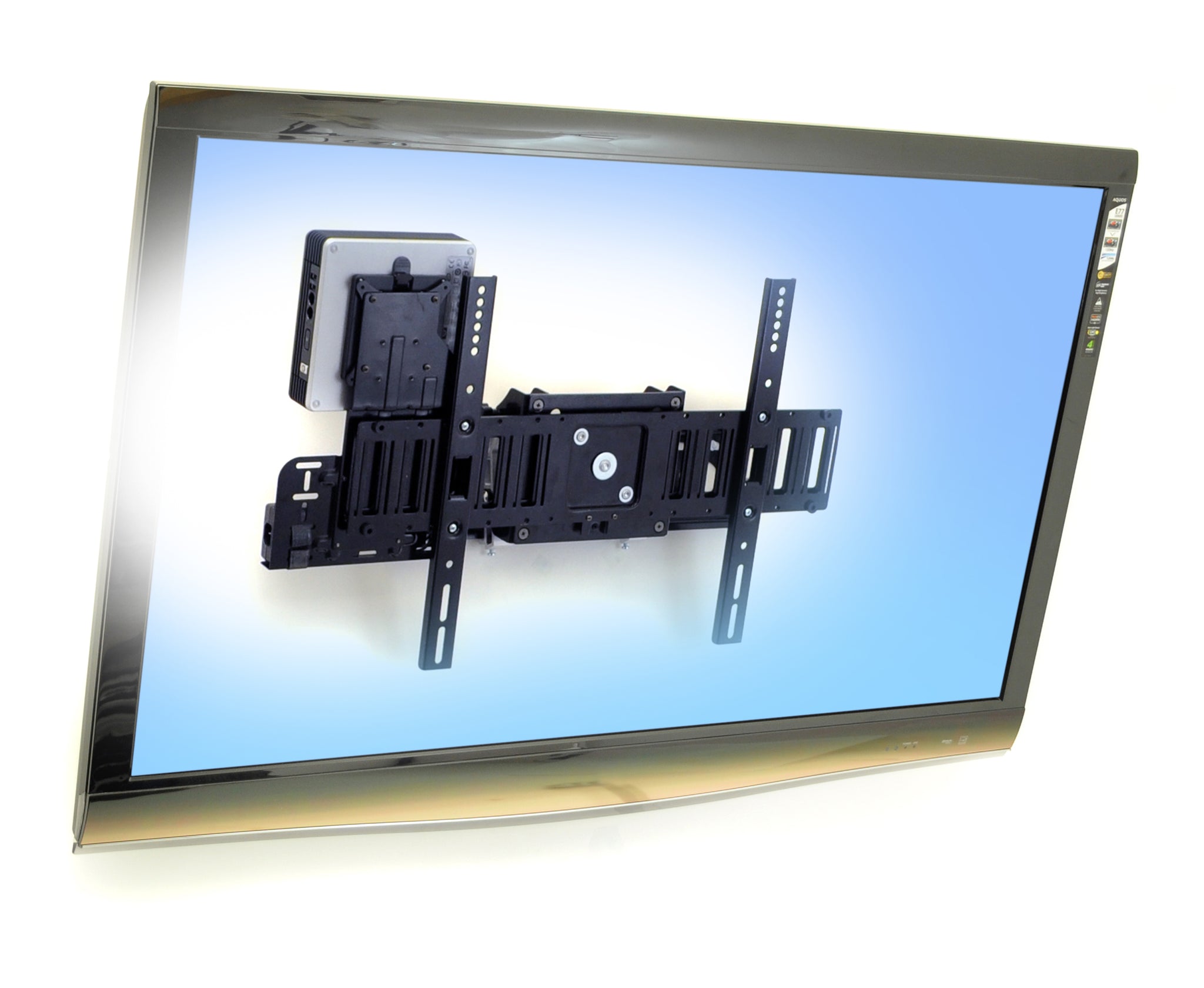

0° to 15° Forward Tilt and 5.7" (14.5 cm) of Lateral Shift

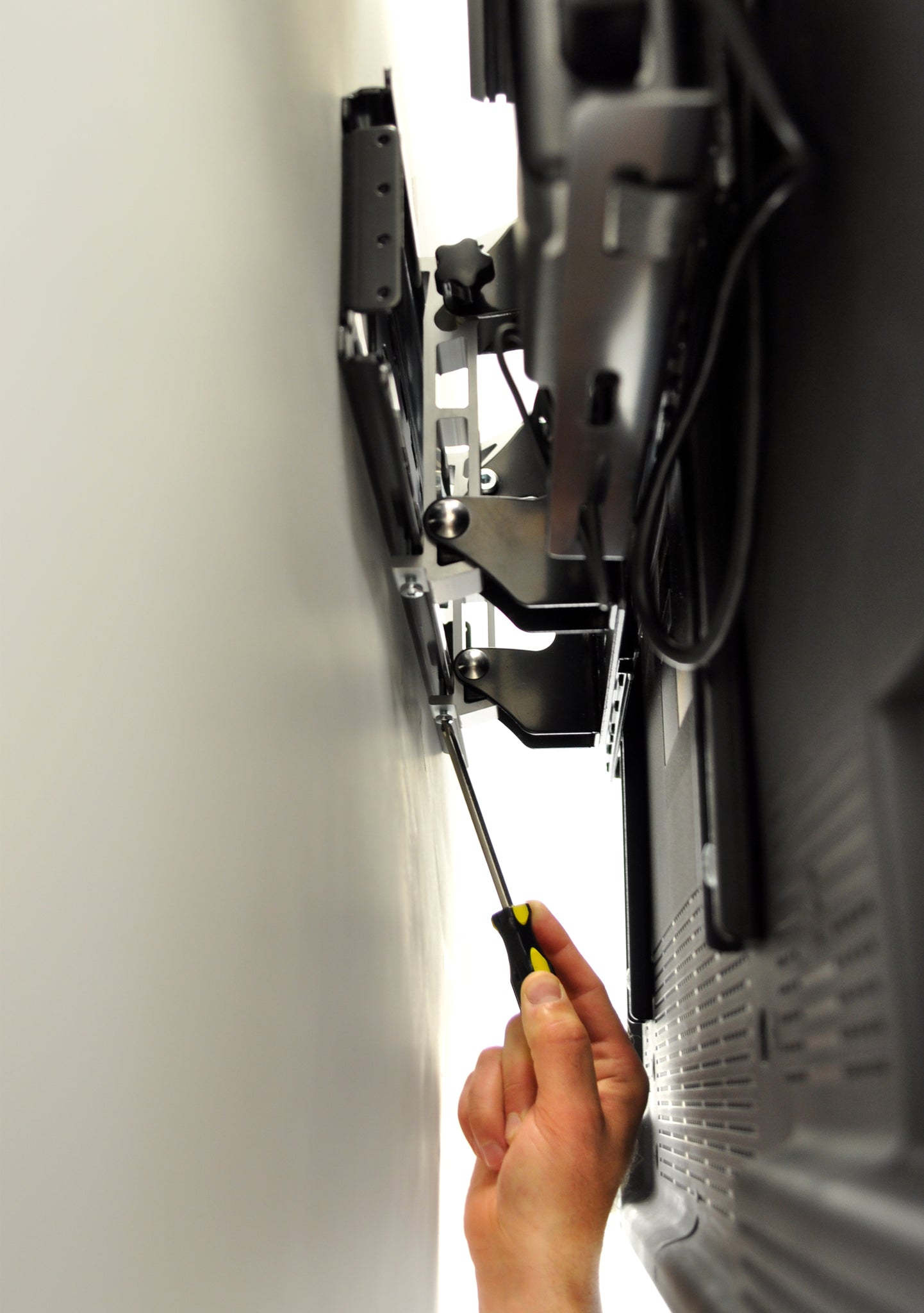

Continuous forward tilt from 0° to 15° controls glare from shop lighting and daylight, and the mount allows up to 5.7" (14.5 cm) of lateral shift relative to the wall studs — so the screen lands where the design says it should, not where the studs happen to be.

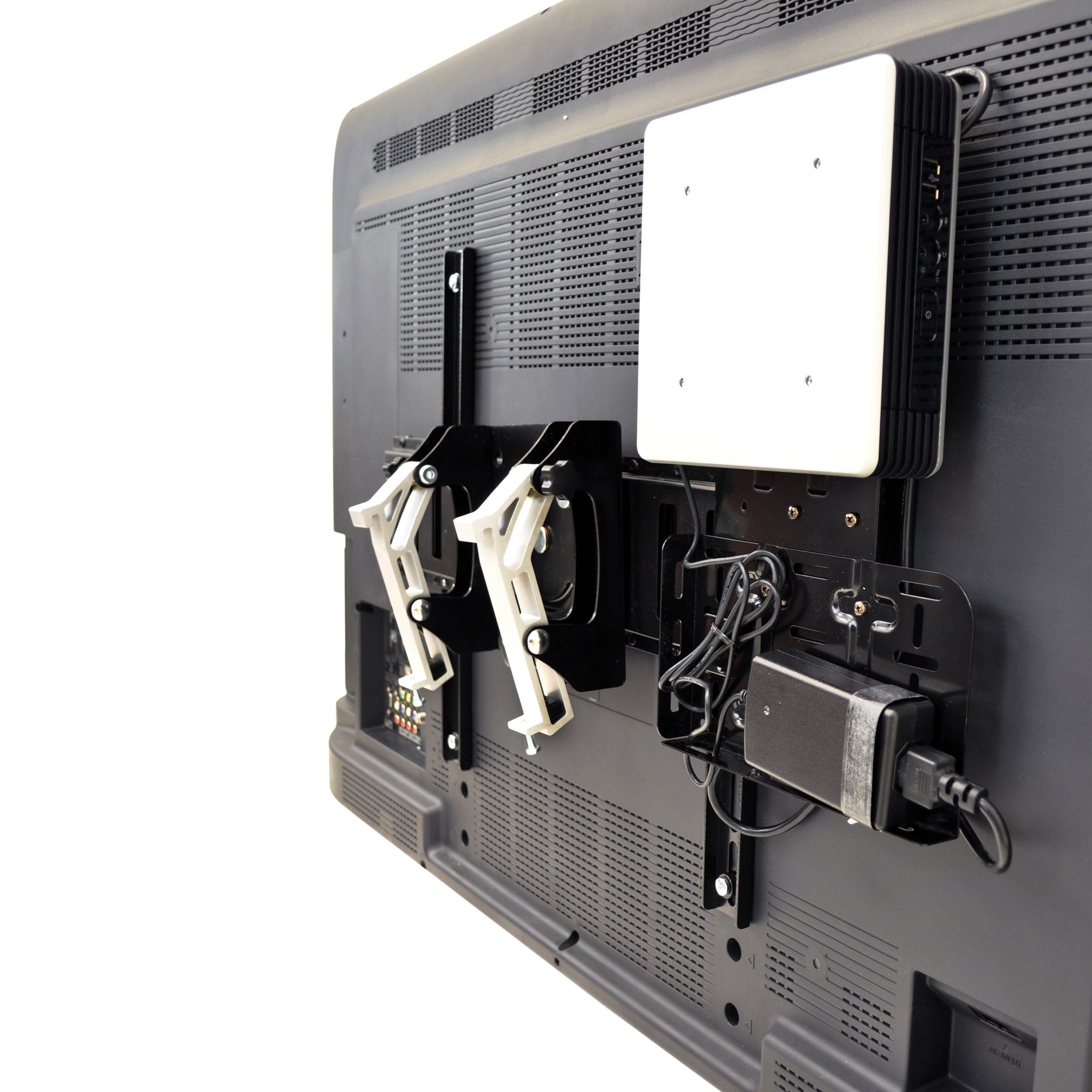

Quick-Release Mini PC Bracket, Cable Management and Security Screws
The mini PC and power brick sit on a quick-release VESA bracket for servicing without dismounting the display. Cable management is built in, and security screws deter removal in unattended retail and public spaces.
Ergotron SIM90 Signage Integration Mount Datasheet — Technical Specifications
General
| Product | Ergotron SIM90 Signage Integration Mount |
| Part Number | 60-600-009 |
| Mount Type | Wall mount for display plus mini PC and power brick |
| Number of Displays | 1 |
| Colour | Black |
| Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Display Compatibility
| Display Weight Capacity | ≤ 105 lb (47.6 kg) |
| Total System Capacity | 115 lb (52.2 kg) |
| Mini PC / CPU Capacity | 7 lb (3.2 kg) |
| Power Brick Capacity | 3 lb (1.4 kg) |
| Display Size | 32" and larger |
| Display Hole Patterns — Horizontal | 200, 300, 400, 440, 500 or 600 mm |
| Display Hole Patterns — Vertical | 200 or 400 mm |
| Mini PC VESA Pattern | 75 x 75 mm or 100 x 100 mm |
| Maximum Mini PC Size | 13.5"W x 10"H x 2.6"D (34.3 x 25.4 x 6.6 cm) |
Adjustment & Motion
| Tilt | Continuous 0° to 15° forward |
| Rotation | 90° — portrait to landscape without reinstalling the display |
| Lateral Shift | Up to 5.7" (14.5 cm) relative to the wall studs |
| Profile / Depth from Wall | 4.8" (12 cm) |
Design & Durability
| Mounting | Wood studs at 16" centred, or concrete wall surfaces — hardware included |
| Cable Management | Included |
| Security | Security screws for theft deterrence |
| Shipping Dimensions | 13.25"W x 12"H x 28.5"D |
| Shipping Weight | 24 lb (11 kg) |
| Reference Document | Ergotron product sheet 05-100-EA |
Compatibility & Fit
The SIM90 takes a single display of 32" and larger weighing up to 105 lb (47.6 kg). Ergotron specifies the display side as discrete hole patterns rather than a continuous range: 200, 300, 400, 440, 500 or 600 mm horizontally and 200 or 400 mm vertically. Check your panel against that list before ordering — a pattern that falls between those figures is not supported.
On the compute side the bracket accepts a VESA 75 x 75 mm or 100 x 100 mm mini PC up to 13.5" x 10" x 2.6" (34.3 x 25.4 x 6.6 cm) and 7 lb (3.2 kg), plus a power brick up to 3 lb (1.4 kg). Most Intel NUC-class and small-form-factor signage players fall comfortably inside that envelope; check the VESA plate is fitted, since many mini PCs ship it in the box unattached.
Ultrawide and curved panels are governed by the same hole-pattern list and the 105 lb weight limit. Mounting is to wood studs at 16" centres or to concrete, with hardware for both supplied — the 5.7" (14.5 cm) of lateral shift gives useful room to land the screen on the design centreline even when the studs do not cooperate. For steel-stud construction, order Ergotron's Steel Stud Wall Mounting Kit (60-591-003) alongside.
Package Contents & SIM90 Ordering Information
In the box: wall and display brackets, quick-release VESA-CPU mount / power brick bracket, and a hardware fastener kit. Security screws and the cable management system are part of the mount.
SIM90 Ordering Information
| 60-600-009 (this listing) | SIM90 Signage Integration Mount — black, display up to 105 lb (47.6 kg) plus mini PC |
Related Ergotron Display Mounts at SourceIT
| 60-614 | Neo-Flex Fixed Wall Mount, UHD — 175 lb (79.4 kg), up to 80", fixed |
| 60-604-003 | WM Low Profile Wall Mount — 175 lb (79.4 kg), 1.25" profile |
| 60-602-003 | WM Low Profile Wall Mount, XL — patterns to 800 mm |
Related Accessories
| 60-591-003 | Steel Stud Wall Mounting Kit — for steel-stud walls |
| 97-468-202 | Vertical Universal CPU Holder — for a full-size PC beside the display |
Datasheet & Downloads
Frequently Asked Questions — Ergotron SIM90 Signage Integration Mount
What is the SIM90 actually for?
Digital signage installations where the display, the media player and its power supply all need to hang on the wall as one tidy assembly. It carries a display up to 105 lb (47.6 kg), a mini PC up to 7 lb (3.2 kg) and a power brick up to 3 lb (1.4 kg).
Can I switch the screen between landscape and portrait later?
Yes — that is the mount's defining feature. It rotates 90° between orientations without reinstalling the display, so a content reformat does not mean a re-install.
Which display hole patterns does it fit?
Horizontally 200, 300, 400, 440, 500 or 600 mm; vertically 200 or 400 mm. These are discrete patterns, not a continuous range — check your panel's datasheet against the list.
Will my mini PC fit the bracket?
It needs a VESA 75 x 75 mm or 100 x 100 mm mounting pattern and must be no larger than 13.5" x 10" x 2.6" (34.3 x 25.4 x 6.6 cm) and 7 lb (3.2 kg). The bracket is quick-release, so the player can be swapped without taking the display off the wall.
How much does it tilt, and does that help with glare?
Continuously from 0° to 15° forward. On a wall facing shopfront glazing that is usually enough to move a reflection out of the customer's eyeline.
How is it different from the WM Low Profile Wall Mount?
The WM (60-604-003) is a fixed display-only mount with a higher 175 lb capacity and a 1.25" profile. The SIM90 carries less display weight and stands 4.8" off the wall, but adds tilt, 90° rotation, lateral shift and the mini PC and power-brick brackets.
Does it come with a warranty in Singapore?
Yes. Every Ergotron SIM90 Signage Integration Mount sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the SIM90 Signage Integration Mount with a 5-year manufacturer warranty.
