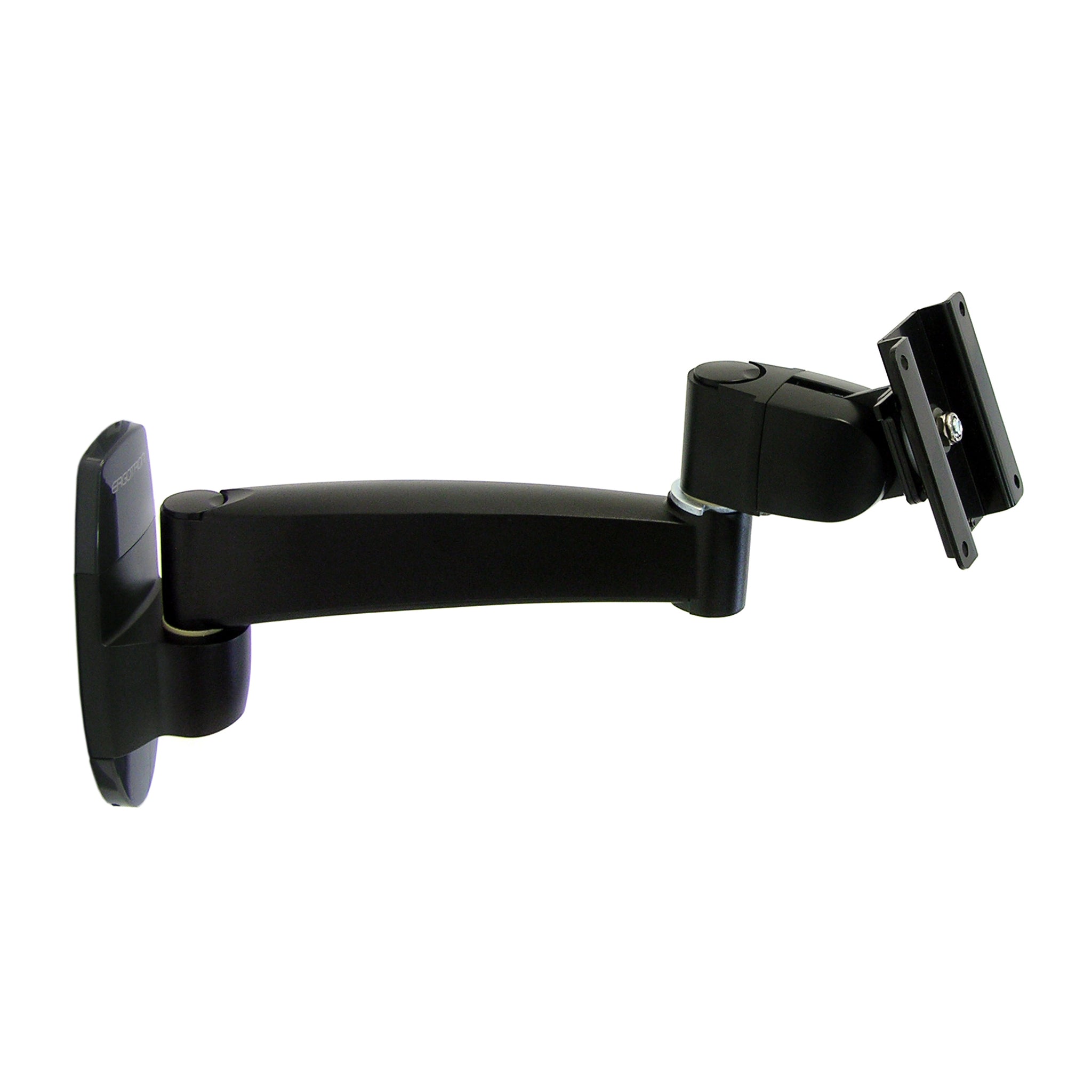

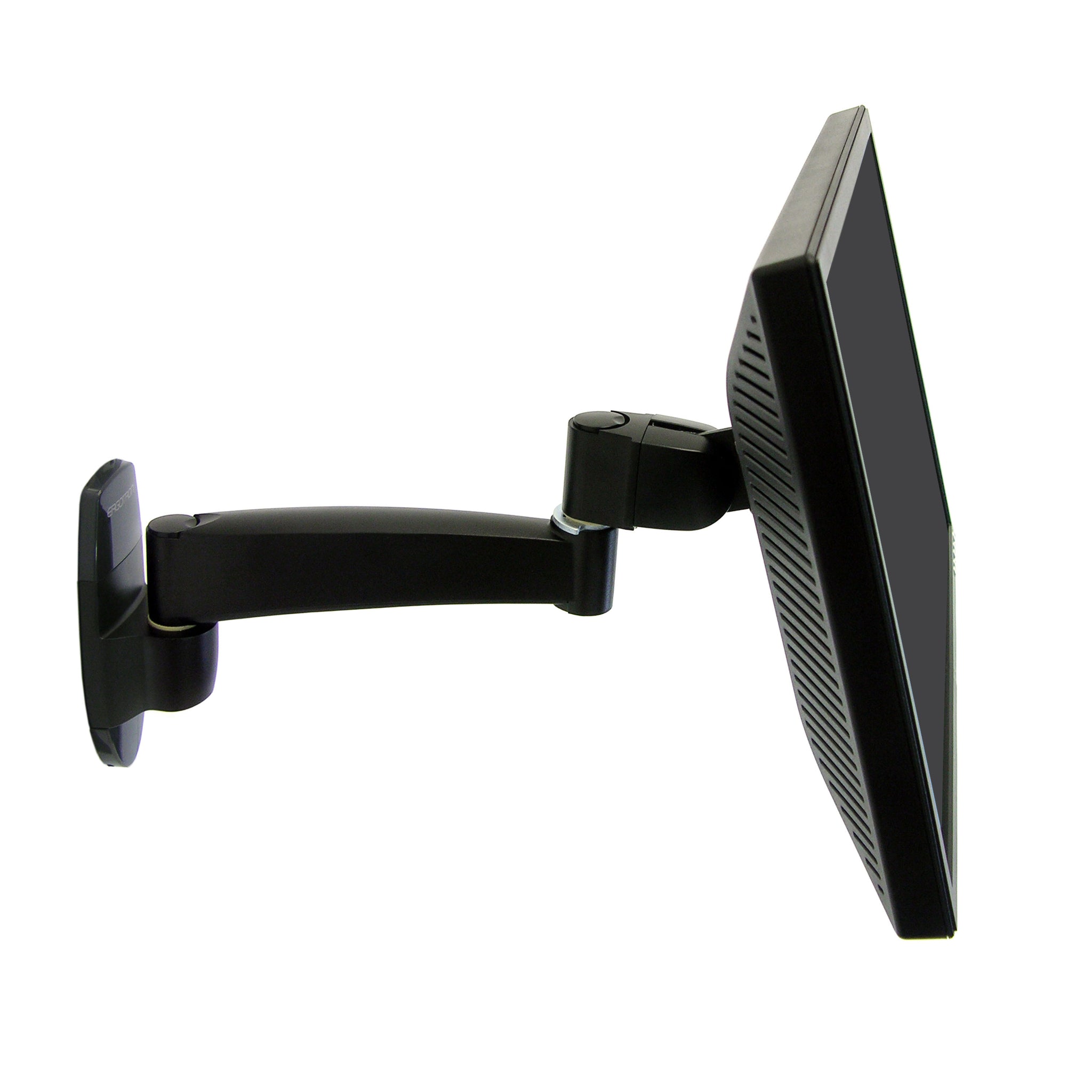

Ergotron 200 Series Wall Monitor Arm, 1 Extension

SKU: 45-233-200

S$271.40
Unit price per
Save S$9.20

Shipping calculated at checkout.

PRODUCT DESCRIPTION

Ergotron 200 Series Wall Monitor Arm, 1 Extension (45-233-200) - 5 Years Local Warranty

Wall-Mounted Display That Folds Back to 5.8″

The Ergotron 200 Series Wall Monitor Arm with one extension mounts a single display to the wall and extends it up to 14.8″ (37.6 cm) into the room, then retracts to 5.8″ when pushed flat. That minimal parked depth is what makes it workable in corridors, clinic bays, reception counters and the compact meeting rooms typical of Singapore offices — the screen is available when needed and out of the traffic path when it is not.

180° Tilt, 360° Pan and 90° Rotation

A generous 180° of tilt lets the display be angled sharply down toward a seated user or up toward someone standing, while 360° of pan swings it across the room and 90° of rotation switches it between landscape and portrait. Together these cover the positioning a shared wall-mounted screen actually needs through a working day.

25 lbs (11.3 kg) Capacity for Displays up to 27″

Ergotron rates the arm at ≤ 25 lbs (11.3 kg) for displays up to 27″ — a genuinely useful envelope that covers most 24″ and 27″ business monitors. Weigh your panel without its factory stand to confirm, particularly for touch-enabled or professional-grade displays.

VESA MIS-D With Cable Management Included

The arm uses the VESA MIS-D interface for broad display compatibility and includes cable management, so the display and power leads run along the arm back to the wall plate instead of hanging loose. The sturdy platform keeps the screen stable through repeated repositioning in shared environments.

Ergotron 200 Series Wall Monitor Arm, 1 Extension Datasheet — Technical Specifications

General

Part Number	45-233-200
Model	200 Series Wall Monitor Arm, 1 Extension
Number of Screens	One (1)
Colour / Finish	Black
Mounting Type	Wall mount
Manufacturer Warranty	5-Year Manufacturer Warranty (Ergotron)
Local Warranty	Local Warranty (Singapore)

Display Compatibility

Weight Capacity	≤ 25 lbs (11.3 kg)
Typical Screen Size	≤ 27″
VESA Pattern	VESA MIS-D

Adjustment & Motion

Tilt	180°
Pan	360°
Rotation	90° (portrait / landscape)
Extension / Reach	Up to 14.8″ (37.6 cm)
Retraction	Retracts to 5.8″

Design & Durability

Cable Management	Included
Design	Interlocking 200 Series telescoping construction

Compatibility & Fit

VESA: VESA MIS-D — the interface used by the great majority of business displays.

Screen fit: a single display up to 27″ weighing no more than 25 lbs (11.3 kg). Check the panel weight without its factory stand; heavier professional and touch displays can exceed this.

Reach: extends up to 14.8″ (37.6 cm) and retracts to 5.8″. If you need roughly twice that reach, specify the 200 Series Wall Monitor Arm, 2 Extensions (45-234-200), which extends to 23.8″ (60.5 cm) with the same weight and size rating.

Wall fixing: fix into structural framing, concrete or masonry. A 27″ display at full extension applies real leverage to the wall plate, so unsupported plasterboard is not acceptable; use an Ergotron steel stud wall mounting kit on stud-frame walls.

Ultrawide and curved panels: a curved 27″ panel within the weight limit mounts normally. Ultrawides generally exceed both the size and weight envelope — use an Ergotron LX or HX wall arm for those.

Package Contents & 200 Series Ordering Information

In the box

200 Series wall arm with one extension
Wall mount plate and fixings
VESA MIS-D monitor mount and mounting hardware
Cable management components
Installation guide

200 Series wall mounts available from SourceIT

200 Series Combo Arm (monitor + keyboard), Black	45-230-200
200 Series Dual Monitor Arm (wall)	45-231-200
200 Series Wall Monitor Arm, 1 Extension (this listing)	45-233-200
200 Series Wall Monitor Arm, 2 Extensions	45-234-200

Reach comparison — 200 Series wall arms

1 Extension (45-233-200) — this listing	Extends to 14.8″ (37.6 cm), retracts to 5.8″
2 Extensions (45-234-200)	Extends to 23.8″ (60.5 cm), retracts to 5.8″

Related Ergotron wall & desk mounts at SourceIT

100 Series Double Pivot Single Monitor Mount	47-093-800 — low-profile wall pivot, ≤ 23 lbs (10.4 kg)
400 Series Wall Monitor Arm, Grey	45-007-099 — 24″ (61 cm) of vertical travel for sit-stand wall use

Datasheet & Downloads

Official Ergotron documentation for this model. Links open in a new tab.

SourceIT Pte Ltd is a Singapore-based IT reseller. For a formal quotation, bulk pricing or a GST invoice, contact our sales team.

Frequently Asked Questions — Ergotron 200 Series Wall Monitor Arm, 1 Extension

How far does the 1-extension arm reach?
Up to 14.8″ (37.6 cm) from the wall, retracting to 5.8″ when folded flat.

What is the weight and size limit?
≤ 25 lbs (11.3 kg) for displays up to 27″, mounted via VESA MIS-D.

Should I choose 1 extension or 2 extensions?
They share the same 25 lbs (11.3 kg) and 27″ rating and the same 5.8″ retracted depth — the difference is reach. Choose 1 extension for a screen serving one position; choose the 2-extension model (45-234-200) at 23.8″ (60.5 cm) when the display has to travel to users in different parts of the room.

Can I mount two screens on it?
No — this is a single-display arm. For two screens on one wall plate, use the 200 Series Dual Monitor Arm (45-231-200), noting its lower 13 lbs (5.9 kg) per-mount rating and 22″ size limit.

Does it rotate to portrait?
Yes, 90° of rotation switches the display between landscape and portrait, with 180° of tilt and 360° of pan.

How does this compare to the 100 Series wall pivot?
The 100 Series Double Pivot (47-093-800) keeps the screen under 6″ from the wall with no meaningful reach, and carries 23 lbs (10.4 kg). This 200 Series arm extends to 14.8″ and carries 25 lbs (11.3 kg). Choose the 100 Series for the tightest profile, the 200 Series when the screen must come to the user.

Does the 200 Series come with a warranty in Singapore?
Yes. Every Ergotron 200 Series Wall Monitor Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the 200 Series Wall Monitor Arm with a 5-year manufacturer warranty.
