Ergotron 200 Series Combo Arm Black

SKU: 45-230-200

S$837.20
Unit price per
Save S$35.88

Shipping calculated at checkout.

PRODUCT DESCRIPTION

Ergotron 200 Series Combo Arm Black (45-230-200) - 5 Years Local Warranty

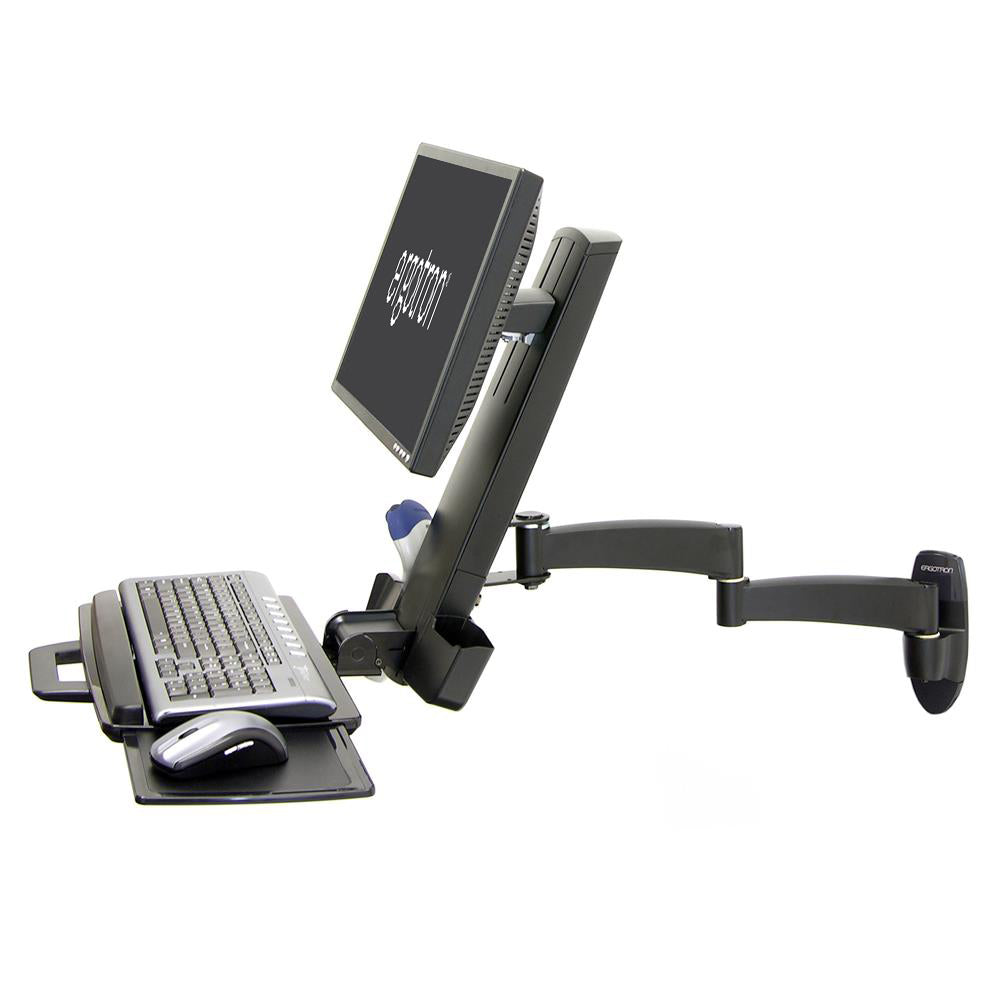

Monitor and Keyboard on One Wall-Mounted Arm

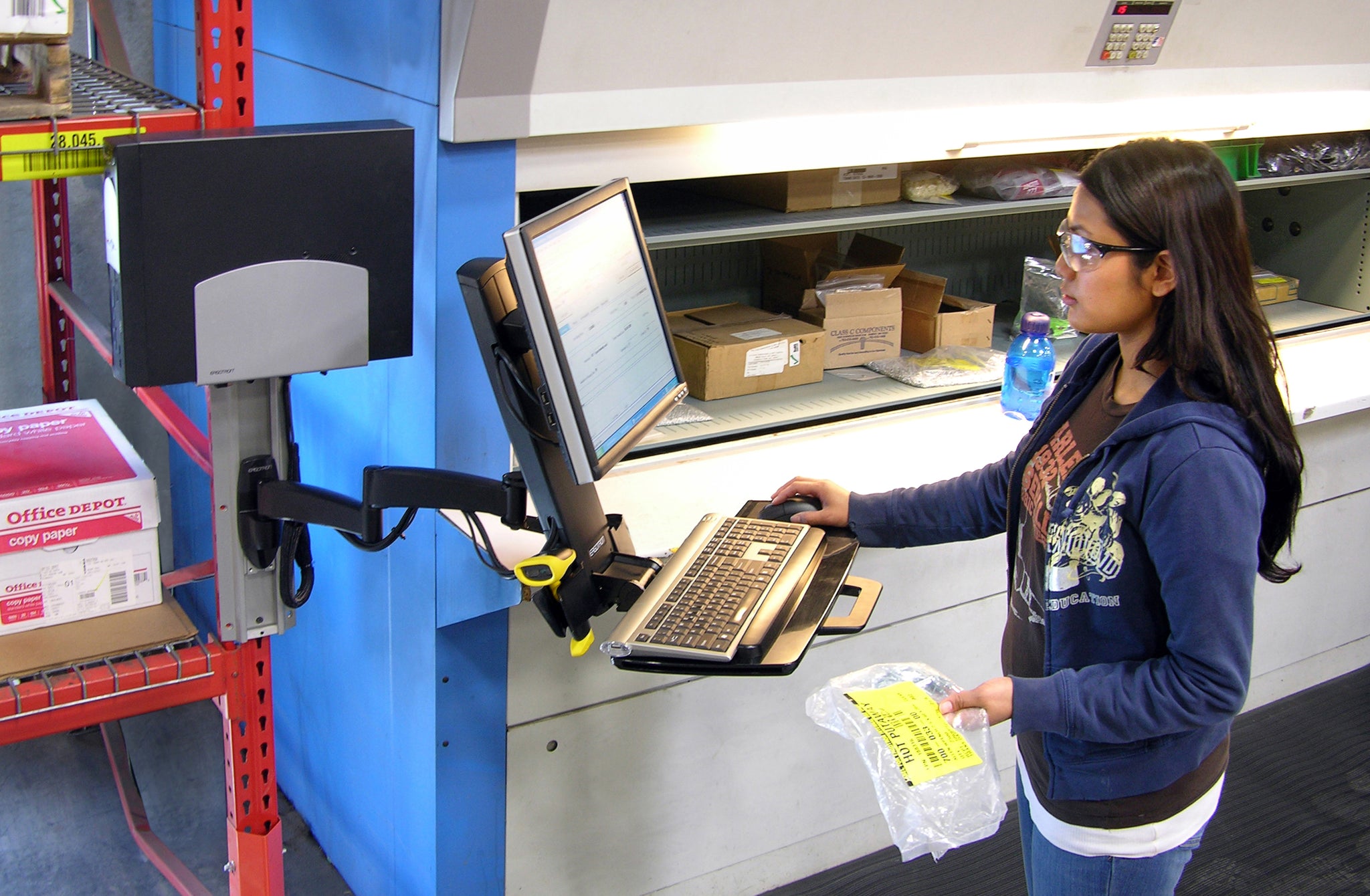

The Ergotron 200 Series Combo Arm puts a display and a full keyboard tray on a single wall-mounted arm, turning a bare wall into a complete point-of-use workstation without consuming any floor or desk space. It is the standard fit-out for nurses’ stations, clinic bays, laboratory benches, warehouse pick stations and reception counters across Singapore, where a workstation is needed but a desk is not.

3-Point Telescoping Reach — 18″ Monitor, 39″ Keyboard

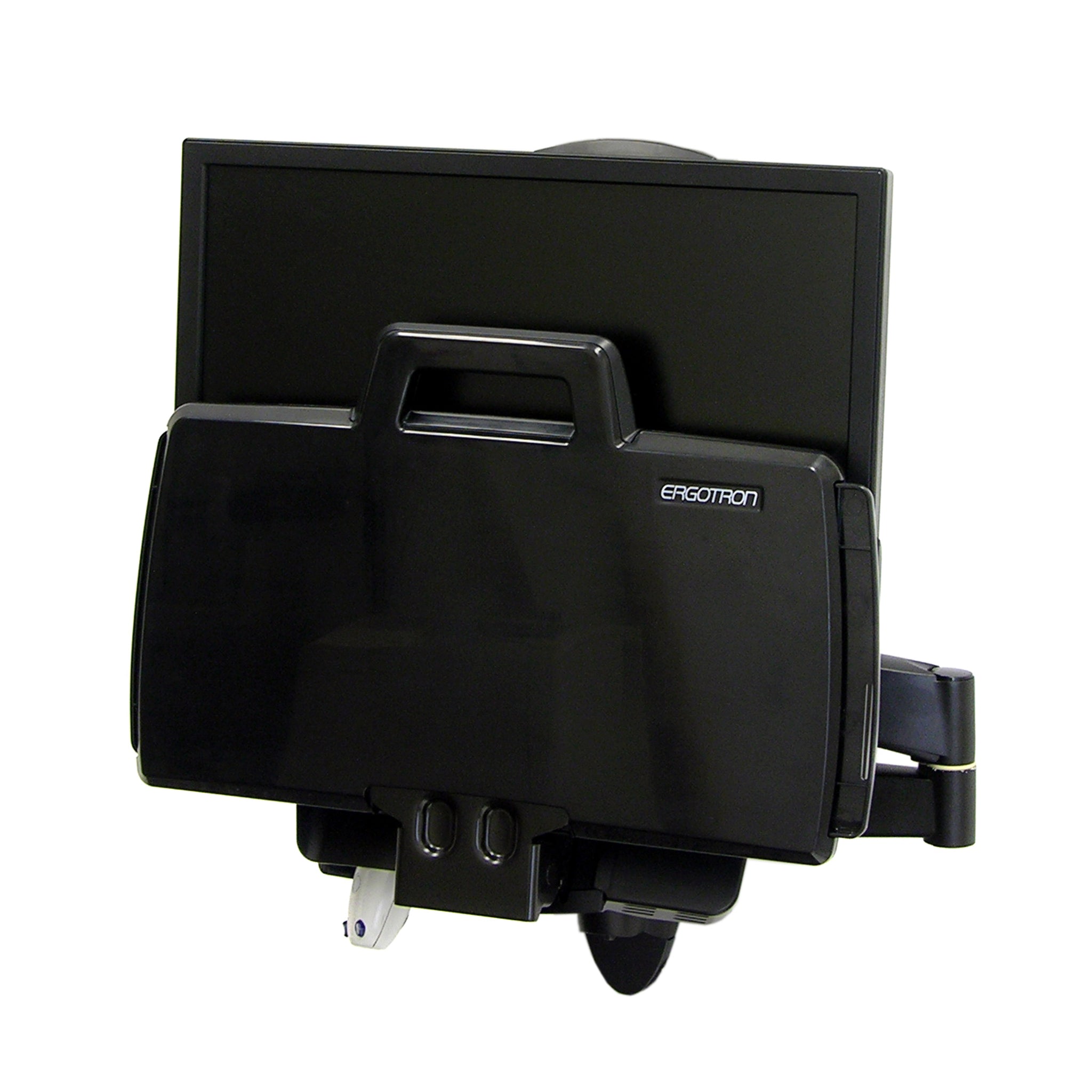

Ergotron’s 3-point telescoping motion extends the monitor up to 18″ (45.7 cm) from the wall and the keyboard up to 39″ (99 cm), then folds the whole assembly back flat when it is not in use. That reach is what lets one arm serve a user standing at the wall and another working further out, and it is the main reason the Combo Arm is chosen over a fixed wall pivot.

Negative-Tilt Keyboard Tray With Mouse and Scanner Holders

The integrated ergonomic negative-tilt keyboard tray comes with a left or right mouse tray, a wrist rest and a scanner and mouse holder. Negative tilt keeps the wrists in a neutral position during long data-entry sessions — a meaningful difference in clinical and logistics settings where staff type standing up for hours at a time.

5″ Height Adjustment, 360° Pan and Steel Construction

The arm provides 5″ (13 cm) of height adjustment with 30° of tilt and a full 360° of pan and rotation, so it can be tuned to different users through the day. Rugged steel construction and an integrated cable management system that conceals and organises cords make it suitable for high-traffic, shared environments where the arm is moved constantly.

Ergotron 200 Series Combo Arm Datasheet — Technical Specifications

General

Part Number	45-230-200
Model	200 Series Combo Arm
Colour / Finish	Black (also available in white as 45-230-216)
Mounting Type	Wall mount with 3-point telescoping motion
Manufacturer Warranty	5-Year Manufacturer Warranty (Ergotron)
Local Warranty	Local Warranty (Singapore)

Display Compatibility

Monitor Weight Capacity	6–18 lbs (2.7–8.2 kg)
Typical Screen Size	≤ 24″
VESA Pattern	VESA MIS-D
Keyboard / Peripheral Capacity	Keyboard, mouse and barcode scanner — 5 lbs (2.3 kg)

Adjustment & Motion

Height Adjustment	5″ (13 cm)
Tilt	30°
Pan	360°
Rotation	360°
Monitor Extension	Extends LCD up to 18″ (45.7 cm)
Keyboard Extension	Extends keyboard up to 39″ (99 cm)

Design & Durability

Construction	Rugged steel construction
Keyboard Tray	Ergonomic negative-tilt keyboard tray with left or right mouse tray
Cable Management	Integrated system conceals and organises cords

Compatibility & Fit

VESA: the Combo Arm mounts displays through VESA MIS-D. A VESA mounting kit is supplied in the box.

Screen fit: Ergotron specifies a monitor weight range of 6–18 lbs (2.7–8.2 kg) at a typical size of ≤ 24″. Note this is a range, not just a maximum — a display lighter than 6 lbs may not load the mechanism enough to hold position reliably. Very light 19–22″ panels and tablets are worth checking against this lower bound before ordering.

Keyboard and peripherals: the tray carries a keyboard, mouse and barcode scanner up to a combined 5 lbs (2.3 kg). Choose left- or right-hand mouse tray placement at installation.

Wall mounting: the Combo Arm carries a monitor, a keyboard tray and a user’s hands at up to 39″ of reach, so the wall fixing does real work. Mount into structural framing or masonry, never into unsupported plasterboard. For stud-frame construction, specify an Ergotron steel stud wall mounting kit.

Ultrawide and curved panels: ultrawides exceed both the size and weight envelope of this arm. Standard 16:9 panels up to 24″ within the weight range are the intended fit.

Package Contents & 200 Series Ordering Information

In the box

200 Combo Arm
Wall mount bracket
Height-adjustable LCD mount
Wrist rest
Scanner and mouse holder
Integrated keyboard tray with left/right mouse tray
Handle
VESA mounting kit
Cable ties

200 Series Combo Arm finishes

200 Series Combo Arm, Black (this listing)	45-230-200
200 Series Combo Arm, White	45-230-216

Other 200 Series wall mounts at SourceIT

200 Series Combo Arm (monitor + keyboard), Black (this listing)	45-230-200
200 Series Dual Monitor Arm (wall)	45-231-200
200 Series Wall Monitor Arm, 1 Extension	45-233-200
200 Series Wall Monitor Arm, 2 Extensions	45-234-200

Related Ergotron wall & desk mounts at SourceIT

100 Series Double Pivot Single Monitor Mount	47-093-800 — low-profile wall pivot, ≤ 23 lbs (10.4 kg)
400 Series Wall Monitor Arm, Grey	45-007-099 — 24″ (61 cm) of vertical travel for sit-stand wall use

Datasheet & Downloads

Official Ergotron documentation for this model. Links open in a new tab.

SourceIT Pte Ltd is a Singapore-based IT reseller. For a formal quotation, bulk pricing or a GST invoice, contact our sales team.

Frequently Asked Questions — Ergotron 200 Series Combo Arm

What is the difference between the black and white Combo Arm?
Finish only. The black 45-230-200 and white 45-230-216 share identical specifications; white is usually specified for clinical and laboratory interiors, black for offices and logistics.

How heavy a monitor can the Combo Arm carry?
Ergotron specifies a range of 6–18 lbs (2.7–8.2 kg) for displays up to about 24″. The lower bound matters as much as the upper one — a very light panel may not hold position properly.

How far does it reach out from the wall?
The 3-point telescoping motion extends the monitor up to 18″ (45.7 cm) and the keyboard up to 39″ (99 cm), and folds back against the wall when idle.

Can it be used for standing work?
Yes. It provides 5″ (13 cm) of height adjustment plus 30° of tilt, and the keyboard tray has an ergonomic negative tilt designed for standing data entry. For a taller sit-stand range, look at Ergotron StyleView sit-stand combo systems.

What holds the keyboard, mouse and scanner?
An integrated keyboard tray with a left or right mouse tray, plus a wrist rest and a scanner and mouse holder, all included. Combined peripheral capacity is 5 lbs (2.3 kg).

How does this compare with the 200 Series Wall Monitor Arm?
The 200 Series Wall Monitor Arm, 1 Extension (45-233-200) carries a display only, up to 25 lbs (11.3 kg) and 27″. The Combo Arm carries a display and a keyboard tray, at a lower monitor rating. Choose the Combo Arm when the user needs to type at the wall.

Does the 200 Series Combo Arm come with a warranty in Singapore?
Yes. Every Ergotron 200 Series Combo Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the 200 Series Combo Arm with a 5-year manufacturer warranty.
