Epson WorkForce ES-60W Wi-Fi Portable Sheetfed Document Scanner
PRODUCT DESCRIPTION
Epson WorkForce ES-60W Wi-Fi Portable Sheetfed Document Scanner (B11B253502) - 1 Year Local Warranty
The Epson WorkForce ES-60W Wi-Fi Portable Sheetfed Document Scanner - Small, compact and lightweight, the WorkForce ES-60W is the perfect solution for on-the-go scanning needs.
Compact size and footprint
Weighing just 300g, the Epson WorkForce ES-60W is a light-weight, portable A4 sheet-fed scanner with comprehensive business scanning capabilities in a super compact, space-saving package.

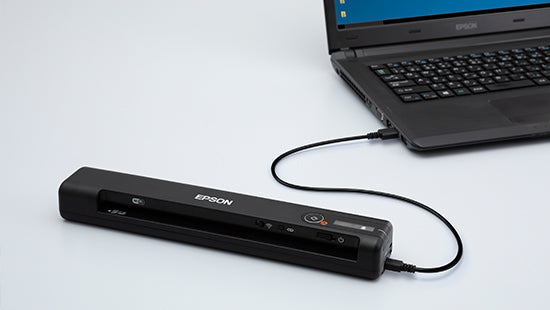

Powered via USB, AC Adapter or built-in battery
Power up and use the scanner with a single USB cable when connected directly to a computer. With the built-in battery, the ES-60W allows users to scan on the go without a power source. It can be recharged either with the AC adapter or when connected to a computer's USB port.
Wi-Fi and Wi-Fi A/P mode connectivity
With Wi-Fi or Wi-Fi Access Point mode, mobile devices can connect to the ES-60W for convenient scanning via the Epson ScanSmart.
Epson ScanSmart
Scan and share documents with confidence using easy scanning options, editing and integration tools.
Key Highlights
- QUALITY SCANS, ANYTIME, ANYWHERE.
- Scan speed up to 4.0sec per sheet (on battery)
Ideal For
Offices, clinics, accounts and admin teams in Singapore that digitise documents, receipts and records at volume. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
WorkForce ES-60W Datasheet — Technical Specifications
General
| Model | WorkForce ES-60W |
| Official Product Name | Epson WorkForce ES-60W Wi-Fi Portable Sheetfed Document Scanner |
| Epson Product Code | B11B253502 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Supported OS and Applications
| Supported OS | Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012 / Server 2016; Mac OS X 10.6.8 or later |
| Bundled Applications | Epson ScanSmart |
| File Format | Epson ScanSmart: JPEG, PDF, Searchable PDF, DOCX, XLSX, PPTX |
| Mobile App | Epson DocumentScan (iOS / Android) |
Control Panel
| Control Panel | LCD Screen |
Scan Speed
| Resolution (Colour / Monochrome) | 200dpi: 4.0sec (Battery) / 5.5sec (USB Bus powered); 300dpi: 4.0sec (Battery) / 5.5sec (USB Bus powered); 600dpi: 9.0sec (Battery) / 9.0sec (USB Bus powered) |
Dimensions and Weight
| Dimensions (W x D x H) | 272 x 47 x 33.8 mm |
| Weight | 270g |
Environmental Conditions
| Temperature | Operating: 5 - 35 °C; Storage: -25 - 60 °C |
| Humidity | Operating: 10 - 85% (No condensation); Storage: 10 - 90% (No condensation) |
Scanning
| Scanner Type | A4 sheet-fed colour scanner |
| Sensor Type | Contact Image Sensor (CIS) |
| Scanning Method | Fixed document and moving carriage |
| Light Source | RGB LED |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | 50 - 1,200 dpi (in 1 dpi increments) |
| Scanner Bit Depth (Colour) | 48-bit input, 24-bit output |
| Scanner Bit Depth (Grayscale) | 16-bit input, 8-bit output |
| Scanner Bit Depth (Black & White) | 16-bit input, 1-bit output |
| Min Document Size | 50.8 x 50.8 mm |
| Max Document Size | 216 x 1,828.8 mm |
| Supported Paper Weight | 35 - 270 g/m2 |
| ADF Capacity | 1 sheet |
| Daily Scan Volume | Up to 300 sheets / day |
| Interface | USB 2.0 (Micro-B), Wi-Fi |
Options
| Options | Carrier Sheet - B12B819421; Maintenance Sheet - B12B819481 |
Electrical Specifications
| Input Voltage | DC 5V |
| Input Current | 0.5A |
| Operating | 2.4W (Wi-Fi off) / 4.5W (Wi-Fi on) |
| Ready | 1.3W (Wi-Fi off) / 3.0W (Wi-Fi on) |
| Sleep | 1.0W |
| Power Off | 0.3W |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the WorkForce ES-60W. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Supported OS | Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012 / Server 2016; Mac OS X 10.6.8 or later |
| Mobile App | Epson DocumentScan (iOS / Android) |
| Interface | USB 2.0 (Micro-B), Wi-Fi |
Package Contents & Ordering Information
Ordering Information
| Model | WorkForce ES-60W |
| Epson Product Code | B11B253502 |
| Recommended Retail Price (incl. GST) | S$348.00 |
| Consumables | Options: Carrier Sheet - B12B819421; Maintenance Sheet - B12B819481 |
In the Box
- Scanner Main unit
- USB Cable (Micro-B)
- Software CD
- Setup Guide
- Cleaning Sheet
- Calibration Sheet
Datasheet & Downloads
Frequently Asked Questions — WorkForce ES-60W
What warranty does the WorkForce ES-60W come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the WorkForce ES-60W use?
Options: Carrier Sheet - B12B819421; Maintenance Sheet - B12B819481 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
