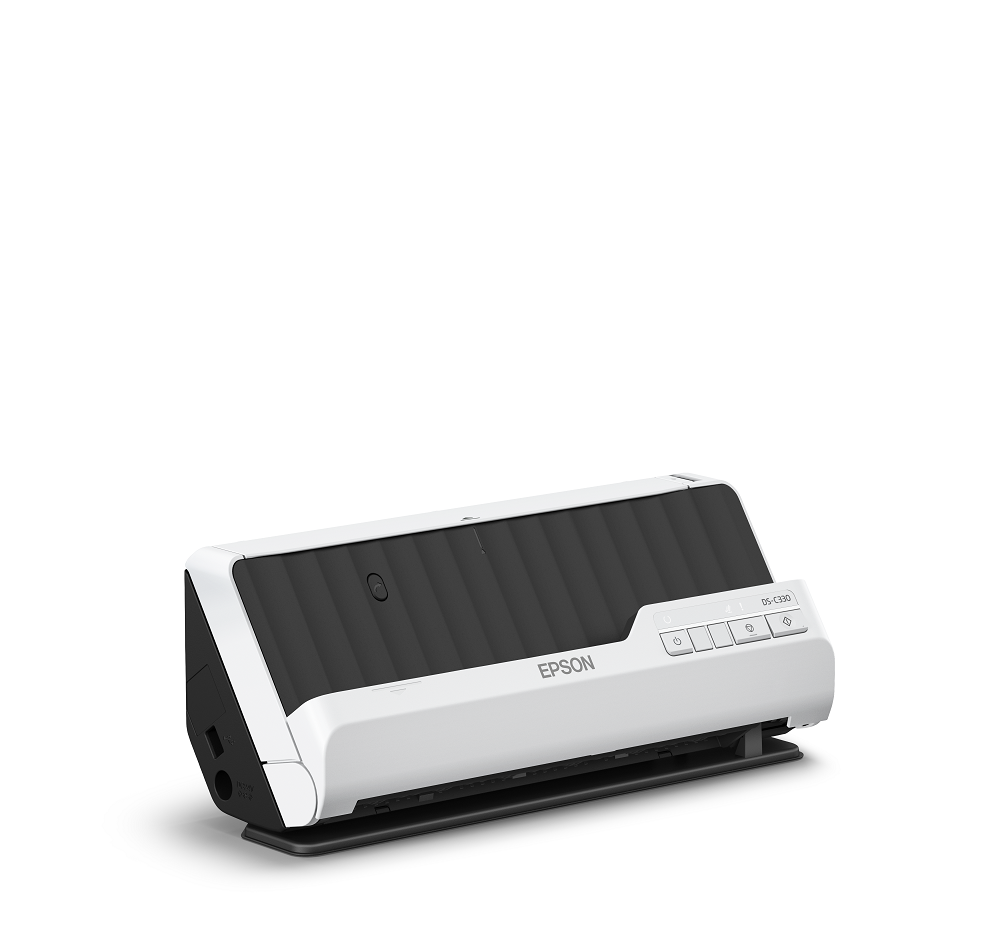

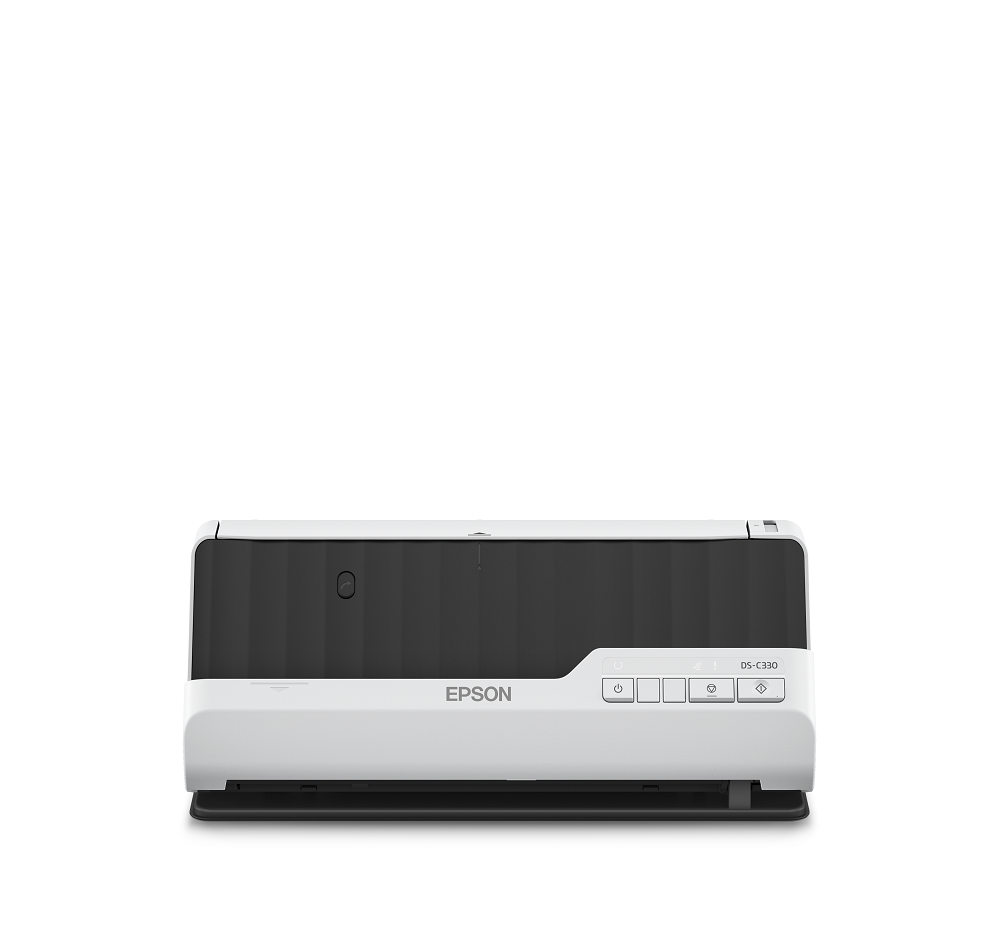

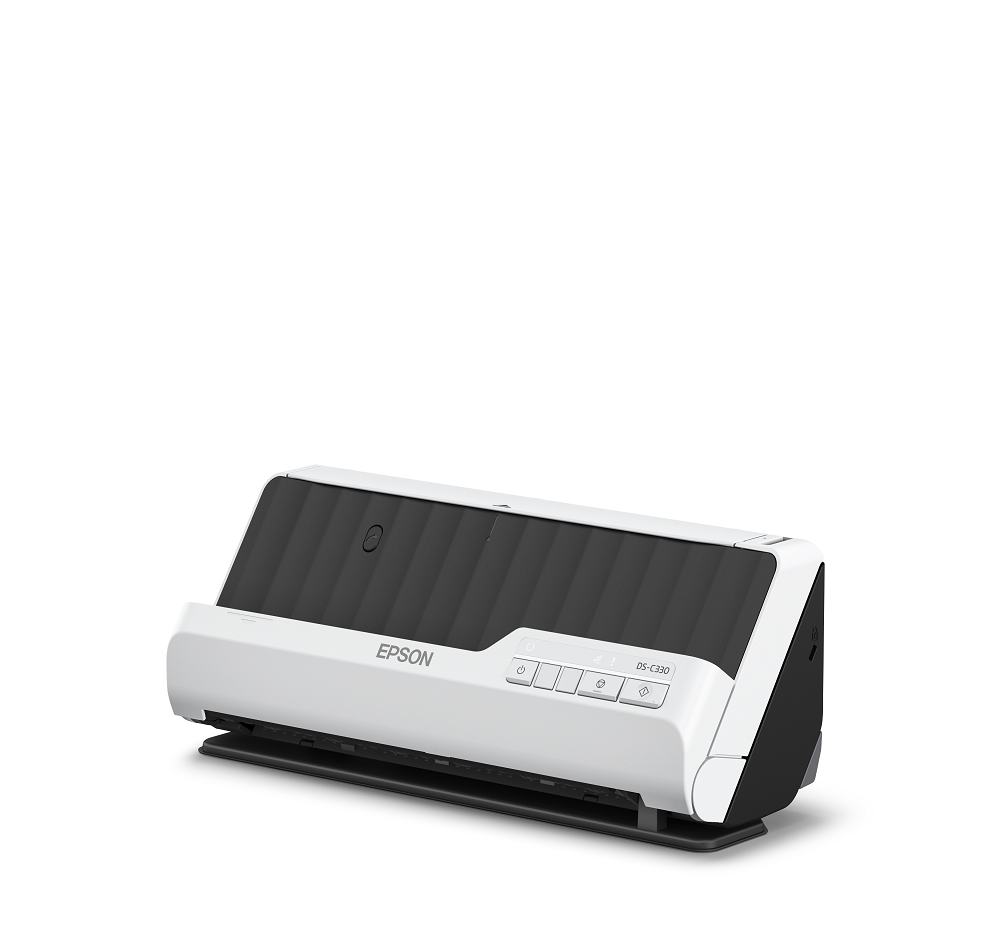

Epson WorkForce DS-C330 Portable Sheet-fed Document Scanner
PRODUCT DESCRIPTION
Epson WorkForce DS-C330 Portable Sheet-fed Document Scanner (B11B272501) - 1 Year Local Warranty
The Epson WorkForce DS-C330 Portable Sheet-fed Document Scanner - Ultra-compact A4 scanner for maximum desk efficiency.
ULTRA-COMPACT A4 SCANNER FOR MAXIMUM DESK EFFICIENCY
The Epson WorkForce DS-C330 A4 document scanner boasts a small footprint, versatile media handling, and efficient scan speed. Thanks to its vertical path position, paper can be scanned even in narrow workspaces due to its compact footprint.
Key highlights
Scan up to A4 size; Fast scan speeds of up to 30 ppm / 60 ipm; Flexible Scanning with Vertical Path and Straight Path Scan mode; Scan various media types including envelope, long paper and even passports; Compact scanner with a small footprint of just 296x104x125mm; Made from up to 34% recycled plastics
FAST AND EFFICIENT
The DS-C330 enables duplex scanning at speeds of up to 30 ppm / 60 ipm, significantly enhancing office productivity. It is also equipped with a 20-sheet ADF, which offers convenient scanning capabilities.
ULTRA COMPACT

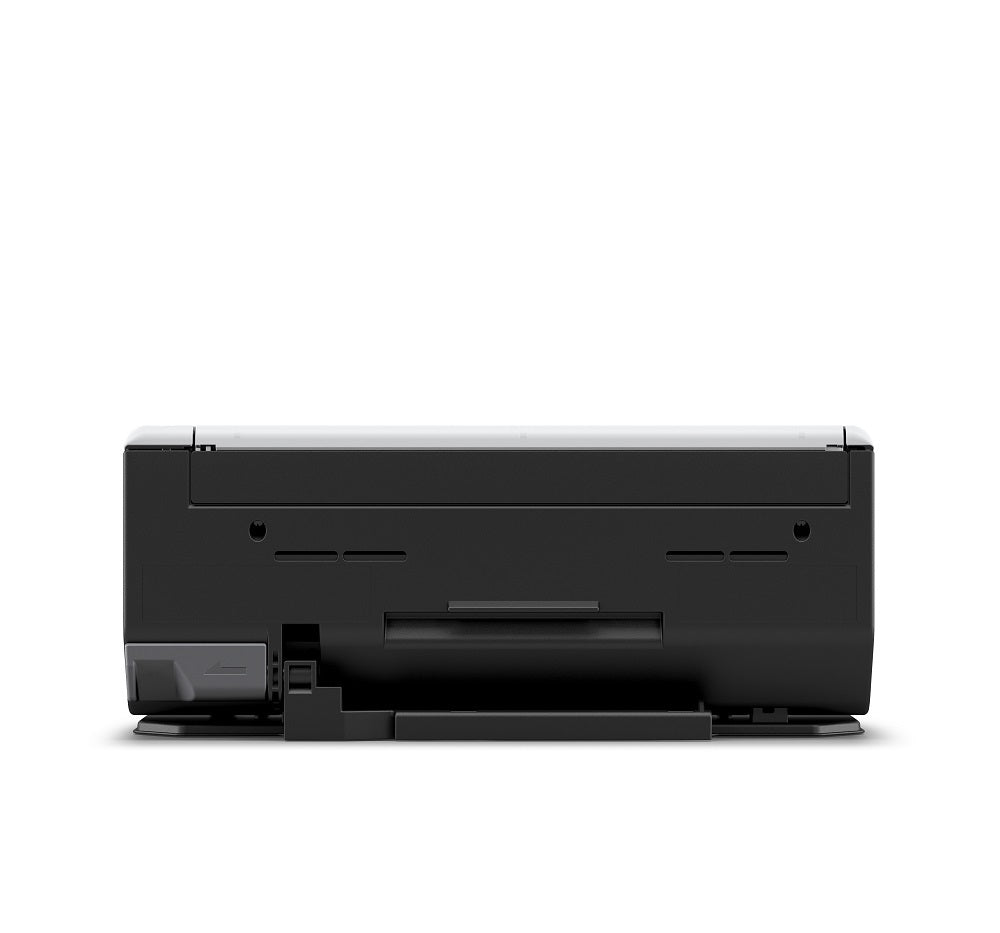

The DS-C330 is a lightweight scanner with a handle grip at the back for easy carrying, ensuring convenient portability. The scanner also comes with a cable management tray to keep cables organised and avoid workspace clutter.
VERSATILE SCANNING
The DS-C330 effortlessly handle long documents, boasting a maximum scan size of 215.9 x 3,048 mm. Additionally, the scanner can scan documents weighing up to 127 gsm for vertical scanning and 413 gsm for straight path scan, including fragile, torn, folded papers using a carrier sheet.

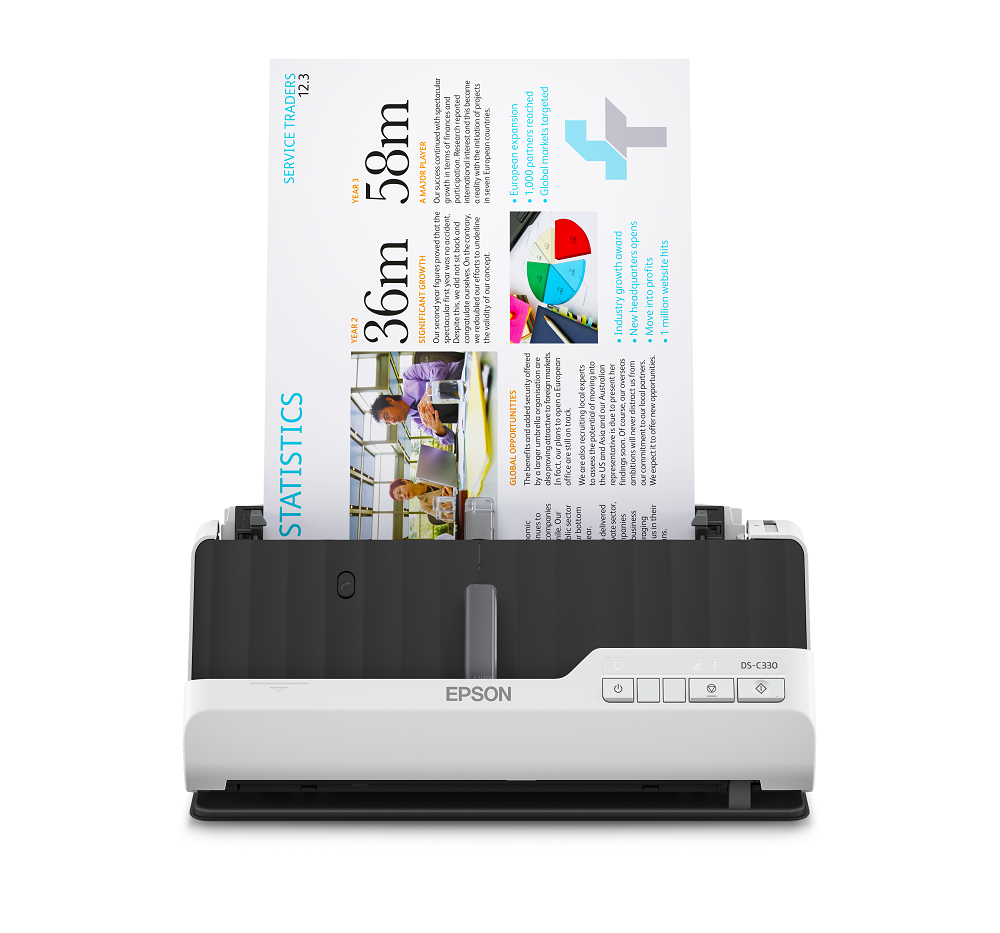

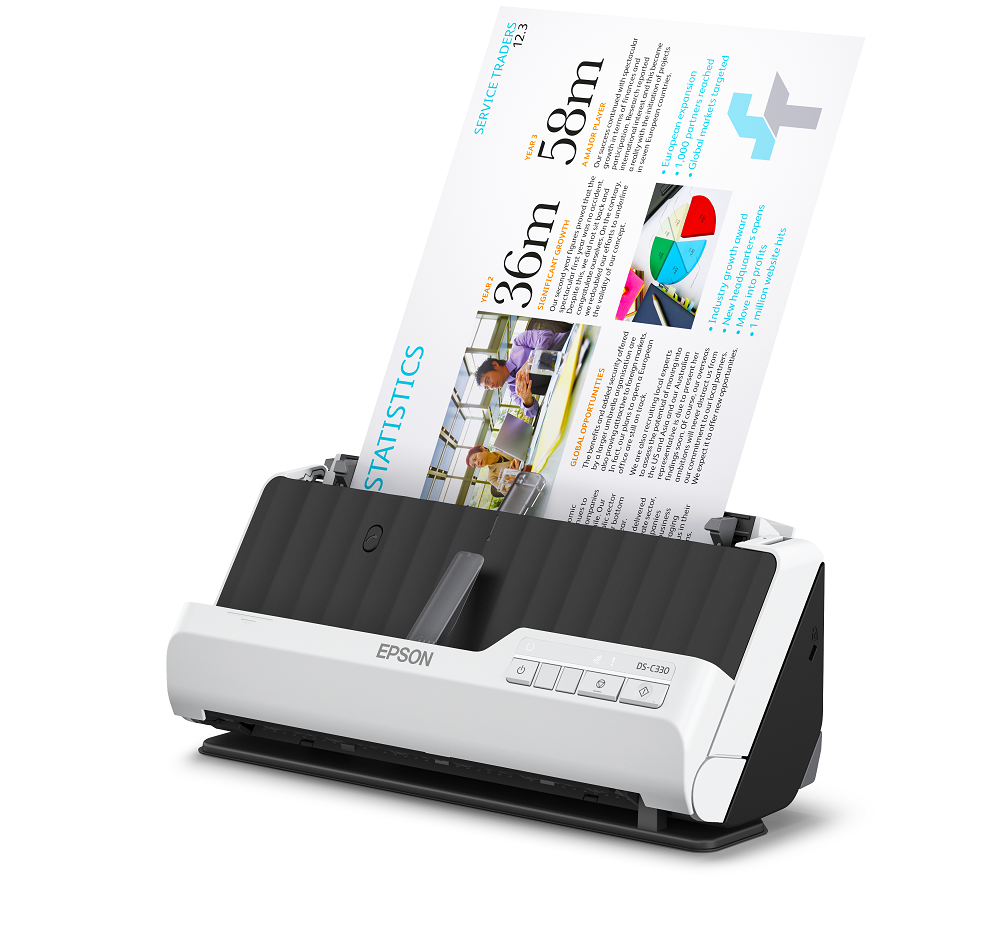

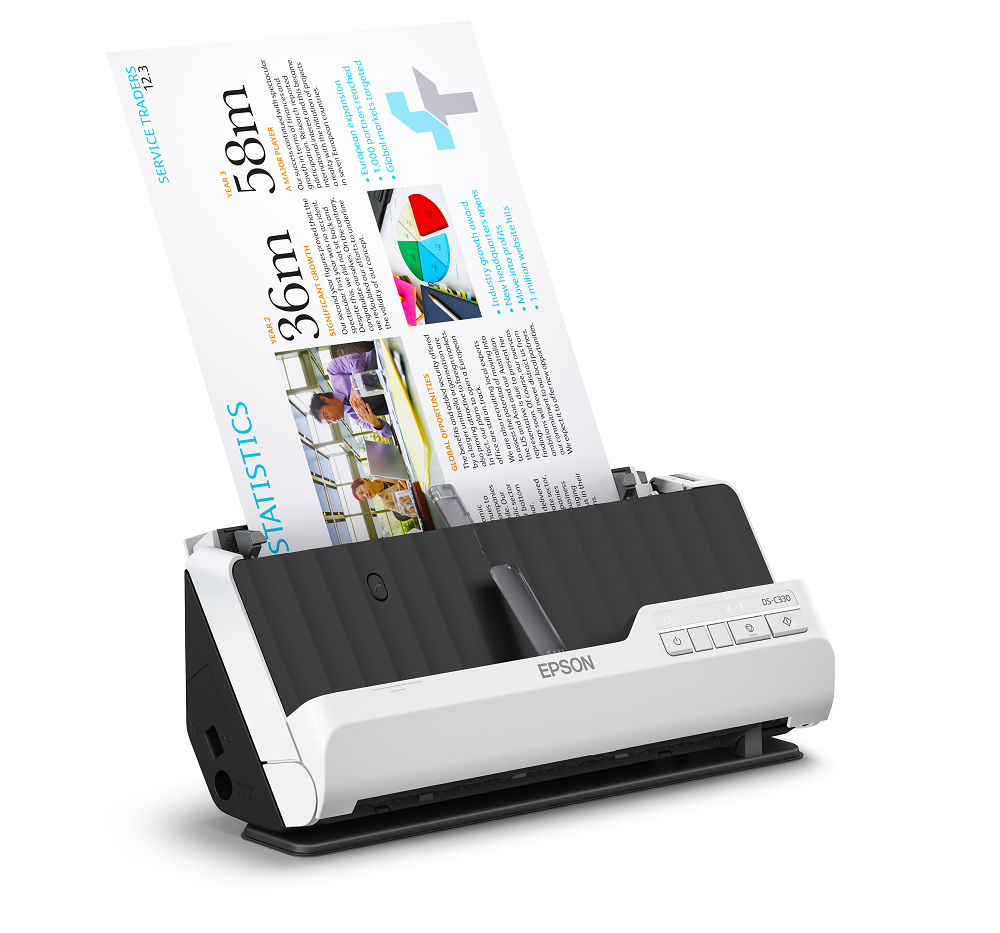

Vertical Path Scan
The vertical path scan feature allows for effortless scanning in narrow spaces and efficient document handling. This makes it particularly suitable for settings with limited desk space, such as hospital front desks, hotel receptions, and similar environments.

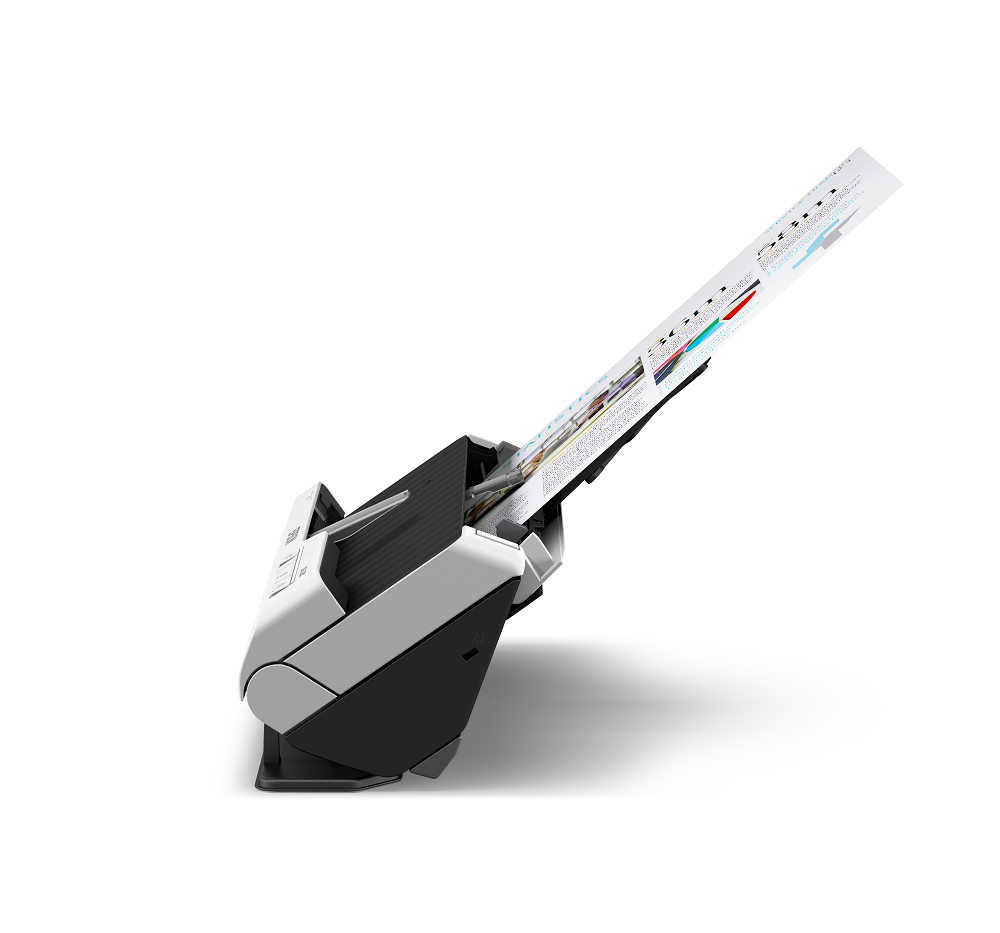

Straight Path Scan
The straight path scan feature allows you to easily scan thick documents such as passports, plastic cards, and envelopes, making it a versatile scanning solution.
Ideal For
Offices, clinics, accounts and admin teams in Singapore that digitise documents, receipts and records at volume. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
WorkForce DS-C330 Datasheet — Technical Specifications
General
| Model | WorkForce DS-C330 |
| Official Product Name | Epson WorkForce DS-C330 Portable Sheet-fed Document Scanner |
| Epson Product Code | B11B272501 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Scanner
| Scanner Type | A4 sheet-fed, one-pass duplex colour scanner |
| Sensor Type | Contact Image Sensor (CIS) x 2 |
| Scanning Method | Fixed carriage and moving document |
| Light Source | RGB LED x 2 |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | 50 – 1,200 dpi (in 1 dpi increments) |
| Bit Depth | Colour: 30-bit input, 24-bit output; Grayscale: 10-bit input, 8-bit output; Black and White: 10-bit input, 1-bit output |
| Document Size | Minimum 50.8 x 50.8 mm; Maximum 215.9 x 3,048 mm |
| Supported Paper Weight | Vertical Path: 40 – 127 g/m², Less than A6 size: 40 – 209 g/m²; Straight Path: 40 – 413 g/m² |
| ADF Capacity | 20 sheets (80 g/m²) |
| Daily Scan Volume | Up to 5,000 sheets / day |
| Multi-feed Detection | Length Detection |
| Interface | USB 2.0 |
| Scan-to Destinations | Computer (Document Capture Pro) |
Scanning Speed
| 300 dpi (A4, Colour/Monochrome) | 30 ppm / 60 ipm |
| 600 dpi | 5 ppm / 10 ipm |
Drivers and Software
| Supported OS (Scanner Driver) | Windows: Windows 7 / 8 / 8.1 / 10 / 11, Server 2008 / 2012 / 2016 / 2019 / 2022; Mac: Mac OS X 10.9 or later, macOS 11 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan OCR Component Pro; Epson Scan PDF Extensions; Document Capture Pro (Windows) |
| Software Solutions Compatibility | Document Capture (Mac); Epson Device Admin |
| File Format | Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG; Document Capture Pro: JPEG, JPEG2000, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX |
Electrical Specifications
| Rated Voltage | AC 220 - 240 V |
| Rated Frequency | 50 - 60 Hz |
| Power Consumption | Operating: Approx. 10 W; Ready Mode: Approx. 3.3 W; Sleep Mode: Approx. 1.0 W; Power Off: Approx. 0.1 W |
Dimensions and Weight
| Dimensions (W x D x H) | 296 x 104 x 125 mm |
| Weight | 1.8 kg |
Consumables
| Roller Assembly Kit | 50,000 scans - B12B819731 |
Options
| Carrier Sheet | 3,000 scans - B12B819051 |
| Passport Carrier Sheet | 3,000 scans - B12B819651 |
| Cleaning Kit | B12B819291 |
Environmental Conditions
| Temperature | Operating: 5 - 35 °C; Storage -25 - 60 °C |
| Humidity | Operating 15 - 80 % (No Condensation); Storage 15 - 85 % (No Condensation) |
Footnotes
| *1 | Scanning resolution as defined by ISO14473. |
| *2 | Based on A4 size documents. |
| *3 | For Windows version only. |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the WorkForce DS-C330. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 2.0 |
| Supported OS (Scanner Driver) | Windows: Windows 7 / 8 / 8.1 / 10 / 11, Server 2008 / 2012 / 2016 / 2019 / 2022; Mac: Mac OS X 10.9 or later, macOS 11 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan OCR Component Pro; Epson Scan PDF Extensions; Document Capture Pro (Windows) |
| Software Solutions Compatibility | Document Capture (Mac); Epson Device Admin |
Package Contents & Ordering Information
Ordering Information
| Model | WorkForce DS-C330 |
| Epson Product Code | B11B272501 |
| Recommended Retail Price (incl. GST) | S$418.00 |
| Consumables | Roller Assembly Kit B12B819731 (50,000 scans). Options: Carrier Sheet B12B819051 (3,000 scans); Passport Carrier Sheet B12B819651 (3,000 scans); Cleaning Kit B12B819291 |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — WorkForce DS-C330
What warranty does the WorkForce DS-C330 come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the WorkForce DS-C330 use?
Roller Assembly Kit B12B819731 (50,000 scans). Options: Carrier Sheet B12B819051 (3,000 scans); Passport Carrier Sheet B12B819651 (3,000 scans); Cleaning Kit B12B819291 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
