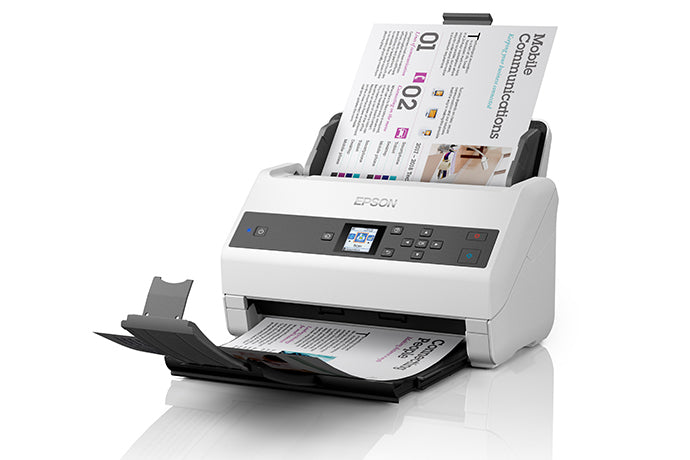

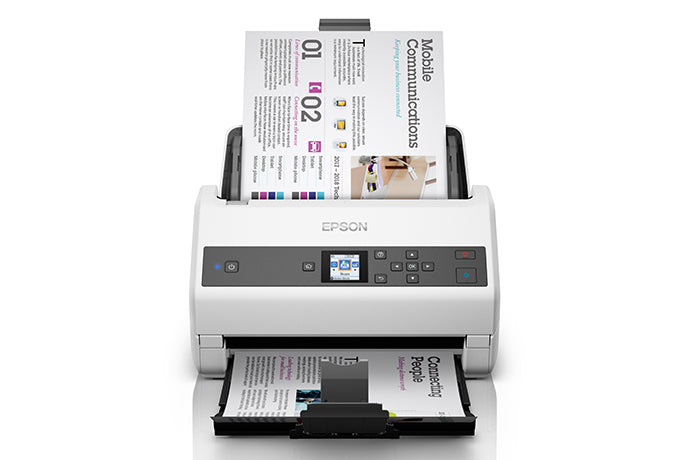

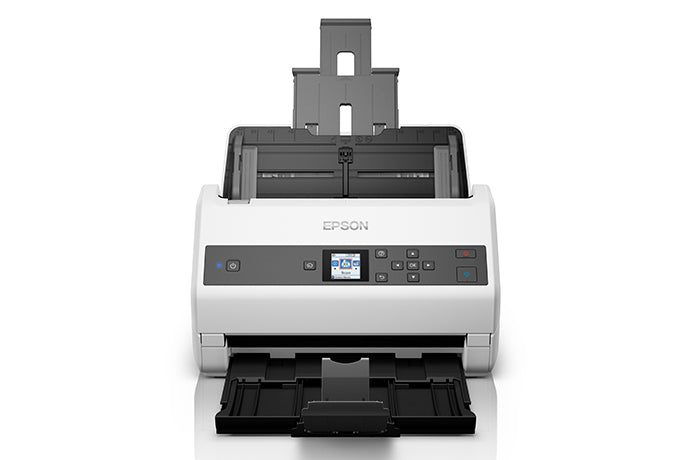

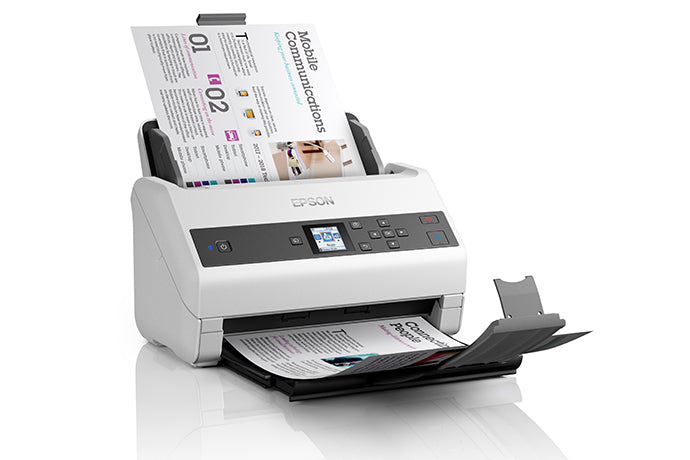

Epson WorkForce DS-870 A4 Duplex Sheet-fed Document Scanner
PRODUCT DESCRIPTION
Epson WorkForce DS-870 A4 Duplex Sheet-fed Document Scanner (B11B250502) - 1 Year Local Warranty
The Epson WorkForce DS-870 A4 Duplex Sheet-fed Document Scanner - Designed to support high-volume scanning environments, the WorkForce DS-870 combines performance, speed and durability in a sleek, compact design.
Durable, High-speed Scanning
Designed for fast, high-volume scanning, enjoy scanning speeds of up to 65ppm/130ipm on the DS-870. With a 100-sheet Automatic Document Feeder and daily duty cycle of 10,000 sheets pages, DS-870 provides the robust reliability that businesses need.

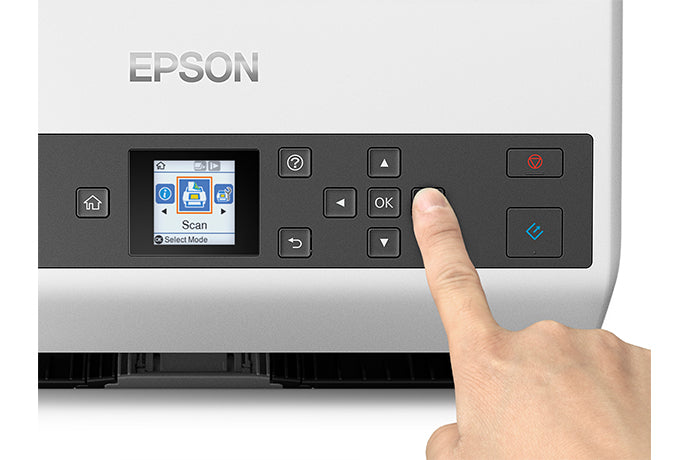

1.44" Colour LCD
With a screen size of 1.44", users get a clear display of job contents at a glance and can even view and assign up to 30 jobs at a time on the panel. Operate the scanner easily using push scan functions and change scan settings directly from the panel without having to use a PC.
Automatic Size Recognition
Place documents of different sizes ranging from A6 to A4 in the middle of the feeding tray and the DS-870 will automatically detect and scan everything in the correct size, all in a single batch.
Flatbed Option
With the optional Flatbed Dock, the Epson Perfection V39II can be used together with the scanners to provide a flatbed option for users who need to scan objects such as books, or small and fragile documents that can be easily damaged such as receipts.
Scan Fragile and A3 Documents Easily
Scan small and fragile documents, as well as A3-sized documents, using a carrier sheet that can be automatically detected by the scanners. Alternatively, you may scan fragile documents without using a carrier sheet by turning on the Slow Scan Mode.
Automatic Feeding Mode
The Automatic Feeding Mode enables large volumes of documents to be scanned continuously. In addition, this mode allows you to scan documents one at a time without needing to arrange them by size and they will be saved into a single PDF.
Double Feed Detection Skip Function
Activate the Double Feed Detection Skip function to scan documents with stickers and labels.
Ideal For
Offices, clinics, accounts and admin teams in Singapore that digitise documents, receipts and records at volume. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
WorkForce DS-870 Datasheet — Technical Specifications
General
| Model | WorkForce DS-870 |
| Official Product Name | Epson WorkForce DS-870 A4 Duplex Sheet-fed Document Scanner |
| Epson Product Code | B11B250502 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Power
| Rated Voltage | AC 220-240 V |
| Rated Frequency | 50 – 60Hz |
| Power Consumption (Operating) | 18W |
| Power Consumption (Ready) | 8.5W |
| Power Consumption (Sleep) | 1.4W |
| Power Consumption (Off) | 0.1W |
Supported OS and Applications
| Supported OS | Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012 / Server 2016; Mac OS X 10.6.8 or later |
| Scanner Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Applications | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows); Document Capture (Mac) |
| File Format (Epson Scan 2) | JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG |
| File Format (Document Capture Pro Win) | JPEG, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX |
Scanning
| Scanner Type | A4 sheet-fed, one-pass duplex colour scanner |
| Sensor Type | Contact Image Sensor (CIS) |
| Scanning Method | Fixed carriage & moving document |
| Light Source | RGB LED |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | 50 - 1,200 dpi (in 1 dpi increments) |
| Bit Depth | Each colour (RGB): 10 bit input / 8 bit output |
| Min Document Size | 50.8 x 50.8 mm |
| Max Document Size | 215.9 x 6,096 mm |
| Supported Paper Weight | 27 - 413 g/m2 (A8 or less 127 - 413 g/m2) |
| ADF Capacity | 100 sheets (80g/m2) |
| Daily Scan Volume | Up to 10,000 sheets / day |
| Multi-feed Detection | Ultrasonic Sensor and Length Detection |
| Interface | USB 3.0 |
Scan Speed
| Resolution 200dpi (Colour/Greyscale/Mono) | 65ppm / 130ipm (Simplex / Duplex) |
| Resolution 300dpi (Colour/Greyscale/Mono) | 65ppm / 130ipm (Simplex / Duplex) |
| Resolution 600dpi (Colour/Greyscale/Mono) | 16ppm / 32ipm (Simplex / Duplex) |
Dimensions and Weight
| Dimensions (W x D x H) | 296 x 169 x 167 mm |
| Weight | 3.6kg |
Options
| Flatbed Dock | B12B819011 |
| Roller Assembly Kit | 200,000 scans - B12B819711 |
| Carrier Sheet | 3,000 scans - B12B819051 |
| Cleaning Kit | B12B819291 |
Environmental Conditions
| Temperature (Operating) | 5 - 35°C |
| Temperature (Storage) | -25 - 60°C |
| Humidity (Operating) | 15 - 80% (No condensation) |
| Humidity (Storage) | 15 - 85% (No condensation) |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the WorkForce DS-870. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Supported OS | Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012 / Server 2016; Mac OS X 10.6.8 or later |
| Scanner Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Interface | USB 3.0 |
Package Contents & Ordering Information
Ordering Information
| Model | WorkForce DS-870 |
| Epson Product Code | B11B250502 |
| Recommended Retail Price (incl. GST) | S$1,701.00 |
| Consumables | Roller Assembly Kit B12B819711 (200,000 scans); Carrier Sheet B12B819051 (3,000 scans); Cleaning Kit B12B819291; optional Flatbed Dock B12B819011 |
In the Box
- Scanner Main Unit
- USB 3.0 Cable
- AC Adapter
- Power Cord
- Software CD
- Setup Guide
Datasheet & Downloads
Frequently Asked Questions — WorkForce DS-870
What warranty does the WorkForce DS-870 come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the WorkForce DS-870 use?
Roller Assembly Kit B12B819711 (200,000 scans); Carrier Sheet B12B819051 (3,000 scans); Cleaning Kit B12B819291; optional Flatbed Dock B12B819011 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
