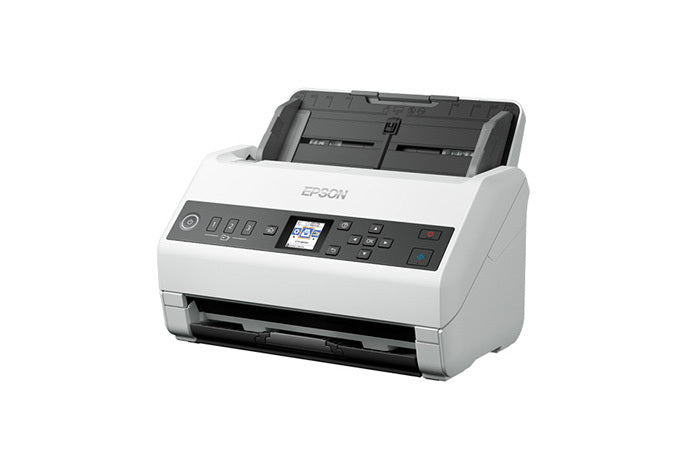

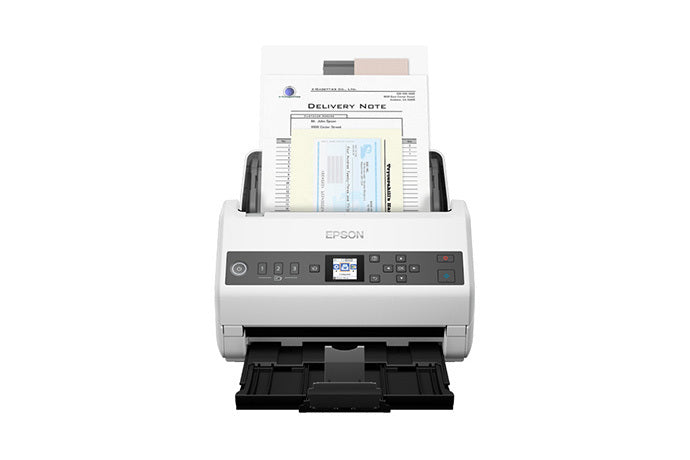

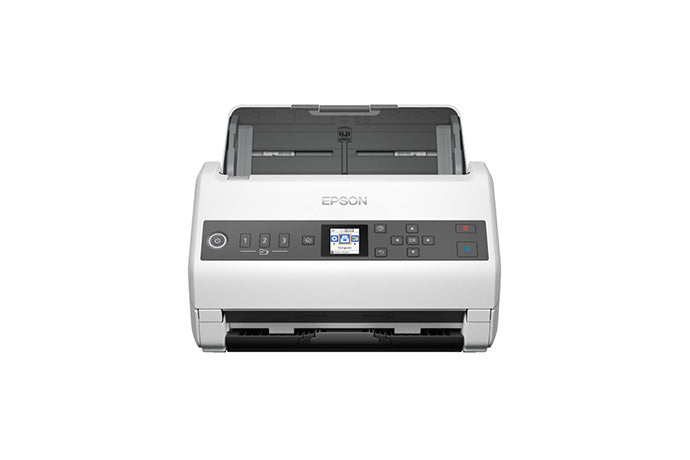

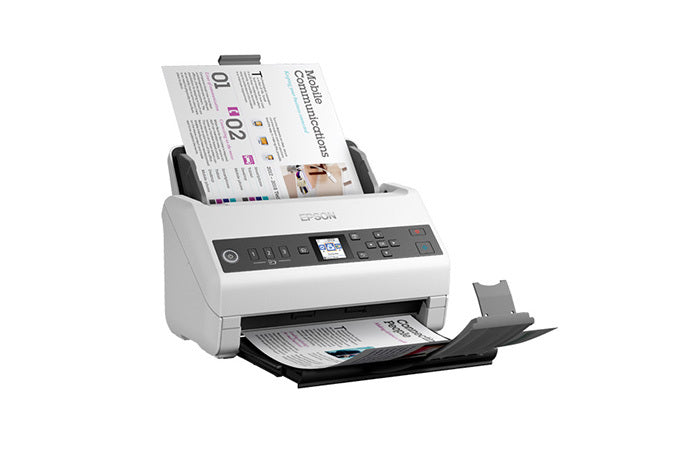

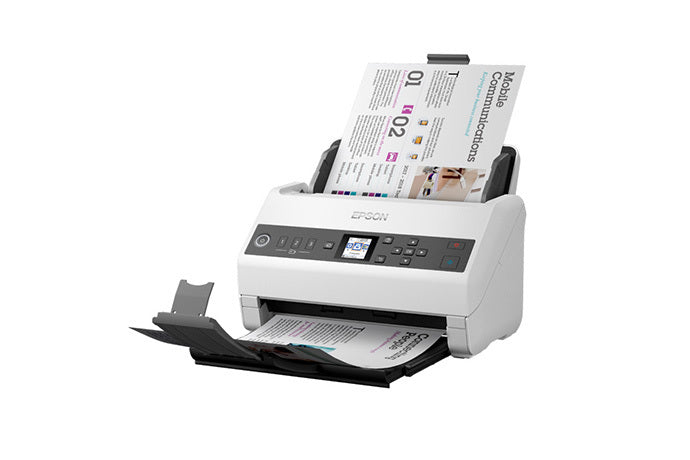

Epson WorkForce DS-730N A4 Duplex Sheet-fed Document Scanner
PRODUCT DESCRIPTION
Epson WorkForce DS-730N A4 Duplex Sheet-fed Document Scanner (B11B259501) - 1 Year Local Warranty
The Epson WorkForce DS-730N A4 Duplex Sheet-fed Document Scanner - EMPOWERING BUSINESSES WITH EXCEPTIONAL PERFORMANCE.
Durable, High-speed Scanning
Expect fast, high-volume scanning speeds of up to 40 ppm/80 ipm on the DS-730N. With a 100-sheet Automatic Document Feeder (ADF) and high daily duty cycle of up to 6,500 sheets, this business scanner can suit any of your scanning needs.
Compact Size
Developed for high mobility and reduced footprint, the small and compact DS-730N is great for office desks with limited space and it can be kept in storage position after use.
1.44" Colour LCD
Enjoy a clear display of job contents with the 1.44" LCD display. Access the scanner using push scan functions and change scan settings directly on the panel without having to use a PC.
High Quality Image
Equipped with built-in function to improve colour production, the DS-730N can remove crease marks, reduce bleed through and even select background colour based on paper type used.
Automatic Size Recognition
Place documents of different sizes into the feeding tray and the DS-730N will automatically detect and scan everything in the correct size, all in a single scan.
Automatic Feeding Mode
The Automatic Feeding Mode enables large volumes of documents to be scanned continuously. In addition, this mode allows you to scan documents of different sizes at once without needing to arrange them by size and saving them as a single PDF.
Quick Send Button
Users can perform scan, save and send functions easily by assigning common jobs to the Quick Send button for easy access at the scanner panel.
Ideal For
Offices, clinics, accounts and admin teams in Singapore that digitise documents, receipts and records at volume. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
WorkForce DS-730N Datasheet — Technical Specifications
General
| Model | WorkForce DS-730N |
| Official Product Name | Epson WorkForce DS-730N A4 Duplex Sheet-fed Document Scanner |
| Epson Product Code | B11B259501 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Scanner
| Scanner Type | A4 sheet-fed, one-pass duplex colour scanner |
| Sensor Type | Contact Image Sensor (CIS) x 2 |
| Scanning Method | Fixed carriage and moving document |
| Light Source | RGB LED x 2 |
| Optical Resolution*1 | 600 x 600 dpi |
| Output Resolution | 50 – 1,200 dpi (in 1 dpi increments) |
| Bit Depth | Colour: 30-bit input, 24-bit output; Grayscale: 10-bit input, 8-bit output; Black and White: 10-bit input, 1-bit output |
| Supported Paper Weight | 27 – 413 g/m2 (Less than A8 size: 127 – 413 g/m2) |
| ADF Capacity | 100 sheets (80 g/m2) |
| Daily Scan Volume | Up to 6,500 sheets / day |
| Multi-feed Detection | Ultrasonic Sensor and Length Detection |
| Interface | USB 2.0; Ethernet (1000BASE-T/100BASE-TX/10BASE-T) |
| Max Document Size | 215.9 x 6,096 mm |
| Min Document Size | 50.8 x 50.8 mm |
| Scan to Destinations | Computer (Document Capture Pro), Network Folder/FTP, Email, Computer (WSD) |
Scanning Speed*2
| 300 dpi (A4, Colour/Monochrome) | 40 ppm / 80 ipm |
| 600 dpi | 12 ppm / 24 ipm |
Drivers and Software
| Supported OS (Scanner Driver) | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.6.8 or later, macOS 11 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows) / Document Capture (Mac) |
| Software Solutions Compatibility | Document Capture Pro Server; Epson Device Admin; Epson Remote Services |
| File Format | Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP*3, PNG; Document Capture Pro: JPEG, JPEG2000 *3, BMP *3, PDF, Searchable PDF, TIFF, Multi-TIFF*3, PNG, DOCX, XLSX, PPTX *3 |
Options & Consumables
| Roller Assembly Kit | 200,000 scans - B12B819671 |
| Carrier Sheet | 3,000 scans - B12B819051 |
| Cleaning Kit | B12B819291 |
Control Panel
| LCD Screen | 1.44" LCD |
Dimensions and Weight
| Dimensions (W x D x H) | 296 x 169 x 167 mm |
| Weight | 3.6 kg |
Environmental Conditions
| Temperature | Operating: 5 - 35°C; Storage: -25 - 60°C |
| Humidity | Operating: 15 – 80% (No condensation); Storage: 15 – 85% (No condensation) |
Electrical Specifications
| Rated Voltage | AC 220 – 240 V |
| Rated Frequency | 50 – 60 Hz |
| Power Consumption | Operating: 13 W (USB) / 14 W (Ethernet); Ready Mode: 5.9 W; Sleep Mode: 1.2 W (USB) / 1.5 W (Ethernet); Power Off: 0.1 W |
Footnotes
| *1 | Scanning resolution as defined by ISO14473. |
| *2 | Based on A4 documents. |
| *3 | PPTX for Windows version only. |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the WorkForce DS-730N. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 2.0; Ethernet (1000BASE-T/100BASE-TX/10BASE-T) |
| Supported OS (Scanner Driver) | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.6.8 or later, macOS 11 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows) / Document Capture (Mac) |
| Software Solutions Compatibility | Document Capture Pro Server; Epson Device Admin; Epson Remote Services |
Package Contents & Ordering Information
Ordering Information
| Model | WorkForce DS-730N |
| Epson Product Code | B11B259501 |
| Recommended Retail Price (incl. GST) | S$891.00 |
| Consumables | Roller Assembly Kit B12B819671 (200,000 scans); Carrier Sheet B12B819051 (3,000 scans); Cleaning Kit B12B819291 |
In the Box
- Scanner Main unit
- USB 2.0 Cable
- AC Adapter
- Power Cable
- Software CD
- Setup Guide
Datasheet & Downloads
Frequently Asked Questions — WorkForce DS-730N
What warranty does the WorkForce DS-730N come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the WorkForce DS-730N use?
Roller Assembly Kit B12B819671 (200,000 scans); Carrier Sheet B12B819051 (3,000 scans); Cleaning Kit B12B819291 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
