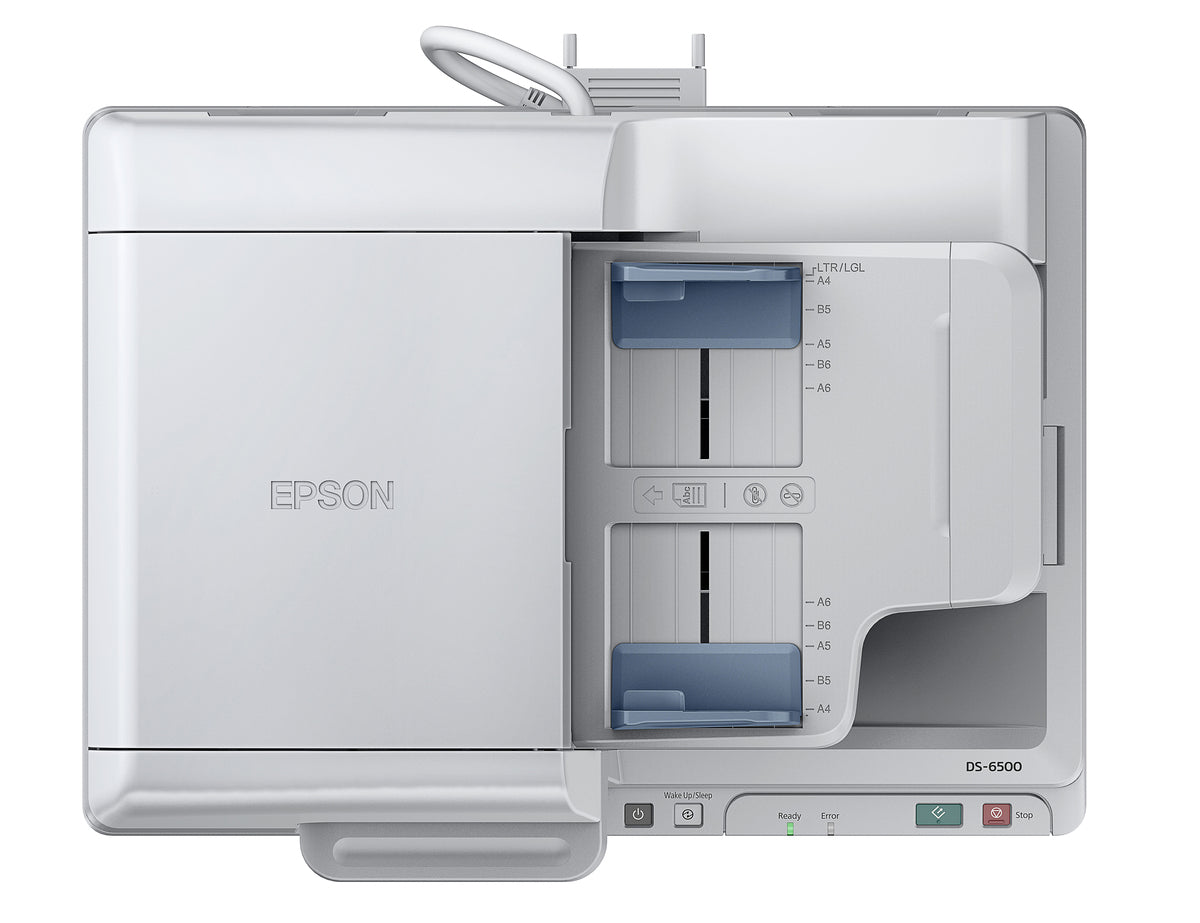

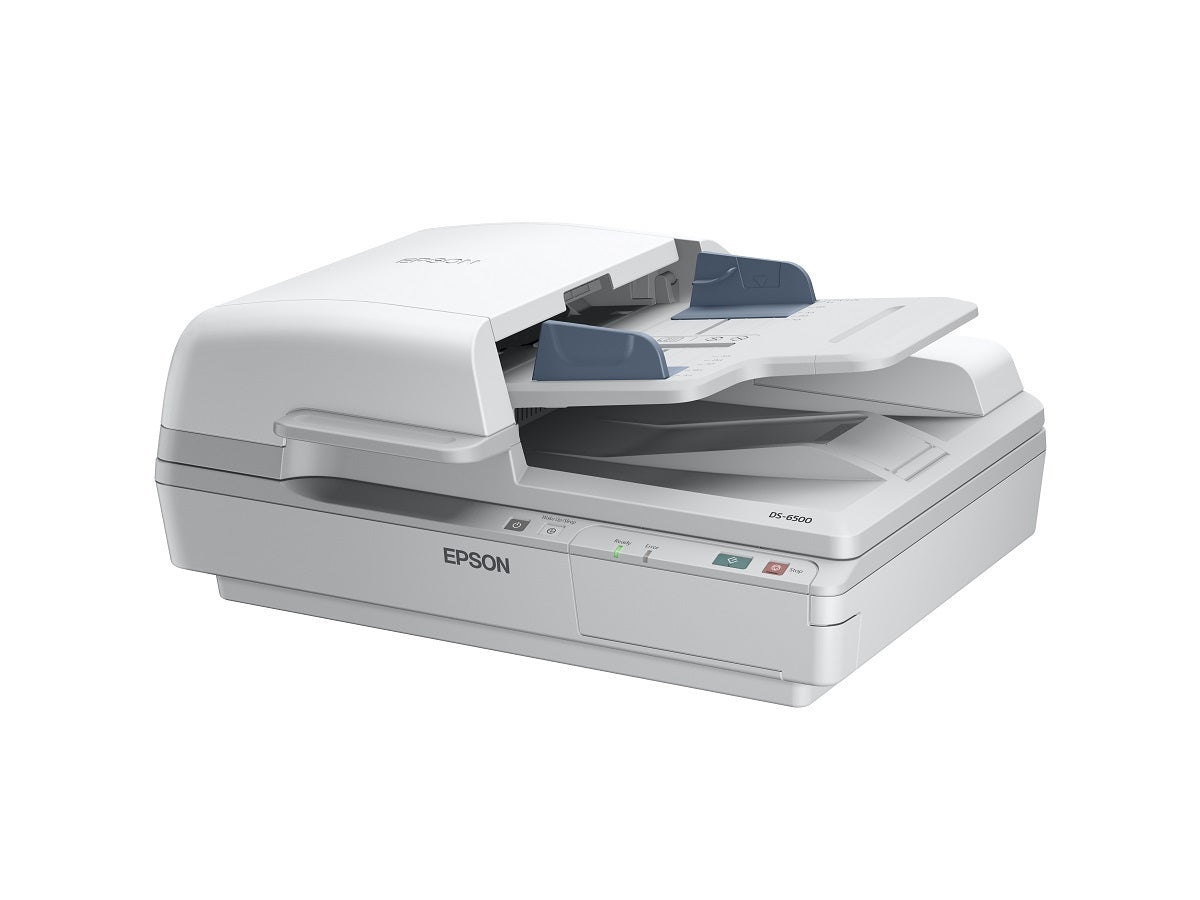

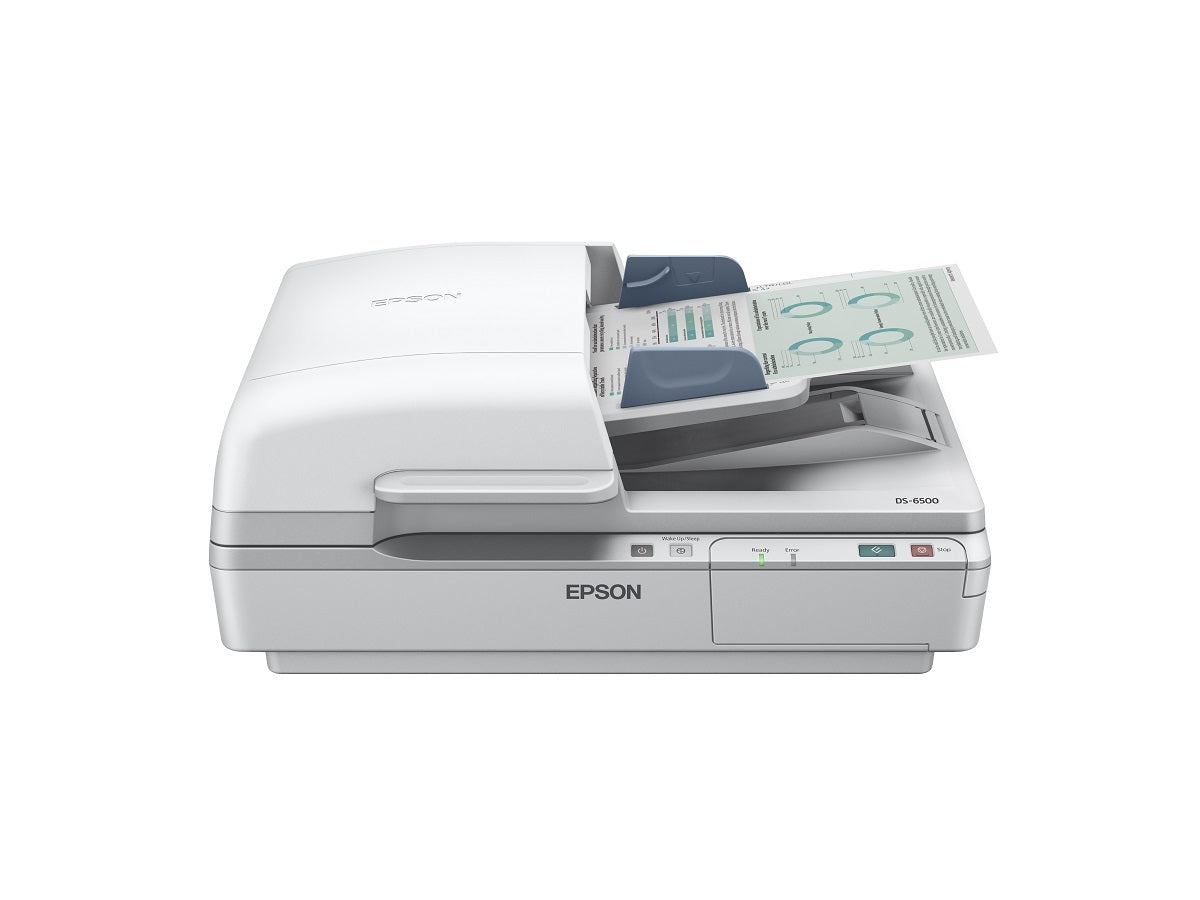

Epson WorkForce DS-6500 Flatbed Document Scanner with Duplex ADF
PRODUCT DESCRIPTION
Epson WorkForce DS-6500 Flatbed Document Scanner with Duplex ADF (B11B205241) - 1 Year Local Warranty
The Epson WorkForce DS-6500 Flatbed Document Scanner with Duplex ADF - Your Ideal and High Volume A4 Scanning Solution.
High Speed Duplex Scanning
The DS-6500 scans at impressive speed of 25 ppm (simplex) / 50 ipm (one-pass duplex), resulting in significant improvement in office productivity.
Wide and Flexible Scanning
The ADF can handle documents up to 1,016mm long, while the A4-sized flatbed scanner is perfect for scanning odd-sized items, large bound books, and more. Images, graphics and text are captured with amazing clarity and accuracy with its high resolution of 1,200 dpi CCD sensor.
Reliable Operation
Fitted with ultrasonic sensors which detects double-feeding, user will get notified in case of a double-feed has occurred.
High Durability and Reliability
With an ADF capacity of 100 sheets and designed to handle a high daily volume of 3,000 sheets, this WorkForce scanner will help to maximise productivity and meet the demands of busy offices.
Eco-Conscious Scanning Performance
It is equipped with Epson ReadyScan LED technology that require zero warm-up time, resulting in lower power consumption. It also has a power-saving sleep mode that reduces energy consumption even further.
Powerful and Comprehensive Features of Epson Scan 2
Text Enhancement; Document Skew Correction; Colour Enhancement & Colour Dropout; Advanced PDF Features
Advanced Document Management – Document Capture Pro
The DS-6500 comes bundled with document management software that allows you to easily manage your scanned files. Easily scan, view, edit, save and transfer scanned documents. The software optically recognizes barcodes, characters and blank pages in scanned documents to separate them into different folders.
Ideal For
Offices, clinics, accounts and admin teams in Singapore that digitise documents, receipts and records at volume. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
WorkForce DS-6500 Datasheet — Technical Specifications
General
| Model | WorkForce DS-6500 |
| Official Product Name | Epson WorkForce DS-6500 Flatbed Document Scanner with Duplex ADF |
| Epson Product Code | B11B205241 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Scanner
| Scanner Type | A4 flatbed colour image scanner with ADF |
| Sensor Type | 4-line colour CCD x 2 |
| Scanning Method | Flatbed: Fixed document and moving carriage; ADF: Fixed carriage and moving document |
| Light Source | White LED |
| Optical Resolution*1 | Flatbed: 1,200 x 1,200 dpi; ADF: 600 x 600 dpi |
| Output Resolution | 50 – 9,600 dpi (in 1 dpi increments) |
| Bit Depth | Colour: 48-bit input, 24-bit output; Grayscale: 16-bit input, 8-bit output; Black & White: 16-bit input, 1-bit output |
| Supported Paper Weight | 50 – 128 g/m2, Less than A6 size: 60 – 190 g/m2 |
| ADF Capacity | 100 sheets (80 g/m2) |
| Daily Scan Volume | Up to 3,000 sheets / day |
| Multi-feed Detection | Ultrasonic Sensor and Length Detection |
| Interface | USB 2.0 |
| Max Document Size | Flatbed: 215.9 x 297 mm; ADF: 215.9 x 1,016 mm |
| Min Document Size | ADF: 100 x 148 mm |
Drivers and Software
| Supported OS (Scanner Driver) | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.6.8 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows); Document Capture (Mac) |
| Software Solutions Compatibility | Epson Device Admin |
| File Format | Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG; Document Capture Pro (Windows): JPEG, JPEG2000, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX |
Electrical Specifications
| Rated Voltage | AC 100-240V |
| Rated Frequency | 50 - 60 Hz |
| Power Consumption | Operating: 44.5 W; Ready Mode: 12.0 W; Sleep Mode: 1.6 W; Power Off: 0.4 W |
Environmental Conditions
| Temperature | Operating: 5 - 35 °C; Storage: -25 - 60 °C |
| Humidity | Operating: 10 - 80 % (No Condensation); Storage: 10 - 85 % (No Condensation) |
Dimensions and Weight

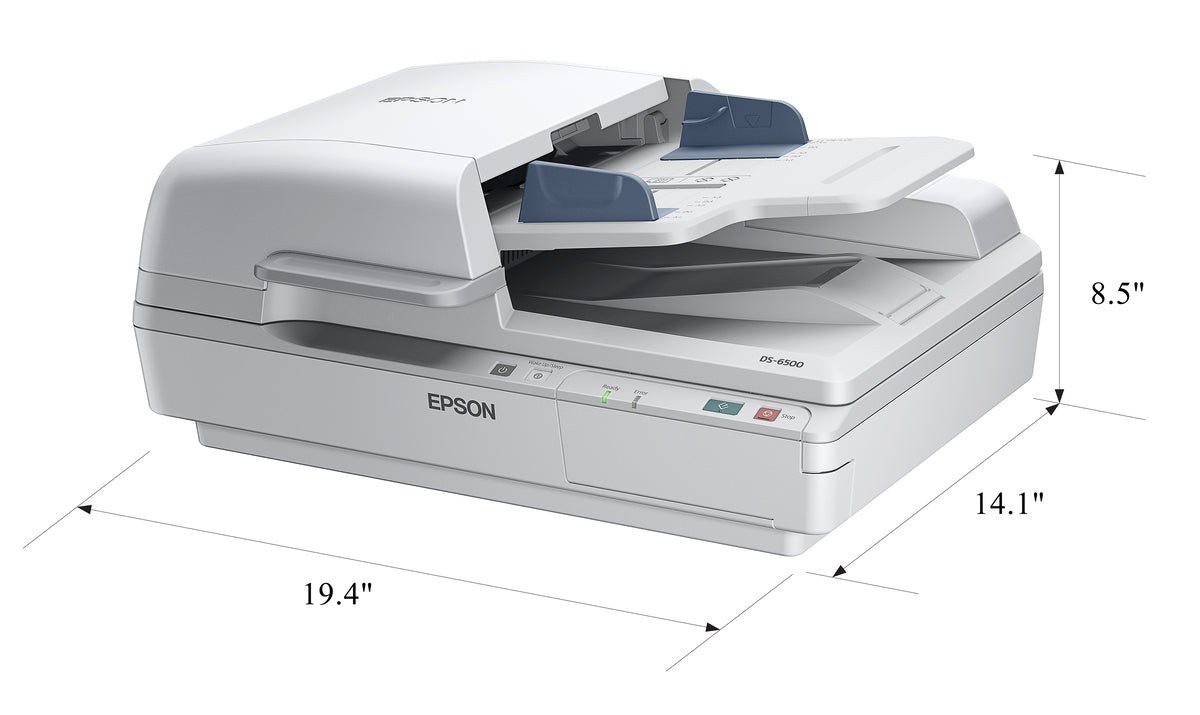

| Dimensions (W x D x H) | 495 x 360 x 217 mm |
| Weight | 9.8 kg |
Scan Speed
| Flatbed (Black / Colour) | 300 dpi: 8 sec / 8 sec; 600 dpi: 22 sec / 22 sec |
| ADF Monochrome (Simplex / Duplex) | 200 dpi: 25 ppm / 50 ipm; 300 dpi: 25 ppm / 50 ipm; 600 dpi: 6 ppm / 12 ipm |
| ADF Colour (Simplex / Duplex) | 200 dpi: 25 ppm / 50 ipm; 300 dpi: 25 ppm / 50 ipm; 600 dpi: 4 ppm / 8 ipm |
Consumables
| Roller Assembly Kit | B12B813481 (100,000 scans) |
Footnotes
| *1 | Scanning resolution as defined by ISO14473. |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the WorkForce DS-6500. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 2.0 |
| Supported OS (Scanner Driver) | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.6.8 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows); Document Capture (Mac) |
| Software Solutions Compatibility | Epson Device Admin |
Package Contents & Ordering Information
Ordering Information
| Model | WorkForce DS-6500 |
| Epson Product Code | B11B205241 |
| Recommended Retail Price (incl. GST) | S$1,566.00 |
| Consumables | Roller Assembly Kit B12B813481 (100,000 scans) |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — WorkForce DS-6500
What warranty does the WorkForce DS-6500 come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the WorkForce DS-6500 use?
Roller Assembly Kit B12B813481 (100,000 scans) Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
