Epson WorkForce DS-570WII A4 Duplex Sheet-fed Document Scanner
PRODUCT DESCRIPTION
Epson WorkForce DS-570WII A4 Duplex Sheet-fed Document Scanner (B11B263503) - 1 Year Local Warranty

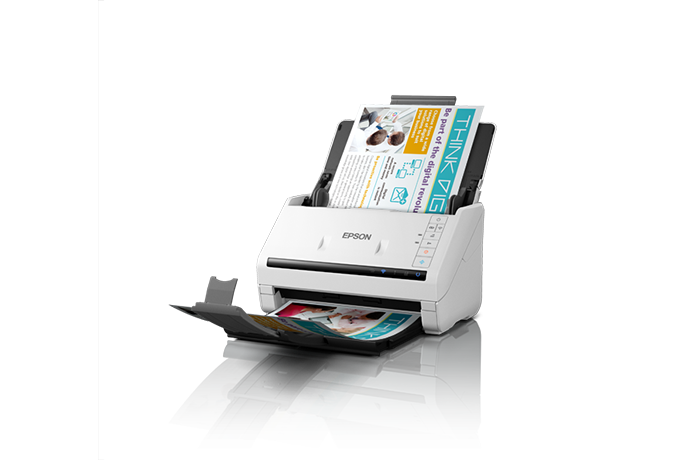

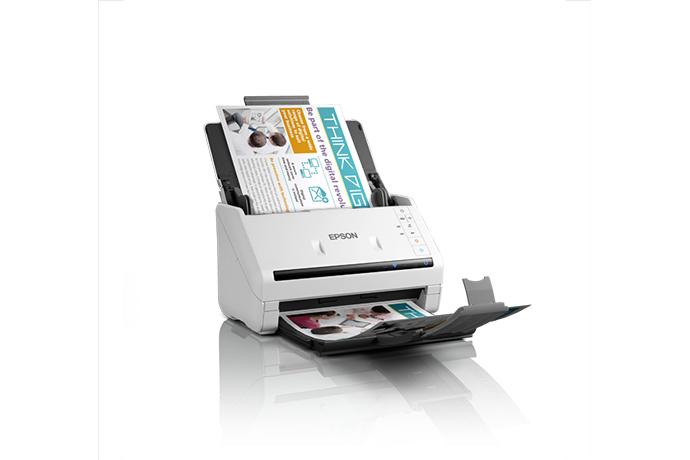

The Epson WorkForce DS-570WII A4 Duplex Sheet-fed Document Scanner - Focus on work that matters with the high-speed and all-purpose Epson WorkForce DS-570WII scanner.
Versatile, High-speed Scanning
Boasting a scan speed of up to 35ppm / 70ipm, the DS-570WII scanner can handle a wide variety of media between 27 - 413 gsm, so you can scan anything from paper documents to plastic cards such as ID, credit and business cards efficiently and seamlessly.
Wireless Connectivity
The DS-570WII provides scanning convenience via Wi-Fi for Smart Device, PCs and laptops (802.11b/g/n).
Wi-Fi A/P
Once this mode is turned on, the DS-570WII acts as an access point, allowing PCs, laptops and mobile devices to connect directly to the scanner without the need for a router or access point.

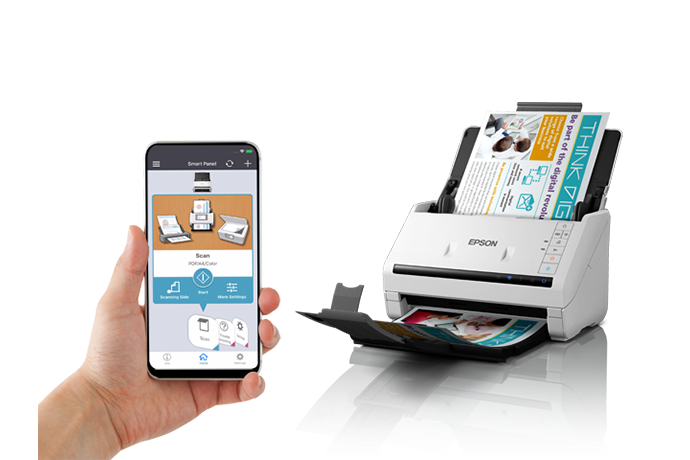

Epson Smart Panel
Download the Epson Smart Panel app onto your mobile device to access to the DS-570WII, allowing you to perform functions such as scan, save and share documents wirelessly using your mobile device.
Scan Fragile and A3 Documents Easily
Scan small and fragile documents, as well as large size documents of up to A3-sized, using a carrier sheet that can be automatically detected.
Automatic Feeding Mode
The Automatic Feeding Mode enables large volumes of documents to be scanned continuously. In addition, this mode allows you to scan documents of different sizes in one go without needing to arrange them by size and saving them as a single PDF.
Automatic Size Recognition
Place documents of different sizes into the feeding tray and the DS-570WII will automatically detect and scan everything in the correct size, all in a single scan.
Ideal For
Offices, clinics, accounts and admin teams in Singapore that digitise documents, receipts and records at volume. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
WorkForce DS-570WII Datasheet — Technical Specifications
General
| Model | WorkForce DS-570WII |
| Official Product Name | Epson WorkForce DS-570WII A4 Duplex Sheet-fed Document Scanner |
| Epson Product Code | B11B263503 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Scanning
| Scanner Type | A4 sheet-fed, one-pass duplex colour scanner |
| Sensor Type | Contact Image Sensor (CIS) x 2 |
| Scanning Method | Fixed carriage and moving document |
| Light Source | RGB LED x 2 |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | 50 - 1,200 dpi (1 dpi increments) |
| Bit Depth - Colour | 30-bit input, 24-bit output |
| Bit Depth - Grayscale | 10-bit input, 8-bit output |
| Bit Depth - Black and White | 10-bit input, 1-bit output |
| Supported Paper Weight | 27 - 413 g/m² (A8 or less 127 - 413 g/m²) |
| Max Document Size | 215.9 x 6096 mm |
| Min Document Size | 50.8 x 50.8 mm |
ADF
| ADF Capacity | 50 sheets (80g/m²) |
| Daily Scan Volume | Up to 5,500 sheets / day |
| Multi-feed Detection | Ultrasonic Sensor and Length Detection |
Connectivity
| Interface | USB 3.2 Gen 1; Wi-Fi (IEEE 802.11 b/g/n) |
Scan Speed
| A4, Colour/Monochrome, 300 dpi | 35 ppm / 70 ipm |
| A4, Colour/Monochrome, 600 dpi | 12 ppm / 24 ipm |
Dimensions & Weight
| Dimensions (W x D x H) | 296 x 169 x 176 mm |
| Weight | 3.7 kg |
Environmental Conditions
| Operating Temperature | 5 - 35°C |
| Storage Temperature | -25 - 60°C |
| Operating Humidity | 15 - 80% (No condensation) |
| Storage Humidity | 15 - 85% (No condensation) |
Electrical Specifications
| Rated Voltage | AC 100 - 240 V |
| Rated Frequency | 50 - 60 Hz |
| Power Consumption - Operating | 11 W (USB) / 12 W (Wi-Fi) |
| Power Consumption - Ready Mode | 5.4 W (USB) / 5.5 W (Wi-Fi) |
| Power Consumption - Sleep Mode | 1.0 W (USB) / 1.3 W (Wi-Fi) |
| Power Consumption - Power Off | 0.1 W |
Supported OS and Software
| Supported OS | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.6.8 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA |
| Output File Formats - Epson Scan 2 | JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG |
| Output File Formats - Document Capture Pro | JPEG, JPEG2000, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX |
| Bundled Software | Epson Scan 2, Epson Scan OCR Component, Epson Scan PDF Extensions, Document Capture Pro (Windows) / Document Capture (Mac), Epson Smart Panel (iOS / Android) |
| Software Solutions Compatibility | Epson Device Admin |
Consumables
| Roller Assembly Kit | 200,000 scans, B12B819671 |
| Carrier Sheet | 3,000 scans, B12B819051 |
| Cleaning Kit | B12B819291 |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the WorkForce DS-570WII. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 3.2 Gen 1; Wi-Fi (IEEE 802.11 b/g/n) |
| Supported OS | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.6.8 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA |
| Bundled Software | Epson Scan 2, Epson Scan OCR Component, Epson Scan PDF Extensions, Document Capture Pro (Windows) / Document Capture (Mac), Epson Smart Panel (iOS / Android) |
| Software Solutions Compatibility | Epson Device Admin |
Package Contents & Ordering Information
Ordering Information
| Model | WorkForce DS-570WII |
| Epson Product Code | B11B263503 |
| Recommended Retail Price (incl. GST) | S$783.00 |
| Consumables | Roller Assembly Kit B12B819671 (200,000 scans); Carrier Sheet B12B819051 (3,000 scans); Cleaning Kit B12B819291 |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — WorkForce DS-570WII
What warranty does the WorkForce DS-570WII come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the WorkForce DS-570WII use?
Roller Assembly Kit B12B819671 (200,000 scans); Carrier Sheet B12B819051 (3,000 scans); Cleaning Kit B12B819291 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
