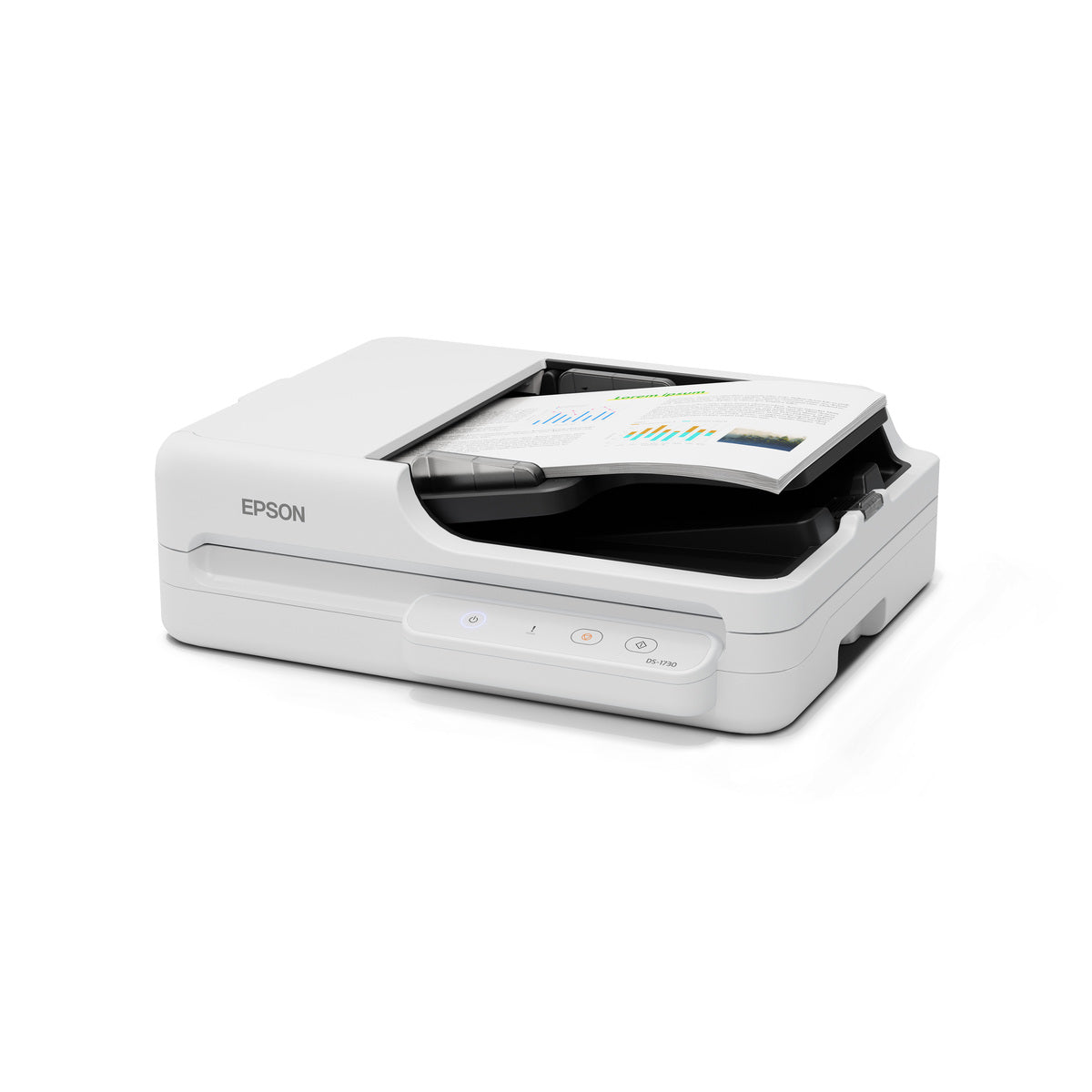

Epson WorkForce DS-1730 A4 Flatbed Document Scanner with Duplex ADF
PRODUCT DESCRIPTION
Epson WorkForce DS-1730 A4 Flatbed Document Scanner with Duplex ADF (B11B273504) - 1 Year Local Warranty
The Epson WorkForce DS-1730 A4 Flatbed Document Scanner with Duplex ADF - Optimise business efficiency with fast and flexible document scanning.
Fast and Efficient Scanning
DS-1730 offers one-pass duplex scanning with speeds of up to 30 ppm / 60 ipm, significantly enhancing office productivity. It also features a 60 sheets ADF, providing convenient and efficient scanning capabilities.
Compact Size
DS-1730 is designed with a small footprint that fits seamlessly into any office space. Together with high quality results and efficient processing, this is the ideal solution for all your scanning needs.
Wide Range Media Handling

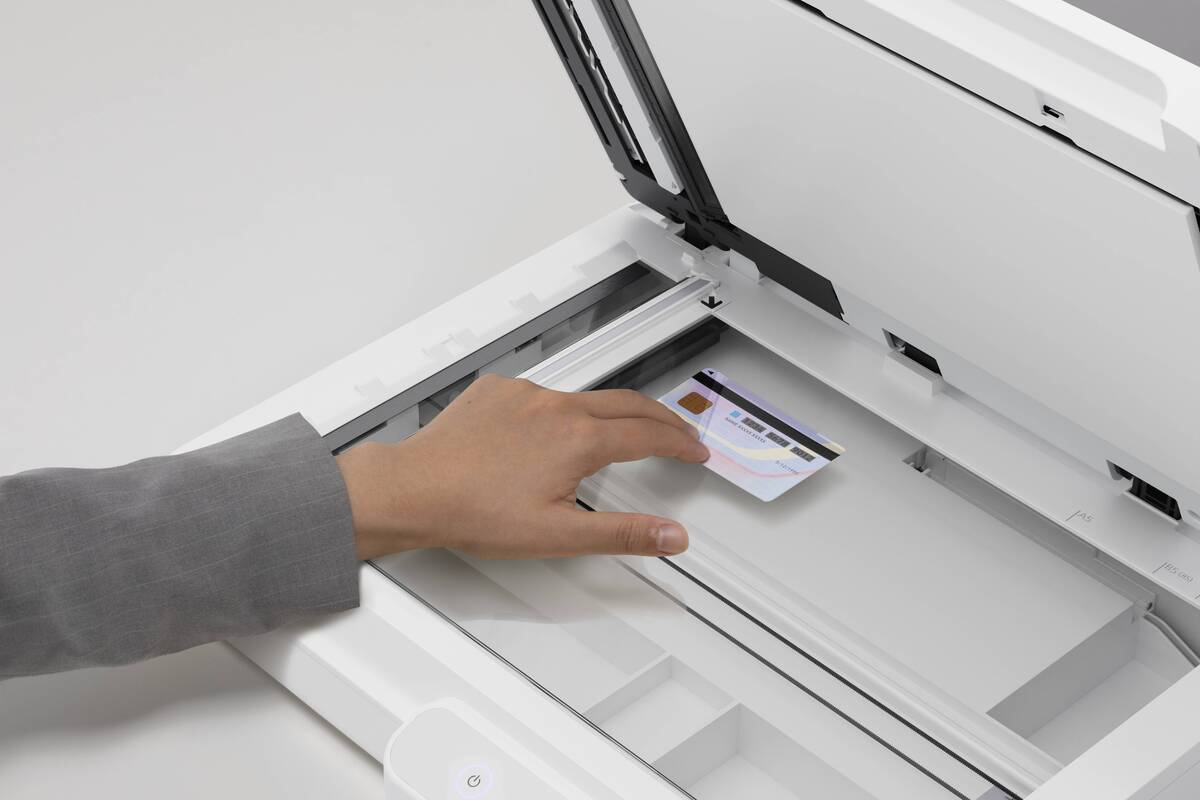

Handle a variety of media with the ADF for large volumes of documents, and the scanner glass for delicate items such as photos, booklets and ID cards. You can also perform continuous scanning by combining the ADF and scanner glass with auto size detection, ensuring images are saved in their original size.
Automatic Cropping of Multiple Originals
Scan multiple items at once without the hassle of scanning them individually. Our scanner automatically crops and save them separately, whether it's standard documents or irregular-shaped items like receipts, invoices, and photos. This feature streamlines your process, making scanning quick and convenient.
Edge Correction Tools
Document edges such as folds, tears, border shadows and punch holes in the original documents can be easily patched up with the surrounding colour of the document by using edge correction tools.
Glass Dirt Detection
Get notified upon detection of dirt on the glass surface inside the scanner. This reduces the risk of re-scanning due to poor image quality and improves productivity.
Eco-Friendly Product for Businesses
The main body of the scanner is made from up to 30% recycled plastic, offering a greener solution without compromising performance.
Ideal For
Offices, clinics, accounts and admin teams in Singapore that digitise documents, receipts and records at volume. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
WorkForce DS-1730 Datasheet — Technical Specifications
General
| Model | WorkForce DS-1730 |
| Official Product Name | Epson WorkForce DS-1730 A4 Flatbed Document Scanner with Duplex ADF |
| Epson Product Code | B11B273504 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Dimensions and Weight
| Dimensions (W x D x H) | 425 x 351 x 135 mm |
| Weight | 4.8 kg |
Environmental Conditions
| Temperature | Operating: 5 - 35 °C; Storage: -25 - 60 ℃ |
| Humidity | Operating: 15 - 80 % (No condensation); Storage: 15 - 85 % (No condensation) |
Scanner
| Scanner Type | A4 flatbed colour image scanner with ADF |
| Sensor Type | Contact Image Sensor (CIS) x 2 |
| Scanning Method | Flatbed: Fixed document and moving carriage; ADF: Fixed carriage and moving document |
| Light Source | RGB LED x 2 |
| Optical Resolution*1 | Flatbed: 1,200 x 1,200 dpi; ADF: 600 x 600 dpi |
| Output Resolution | 50 – 1,200 dpi (in 1 dpi increments) |
| Bit Depth | Colour: 30-bit input, 24-bit output; Grayscale: 10-bit input, 8-bit output; Black & White: 10-bit input, 1-bit output |
| Supported Paper Weight | 50 – 120 g/m2 |
| ADF Capacity | 60 sheets (80 g/m2) |
| Daily Scan Volume | Up to 3,000 sheets / day |
| Interface | USB 2.0 |
| Max Document Size | Flatbed: 215.9 x 297 mm; ADF: 215.9 x 3,048 mm |
| Min Document Size | ADF: 105 x 148 mm |
Scan Speed*2
| Flatbed (A4, Colour/Monochrome) | 300 dpi: 7 sec; 600 dpi: 15 sec |
| ADF (A4, Colour/Monochrome) | 300 dpi: 30 ppm / 60 ipm; 600 dpi: 5 ppm / 10 ipm |
Drivers and Software
| Supported OS (Scanner Driver) | Windows 7 / 8 / 8.1 / 10 / 11; Server 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.9.5 or later, macOS 11 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows) / Document Capture (Mac) |
| Software Solutions Compatibility | Epson Device Admin |
| File Format | Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG; Document Capture Pro (Windows): JPEG, JPEG2000, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX |
Electrical Specifications
| Rated Voltage | AC 220- 240 V |
| Rated Frequency | 50 – 60 Hz |
| Power Consumption | Operating: 9.0 W; Ready Mode: 3.8 W; Sleep Mode: 0.9 W; Power Off: 0.1 W |
Options & Consumables
| Cleaning Kit | B12B819291 |
Footnotes
| *1 | Scanning resolution as defined by ISO14473. |
| *2 | Based on A4 size documents. |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the WorkForce DS-1730. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 2.0 |
| Supported OS (Scanner Driver) | Windows 7 / 8 / 8.1 / 10 / 11; Server 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.9.5 or later, macOS 11 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows) / Document Capture (Mac) |
| Software Solutions Compatibility | Epson Device Admin |
Package Contents & Ordering Information
Ordering Information
| Model | WorkForce DS-1730 |
| Epson Product Code | B11B273504 |
| Recommended Retail Price (incl. GST) | S$675.00 |
| Consumables | Options & Consumables: Cleaning Kit B12B819291 |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — WorkForce DS-1730
What warranty does the WorkForce DS-1730 come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the WorkForce DS-1730 use?
Options & Consumables: Cleaning Kit B12B819291 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
