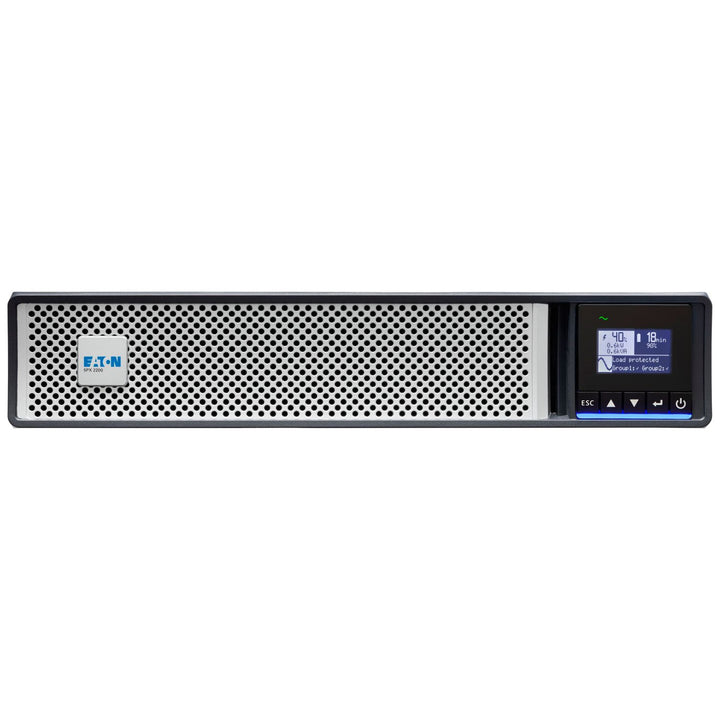

Eaton 5PX G2 Netpack 2200VA 2200W Line-Interactive Rack/Tower UPS, 2U, 8x C13 + 2x C19, Network Card
PRODUCT DESCRIPTION
Eaton 5PX G2 Netpack 2200VA/2200W Rack/Tower UPS (5PX2200IRTNG2, 9210-73038) - 3 Years Local Warranty
2200 W in Just 2U, Network Card Included
The Eaton 5PX G2 Netpack (5PX2200IRTNG2) packs 2200 VA / 2200 W of line-interactive protection into 2U of a 19-inch rack, and ships with an Eaton Network Management Card and rack-mounting kit as standard. It suits dense server racks and network cabinets in Singapore offices and data rooms where rack space and remote visibility both matter.
Unity Power Factor and Clean Sine-Wave Output
With a unity power factor (VA = W) the full rating is usable real power. Automatic Voltage Regulation corrects voltage deviations across a 160–294 V input window without draining the battery, and Eaton rates the unit at 98% efficiency at max. load.
Virtualisation-Ready with Outlet-Group Metering
Eaton lists compatibility with VMware, Hyper-V, Citrix Xen and Red Hat environments, and the graphical LCD meters energy consumption down to the managed outlet groups. Runtime can be extended with up to 4 optional Eaton EBMs.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 5PX G2 in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS and internal battery. Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 5PX2200IRTNG2 Datasheet — Technical Specifications
General
| Product Name | Eaton 5PX Gen2 UPS (Eaton 5PX 2200i RT2U Netpack G2) |
| Catalogue Number | 5PX2200IRTNG2 |
| Part Number (SKU) | 9210-73038 |
| Range | Eaton 5PX G2 |
| Topology | Line-interactive with Automatic Voltage Regulation (AVR) |
| Form Factor | Rack/tower (2U, 19-inch) |
| Colour | Black/silver |
| Local Warranty (Singapore) | 3 years on UPS and internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 2200 VA / 2200 W |
| Output Power Factor | 1 (VA = W) |
| Input Connection | IEC C20, 1.8 m input cord |
| Input Voltage Range | 160–294 V (adjustable to 150–294 V) |
| Input Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Input Frequency Range | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low sensitivity mode |
| Output Voltage | 230 V (+6% / −10%) |
| Output Frequency | 50/60 Hz |
| Output Waveform | Sine wave |
| Output Outlets | 8 x IEC C13, 2 x IEC C19 |
| Phase (Input / Output) | 1 / 1 |
| Efficiency at Max. Load | 98% |
| Power Consumption | 45 W |
Battery & Runtime (Eaton published)
| Internal Battery | 12 V / 7 Ah x 6, lead-acid maintenance-free, user replaceable |
| Battery Management | ABM or temperature-compensated charging (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Extended Battery Capability | Yes, up to 4 optional EBMs |
| Runtime at Half Load | 10 min |
| Runtime Graph | Eaton runtime calculator for 5PX2200IRTNG2 |
Communications
| Network Card | Included — Eaton Network Management Card (SNMP) fitted in the communication slot |
| Communication Ports | USB (HID compliant), serial (RS232), remote On/Off and Remote Power Off terminal, output relay terminal, dry contacts (3 outputs, 1 input, optocoupler, DB9) |
| User Interface | Multilingual graphical LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Virtualisation | VMware, Hyper-V, Citrix Xen, Red Hat (per Eaton) |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth | 438 / 85.5 / 603 mm |
| Rack Size | 2U, 19-inch (482.6 mm) |
| Weight | 28.2 kg |
| Noise Level | <40 dB at 1 m |
| Operating Temperature | 0–40 °C (batteries recommended max. 25 °C) |
| Relative Humidity | 0–90% non-condensing |
| Altitude | 3000 m |
| Compliances | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, CSA 22.2, RoHS, REACH |
| Certifications | CE, cTUVus, EAC, UKCA, KCC, ENERGY STAR certified |
Compatibility & Software Support
What It Is Suited To
Rack servers, virtualisation hosts, storage and core switching up to 2200 W. With a unity power factor you can load it to its full VA rating in watts; still leave headroom for growth.
Operating Systems and Software
The included Network Management Card provides SNMP monitoring over your LAN, and the USB port is HID compliant for direct connection. Eaton Intelligent Power Protector and Intelligent Power Manager handle monitoring and shutdown, including the virtual environments Eaton lists.
Outlets
8 x IEC C13 and 2 x IEC C19 outputs, with an IEC C20 input and 1.8 m input cord. Equipment with a BS 1363 (Type G) plug needs an IEC lead or an IEC-input power strip.
Package Contents & 5PX G2 Ordering Information
In the Box
Eaton lists: Network Management Card, input cable, rack-mounting kit, 2 x supports for tower mounting, cable locking system, USB cable, serial cable, 2 x IEC-IEC cables, quick start guide and safety instructions.
Eaton 5PX G2 Range — Ordering Information
| 5PX1000IRT2UG2 | 1000 VA / 1000 W | Rack/tower 2U | 9210-53050 |
| 5PX1500IRT2UG2 | 1500 VA / 1500 W | Rack/tower 2U | 9210-63060 |
| 5PX2200IRT2UG2 | 2200 VA / 2200 W | Rack/tower 2U | 9210-73043 |
| 5PX2200IRT3UG2 | 2200 VA / 2200 W | Rack/tower 3U | 9210-73037 |
| 5PX3000IRT2UG2 | 3000 VA / 3000 W | Rack/tower 2U | 9210-83120 |
| 5PX3000IRT3UG2 | 3000 VA / 3000 W | Rack/tower 3U | 9210-83121 |
| 5PX1000IRTNG2 | 1000 VA / 1000 W | Rack/tower 2U, network card included | 9210-53051 |
| 5PX1500IRTNG2 | 1500 VA / 1500 W | Rack/tower 2U, network card included | 9210-63061 |
| 5PX2200IRTNG2 (this listing) | 2200 VA / 2200 W | Rack/tower 2U, network card included | 9210-73038 |
| 5PX3000IRTNG2 | 3000 VA / 3000 W | Rack/tower 2U, network card included | 9210-83122 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 5PX2200IRTNG2 specifications (eaton.com) |
| Eaton spec sheet | Eaton 5PX2200IRTNG2 product specifications (PDF) |
| Eaton quick start | Eaton 5PX G2 quick start guide (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 5PX2200IRTNG2.
Frequently Asked Questions — Eaton 5PX2200IRTNG2
What does "Netpack" mean?
Eaton ships the Netpack model with a Network Management Card and rack-mounting kit as standard, so it is ready for SNMP monitoring on your network out of the box.
How long will it run on battery?
Eaton publishes 10 min at half load. Runtime can be extended with up to 4 optional EBMs; send us your load and target runtime.
Is a mains input cable included?
Yes. Eaton lists an input cable (IEC C20, 1.8 m cord) in the box.
Is it rack or tower?
Both. Eaton includes a rack-mounting kit and two supports for tower mounting.
What warranty do I get?
3 years on the UPS and internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
