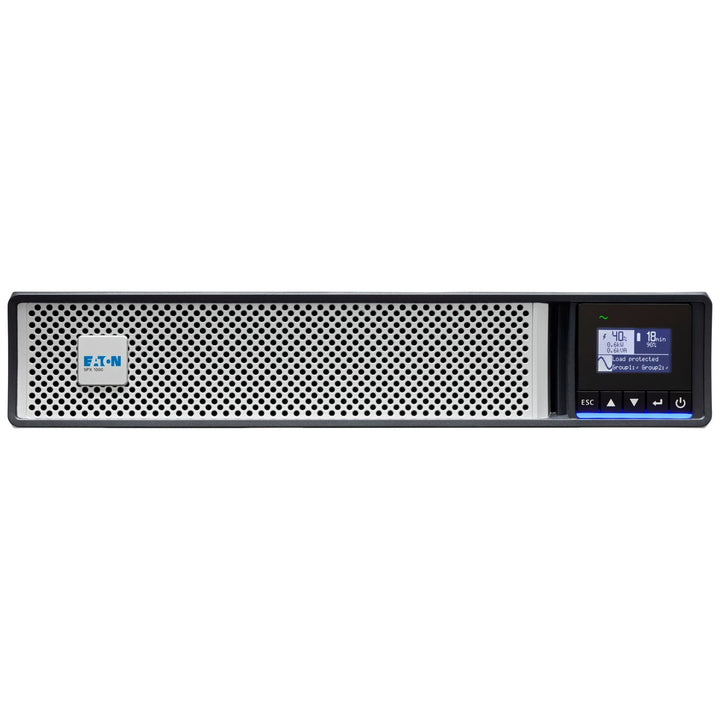

Eaton 5PX G2 Netpack 1000VA 1000W Line-Interactive Rack/Tower UPS, 2U, 8x IEC C13, Network Card
PRODUCT DESCRIPTION
Eaton 5PX G2 Netpack 1000VA/1000W Rack/Tower UPS (5PX1000IRTNG2, 9210-53051) - 3 Years Local Warranty
Network-Ready 2U UPS with the Card Already Fitted
The Eaton 5PX G2 Netpack (5PX1000IRTNG2) is a 1000 VA / 1000 W line-interactive UPS that ships with an Eaton Network Management Card and rack-mounting kit as standard. It fits 2U of a 19-inch rack or stands as a tower, so Singapore IT teams can protect and remotely monitor switches, firewalls and small servers from day one without ordering a separate card.
Unity Power Factor and Clean Sine-Wave Output
With a unity power factor (VA = W) every VA is usable real power. Automatic Voltage Regulation corrects under- and over-voltage across a 160–294 V input window without draining the battery, and Eaton rates the unit at 98% efficiency at max. load to trim running and cooling costs.
Expandable Runtime and Energy Metering
Runtime can be extended with up to 4 optional Eaton EBMs. The multilingual graphical LCD shows real-time status and meters energy consumption down to the outlet groups, and Eaton lists compatibility with virtual environments through Eaton Intelligent Power Manager.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 5PX G2 in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS and internal battery. Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 5PX1000IRTNG2 Datasheet — Technical Specifications
General
| Product Name | Eaton 5PX Gen2 UPS (Eaton 5PX 1000i RT2U Netpack G2) |
| Catalogue Number | 5PX1000IRTNG2 |
| Part Number (SKU) | 9210-53051 |
| Range | Eaton 5PX G2 |
| Topology | Line-interactive with Automatic Voltage Regulation (AVR) |
| Form Factor | Rack/tower (2U, 19-inch) |
| Colour | Black/silver |
| Local Warranty (Singapore) | 3 years on UPS and internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 1000 VA / 1000 W |
| Output Power Factor | 1 (VA = W) |
| Input Connection | IEC C14 (input power cable not included) |
| Input Voltage Range | 160–294 V (adjustable to 150–294 V) |
| Input Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Input Frequency Range | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low sensitivity mode |
| Output Voltage | 230 V (+6% / −10%) |
| Output Frequency | 50/60 Hz |
| Output Waveform | Sine wave |
| Output Outlets | 8 x IEC C13 |
| Phase (Input / Output) | 1 / 1 |
| Efficiency at Max. Load | 98% |
| Power Consumption | 20 W |
Battery & Runtime (Eaton published)
| Internal Battery | 12 V / 7 Ah x 4, lead-acid maintenance-free, user replaceable |
| Battery Management | ABM or temperature-compensated charging (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Extended Battery Capability | Yes, up to 4 optional EBMs |
| Runtime at Half Load | 17 min |
| Runtime Graph | Eaton runtime calculator for 5PX1000IRTNG2 |
Communications
| Network Card | Included — Eaton Network Management Card (SNMP) fitted in the communication slot |
| Communication Ports | USB (HID compliant), serial (RS232), remote On/Off and Remote Power Off terminal, output relay terminal, dry contacts (3 outputs, 1 input, optocoupler, DB9) |
| User Interface | Multilingual graphical LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth | 438 / 85.5 / 448 mm |
| Rack Size | 2U, 19-inch (482.6 mm) |
| Weight | 19.6 kg |
| Noise Level | <40 dB at 1 m |
| Operating Temperature | 0–40 °C (batteries recommended max. 25 °C) |
| Relative Humidity | 0–90% non-condensing |
| Altitude | 3000 m |
| Compliances | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, CSA 22.2, RoHS, REACH |
| Certifications | CE, cTUVus, EAC, UKCA, ENERGY STAR certified |
Compatibility & Software Support
What It Is Suited To
Network switches, firewalls, NAS and 1U servers up to 1000 W where remote monitoring and graceful shutdown over the network are required. Leave headroom for growth when sizing.
Operating Systems and Software
The included Network Management Card provides SNMP monitoring over your LAN, and the USB port is HID compliant for direct connection. Eaton Intelligent Power Protector and Intelligent Power Manager handle monitoring and shutdown; Eaton lists compatibility with virtual environments.
Outlets
8 x IEC C13 outputs with an IEC C14 input. Eaton does not include an input power cable with this model, so order a C13-to-BS 1363 or C13-to-C14 cord to suit your site. Equipment with a BS 1363 (Type G) plug needs an IEC lead or an IEC-input power strip.
Package Contents & 5PX G2 Ordering Information
In the Box
Eaton lists: Network Management Card, rack-mounting kit, 2 x supports for tower mounting, cable locking system, USB cable, serial cable, 2 x IEC-IEC cables, quick start guide and safety instructions. Input power cable is not included.
Eaton 5PX G2 Range — Ordering Information
| 5PX1000IRT2UG2 | 1000 VA / 1000 W | Rack/tower 2U | 9210-53050 |
| 5PX1500IRT2UG2 | 1500 VA / 1500 W | Rack/tower 2U | 9210-63060 |
| 5PX2200IRT2UG2 | 2200 VA / 2200 W | Rack/tower 2U | 9210-73043 |
| 5PX2200IRT3UG2 | 2200 VA / 2200 W | Rack/tower 3U | 9210-73037 |
| 5PX3000IRT2UG2 | 3000 VA / 3000 W | Rack/tower 2U | 9210-83120 |
| 5PX3000IRT3UG2 | 3000 VA / 3000 W | Rack/tower 3U | 9210-83121 |
| 5PX1000IRTNG2 (this listing) | 1000 VA / 1000 W | Rack/tower 2U, network card included | 9210-53051 |
| 5PX1500IRTNG2 | 1500 VA / 1500 W | Rack/tower 2U, network card included | 9210-63061 |
| 5PX2200IRTNG2 | 2200 VA / 2200 W | Rack/tower 2U, network card included | 9210-73038 |
| 5PX3000IRTNG2 | 3000 VA / 3000 W | Rack/tower 2U, network card included | 9210-83122 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 5PX1000IRTNG2 specifications (eaton.com) |
| Eaton spec sheet | Eaton 5PX1000IRTNG2 product specifications (PDF) |
| Eaton quick start | Eaton 5PX G2 quick start guide (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 5PX1000IRTNG2.
Frequently Asked Questions — Eaton 5PX1000IRTNG2
What does "Netpack" mean?
Eaton ships the Netpack model with a Network Management Card and rack-mounting kit as standard, so it is ready for SNMP monitoring on your network out of the box.
How long will it run on battery?
Eaton publishes 17 min at half load. Runtime can be extended with up to 4 optional EBMs; send us your load and target runtime.
Is a mains input cable included?
No. The input is IEC C14 and Eaton does not include an input power cable, so order a suitable cord with the UPS.
Is it rack or tower?
Both. Eaton includes a rack-mounting kit and two supports for tower mounting.
What warranty do I get?
3 years on the UPS and internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
