Cisco Table Microphone with Euroblock Plug, Spare
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Table Microphone with Euroblock Plug, Spare (CS-MIC-TABLE-E=) — Local Warranty
An analogue boundary microphone for Cisco video rooms

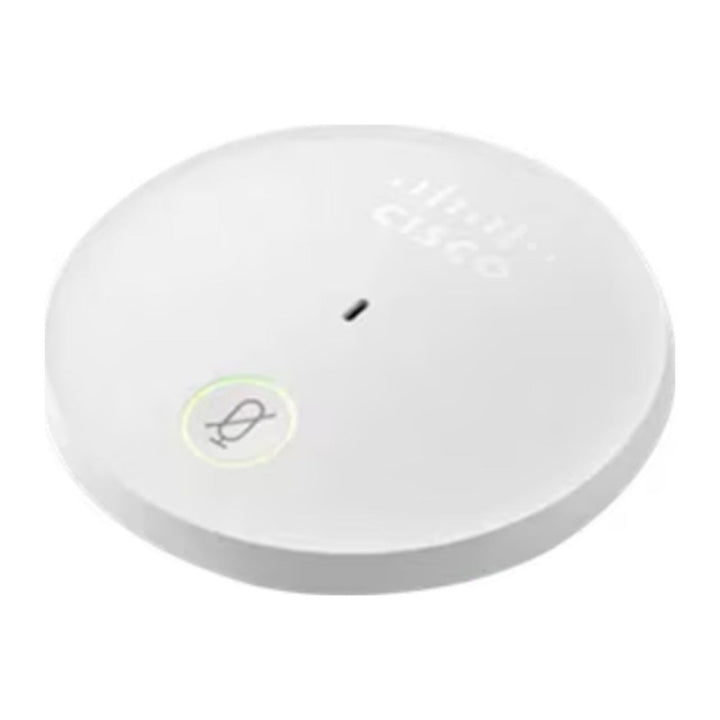

The Cisco Table Microphone with Euroblock plug (CS-MIC-TABLE-E=) is an analogue microphone for Cisco video systems. Cisco positions it for smart acoustic coverage in small to large rooms with fixed tables. This version terminates in a 4-pin Euroblock connector on a 9 m cable, for connection to the Euroblock microphone inputs on Cisco codecs and room systems. The = suffix denotes the spare/standalone part number.
Omnidirectional boundary design
The microphone is a balanced omnidirectional table microphone of the boundary layer type, picking up voices around the table within a 1.5 m radius (360 degrees).
Low-profile and discreet
The round housing is just 6.39 cm in diameter and 1.09 cm high and weighs 126 g. It can be recessed into the table or placed on a magnetic table plate, keeping the tabletop tidy.
Mute button with LED
A mute button with an LED status indicator on the microphone lets participants mute and unmute from their seat and see the mute state.
Euroblock for fixed installations
The 4-pin Euroblock termination suits fixed installations where cables run under the table or through floor boxes to the codec. The microphone is phantom powered (9V/52V) from the connected Cisco device. A 4-pin mini-jack version (CS-MIC-TABLE-J=) with a 7.5 m cable is also available.
Cisco Table Microphone Datasheet — Technical Specifications
Acoustic
| Type | Balanced omnidirectional table microphone, boundary layer type |
| Frequency range | 80 Hz to 20 kHz, ±6 dB |
| Sensitivity | -34 dB ±3 dB rel 1 V/Pa, 1 kHz |
| Signal-to-noise ratio | Minimum 70 dB |
| Pickup range | 1.5 m radius (360°) |
Connection & Controls
| Connector | 4-pin Euroblock |
| Cable length | 9 m |
| Power | 9V/52V phantom power from the Cisco device |
| Controls | Mute button with LED status indicator |
Physical
| Shape / dimensions | Round, 6.39 cm diameter x 1.09 cm height |
| Weight | 0.126 kg (0.28 lb) |
| Colour | White |
| Mounting | Tabletop: recessed into the table or on a magnetic table plate |
Compatibility & Software Support
Compatible Cisco devices
Cisco’s microphone data sheet lists the Table Microphone as compatible with: Room Bar, Room Bar Pro, Room Kit, Room Kit Plus, Room Kit EQ, Room Kit EQX, Room Kit Pro, Room 55, Room 55 Dual, Room 70, Room 70 G2, SX10, SX20, SX80, MX700, MX800, Board Pro 55/75, Board Pro 55/75 G2 and the Room Panorama Series.
Related SourceIT listings: Cisco Room Bar, Cisco Room Bar Pro, Cisco Room Kit EQ, Cisco Room Kit Pro and Cisco Codec Pro.
Choosing Euroblock or mini-jack
Both versions share the same specifications in Cisco’s data sheet; they differ in connector and cable length. Check which microphone input your Cisco device has: the Euroblock version (CS-MIC-TABLE-E=, 9 m cable) suits devices and installations with Euroblock microphone inputs, while the mini-jack version (CS-MIC-TABLE-J=, 7.5 m cable) suits 4-pin mini-jack inputs.
Features not included
This analogue microphone does not provide adaptive voice capture or speaker tracking. For those features Cisco offers the Table Microphone Pro and Ceiling Microphone Pro.
Lifecycle status
No end-of-sale notice has been published by Cisco for CS-MIC-TABLE-E= at the time of writing; Cisco’s microphone data sheet (updated April 2026) still lists it.
Warranty
This unit is supplied with Local Warranty. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Microphone Ordering Information
What this part number covers
CS-MIC-TABLE-E= is the spare/standalone Cisco Table Microphone with an attached 9 m cable and 4-pin Euroblock connector. Cisco’s data sheet does not publish a separate box-contents list.
Cisco Microphone Family
| Model | Key difference |
| Cisco Table Microphone, Euroblock (CS-MIC-TABLE-E=) (this listing) | Analogue omnidirectional, 4-pin Euroblock, 9 m cable |
| Cisco Table Microphone, mini-jack (CS-MIC-TABLE-J=) | Same microphone with 4-pin mini-jack, 7.5 m cable |
| Cisco Table Microphone Pro | Cisco’s higher-end table microphone (separate data sheet) |
| Cisco Ceiling Microphone (CTS-MIC-CLNG-G2) | Ceiling-hung analogue microphone |
| Cisco Ceiling Microphone Pro | Ceiling-mounted microphone (separate data sheet) |
Datasheet & Downloads
Frequently Asked Questions — Cisco Table Microphone (Euroblock)
What is the pickup pattern?
Omnidirectional (boundary layer type), with a 1.5 m pickup radius around the microphone.
How long is the cable?
The Euroblock version has a 9 m cable. The mini-jack version (CS-MIC-TABLE-J=) has a 7.5 m cable.
Does it need a separate power supply?
No. It is phantom powered (9V/52V) by the connected Cisco device.
Does it have a mute button?
Yes, with an LED status indicator.
Which Cisco devices is it compatible with?
Cisco lists Room Bar, Room Bar Pro, Room Kit EQ, Room Kit EQX, Room Kit Pro, Room Kit, Room Kit Plus, Board Pro and Board Pro G2, Room 55/70 series, SX10/SX20/SX80, MX700/MX800 and the Room Panorama Series.
