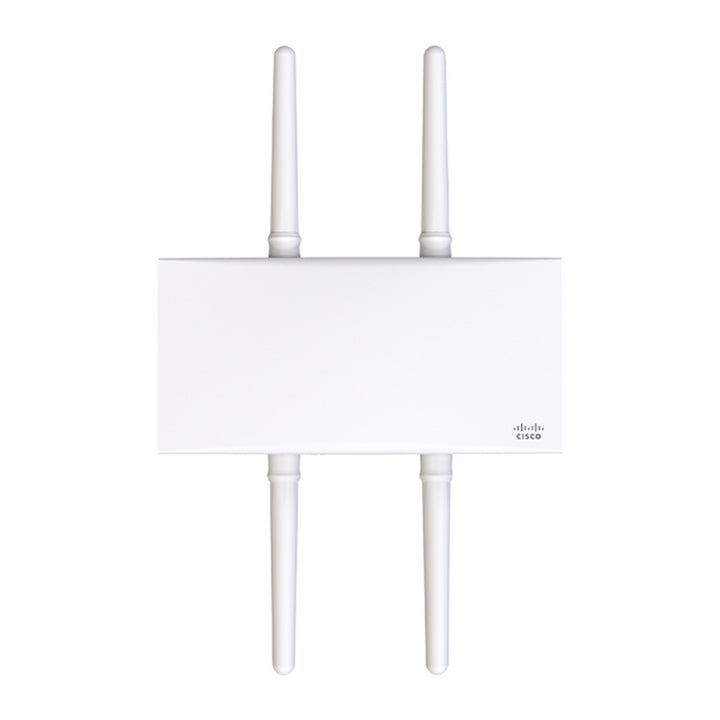

Cisco Meraki MR86 Wi-Fi 6 Outdoor Access Point, 4x4 MU-MIMO, 2.5GbE, IP67, External Antennas
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Meraki MR86 Wi-Fi 6 Outdoor Access Point (MR86-HW) — 1-Year Hardware Warranty
Rugged 4x4 Wi-Fi 6 for outdoor sites
The Cisco Meraki MR86 is an IP67-rated, cloud-managed 802.11ax (Wi-Fi 6) outdoor access point for campuses, stadiums, ports, warehouse yards and public spaces that need high-capacity coverage outdoors.
Four spatial streams per band
Both the 2.4 GHz and 5 GHz client radios run 4x4 MIMO with four spatial streams and UL/DL MU-MIMO. Meraki lists up to 2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, a 3.0 Gbps dual-radio aggregate frame rate in the MR86 data sheet.
2.5 Gbps multigigabit uplink
A single 100/1000/2.5GBASE-T Ethernet port carries both data and power, so the AP can pass more than 1 Gbps of traffic over existing copper cabling. 802.3at PoE+ is required.
External antennas for shaped coverage
The MR86 uses external antennas, chosen to suit the site: Meraki lists MA-ANT-20, MA-ANT-25, MA-ANT-27 and Cisco AIR-ANT2513P4M-N= as compatible. Antennas are not included.
Built for harsh environments
The enclosure is rated IP67 and tested for dust, shock, vibration and moisture, with an operating range of -40 °C to 55 °C. Wall and pole mounting hardware is included.
Cisco Meraki MR86 Datasheet — Technical Specifications
Radios
| Wi-Fi standard | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac |
| Client radios | 2.4 GHz 802.11b/g/n/ax and 5 GHz 802.11a/n/ac/ax |
| MIMO | 4x4 MIMO, four spatial streams, UL/DL MU-MIMO and OFDMA |
| Maximum data rates | 5 GHz: up to 2,402 Mbps; 2.4 GHz: up to 574 Mbps; 3.0 Gbps dual-radio aggregate frame rate |
| Additional radios | Dual-band WIDS/WIPS, spectrum analysis and location analytics radio; 2.4 GHz Bluetooth Low Energy radio (beacon and scanning) |
Antennas
| Type | External (not included) |
| Compatible antennas | MA-ANT-20, MA-ANT-25, MA-ANT-27, AIR-ANT2513P4M-N= |
Interfaces & Power
| Ethernet | 1 x 100/1000/2.5GBASE-T (RJ-45) |
| PoE input | 42.5-57 V; 802.3at required |
| Power consumption | 30 W maximum |
| Injector | PoE injector sold separately |
Physical & Environmental
| Dimensions | 30.0 x 15.3 x 5.5 cm (11.81 x 6.02 x 2.16 in.) |
| Weight | 1.5 kg |
| Environmental rating | IP67 |
| Mounting | Walls and vertical poles; standard mounting hardware included |
| Operating temperature | -40 °C to 55 °C |
| Humidity | 5% to 95% non-condensing |
| Altitude | Up to 12,192 m (40,000 ft) |
Compatibility & Software Support
Cloud management
The MR86 is configured and monitored from the Cisco Meraki cloud dashboard, with automatic RF optimisation, self-provisioning and firmware updates.
Licensing
Cisco Meraki states that a Meraki access point licence is required for the MR86.
Power
An 802.3at (PoE+) source is required. Meraki notes the PoE injector is sold separately.
Antennas
Fit one of the compatible external antennas listed by Meraki (MA-ANT-20/25/27 or AIR-ANT2513P4M-N=) to suit omnidirectional, sector or patch coverage.
Warranty
Sold by SourceIT as a Singapore unit. Cisco Meraki states a 1-year hardware warranty with advanced replacement for outdoor access points in its MR86 data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Meraki MR Ordering Information
In the Box
- MR86 cloud-managed access point
- Mount cradle
- Wall screws and wall screw anchors
- Grounding screws
- Mounting straps
Antennas and PoE injector are not included.
Cisco Meraki Wi-Fi 6 Access Point Family
| Model | Key difference |
| MR86 (this listing) | Outdoor IP67, 4x4:4, 2.5 GbE uplink, 802.3at, external antennas |
| Cisco Meraki MR76 | Outdoor IP67, 2x2:2, GbE uplink, 802.3af, external antennas |
| Cisco Meraki MR46E | Indoor 4x4:4 with external antenna connectors |
| Cisco Meraki MR36H | Indoor wall plate, 2x2:2, 3 x GbE LAN with PoE output |
Datasheet & Downloads
| Document | Link |
| Cisco Meraki MR86 data sheet | documentation.meraki.com |
| Cisco Meraki MR86 installation guide | documentation.meraki.com |
| Cisco Meraki MR86 product page | cisco.com |
Frequently Asked Questions — Cisco Meraki MR86
Are antennas included?
No. The MR86 uses external antennas sold separately; Meraki lists MA-ANT-20, MA-ANT-25, MA-ANT-27 and AIR-ANT2513P4M-N= as compatible.
What PoE does the MR86 need?
802.3at (PoE+) is required, at up to 30 W. The injector is sold separately.
How does it differ from the MR76?
The MR86 has 4x4:4 radios, a 2.5 GbE uplink and needs 802.3at; the MR76 is 2x2:2 with a Gigabit uplink and runs on 802.3af.
Does it need a licence?
Yes. Cisco Meraki states a Meraki access point licence is required.
What warranty applies?
Cisco Meraki states a 1-year hardware warranty with advanced replacement for outdoor access points.
