Cisco Meraki Catalyst 9300-M 48-Port Gigabit Data, Modular Uplink Cloud-Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

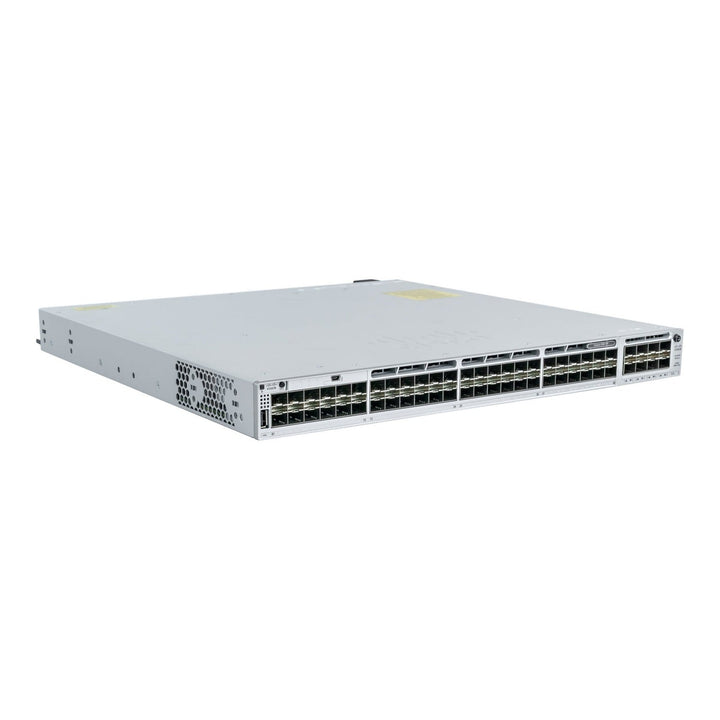

Cisco Meraki Catalyst 9300-M 48-Port Gigabit Data, Modular Uplink Cloud-Managed Switch (C9300-48T-M) — Lifetime Hardware Warranty
Catalyst 9300 hardware, Meraki cloud management
The Cisco C9300-48T-M is the Meraki cloud-managed version of the Catalyst 9300 (the -M suffix). Cisco Meraki describes the C9300-M as combining the simplicity of the Meraki dashboard with powerful Catalyst switching hardware. It is configured and monitored from the Meraki dashboard rather than with Cisco Catalyst Center.
Cloud management with IOS XE
Cisco Meraki documents that -M switches run Cloud Management with IOS XE firmware, with the Meraki management layer natively integrated with IOS XE. A Meraki licence (Enterprise or Advanced) is required; Meraki allows a 30-day grace period for onboarding to the dashboard.
Gigabit data access
The C9300-48T-M provides 48 x 1GbE RJ-45 data ports (no PoE) for wired desktops, printers and other data devices.
Modular uplinks, 480G stacking and StackPower
An uplink module slot accepts Meraki -M network modules such as the C9300-NM-8X-M (8 x 1G/10G SFP+). Stacking runs at 480 Gbps, and StackPower shares power supplies across stack members.
Lifetime hardware warranty
Cisco Meraki states a full lifetime hardware warranty with next-day advanced replacement included.
Cisco Meraki C9300-48T-M Datasheet — Technical Specifications
Interfaces
| Downlink ports | 48 x 1GbE RJ-45 (data only, no PoE) |
| Uplinks | Modular: one uplink module slot (C9300-NM-xx-M modules, sold separately) |
| Management | 1 x dedicated management interface |
Performance
| Switching capacity | 256 Gbps |
| Forwarding rate | 190.47 Mpps |
| Stacking | 480 Gbps stacking |
Software & Licensing
| Management | Meraki dashboard (Cloud Management with IOS XE) |
| Licence | Catalyst 9300-M Enterprise or Advanced, 1, 3, 5, 7 or 10 years (required, sold separately) |
| Advanced-only features | Adaptive Policy; NetFlow v10 (IPFIX) and Encrypted Traffic Analytics |
Power & Cooling
| Default power supply | 350W AC (PWR-C1-350WAC-P-M) |
| Power supply bays | 2 (second supply optional, for redundancy) |
| Fans | 3 x field-replaceable, hot-swap (N+1 redundancy) |
| StackPower | Supported |
Physical & Environmental
| Form factor | 1U rack mount |
| Dimensions (H x W x D) | 4.4 x 44.5 x 44.9 cm (1.73 x 17.5 x 17.7 in.) |
| Weight | 7.45 kg (16.43 lb) |
| Operating temperature | -5° to 45°C |
| Operating humidity | 5% to 90% non-condensing |
| MTBF | 305,870 hours (25°C) |
Compatibility & Software Support
Meraki Licence Required
Cisco Meraki states that cloud-born Catalyst switches (-M) require Meraki licences, with a 30-day grace period for onboarding to the Meraki dashboard. The Catalyst 9300-M licence comes in Enterprise and Advanced editions with 1, 3, 5, 7 or 10 year terms; Adaptive Policy, NetFlow v10 (IPFIX) and Encrypted Traffic Analytics are Advanced features. In co-termination organisations, one edition must be used across MS390, C9300-M, MS150 and MS130 switches. The licence is not included with this hardware part number.
Management
The switch runs Cloud Management with IOS XE and is managed through the Meraki dashboard. Cisco Meraki's FAQ describes the Meraki management layer as natively integrated with IOS XE.
Accessories & Uplink Modules
Cisco Meraki lists -M uplink modules for the C9300-M: C9300-NM-8X-M (8 x 1G/10G SFP+), C9300-NM-2Q-M (2 x 40G QSFP), C9300-NM-2Y-M (2 x 25G/10G/1G SFP28) and C9300-NM-4M (4 x multigigabit RJ-45). The Meraki data sheet states that fan spares, StackPower cables, StackWise cables and power supplies are compatible between non-M and -M models (for example STACK-T1-50CM and STACK-T1-50CM-M).
Warranty
Sold by SourceIT as a Singapore unit. Cisco Meraki states a full lifetime hardware warranty with next-day advanced replacement included in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Meraki Catalyst 9300-M Ordering Information
What the Part Number Covers
Per the Meraki data sheet the box contains the switch, one default power supply (350W AC, PWR-C1-350WAC-P-M), rack mount brackets and three pre-installed fans. Cisco's ordering guide states that the Meraki licence, power cables, secondary power supply, uplink modules, SSD and accessories are all selected separately for -M models.
Cisco Meraki Catalyst 9300-M Family
| Model | Key difference |
| C9300-24T-M | 24 x 1GbE data, modular uplink, 350W AC |
| C9300-48T-M (this listing) | 48 x 1GbE data, modular uplink, 350W AC |
| C9300-24S-M | 24 x 1G SFP, modular uplink, 715W AC |
| C9300-24P-M | 24 x 1GbE PoE+ (445W default), modular uplink, 715W AC |
| C9300-48P-M | 48 x 1GbE PoE+ (437W default), modular uplink, 715W AC |
| C9300L-24P-4X-M | 24 x 1GbE PoE+ (505W), 4 x 10G SFP+ fixed uplinks, 320 Gbps stacking |
Related Accessories at SourceIT
| Item | Use |
| Cisco 350W AC Platinum Config 1 Power Supply (PWR-C1-350WAC-P=) | Non-M equivalent of the PWR-C1-350WAC-P-M supply (Meraki lists power supplies as compatible between non-M and -M models) |
| Cisco 3 m Type 1 Stacking Cable (STACK-T1-3M=) | StackWise data stacking cable for modular-uplink C9300 models (non-M equivalent of STACK-T1-3M-M) |
| Cisco StackPower Cable 150 cm (CAB-SPWR-150CM=) | StackPower power-sharing cable (non-M equivalent of CAB-SPWR-150CM-M) |
Datasheet & Downloads
| Document | Link |
| Cisco Meraki Catalyst 9300-M data sheet | documentation.meraki.com |
| Catalyst 9300/X/L-M Series Installation Guide | documentation.meraki.com |
| Cloud-Managed Catalyst Switches FAQs | documentation.meraki.com |
| Cisco Catalyst 9300 Series Switches Data Sheet | www.cisco.com |
| Cisco Catalyst 9300 Series Ordering Guide | www.cisco.com |
Frequently Asked Questions — Cisco Meraki C9300-48T-M
What does the -M suffix mean?
It is the Meraki cloud-managed version of the switch. -M models run Cloud Management with IOS XE and are managed through the Meraki dashboard.
Is a Meraki licence required?
Yes. Cisco Meraki states -M switches require Meraki licences (Enterprise or Advanced), with a 30-day grace period for onboarding. The licence is sold separately.
Does it support PoE?
No. The C9300-48T-M has no PoE.
Which uplink modules fit?
Cisco Meraki lists C9300-NM-8X-M, C9300-NM-2Q-M, C9300-NM-2Y-M and C9300-NM-4M. Modules are ordered separately.
What warranty applies?
Cisco Meraki states a full lifetime hardware warranty with next-day advanced replacement included.
