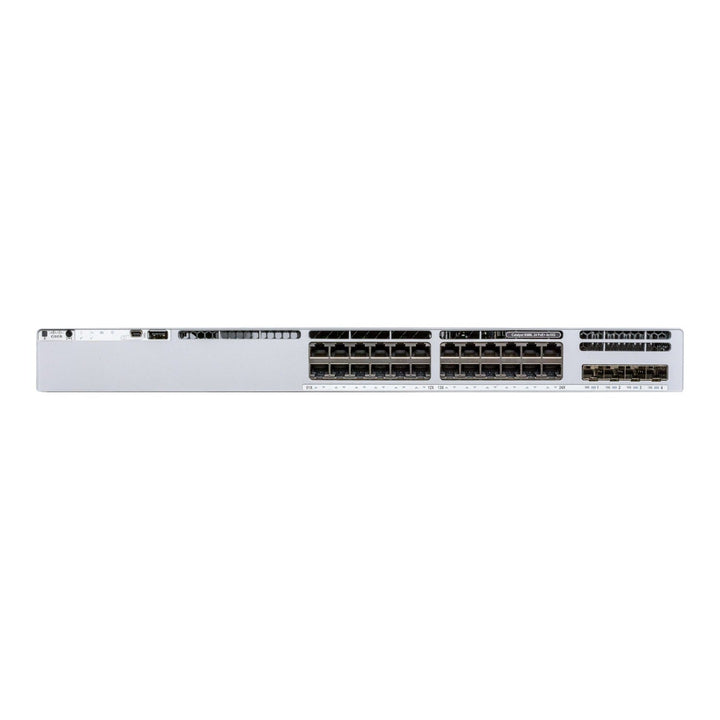

Cisco Meraki Catalyst 9300L-M 24-Port Gigabit PoE+ 505W, 4x 10G SFP+ Cloud-Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Meraki Catalyst 9300L-M 24-Port Gigabit PoE+ 505W, 4x 10G SFP+ Cloud-Managed Switch (C9300L-24P-4X-M) — Lifetime Hardware Warranty
Catalyst 9300L hardware, Meraki cloud management
The Cisco C9300L-24P-4X-M is the Meraki cloud-managed version of the Catalyst 9300L (the -M suffix). Cisco Meraki states it integrates Meraki dashboard management with high-performance switching hardware, with 4 x 10G/1G SFP+ fixed uplinks.
Cloud management with IOS XE
Cisco Meraki documents that -M switches run Cloud Management with IOS XE firmware, with the Meraki management layer natively integrated with IOS XE. A Meraki licence (Enterprise or Advanced) is required; Meraki allows a 30-day grace period for onboarding to the dashboard.
PoE+ for access devices
All 24 downlink ports deliver PoE+ to access points, phones and cameras. Meraki lists 505W of PoE budget with the default 715W AC supply.
320G stacking
With the optional C9300L-STAK-KIT2-M (two adapters and a 50 cm cable), up to eight switches can be stacked at 320 Gbps.
Lifetime hardware warranty
Cisco Meraki states a full lifetime hardware warranty with next-day advanced replacement included.
Cisco Meraki C9300L-24P-4X-M Datasheet — Technical Specifications
Interfaces
| Downlink ports | 24 x 1GbE RJ-45 PoE+ |
| Uplinks | Fixed: 4 x 10G/1G SFP+ |
| Management | 1 x dedicated management interface |
Power over Ethernet
| PoE standard | 802.3at PoE+ |
| Default (715W AC primary) | 505W |
Performance
| Switching capacity | 128 Gbps (448 Gbps stacked) |
| Forwarding rate | 95.23 Mpps (333.33 Mpps stacked) |
| Stacking | 320 Gbps stacking, up to 8 switches, with the optional C9300L-STAK-KIT2-M |
Software & Licensing
| Management | Meraki dashboard (Cloud Management with IOS XE) |
| Licence | Catalyst 9300-M Enterprise or Advanced, 1, 3, 5, 7 or 10 years (required, sold separately) |
| Advanced-only features | Adaptive Policy; NetFlow v10 (IPFIX) and Encrypted Traffic Analytics |
Power & Cooling
| Default power supply | 715W AC (PWR-C1-715WAC-P-M) |
| Power supply bays | 2 (second supply optional, for redundancy) |
| Fans | 3 x field-replaceable, hot-swap (N+1 redundancy) |
| StackPower | Not supported on 9300L models |
Physical & Environmental
| Form factor | 1U rack mount |
| Dimensions (H x W x D) | 4.4 x 44.5 x 44.9 cm (1.73 x 17.5 x 17.7 in.) |
| Weight | 7.35 kg (16.2 lb) |
| Operating temperature | -5° to 45°C |
| Operating humidity | 5% to 90% non-condensing |
| MTBF | 340,710 hours (25°C) |
Compatibility & Software Support
Meraki Licence Required
Cisco Meraki states that cloud-born Catalyst switches (-M) require Meraki licences, with a 30-day grace period for onboarding to the Meraki dashboard. The Catalyst 9300-M licence comes in Enterprise and Advanced editions with 1, 3, 5, 7 or 10 year terms; Adaptive Policy, NetFlow v10 (IPFIX) and Encrypted Traffic Analytics are Advanced features. In co-termination organisations, one edition must be used across MS390, C9300-M, MS150 and MS130 switches. The licence is not included with this hardware part number.
Management
The switch runs Cloud Management with IOS XE and is managed through the Meraki dashboard. Cisco Meraki's FAQ describes the Meraki management layer as natively integrated with IOS XE.
Stacking
Stacking requires the optional C9300L-STAK-KIT2-M (two adapters and a 50 cm cable); spare STACK-T3A-50CM-M, STACK-T3A-1M-M and STACK-T3A-3M-M cables are available. Up to eight switches can be stacked.
Warranty
Sold by SourceIT as a Singapore unit. Cisco Meraki states a full lifetime hardware warranty with next-day advanced replacement included in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Meraki Catalyst 9300-M Ordering Information
What the Part Number Covers
Per the Meraki data sheet the box contains the switch, one default power supply (715W AC, PWR-C1-715WAC-P-M), rack mount brackets and three pre-installed fans. Cisco's ordering guide states that the Meraki licence, power cables, secondary power supply, uplink modules, SSD and accessories are all selected separately for -M models.
Cisco Meraki Catalyst 9300-M Family
| Model | Key difference |
| C9300-24T-M | 24 x 1GbE data, modular uplink, 350W AC |
| C9300-48T-M | 48 x 1GbE data, modular uplink, 350W AC |
| C9300-24S-M | 24 x 1G SFP, modular uplink, 715W AC |
| C9300-24P-M | 24 x 1GbE PoE+ (445W default), modular uplink, 715W AC |
| C9300-48P-M | 48 x 1GbE PoE+ (437W default), modular uplink, 715W AC |
| C9300L-24P-4X-M (this listing) | 24 x 1GbE PoE+ (505W), 4 x 10G SFP+ fixed uplinks, 320 Gbps stacking |
Related Accessories at SourceIT
| Item | Use |
| Cisco 350W AC Platinum Config 1 Power Supply (PWR-C1-350WAC-P=) | Non-M Catalyst 9300 Series 350W AC supply (Meraki lists power supplies as compatible between non-M and -M models); this switch ships with a 715W supply |
Datasheet & Downloads
| Document | Link |
| Cisco Meraki Catalyst 9300L-M data sheet | documentation.meraki.com |
| Catalyst 9300/X/L-M Series Installation Guide | documentation.meraki.com |
| Cloud-Managed Catalyst Switches FAQs | documentation.meraki.com |
| Cisco Catalyst 9300 Series Switches Data Sheet | www.cisco.com |
| Cisco Catalyst 9300 Series Ordering Guide | www.cisco.com |
Frequently Asked Questions — Cisco Meraki C9300L-24P-4X-M
What does the -M suffix mean?
It is the Meraki cloud-managed version of the switch. -M models run Cloud Management with IOS XE and are managed through the Meraki dashboard.
Is a Meraki licence required?
Yes. Cisco Meraki states -M switches require Meraki licences (Enterprise or Advanced), with a 30-day grace period for onboarding. The licence is sold separately.
How much PoE power is available?
505W with the default supply.
Are the uplinks fixed?
Yes. Four 10G/1G SFP+ uplinks are built in; there is no uplink module slot.
What warranty applies?
Cisco Meraki states a full lifetime hardware warranty with next-day advanced replacement included.
