Cisco Meraki MR76 Wi-Fi 6 Outdoor Access Point

Cisco Meraki MR76 Wi-Fi 6 Outdoor Access Point (MR76-HW) - Local Warranty

Cisco Meraki MR76 Wi-Fi 6 Access Point – High-Speed Outdoor Wireless Connectivity

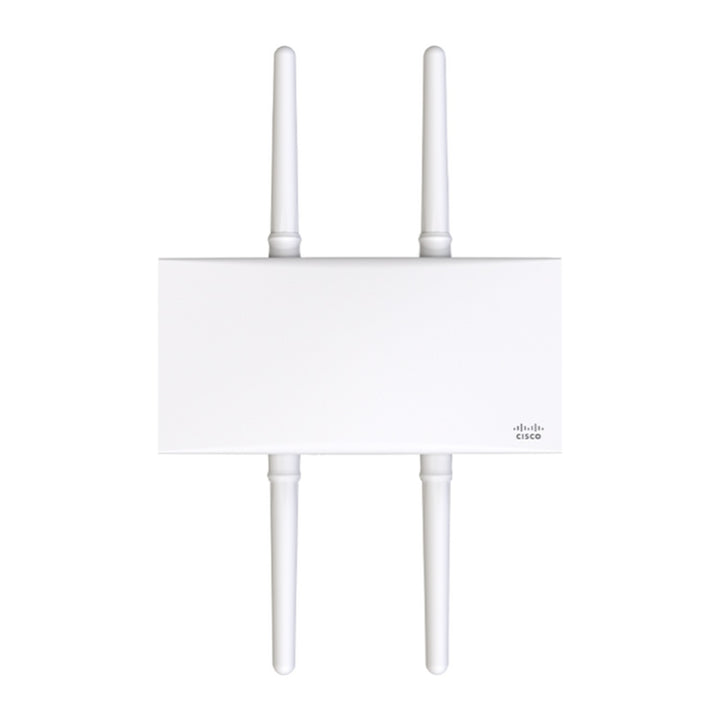

The Cisco Meraki MR76 Wi-Fi 6 Outdoor Access Point (MR76-HW) is a rugged, high-performance access point designed for outdoor environments that require fast, reliable, and secure Wi-Fi connectivity. Built with Wi-Fi 6 (802.11ax) support, it offers higher speeds, greater capacity, and improved network efficiency compared to previous Wi-Fi standards. It features external antenna connectors, allowing users to customize and extend wireless coverage for large outdoor spaces like parks, campuses, warehouses, and industrial sites. With its weatherproof IP67-rated enclosure, the MR76 can withstand harsh outdoor conditions, including rain, dust, and extreme temperatures.

MR76-HW Outdoor Access Point – Rugged and Reliable for Harsh Environments

The MR76-HW Outdoor Access Point is built to endure harsh outdoor conditions, making it suitable for deployment in unpredictable weather. Its IP67-rated enclosure provides protection against dust, water, and extreme temperatures, ensuring reliable performance in all weather conditions. This makes it ideal for outdoor spaces like stadiums, parking lots, outdoor malls, and industrial sites. The robust housing ensures that the access point continues to operate efficiently in rugged outdoor settings, reducing the need for frequent maintenance.

Wi-Fi 6 AP with External Antenna Connectors – Customizable Outdoor Coverage

The Cisco Meraki MR76 supports external antenna connectors, allowing businesses to customize their wireless coverage. By pairing the MR76 with directional or omnidirectional antennas, network administrators can tailor the coverage area to match specific deployment needs. This makes it suitable for areas that require targeted Wi-Fi coverage, such as long walkways, stadium seating, or expansive warehouse yards. The ability to customize antenna placement provides superior coverage, improved performance, and efficient bandwidth distribution for outdoor users.

Weatherproof Wireless Access Point – Reliable Wi-Fi in Any Environment

The Meraki MR76-HW is a weatherproof wireless access point designed to operate in extreme weather conditions. With an IP67-rated enclosure, it can withstand rain, dust, and extreme heat or cold. This durability makes it perfect for outdoor deployments, where unpredictable weather can impact network reliability. The rugged design ensures continuous connectivity for public Wi-Fi, smart city networks, transportation hubs, and outdoor campuses. The weatherproof build reduces maintenance costs, as the access point remains operational even in challenging outdoor environments.

Technical Specifications

General
Model: MR76
Part Number: MR76-HW
Product Name: Cisco Meraki MR76 Wi-Fi 6 Outdoor Access Point
Manufacturer: Cisco Meraki
Product Type: Enterprise Outdoor Wireless Access Point
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)
Wi-Fi Certification: Wi-Fi 6 Certified
Radio Architecture: Dual-Band Concurrent 2x2:2 MU-MIMO
Antenna Type: External Antenna Connectors
Deployment Type: Outdoor Enterprise WLAN
Management Platform: Meraki Dashboard Cloud Management
Target Environment: Outdoor Campus, Warehouses, Industrial Sites, Schools, Hospitality, Retail, Public Venues
Ingress Protection Rating: IP67
Warranty: Limited Lifetime Warranty

Wireless Specifications
Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
Backward Compatibility: IEEE 802.11a/b/g/n/ac Wave 2
Frequency Bands: 2.4 GHz and 5 GHz
Radio Configuration: Dual-Band Concurrent
Spatial Streams: 2x2:2 MU-MIMO
Maximum Aggregate Throughput: Up to 1.77 Gbps
2.4 GHz Data Rate: Up to 574 Mbps
5 GHz Data Rate: Up to 1.2 Gbps
Maximum Concurrent Clients: Enterprise-Class Support
Channel Width Support: 20 MHz, 40 MHz, 80 MHz
Modulation: Up to 1024-QAM
OFDMA: Supported
MU-MIMO: Supported
Target Wake Time (TWT): Supported
BSS Coloring: Supported
Beamforming: Supported
Band Steering: Supported
Load Balancing: Supported
Airtime Fairness: Supported

Antenna Specifications
Antenna Type: External Antenna Design
Antenna Connectors: N-Type Female Connectors
Supported Antennas:
• Omni-Directional Antennas
• Directional Antennas
• Sector Antennas
• Patch Antennas

Custom RF Coverage Design: Supported
Long Distance Coverage: Supported
Outdoor Point-to-Multipoint Deployments: Supported
High Ceiling Deployment Support: Supported

RF & Wireless Optimization
Automatic RF Optimization: Supported
Automatic Channel Selection: Supported
Automatic Power Adjustment: Supported
RF Spectrum Analysis: Supported
Interference Detection: Supported
Coverage Optimization: Supported
Fast Roaming: Supported
Client Balancing: Supported
Air Marshal Wireless Protection: Supported

Security Features
WPA2-Personal: Supported
WPA2-Enterprise: Supported
WPA3-Personal: Supported
WPA3-Enterprise: Supported
802.1X Authentication: Supported
RADIUS Authentication: Supported
Identity-Based Policies: Supported
Layer 7 Firewall Rules: Supported
Guest Isolation: Supported
Air Marshal Rogue AP Detection: Supported
Secure Management Access: Supported

Network Features
IPv4 Support: Supported
IPv6 Support: Supported
VLAN Tagging: Supported
Guest Networking: Supported
Captive Portal: Supported
Layer 7 Application Visibility: Supported
Traffic Shaping: Supported
Quality of Service (QoS): Supported
Voice Optimization: Supported
Video Optimization: Supported
Mesh Networking: Supported
Client Load Balancing: Supported

Bluetooth & Location Services
Bluetooth Low Energy (BLE): Integrated
BLE Version: Bluetooth 5.0
Beacon Support: Supported
Asset Tracking: Supported
Location Analytics: Supported
IoT Connectivity: Supported
Meraki Location Services: Supported

Wired Connectivity
Network Ports:
• 1 x 2.5 Gigabit Multigigabit Ethernet Port

Ethernet Standards:
• 100 Mbps
• 1 Gigabit Ethernet
• 2.5 Gigabit Ethernet

Power over Ethernet: IEEE 802.3at PoE+
USB Port: 1 x USB 2.0

Power Specifications
Power Input: IEEE 802.3at PoE+
External Power Adapter: Optional
Maximum Power Consumption: Approximately 18W
Power Saving Features: Supported
Energy Efficient Design: Supported

Cloud Management Features
Meraki Dashboard Management: Supported
Cloud-Based Configuration: Supported
Zero-Touch Provisioning: Supported
Remote Monitoring: Supported
Centralized Policy Management: Supported
Automatic Firmware Updates: Supported
Real-Time Analytics: Supported
Client Analytics: Supported
Application Analytics: Supported
Remote Troubleshooting: Supported
Event Logging: Supported

Environmental Specifications
Ingress Protection Rating: IP67
Weather Resistance: Outdoor Rated
Dust Protection: Complete Dust Protection
Water Resistance: Protected Against Temporary Immersion
Operating Temperature: -40°C to 65°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 5% to 95% Non-Condensing

Voice & Collaboration Optimization
Microsoft Teams Optimization: Supported
Zoom Optimization: Supported
Cisco Webex Optimization: Supported
Wi-Fi Multimedia (WMM): Supported
Voice Prioritization: Supported
Video Prioritization: Supported
Low-Latency Communications: Supported
Fast Roaming for Voice Devices: Supported

Design & Construction
Color: White
Form Factor: Outdoor Access Point
Mounting Type: Pole Mount, Wall Mount
Enclosure Material: Industrial-Grade Weatherproof Housing
Deployment Location: Outdoor Use
Industrial Design: Supported
UV Resistant Enclosure: Supported
Corrosion Resistant Design: Supported

Physical Specifications
Dimensions: Approximately 280 mm x 240 mm x 70 mm
Weight: Approximately 1.8 kg
Color: White
External Antennas Included: No (Sold Separately)
Mounting Options: Pole and Wall Mount

Package Contents
Cisco Meraki MR76 Outdoor Access Point
Mounting Hardware
Quick Start Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Outdoor Access Point
2x2:2 MU-MIMO Architecture
Up to 1.77 Gbps Aggregate Throughput
IP67 Weatherproof Design
External Antenna Connectivity
2.5 Gigabit Ethernet Uplink
Integrated Bluetooth 5.0 BLE Radio
Meraki Dashboard Cloud Management
Air Marshal Wireless Security
WPA3 Enterprise Security
Zero-Touch Deployment
Enterprise Analytics and Monitoring

Performance & Features
Designed for outdoor enterprise wireless deployments requiring reliable connectivity in challenging environmental conditions.
Supports Wi-Fi 6 technologies including OFDMA, MU-MIMO, BSS Coloring, and Target Wake Time for improved efficiency and capacity.
External antenna architecture provides flexible coverage design for campuses, outdoor venues, warehouses, and industrial facilities.
Cloud-managed through the Meraki Dashboard, enabling centralized deployment, monitoring, troubleshooting, and firmware management.
Integrated Bluetooth radio supports asset tracking, location analytics, and IoT applications without additional infrastructure.
IP67-rated enclosure ensures reliable operation in rain, dust, humidity, and extreme temperatures.

Typical Use Cases
Outdoor Campus Networks
School Campuses
University Grounds
Industrial Facilities
Warehouses and Logistics Centres
Outdoor Hospitality Areas
Resorts and Hotels
Retail Complexes
Public Parks
Stadiums and Sports Facilities
Transportation Hubs
Manufacturing Sites
Outdoor Event Venues
Municipal Wi-Fi Deployments
Smart City Applications
Enterprise Outdoor Wireless Networks
Asset Tracking Deployments
Business-Critical Outdoor Connectivity Applications
